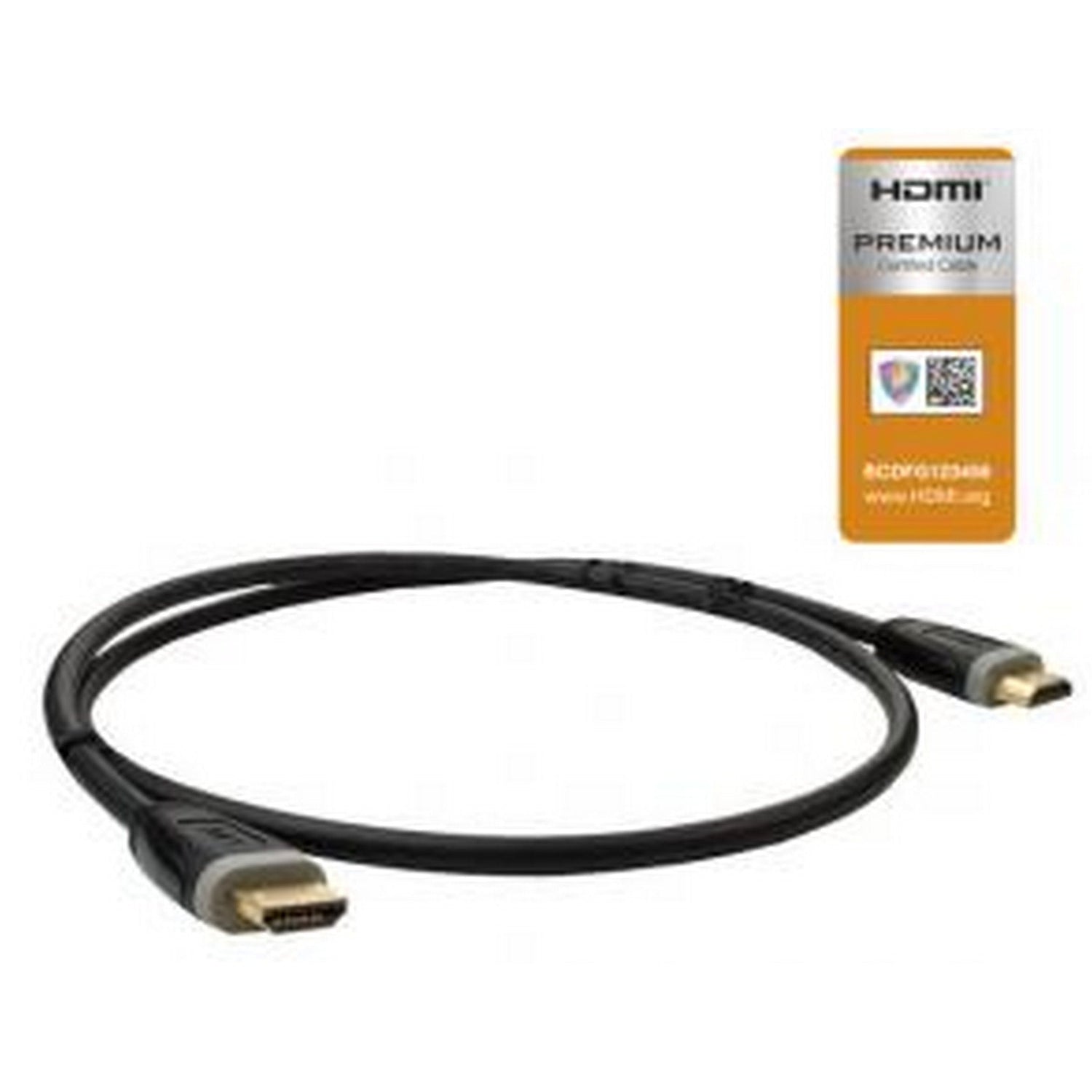

Liberty AV HDPMMF HDMI Premium Certified Cable Assembly

The Liberty AV HDPMMF HDMI Premium Certified Cable Assembly series comprises HDMI Premium® cables that are fully ATC certified. These cables adhere to the latest HDMI specification for 18G applications, supporting 4K resolution at 60Hz with complete Chroma sampling at 4:4:4 ratio and High Dynamic Range (HDR) capability. They meet all necessary HDMI standards for seamless signal transmission, ensuring full compliance with the new Premium certification regulations. Constructed with 30 AWG tinned annealed copper conductors on shielded TMDS pairs, these cables boast robust dual shielding with a comprehensive foil shield and an 85% coverage braided shield.

Unlike many alternatives, the connectors exhibit full shielding over solder joints rather than a drain wire beneath a pre-mold, ensuring end-to-end protection. Additionally, all contact surfaces are gold plated to enhance conductivity, durability, and resistance to tarnishing. Featuring high retention connectors that increase the standard HDMI holding force by up to 10 lbs, these cables offer a secure connection. The non-glossy extra flexible PVC jacketing provides enhanced flexibility, ideal for bending and routing in residential and light commercial settings.

Cable lengths ranging from 3 to 10 feet are passive with no equalization chipsets or directional requirements. Moreover, these HDMI Premium® cables hold UL ratings for CMG and Canadian CMG FT4 on the bulk cable, making them suitable for concealed installations according to the National Electric Code®. Furthermore, the product complies with the EU RoHS-2 2011/65/EU standard, ensuring environmental responsibility and safety.

Note: Images shown may not reflect actual length of cable. Please refer to Technical Specifications for exact cable variant length.

Key Features

• Certified for full 18G HDMI Premium

• Holds Full ATC Certification

• Equipped with high retention HDMI plugs

• Approved by UL/CSA for in-wall use

• Available in convenient cable lengths

• Suitable for residential audio/video setups

• Ideal for commercial audio/video installations

• Perfect for concealed (in-wall) installs

• Designed for fixed installations

• Versatile for various audio/video applications

Technical Specifications

I/O Connections
HDMI
Male HDMI Type A connector

HDMI Supported Video, Audio and Ethernet
HDMI Maximum Video Compatibility
4K@60Hz 4:4:4 up to 10 feet, HDR Support
Video Compliance
HDMI, HDCP, and CEC (Consumer Electronics Control)
Embedded Audio
Up to 32 Audio Channels and up to 1536 KHz Audio Sampling
Minimum Bandwidth
18.0 Gbps
Ethernet
100 Mbps

Cable Construction
HDMI Connector Features
HDMI “A” Male with up to 10 lbs high retention feature, gold plated
HDMI Molded Hood Construction
Metal RF Clamshell with pre‐mold strain relief and copper RF shield
Over mold is two phase black with a gray nose
HDMI Molded Hood Dimensions
20.1x34x10.0mm
Jacket Material
Flexible Flame rated PVC with a matte black finish
Cable Construction
30 AWG Tinned Copper TMDS pairs, triple shielding shroud to shroud
Overall Cable Size
0.236” | 6.0mm
Minimum Bend Radius
2.36” | 60mm
Maximum Tensile Load
22Lbs | 10Kg
Available Cable Lengths
1.0, 2.0, and 3.0 meters

Environmental Requirements
Operating Temperature
0° to +75° C (+32° to +167° F)
Operating Humidity
20% to 85%, Non‐condensing
Storage Temperature
‐20° to +80° C (0° to +176° F)

Power and Regulatory
Regulatory
NEC CMG, CEC CMG FT4, EU RoHS‐2 2011/65/EU Compliant
HDMI
HDMI Premium Certified
