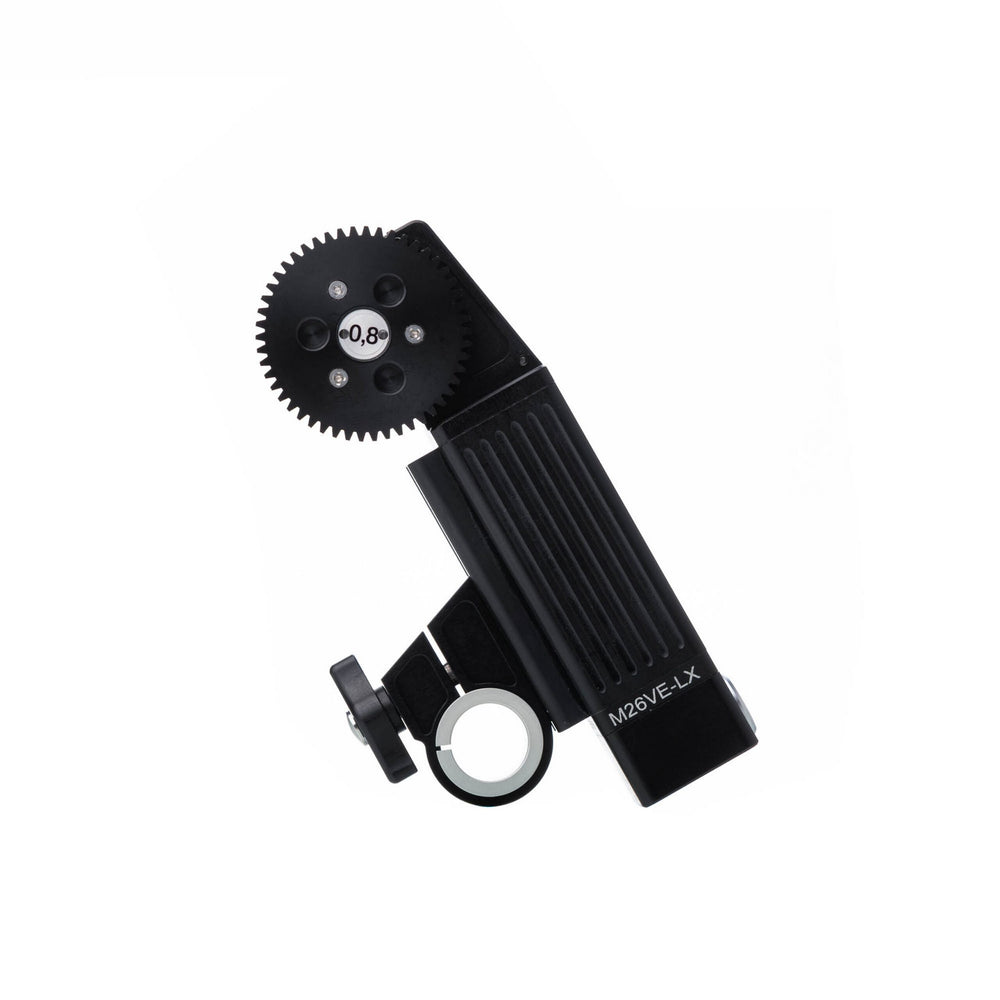

Heden M26VE-LX 256-5.6K Motor with Dual Pin Hub
The Hedén M26VE-LX 256 has been upgraded and comes now with dual pin hub, together with a snap on gear with dual pin lock mechanism, to make it even more reliable. The M26VE motor is a strong, reliable and silent lens control motor for professional film or broadcasting cameras. With a torque of 1.8 newton meters, it can pull stiff lenses without causing unnecessary noise pollution. Small size and light weight make it ideal for cramped environments on a busy camera rig. Mounts vertically on a 19 mm (0.75”) rod without the need of tools. The accompanying bracket reduction insert will fit on a 15 mm (0.59”) rod and additional sizes are available in our accessories section. Interchangeable snap on gears, that can be mounted on either side of the gear housing, adds to the versatility of the Hedén motors. Supplied with a 0.8 gear module and with 0.4, 0.5, 0.6 modules available as extras. Comes with a variety of encoders and resistors to suit your need.
Key Features
- Works with Heden Carat, Ymer and Preston
Technical Specifications
Height: (body)
33mm/1.3” (body with gear housing): 42mm/1.65”
Width
26mm/1.02”
Length
122mm/4.8”
Weight
(Without bracket and gears): 222gr/7.83 oz
Connector
LEMO 7 pin connector
Includes
Hedén M26VE-LX Motor
0.8 snap on gear module with dual pin lock mechanism
Bracket with 19mm to 15mm (0.75” to 0.59”) reduction insert
