Heden Ymer-3 Base Package with Wireless F/I/Z and LenSaver Calibration

Heden Ymer-3 Base Package with Wireless F/I/Z and LenSaver Calibration

The Hedén Ymer-3 is a high-end wireless control system for Focus / Iris / Zoom that has been designed to be dependable. As you would expect from a Hedén product the motors and the motor control are very precise and direct with no lag.

Key Features

• LenSaver manual calibration, a much safer and easier way of manually calibrating.
• Manual override that makes it possible for an operator to take manual control of the lens without removing the motor or recalibrating the system.
• Lens mapping on focus, makes lens changes quick and easy.
• Mounting points on the transmitter makes it easy to attach other devices.
• The motor control is very accurate and with the new Hedén motors M26VE-LX and LM30 the response and top speed is extremely fast, all in a small package and with high torque.
• Lensmapping on focus and initially in feet.
• The wireless transmission uses a very robust automatic frequency hopping technology without the need to set, and change channels manually. The range is up to 500 meters /1600 feet, line of sight.
• Independent 3-channel F / I / Z control
• Lens mapping function on focus, makes it quick to change lenses. (Full functionality will be available with firmware update 2020)
• Large OLED display with great readability
• Manual Override - the DP or Camera Operator can take manual control of the lens from the focus puller
• Small 3-channel receiver
• Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any follow focus system on the market
• Easily replaceable standard Sony battery with long operational life (not included)

Technical Specifications

(YMER-3 Hand unit)
Length (ex-antenna)
174mm / 6 7/8” (incl. antenna): 205mm / 8 1/16”
Width
(Incl focus knob) 136mm / 5 3/8”
Weight
603g / 1.33lb (without battery)
Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market.
Power source: Sony NP-FM500H compatible battery (not included)
(VLC-3 Receiver motor driver)
Drives up to three digital Hedén motors
Three independent wireless channels
Length (ex-antenna)
100mm / 4”
Height
26mm / 1”
Width
61mm / 2.4”
Weight
193g / 0.42lb
Works with Hedén motors M21VE-L, M26VE, M26VE-LX, VM35 and CM55
Range
Wireless transmission up to 500 meters (1640 feet) line of sight
Power source
10-24V

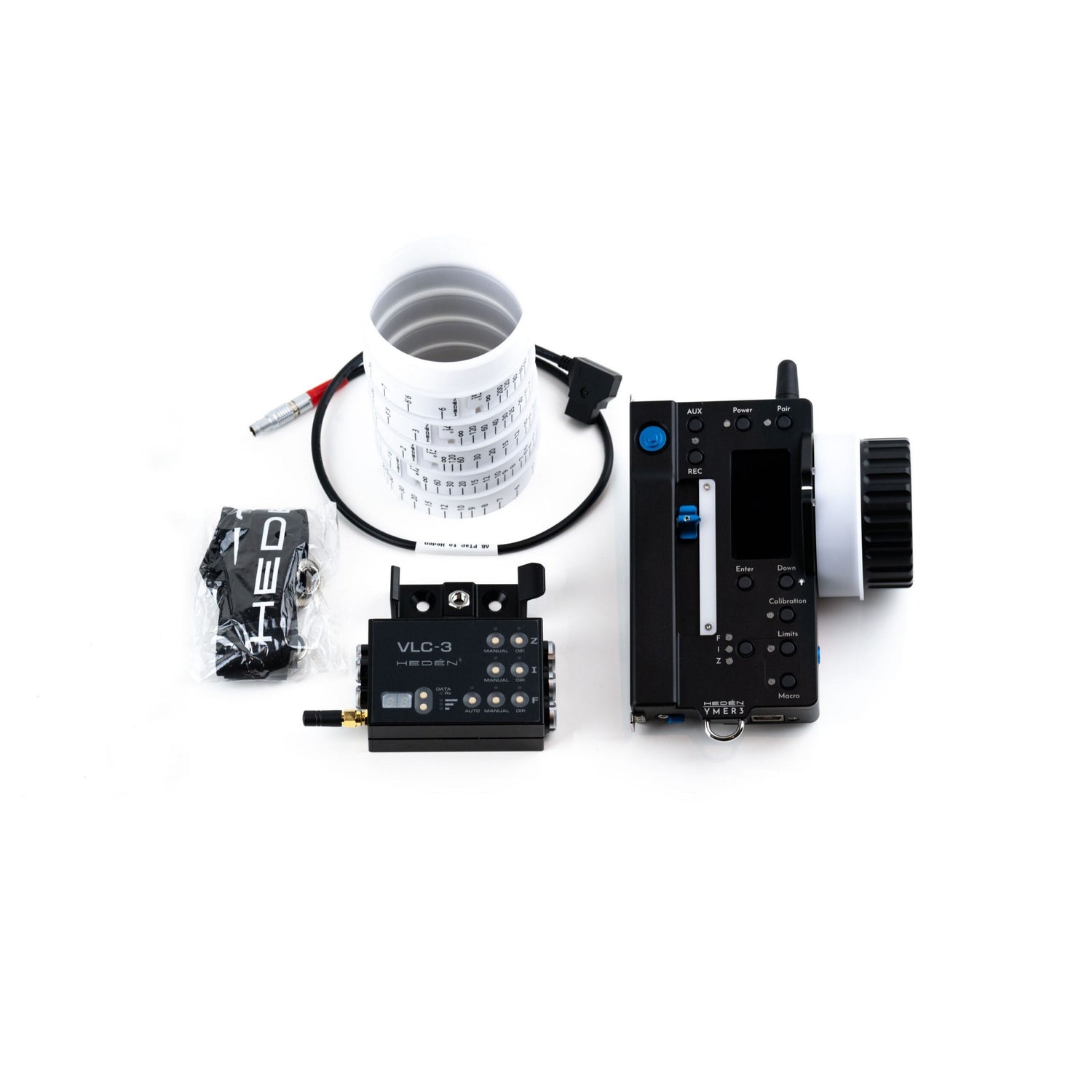

Hedén Ymer-3 base package
1 pc. Ymer-3 Hand Unit
1 pc. Ymer-3 Receiver motor driver
1 pc. Receiver mounting bracket
6 pc. Scale ring
1 pc. Power cable
1 pc. Neck strap
Packaging with space for three motors
