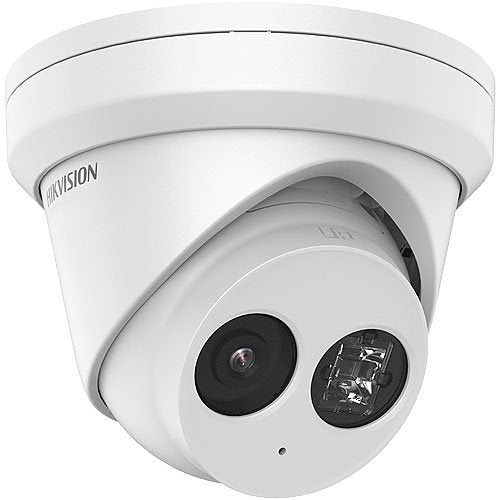

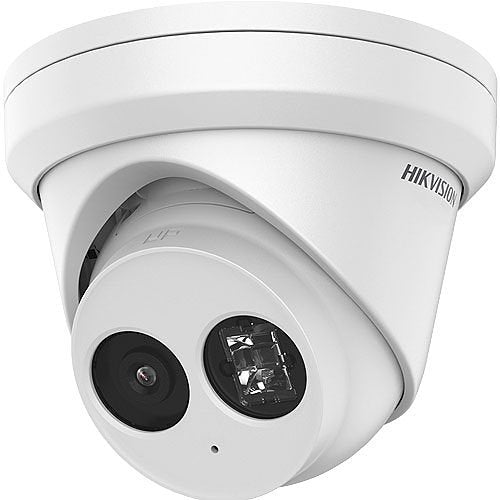

Hikvision DS-2CD2383G2-IU Value Series AcuSense 8MP Turret IP Camera with Built-In Microphone, 2.8mm Fixed Lens, White

The DS‑2CD2383G2‑I(U) delivers 4K Ultra HD video with Hikvision’s AcuSense technology, enabling deep‑learning human and vehicle classification that dramatically reduces false alarms. A 1/2.8″ progressive‑scan CMOS sensor combines with 120 dB true WDR to provide clear, detailed imagery in challenging lighting, while EXIR 2.0 infrared illuminators ensure 0‑lux performance out to 98 ft (30 m). The –U variant adds a built‑in microphone for synchronized audio recording, enhancing situational awareness.

Engineered for demanding outdoor deployments, the camera’s metal turret housing is IP67 weather‑sealed and allows full 360° pan and 75° tilt adjustment for flexible targeting. H.265+ compression minimizes bandwidth and storage requirements, while a microSD slot (up to 512 GB) supports edge recording and ANR redundancy. Power is supplied via 12 V DC or PoE, streamlining installation in new or retrofit projects.

Key Features:

• 8 MP (3840 × 2160) resolution @ 20 fps; triple‑stream
• 1/2.8″ CMOS; color 0.005 lux @ F1.6, 0 lux with IR
• 120 dB wide dynamic range; 3D DNR, BLC/HLC
• EXIR 2.0 IR range: 98 ft (30 m)
• AcuSense deep‑learning human & vehicle classification
• ‑U model: built‑in microphone for real‑time audio
• Fixed F1.6 lens: 2.8 mm (H 108°) or 4 mm (H 92°)
• H.265+/H.265/H.264+/H.264 compression
• microSD/SDHC/SDXC slot ≤ 512 GB; NAS & ANR support
• 12 V DC ± 25 % or PoE 802.3af; max 6.5 W
• IP67 metal housing; pan 0‑360°, tilt 0‑75°, rotate 0‑360°

Technical Specifications:

Image Sensor: 1/2.8″ Progressive Scan CMOS
Max Resolution: 3840 × 2160 @ 20 fps (sub‑stream 1: 1280 × 720 @ 30 fps; sub‑stream 2: 640 × 480 @ 15 fps)
Min Illumination: Color 0.005 lux @ F1.6; 0 lux with IR
Shutter Speed: 1/3 s – 1/100,000 s; slow shutter selectable
Wide Dynamic Range: 120 dB
Day/Night: IR cut filter with auto switch
IR Range: 98 ft (30 m) EXIR 2.0
Lens Options: 2.8 mm / 4 mm fixed, F1.6
Field of View: 2.8 mm H 108° × V 59° × D 127°; 4 mm H 92° × V 51° × D 109°
Angle Adjustment: Pan 0°‑360°, Tilt 0°‑75°, Rotate 0°‑360°
Video Compression: H.265, H.265+, H.264, H.264+, MJPEG
Bit‑rate: 32 Kbps – 16 Mbps (CBR/VBR)
Audio (‑U): Built‑in mic; G.711 u/A, G.722.1, G.726, MP2L2, AAC‑LC
Smart Events: Line crossing, intrusion, region entrance/exit, motion, tamper, exception; human/vehicle filter
Network Interface: 1 × RJ‑45 10/100 Mbps, ONVIF (Profile S/G/T), ISAPI, SDK
On‑board Storage: microSD/SDHC/SDXC ≤ 512 GB, ANR
Operating Temp/Humidity: ‑22 °F – 140 °F (‑30 °C – 60 °C); ≤ 95 % RH (non‑condensing)
Power: 12 V DC (0.6 A) or PoE 36‑57 V ( ≤ 0.2 A ); max 6.5 W
Ingress Protection: IP67 (IEC 60529)
Dimensions: Ø 5.0 in × 4.4 in (Ø 126 mm × 112 mm)
Weight: 1.4 lb (650 g)
Certifications: FCC Part 15 B, CE‑EMC/LVD/RoHS/REACH, UL 62368‑1, KC, RCM, ICES‑003

Package Contents:

• DS‑2CD2383G2‑I or DS‑2CD2383G2‑IU turret camera
• Mounting screws & anchors
• Waterproof RJ‑45 gland
• Drill template
• Quick start guide
