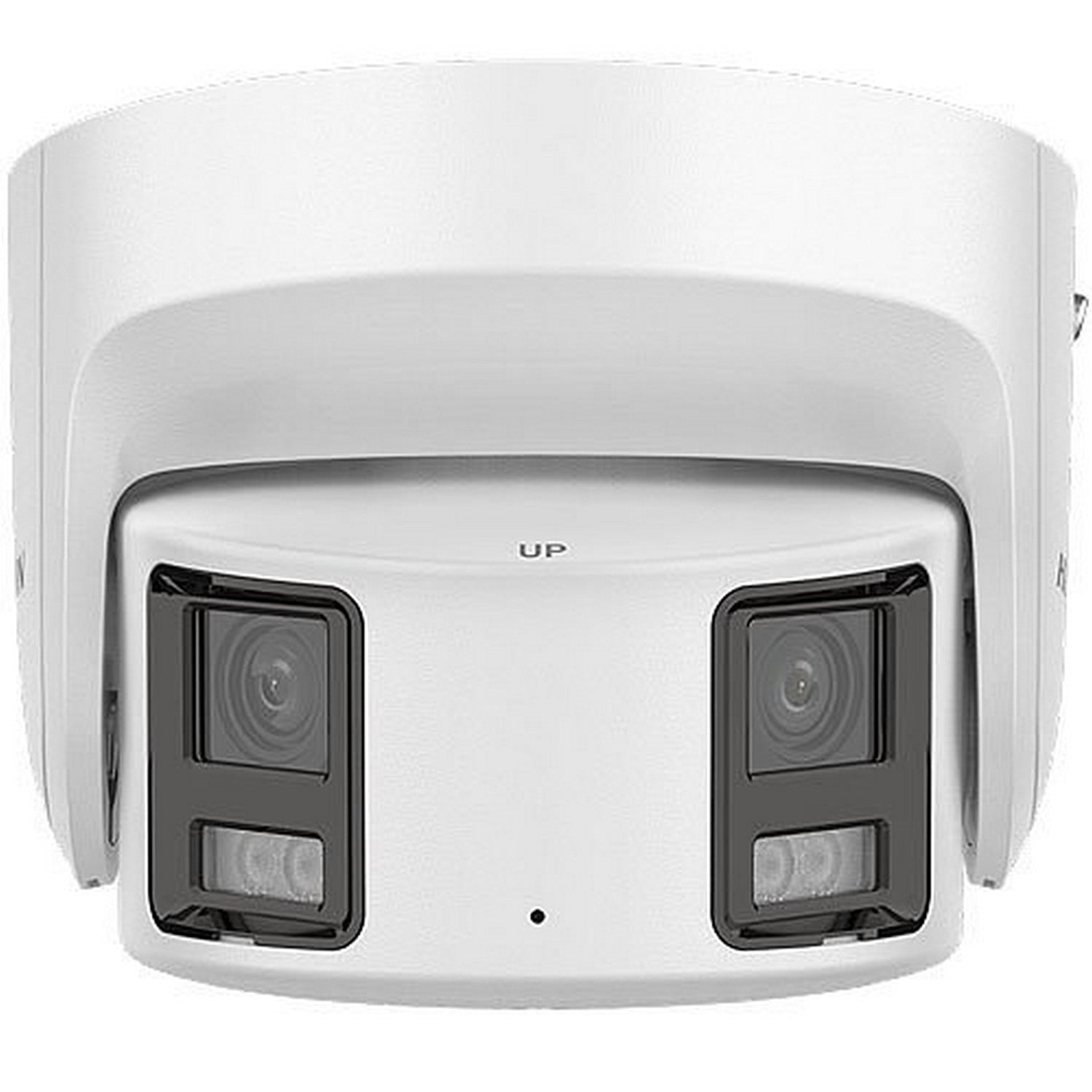

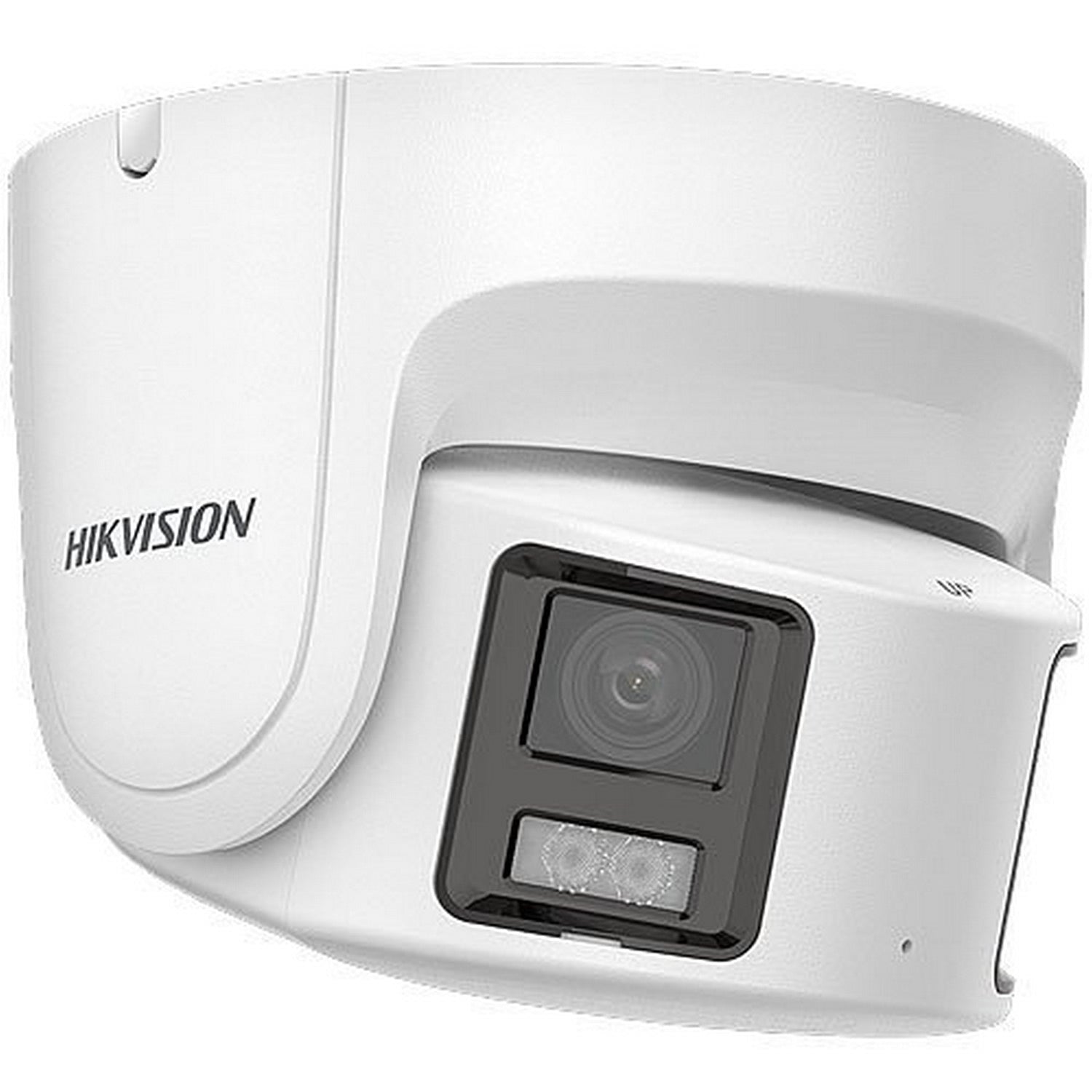

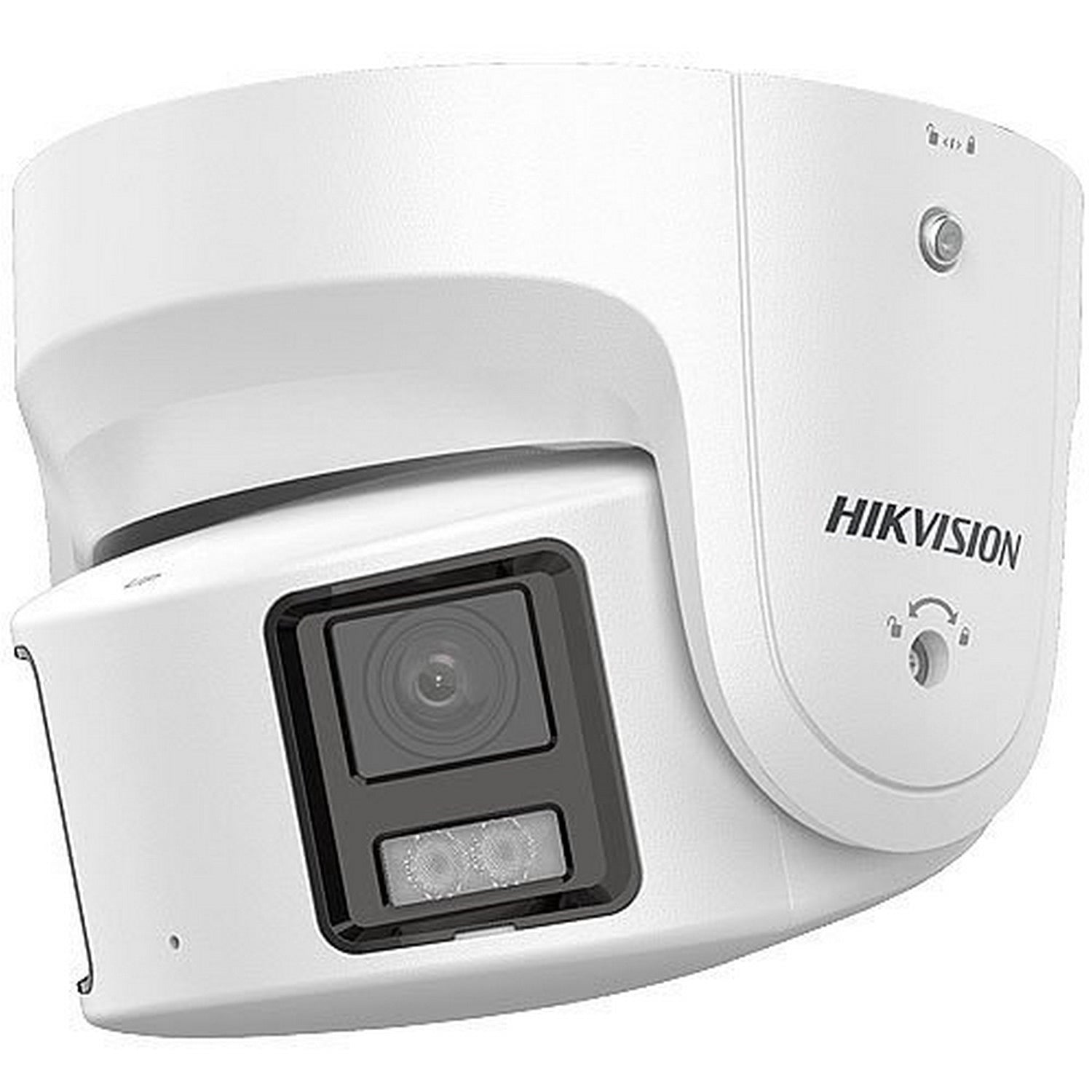

Hikvision DS-2CD2387G2P-LSU/SL Value Series ColorVu 8MP Audio Alarm and Strobe Light Panoramic Turret IP Camera, 4mm Fixed Lens, White

The DS‑2CD2387G2P‑LSU/SL delivers a seamless 180° panoramic view in a single 8‑megapixel image, eliminating blind spots that would normally require two separate cameras. Its F1.0 ColorVu lens, advanced 1/1.2″ CMOS sensor and warm supplemental LEDs capture full‑colour video around the clock, providing vivid forensic detail even in zero‑lux scenes without IR glare.

Deep‑learning analytics distinguish people and vehicles with high accuracy, triggering the built‑in strobe light and spoken warnings only when real threats are detected. With efficient H.265+ compression, 130 dB true WDR, two‑way audio, IP67 weather resistance and flexible 12 V DC/PoE power options, the camera is engineered for dependable outdoor protection while minimising bandwidth and storage costs.

Key Features:

• 8 MP (3840 × 2160) panoramic image — 180° horizontal field of view
• ColorVu F1.0 super‑aperture lens for 24/7 full‑colour imaging
• 130 dB true WDR  •  3D DNR  •  BLC/HLC for harsh lighting
• Human/vehicle classification and perimeter intrusion detection via deep learning
• Active deterrence: red/blue strobe light (1 W max) + microphone‑speaker for custom audio warnings (up to 95 dB @ 1 m)
• Two‑way audio, 1 × built‑in mic + 1 × speaker; external audio & alarm I/O (1 in/1 out)
• Smart compression: H.265+, H.265, H.264+, H.264; triple‑stream
• MicroSD/SDHC/SDXC slot up to 256 GB for edge recording
• IP67 weatherproof  •  IK08 vandal‑resistant turret housing
• PoE (802.3 af, ≤ 9 W) or 12 V DC (±25 %), < 8.5 W

Technical Specifications:

Image Sensor: 1/1.2″ progressive‑scan CMOS
Effective Pixels: 3840 (H) × 2160 (V)
Lens: 2.8 mm fixed, F1.0 • Panoramic 180° H / 95° V FOV
Min. Illumination: 0.0005 lux (F1.0, AGC on); 0 lux with warm light on
Shutter Speed: 1/3 s – 1/100 000 s
Wide Dynamic Range: 130 dB true WDR
Day/Night: 24‑hour colour (no IR cut‑filter)
Video Compression: H.265+, H.265, H.264+, H.264, MJPEG (sub‑stream only)
Max Bitrate: 16 Mb/s
Audio Compression: G.711 u / G.711 a / G.722.1 / MP2L2 / PCM
Alarm & Audio I/O: 1 in / 1 out each
Local Storage: microSD up to 256 GB, NAS (NFS/SMB), ANR
Network Interface: 1 × RJ‑45 10/100 M Ethernet, PoE (802.3 af)
Protocols: IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, RTP, RTSP, SMTP, NTP, DNS, DHCP, ONVIF (Profile S/G/T) etc.
Protection: IP67, IK08; surge 4 kV; ±25 kV ESD
Operating Temp/Humidity: ‑40 °F – 140 °F (‑40 °C – 60 °C), ≤ 95 % RH (non‑condensing)
Power Supply: 12 V DC ±25 % / PoE (36–57 V DC)
Power Consumption: < 8.5 W (IR off) / < 9 W (max, deterrent on)
Dimensions: Ø 6.02 in × 4.41 in (H) (Ø 153 mm × 112 mm)
Weight: 1.43 lb (650 g)

Package Contents:

• DS‑2CD2387G2P‑LSU/SL (C) White camera
• Mounting screws & plastic anchors
• Drill template sticker
• Waterproof RJ‑45 cable gland
• Quick‑start guide & regulatory leaflet
