Hikvision EKI-K164T414 4MP PoE Kit

The Hikvision EKI-K164T414 4MP PoE Kit is an all-in-one solution for your surveillance needs, offering high-definition video quality combined with the convenience of Power over Ethernet (PoE) technology. This comprehensive kit comes equipped with twelve 4MP turret cameras and two 4MP panoramic IR cameras that capture stunning video footage in crystal-clear detail, making it ideal for both residential and commercial applications. With its user-friendly setup, the EKI-K164T414 allows users to quickly get their surveillance systems up and running, providing peace of mind through reliable security monitoring.

Engineered for flexibility and scalability, this PoE kit not only simplifies installation but also reduces the need for additional power sources and wiring, as it utilizes a single cable to provide both data and power to each camera. The kit features a robust 16-channel network video recorder (NVR) with a 4TB hard drive that supports real-time video recording and playback, ensuring that you never miss a moment. With advanced features such as motion detection and customizable alerts, the Hikvision EKI-K164T414 enhances your security setup, allowing you to focus on what matters most.

In addition to its impressive video capabilities, this PoE kit is designed with durability in mind. Each camera is built to withstand various weather conditions, making it suitable for indoor and outdoor use. Coupled with Hikvision's cutting-edge image processing technology, the EKI-K164T414 guarantees superior performance in low-light environments, ensuring that your property is monitored around the clock.

Key Features

• 4MP resolution for clear video quality
• Power over Ethernet (PoE) for easy installation
• Real-time recording and playback capabilities
• Weather-resistant design for outdoor use
• Advanced motion detection and alert system

Technical Specifications

Specification for ECI-T24F2

Camera
Image Sensor: 1/3" progressive scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Lens Type: Fixed focal length, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°; 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
Lens Mount: M12
Iris Type: Fixed
Aperture: F2.0

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream: 50 Hz: 20 fps (2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Region of Interest (ROI): 1 fixed region for main stream

Audio
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI
User/Host: Up to 32 users. 3 levels: administrator, operator and user
Network Storage: NAS (NFS, SMB/CIFS), ANR
Client: iVMS-4200, Hik-Connect
Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+

Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch: Auto, Schedule, Day, Night
Wide Dynamic Range (WDR): 120 dB
Image Enhancement: BLC, 3D DNR

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone: Yes
Reset Key: Yes

Event
Basic Event: Motion detection, video tampering, exception
Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General
Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material: Metal & Plastic
Dimension: Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.7")
Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Approx. 469 g (1.03 lb.); With Package Weight: Approx. 705 g (1.55 lb.)

Specification for DS-2CD2346G2P-ISU/SL

Camera
Image Sensor: 2 × 1/2.5" Progressive Scan CMOS
Max. Resolution: 3040 × 1368
Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 30°, tilt: -75° to 75°

Lens
Lens Type: Fixed focal lens, dual lens, 2.8 mm
Focal Length & FOV: 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI
DORI: 2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream: 50 Hz: 25 fps (3040 × 1368); 60 Hz: 24 fps (3040 × 1368)
Sub-Stream: 50 Hz: 25 fps (1200 × 536, 960 × 432); 60 Hz: 24 fps (1200 × 536, 960 × 432)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream

Audio
Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
Simultaneous Live View: Up to 6 channels
API: ONVIF, ISAPI
User/Host: Up to 32 users, 3 levels: administrator, operator and user
Network Storage: NAS (NFS, SMB/CIFS)
Client: iVMS-4200, Hik-Connect
Web Browser: IE 10+, Safari, Chrome, Firefox, Edge, and Opera, plug-in free live view: Chrome 57.0+, Firefox 52.0+

Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch: Auto, Schedule, Day, Night
Wide Dynamic Range (WDR): 120 dB
Image Enhancement: BLC, 3D DNR

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone: Yes
Reset Key: Yes

Event
Basic Event: Motion detection, video tampering, exception
Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General
Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material: Metal & Plastic
Dimension: Ø 126.5 mm × 92 mm (Ø 4.9" × 3.6")
Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Approx. 430 g (0.95 lb.); With Package Weight: Approx. 680 g (1.50 lb.)

Specification – NVR Model: ERI-K216-P16 (D) for EKI-K164T414

General
Channel: 16 channels
Display: 1 HDMI, 1 VGA
Display Resolution: 3840 × 2160
Max. Input Resolution: 12 MP
Video Output: HDMI 2.0 (up to 8 MP, 60 Hz), VGA (up to 1920 × 1080)
Network Interface: 2 × RJ45 10 M/100 M self-adaptive Ethernet port
Storage Interface: 2 × SATA (up to 6 TB each)
USB: 2 × USB 2.0, 2 × USB 3.0
Power Supply: 100 to 240 VAC, 50/60 Hz
Consumption: Max. 30 W (without HDD)
Dimensions: 1U rack, 400 mm × 300 mm × 60 mm (15.7" × 11.8" × 2.4")
Weight: Approx. 3.5 kg (7.7 lb.)

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, SNMP
API: Open Network Video Interface (ONVIF), ISAPI
User/Host: Up to 32 users. 3 levels: administrator, operator, user
Network Storage: NAS (NFS, SMB/CIFS)
Client: iVMS-4200, Hik-Connect

Recording
Recording Modes: Manual, schedule, alarm
Playback Channels: 16 channels
Playback Resolution: Up to 12 MP
Playback Speed: 1×, 4×, 8×, 16×, 32×, 64×
Compression: H.265/H.264

Event
Event Types: Motion detection, video tampering, exception
Alarm Linkage: Notify surveillance center, send email, trigger recording

General
Power: 12 VDC ± 25%, 0.5 A, max. 6 W
Material: Metal
Weight: Approx. 3.5 kg (7.7 lb.)
Package Dimension: 480 mm × 400 mm × 100 mm (18.9" × 15.7" × 3.9")

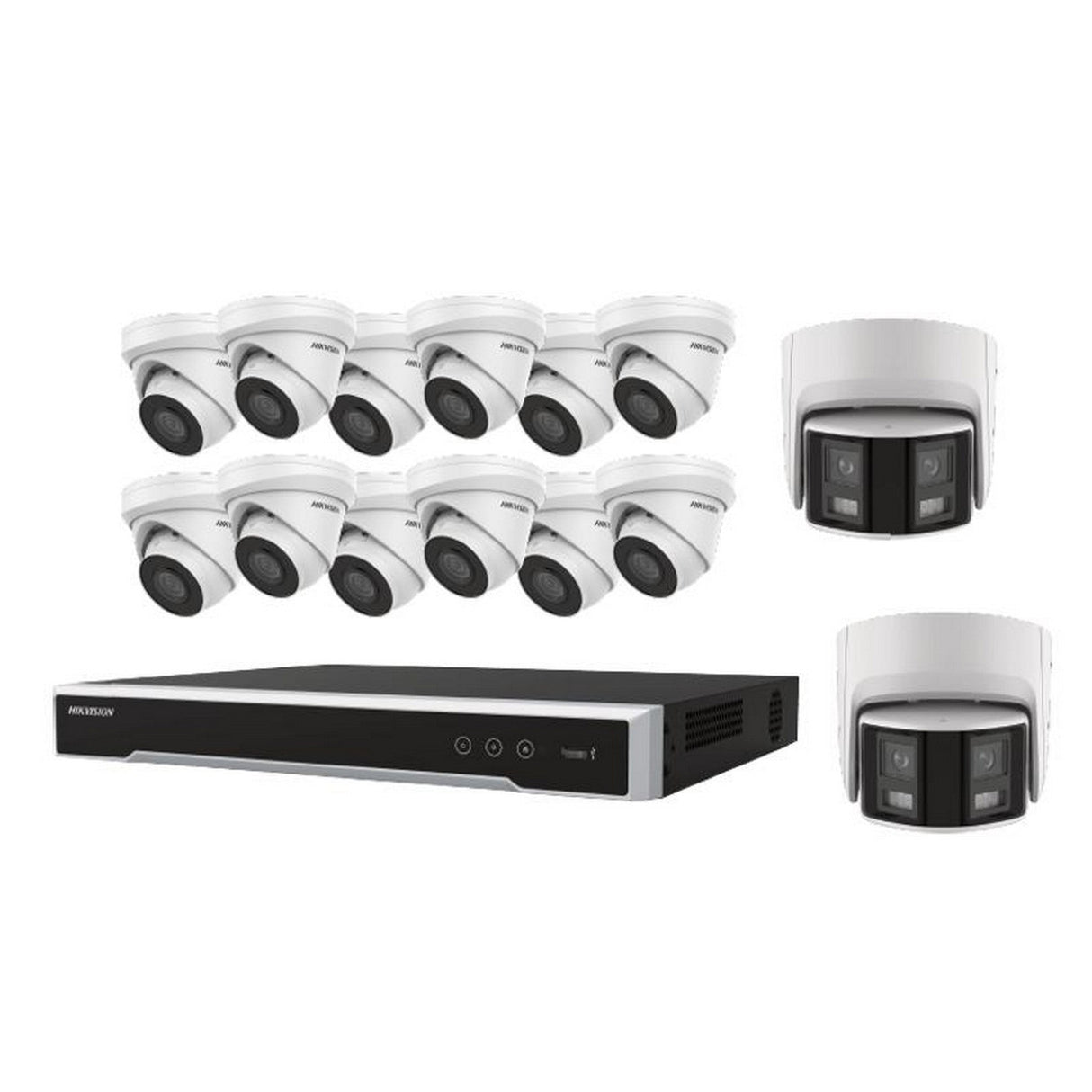

What's Included

• 4K 16-CHANNEL POE NVR ERI-K216-P16 with 4TB HDD
• 12 x 4MP IP TURRET CAMERAS ECI-T24F2 (2.8 mm)
• 2 x 4MP 180° PANORAMIC IR CAMERAS DS-2CD2346G2P-ISU/SL (2.8 mm)
