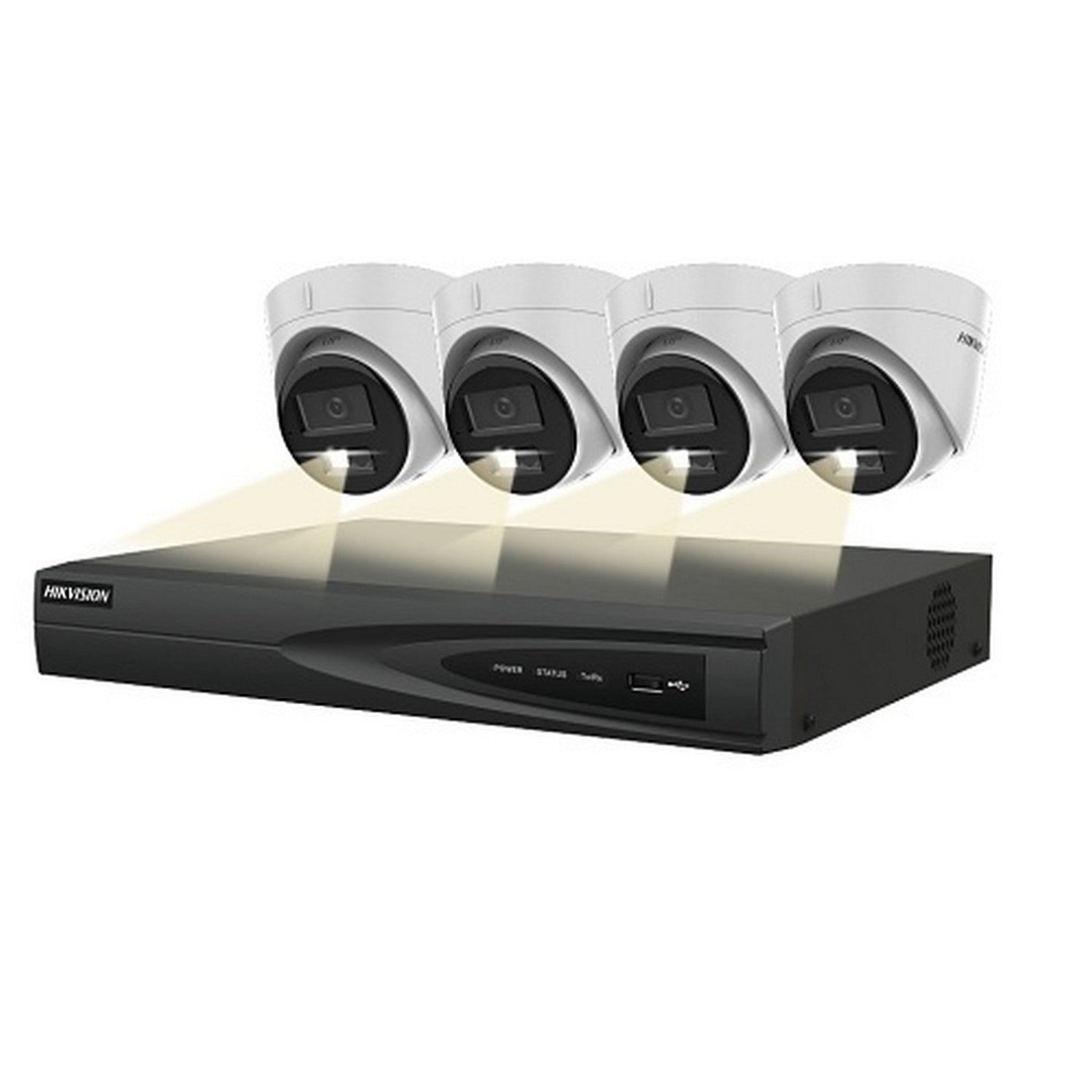

Hikvision EKI-K42T44H 4MP Turret PoE Kit, Includes 4-Channel 4K NVR, 4 x 4MP 2.8mm Turret Cameras

The Hikvision EKI‑K42T44H is an all‑in‑one IP surveillance package engineered for small to medium installations that need 24/7 4 MP video with powerful analytics and true day‑night performance. The kit pairs a 4‑channel 4 K PoE NVR—pre‑loaded with a 2 TB surveillance‑grade hard drive—with four 4 MP Smart Hybrid‑Light turret cameras. These ColorVu cameras automatically switch between IR and white‑light illumination up to 98 ft (30 m) to capture crystal‑clear, full‑color evidence even in zero‑lux scenes, while Motion Detection 2.0 uses human‑/vehicle classification to reduce false alarms.

Installation is streamlined: every camera connects with one Ethernet cable for power, video and data, and the NVR’s embedded PoE budget (≤ 50 W) auto‑configures each channel. A 4 K HDMI output lets you view native‑resolution live or recorded video on a single monitor, and remote management through Hik‑Connect or iVMS‑4200 keeps you in control from anywhere.

Key Features:

• Four 4 MP ColorVu Smart Hybrid‑Light turret cameras (DS‑2CD1343G2‑LIUF, 2.8 mm fixed lens, 2560 × 1440)
• 4‑channel 4 K NVR (ERI‑K104‑P4) with built‑in 2 TB HDD and ≤ 8 TB capacity per SATA slot
• Hybrid‑light illumination: IR + white light, automatic switching, effective range ≤ 98 ft (30 m)
• Motion Detection 2.0 with human/vehicle analytics on 1 channel
• 120 dB true WDR, 3D DNR, BLC/HLC for clear images in challenging lighting
• PoE (IEEE 802.3af/at) on all 4 ports; total PoE budget ≤ 50 W
• 4 K HDMI & 1080 p VGA simultaneous outputs
• H.265+/H.265/H.264+/H.264 video compression; 32 Kbps–8 Mbps bitrate range
• Built‑in microphone on each camera, mono audio recording
• Weatherproof IP67 metal/plastic camera housing; ‑22 °F–140 °F (‑30 °C–60 °C) operating range

Technical Specifications:

Camera Model: DS‑2CD1343G2‑LIUF (4 pcs)
Image Sensor: 1/3″ Progressive Scan CMOS
Max Resolution: 2560 × 1440 (4 MP)
Min Illumination: Color 0.005 lux @ F1.6; 0 lux with IR
Lens / FOV: 2.8 mm fixed, H 98° / V 54° / D 114°
Illumination Range: ≤ 98 ft (30 m) IR or white light
WDR: 120 dB SNR: ≥ 52 dB DORI: D 207 ft / O 82 ft / R 39 ft / I 20 ft
Video Compression: Main—H.265+/H.265/H.264+/H.264; Sub—H.265/H.264/MJPEG
Main‑Stream Frame Rate: 20 fps @ 2560 × 1440 (60 Hz)
Audio: Built‑in mic; G.711u/a, G.722.1, G.726, MP2L2, PCM, AAC‑LC
Network Protocols: TCP/IP, DHCP, DNS, HTTP, HTTPS, RTP/RTSP, NTP, IPv4/IPv6, IGMP, QoS, FTP, SMTP, SNMP, ISAPI, SDK
On‑Board Storage: microSD/microSDHC/microSDXC ≤ 512 GB
Power: 12 V DC ± 25 % (≤ 5 W) or PoE Class 3 (≤ 6.5 W)
Dimensions (Ø × H): 4.3 ″ × 3.5 ″ Weight: 0.7 lb (camera only)

NVR Model: ERI‑K104‑P4
Incoming Bandwidth: 40 Mbps Outgoing: 80 Mbps
Video Inputs: 4 IP channels Decoding Capability: 1 × 8 MP@30 fps / 3 × 4 MP@30 fps / 6 × 1080 p@30 fps
Display Outputs: HDMI 4 K (4096 × 2160 / 30 Hz) & VGA 1080 p simultaneous
Audio I/O: 1 × RCA out, 1 × RCA two‑way in/out
Storage: 1 × SATA, pre‑installed 2 TB HDD (user‑replaceable up to 8 TB)
PoE Ports: 4 × RJ‑45 10/100 Mbps, IEEE 802.3af/at, ≤ 50 W budget
USB: 2 × USB 2.0 Remote Connections: 32 users
Power Supply: 48 V DC @ 1.35 A Max Consumption: ≤ 10 W (excluding HDD & PoE)
Dimensions (W × D × H): 12.4 ″ × 9.4 ″ × 1.9 ″ Weight: ≤ 2.6 lb (no HDD)
Operating Temp: 14 °F–131 °F (‑10 °C–55 °C) Humidity: 10 %–90 %
Certifications: FCC, UL 62368‑1, CE‑EMC/LVD, IP67 (cameras)

Package Contents:

• 1 × ERI‑K104‑P4 4‑channel 4 K PoE NVR (2 TB HDD pre‑installed)
• 4 × DS‑2CD1343G2‑LIUF 4 MP Smart Hybrid‑Light turret cameras (2.8 mm)
• 4 × Ethernet patch cables
• 1 × 48 V DC power adapter for NVR
• Mounting screws & hardware
• Quick‑start guides and software CD
