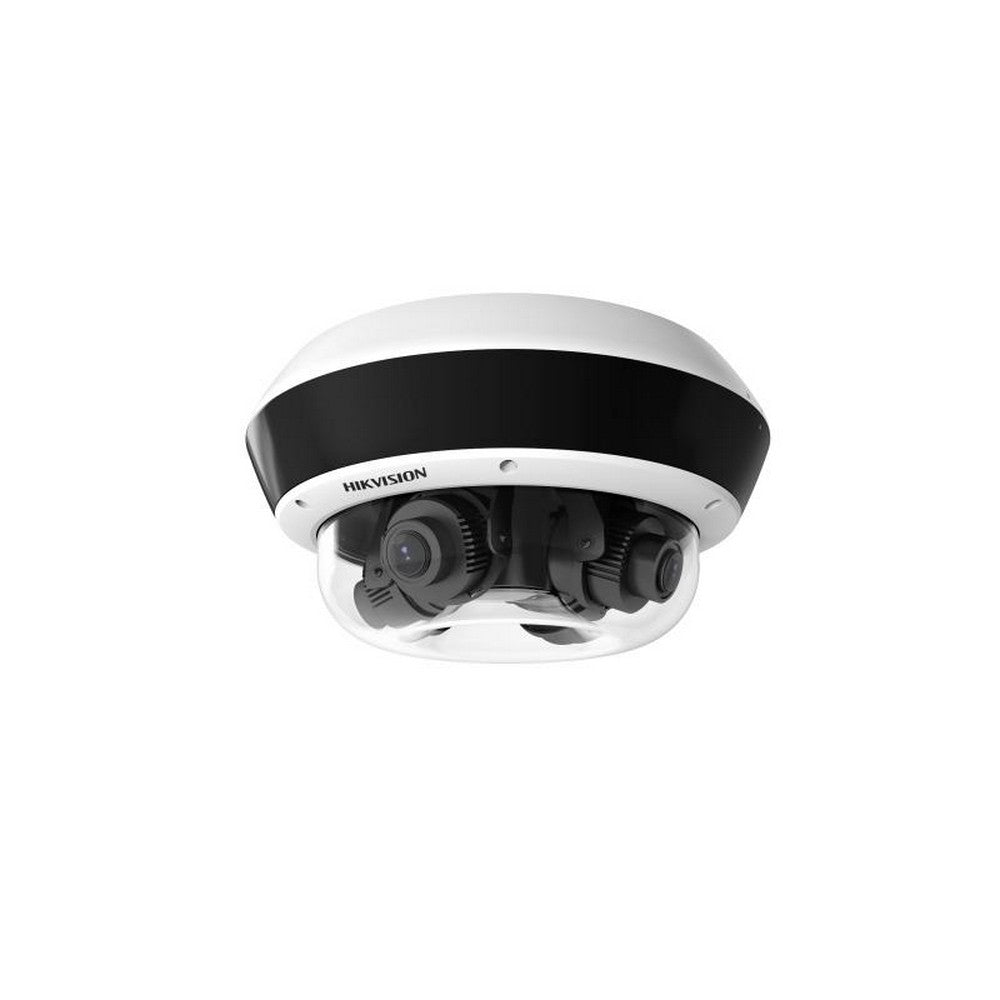

Hikvision Smart Series PanoVu 20MP Outdoor Multi-Sensor Flexible IP Camera, 2.8-12mm Lens, White

Introducing Hikvision's DS-2CD6D54FWD-(I) Z(H)(S) 20 MP H.265 EXIR PanoVu Flexible Outdoor Network Camera. This innovative camera boasts 1/2.7” progressive scan CMOS sensors and four lenses, each supporting 5 MP at 24 fps. Its H.265 compression saves on bandwidth and storage space, and the EXIR technology significantly extends the IR range to 98 feet (30 meters).

Key Features

• Progressive Scan CMOS with a size of 1/2.7”
• Resolution of 2560 x 1920 at 24 frames per second
• Four streams with a resolution of 2560 x 1920 at 24 frames per second, resulting in a total of 20 MP
• Field of View (FOV) ranges from 30° to 101° horizontally, 22.4° to 73° vertically, and 37° to 137° diagonally
• Supports video compression formats such as H.265+, H.265, H.264+, and H.264
• Features True Day/Night functionality
• Offers 120 dB Wide Dynamic Range (WDR)
• Includes 6 Behavior Analyses, 4 Exception Detections, and Face Detection capabilities

Technical Specifications

Camera
Image Sensor
1/2.7” Progressive Scan CMOS
Max. Resolution
2560 x 1920
Min. Illumination
Color: 0.006 Lux @ (F1.2, AGC ON), 0.010 Lux @ (F1.6, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON),0 Lux with IR on
Shutter Time
1 s - 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355°
Lens
Focal Length & FOV
2.8mm to 12mm, Horizontal field of view: 30° to 101°, Vertical field of view: 22.4° to 73°, Diagonal field of view: 37° to 137°
Lens Mount
Φ14
Aperture
F1.6
Illuminator
Supplement Light Type
IR
Supplement Light Range
10 m to 30 m
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (2560 x 1920, 2048 x 1536, 1920 x 1080, 1280 x 720),60 Hz: 24 fps (2560 x 1920, 2048 x 1536, 1920 x 1080,1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480),60Hz: 24fps (704 x 480, 640 x 480),
Third Stream
50 Hz: 6 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480),60 Hz: 8 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
Support
Region Of Interest (ROI)
Support 4 fixed region for each stream
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP
Simultaneous Live View
Up to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Network Storage
Micro SD/SDHC/SDXC card (128 G), local storage and NAS (NFS, SMB/CIFS), ANR
Client
iVMS-4200
Web Browser
IE8+, Chrome31-44, Firefox 30.0 - 51
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, 3D DNR, EIS
Picture Overlay
LOGO picture can be overlaid on video with 128 x 128 24bit bmp format
Interface
Ethernet Interface
1 RJ45 10 M/100 M/1000 M Ethernet port,1 RS-485 interface (-S),1 1000M FC fiber optical interface (-/NFC)
On-Board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Audio
1-ch 3.5 mm input (line in/Mic in), 1-ch 3.5mm output, dual-track, stereo
Alarm
2 inputs, 2 outputs (up to 24 VD, 1A or 110 VAC, 500mA)
Reset Key
Yes
Fiber Optical
FC interface, single mode, single fiber, 20 km transmission distance, (Tx)1310 nm/ 1.25G, (Rx)1550 nm/1.25 G
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Dimension
Ø290 mm x 145.5 mm (Ø11.42” x 5.73”)
Package Dimension
453 mm x 393 mm x 385 mm (17.8” x 15.47” x 15.16”)
Weight
4.7 kg (10.3 lb.)
With Package Weight
7.7 kg (16.8 lb.)
Startup And Operating Conditions
-30 Degrees C to 60 Degrees C (-22 Degrees F to 140 Degrees F). -H: -40 Degrees C to 60 Degrees C (-40 Degrees F to 140 Degrees F), Humidity 95% or less (non-condensing)
General Function
One-key reset, anti-flicker, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter
Approval
Protection
IP67, IK10
