HK Audio TB-45N Mounting Speaker Tilt Bracket
HK Audio TB-45N Mounting Speaker Tilt Bracket
Free Shipping
HK Audio TB-45N Mounting Speaker Tilt Bracket

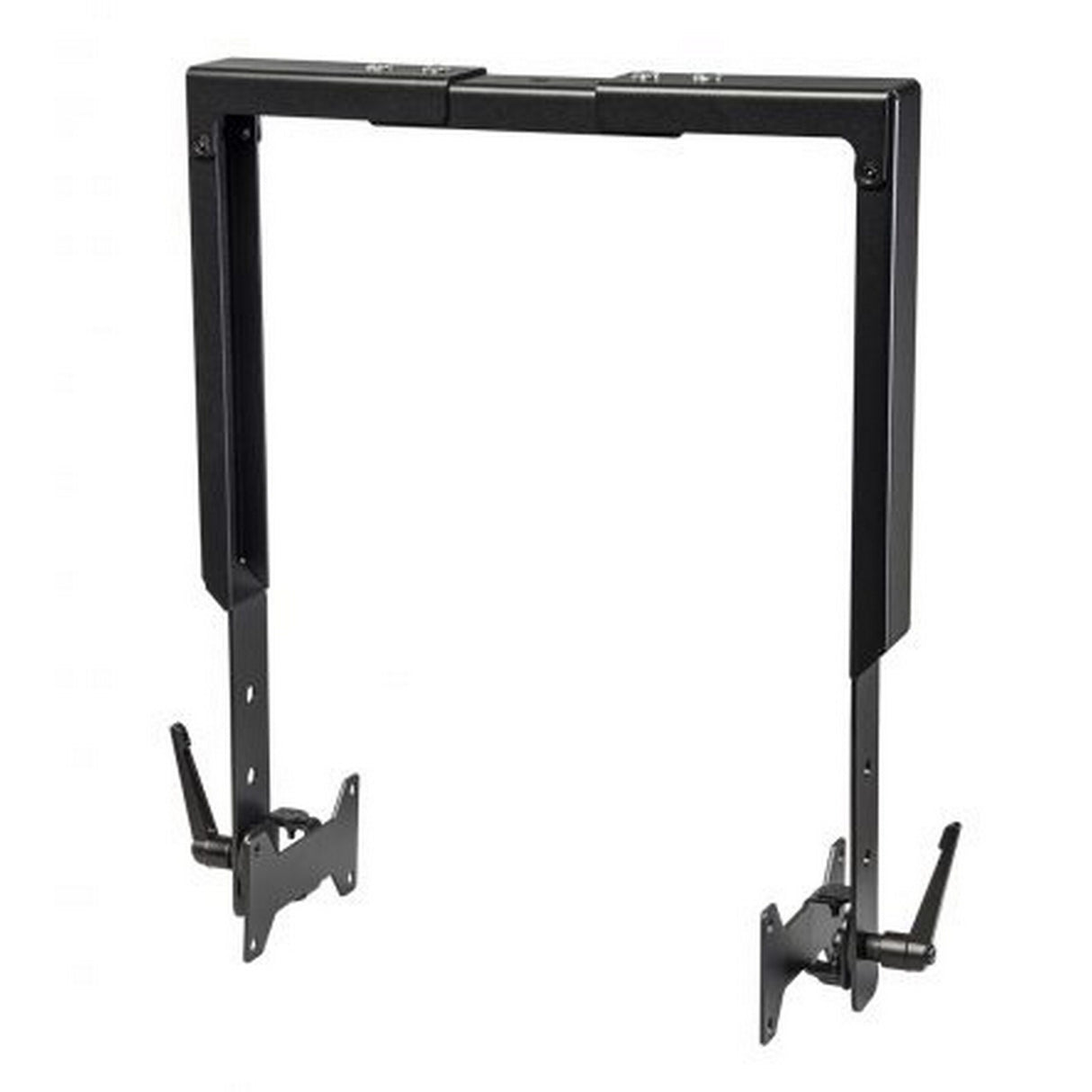

The TB-45N is a tilt bracket for mounting speaker cabinets on truss rods, ceilings, wall brackets, beams and on tripods. It is compatible with the F versions of the PREMIUM PR: O (Including PR:O 115 XD2), LINEAR 3, LINEAR 5 and LINEAR 7 speaker series. Flexible vertical and horizontal alignment is possible. The TB-45N can be loaded with up to 70 kg WLL, with a safety factor of 5. Under DGUV-V 17 (German Statutory Accident Insurance Association Regulation 17), the permissible load capacity is thus up to 35 kg.
Key Features
- Tilt bracket
- For mounting on truss rods, ceilings, wall brackets, beams and on tripods
- Made of high-strength steel
- Anti-corrosive coating
- Tool-free variable width adjustment
- Weight: 3.9 kg
- WLL: 70 kg / max. Load capacity according to DGUV-V 17: 35 kg
- Supplied as a set, consisting of 2 x TB-45N
Technical Specifications
Compatible with
PREMIUM PR:O D2: PR:O 112 FD2, PR:O 115 FD2, PR:O 115 XD2
LINEAR 3: L3 112 FA, L3 115 FA
LINEAR 5: L5 112 F, L5 112 FA, L5 115 F, L5 115 FA, L5 LTS, L5 LTS A
LINEAR 7: L7 112 FA, L7 115 FA
