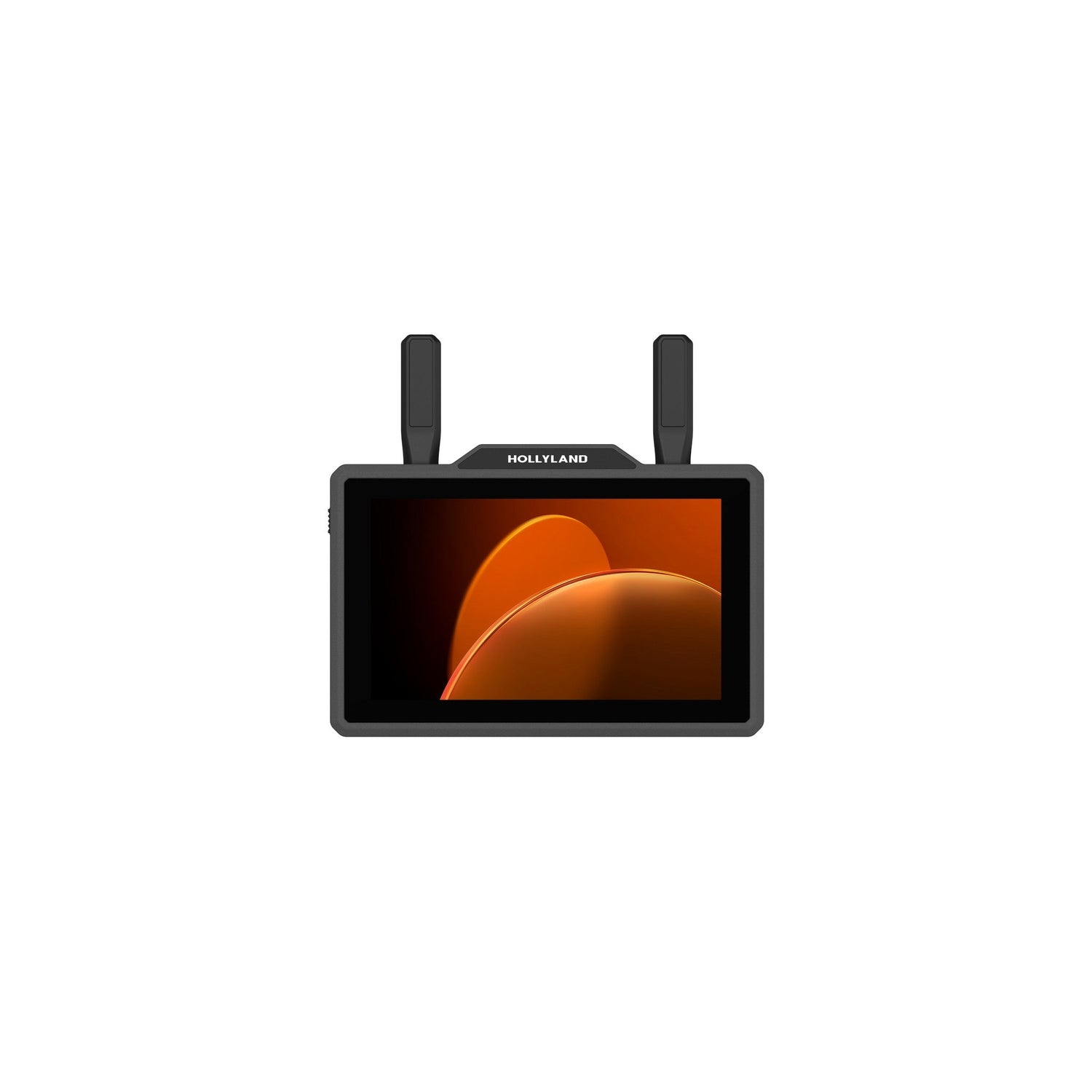

Hollyland Pyro 5 Wireless Transceiver Monitor

The Hollyland Pyro 5 Wireless Transceiver is a powerful and versatile solution designed for professional filmmakers, content creators, and live production teams. Built with cutting-edge wireless transmission technology, the Pyro 5 allows seamless video and audio transfer while maintaining ultra-low latency. Its flexible design enables it to operate both as a transmitter and a receiver, giving users maximum adaptability in dynamic production environments. With a bright, high-resolution display and robust connectivity options, this unit ensures flawless performance on set and in the field.

Featuring a brilliant 5.5″ full HD touchscreen with 1920x1080 resolution and 1,500 nits of brightness, the Pyro 5 delivers clear monitoring even under challenging outdoor conditions. Its Rec.709 color gamut and 1000:1 contrast ratio ensure accurate image reproduction, making it a reliable on-the-go monitor. The unit supports multiple input and output formats, including HDMI 1.4b and 3G-SDI, offering broad compatibility with industry-standard equipment.

Engineered for professional demands, the Pyro 5 offers robust wireless frequency support across multiple GHz ranges, along with strong transmission power and sensitivity for consistent signal performance. With power options via NPF batteries or DC input, durable SMA antennas, and professional audio-video parameters, this system ensures reliability in high-pressure shooting environments. Whether used in broadcast, film, or live streaming applications, the Hollyland Pyro 5 Wireless Transceiver elevates production efficiency while ensuring dependable, high-quality results.

Key Features

• Dual-function design – operates as both transmitter and receiver
• 5.5″ Full HD touchscreen display with 1,500 nits brightness
• Supports HDMI 1.4b and 3G-SDI input/output formats
• Ultra-low latency transmission of approximately 60ms
• Wide operating frequency range with strong connectivity
• Rec.709 color gamut and 1000:1 contrast ratio for accurate monitoring
• Multiple power input options for on-location versatility

Technical Specifications

Input Port:
Transmitter Mode: HDMI 1.4b + 3G SDI
Receiver Mode: /

Output Port:
Transmitter Mode: Loop-Out HDMI 1.4b
Receiver Mode: HDMI 1.4b

Audio-Video Parameters:
Transmitter Mode: Color Depth Capability, Input Audio Format, Output Audio Format
Receiver Mode: HDMI Input: YUV422/YUV444 8BIT, HDMI 1.4b 8-Channel

Antenna: SMA Male

Power Input: DC Input (2.0mm core socket)

Headphone Jack: 3.5mm

Upgrade Port: USB-C (USB 2.0 OTG) / SD Card Slot

Screen Size: 5.5″ Touchscreen
Screen Resolution: 1920 x 1080 Pixels
Color Gamut: Rec.709
Aspect Ratio: 16:9
Screen Brightness: 1,500 nits
Contrast Ratio: 1000:1

Power Input Voltage:
NPF: 6V~16V
DC-in: 10-18V DC

Video Processing Technology:
Transmitter Mode: Video Bitrate, Video Encoding Format
Receiver Mode: Maximum 12 Mbps, H.264

Power Consumption:
Transmitter: <14W
Receiver: <16.5W

Net Weight: ≈19oz (538g)

Dimensions: 7.1" x 5.0" x 1.8" (180 x 127 x 45.8mm)

Operating Frequency:
5.150-5.250GHz, 2.412~2.484GHz, 5.250-5.350GHz, 5.470-5.600GHz, 5.600-5.725GHz, 5.725-5.850GHz

Transmit Power: Transmitter Mode: <23dBm

Receiver Sensitivity: Receiver Mode: Unicast: -85dBm; Broadcast: -80dBm

Transmission Latency: ≈60ms (Tested in lab with 1080P60 signal)

Bandwidth: Unicast: 20 MHz, Broadcast: 40 MHz

Operating Temperature: 14°F to 113°F (-10℃ to 45℃)
Storage Temperature: -40°F to 140°F (-40℃ to 60℃)

HDMI Input: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60

HDMI Loopout/Output: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30

SDI Input: 1080p50/59.94/60 (Level A/B), 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080psf23.98/24/25/29.97/30, 720p50/59.94/60

SDI Loopout/Output: 1080p50/59.94/60 (Level A), 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080psf23.98/24, 720p50/59.94/60
