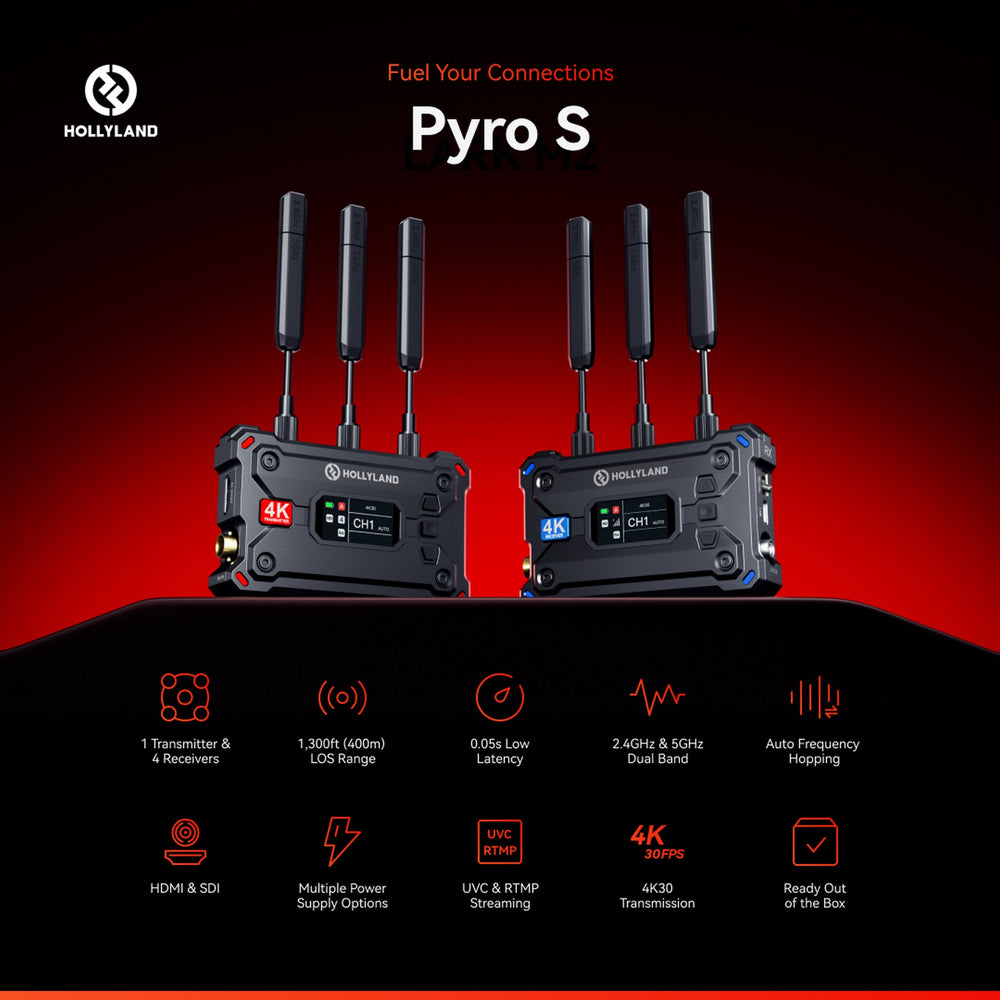

Hollyland Pyro S Wireless Video Transmission System: Unleash Your Wireless Video Transmission Potential

The Hollyland Pyro S is a revolutionary addition to the Pyro series, redefining wireless video transmission for professional filmmakers and videographers. It boasts exceptional features like:

• Connect up to 4 receivers simultaneously for multi-user monitoring.
• Transmit stunning 4K video at distances up to 1,300ft (400m) with minimal latency.
• Experience reliable transmission with innovative Auto Dual-Band Hopping (ADH) technology.
• Choose between Smooth Mode for ultra-low latency or HD Mode for pristine image quality.
• Enjoy unmatched portability and durability with a lightweight magnesium alloy shell.

Key Features

• 1 Transmitter to 4 Receivers
• Up to 1,300ft (400m) Transmission Range
• Ultra-Low Latency: As low as 50ms

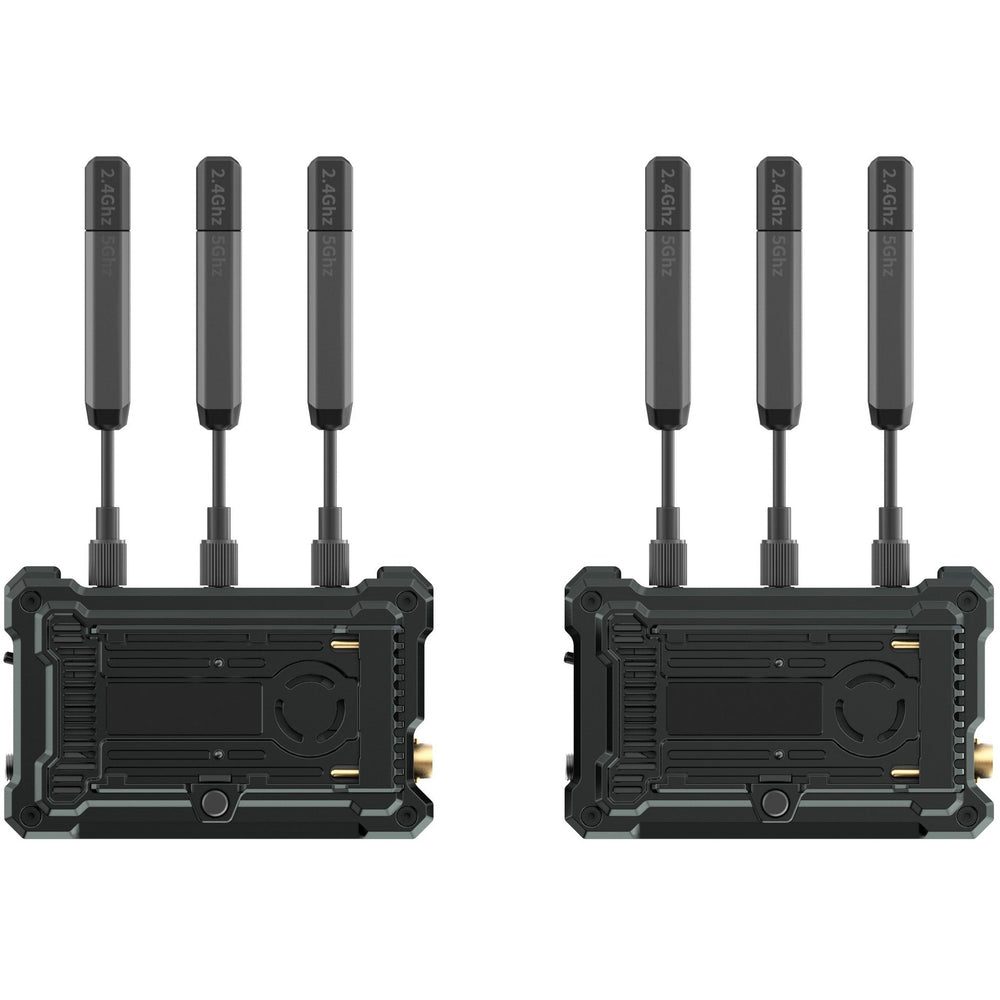

• 2.4 GHz & 5 GHz Dual Band for Reliable Signal Transmission
• Auto Frequency Hopping for Uninterrupted Connection
• HDMI & SDI Input/Output for Compatibility with Various Devices
• Multiple Power Supply Options for Extended Use

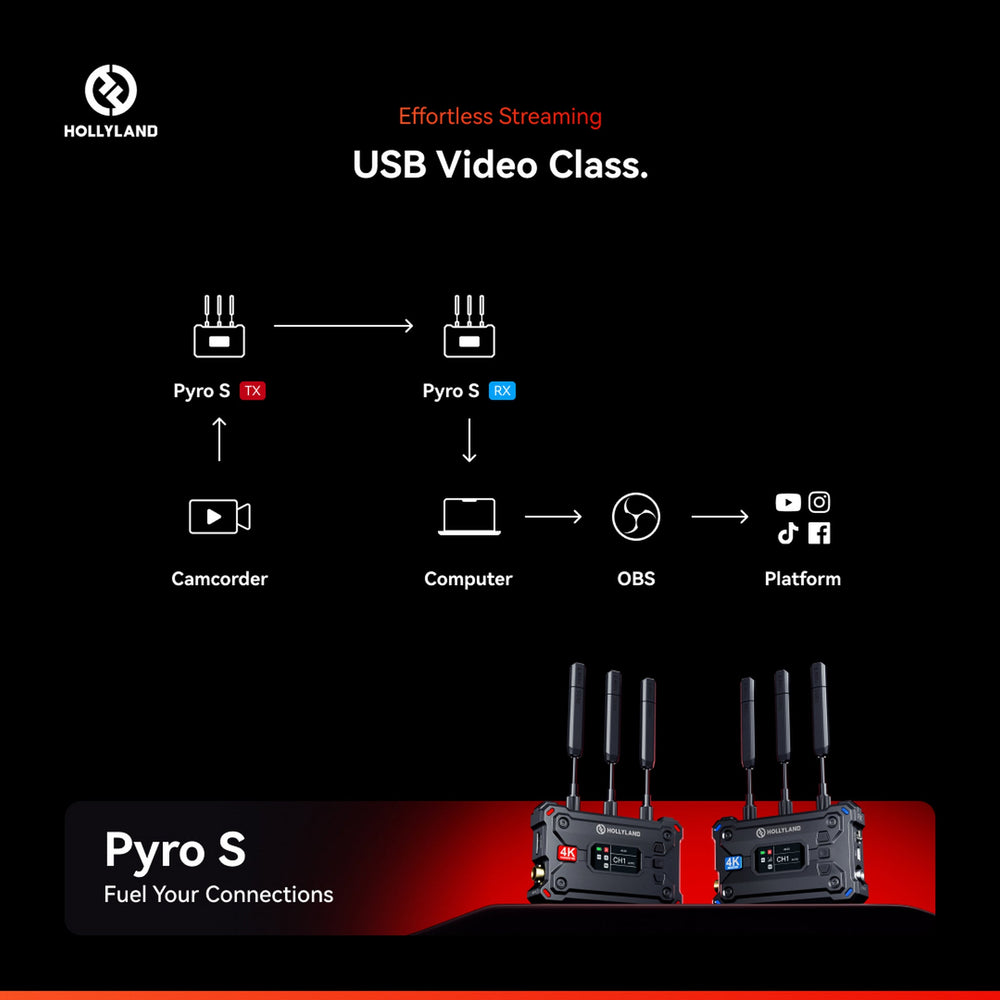

• UVC Streaming: Plug-and-play for computers without capture cards
• 4K30 Transmission for Professional-Grade Video Quality
• Ready Out of the Box: Easy setup for immediate use

Tech Specs

Transmitter

• Power Consumption: < 11W
• Net Weight: 207g
• Dimensions: L x W x H: 112 x 71.2 x 34.1mm (4.4 x 2.8 x 1.3in.)
• Operating Frequency: —
• Transmit Power: < 23 dBm
• Latency: as low as 50ms
• Bandwidth: 20 MHz (Broadcast: 40 MHz)

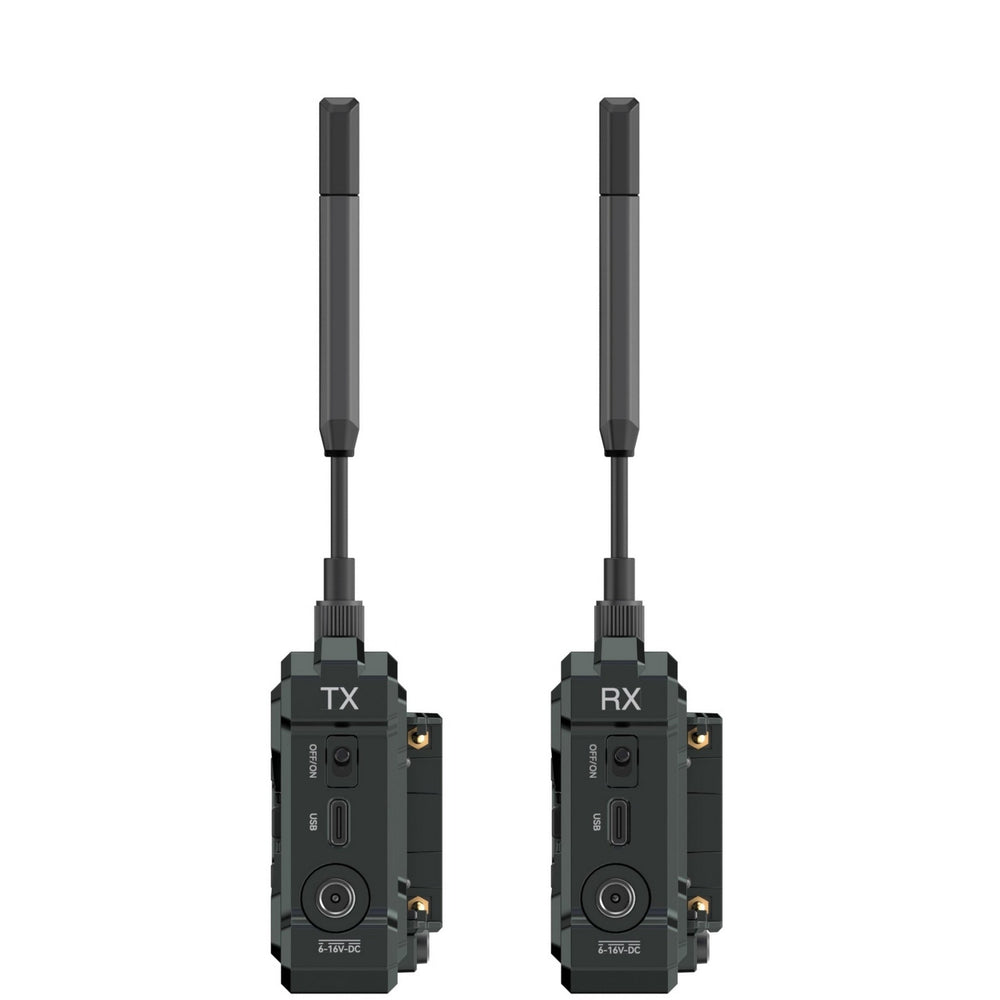

• Power Supply: DC Input: 2.0mm Core Socket

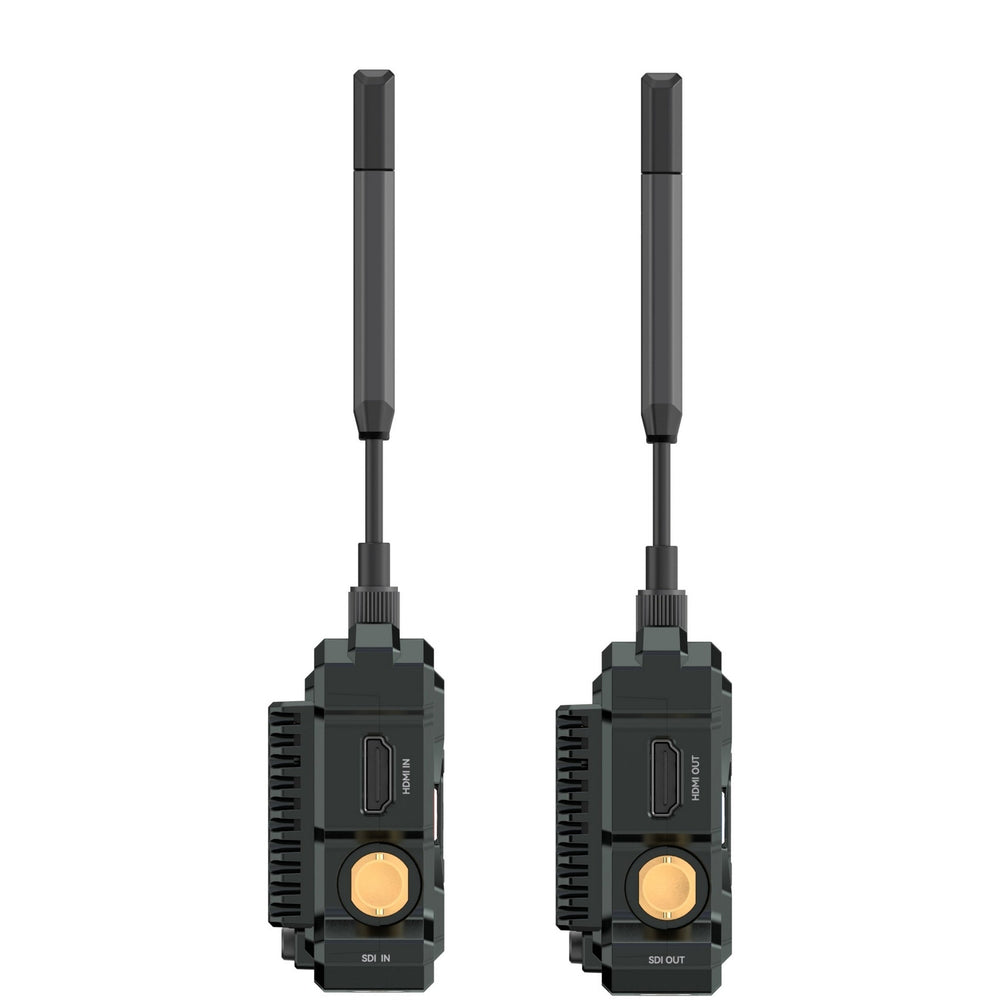

• Inputs: HDMI Input: HDMI 1.4b, SDI Input: 3G SDI, USB-C: USB 2.0 OTG, Antenna: SMA Male
• Battery Voltage Range: 6.8 - 8.4V
• DC Voltage Range: 6 - 16V

Receiver

• Power Consumption: < 8W
• Net Weight: 207g
• Dimensions: L x W x H: 112 x 71.2 x 34.1mm (4.4 x 2.8 x 1.3in.)
• Operating Frequency: 2.4 GHz & 5 GHz
• Receiver Sensitivity: -85 dBm (Broadcast: -80 dBm)
• Latency: as low as 50ms
• Bandwidth: 20 MHz (Broadcast: 40 MHz)
• Power Supply: DC Input: 2.0mm Core Socket
• Outputs: HDMI Output: HDMI 1.4b, SDI Output: 3G SDI, USB-C: USB 2.0 OTG, Antenna: SMA Male
• Battery Voltage Range: 6.8 - 8.4V
• DC Voltage Range: 6 - 16V
