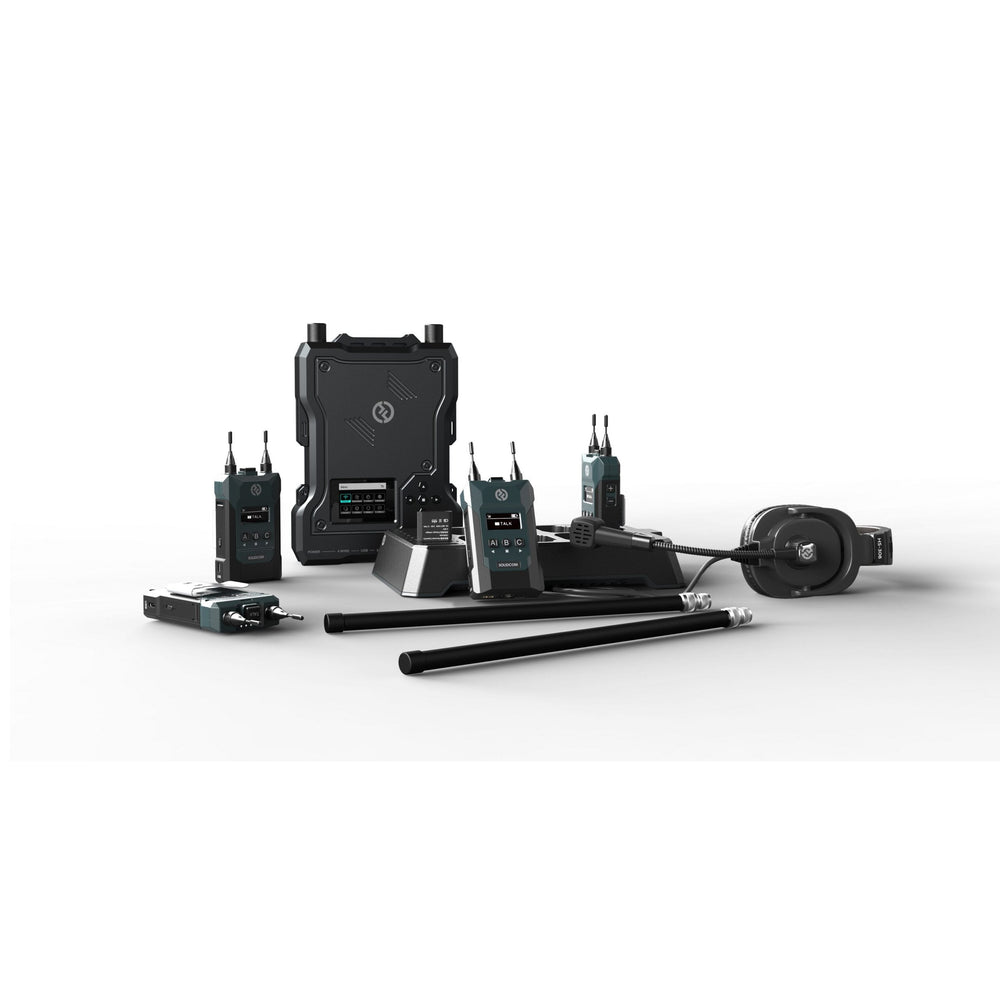

Hollyland Solidcom M1 Full Duplex Wireless Intercom System with 4 Belt Packs

With the major technical breakthrough, Hollyland is proud to present you with a whole new series of full-duplex wireless intercom - Solidcom. As the first member of this series, Solidcom M1 is your go-to choice for micro-mid events with a capacity of from 100 to 1000 guests, including church events, electronic field productions, exhibitions, concerts, etc. Adopting self-developed Noise-Cancellation Algorithms and super-wide frequency response, Solidcom M1 delivers authentic and premium sound at a broadcast-level sampling rate. An integrated panel antenna is embedded in the base station for effortless setup. Featuring a minimalist button design, the beltpack provides you intuitive operating experience. In addition, settings and grouping of the whole set can be adjusted easily via the base station, APP or web. Each standard Solidcom M1 package comes standard with 8 beltpacks and supports cascade connection of multiple devices as well as maximum 3 communication groups.

Key Features

• Industry-First Solution To Power Up to 1300ft-Radius Communication Range
• Enhanced Audio Quality. Let Your Voice be Heard Crisp and Loud
• Intuitive Grouping at A Single Tap
• Multi-Device Cascade Connection for Hassle-Free Group Communication
• Born Rugged, Take It Anywhere with You
• Out-of-the-Box Convenience
• Ergonomic Button Layout for Smooth & Precise Operation
• A Plethora of Choices for Your Ears
• Say No to Low-Battery Anxiety

Technical Specifications

Number of Included Headsets
4 x Single-Sided Headset
Number of Included Transceivers
1 x Base Station
4 x Beltpack
Number of Included Charging Base
1 x Charging Base
Frequency Response
200Hz to 7KHz
Signal-to-Noise Ratio
50dB
Distortion
1%
Headphone
Earpiece Design
Over-Ear (Circumaural)
Sound Field
Mono
Wireless Connectivity
RF Bandwidth
1.728 MHz
Wireless Modulation
GFSK
Duplex Mode
Full-Duplex (FDX)
Transmit Power
Maximum 21dBm
Approximate RF Sensitivity
-93 dBm
Wireless Range
1476' / 450 m
Base Station
I/O Connectors
1 x Power Supply Interface (RJ45)
1 x POE Interface (RJ45)
1 x 4 Wire Audio Interface (RJ45)
1 x USB Interface
1 x 2 Wire Audio Interface (XLR)
Dimension (L*W*H)
255.5*180.4*48.5mm
Weight
About 1560g
Antenna
2 x External Omnidirectional Fiberglass Antenna
1 x Internal Panel Antenna
AC/DC Power Supply
2 x NP-F Battery (6.5 to 16V DC)
1 x POE Power Adapter (44 to 57V DC)
Power Consumption
3 W
Beltpacks
Maximum Users per System
4
I/O Connectors
1 x 3.5mm Headset Interface
1 x LEMO Headset Interface
1 x USB-Type-C Interface
Dimension (L*W*H)
105*65*22.4mm
Weight
About 200g
Antenna
2 x External
Power Supply
1 x rechargeable Li-ion Battery
Capacity (mAh)
1500 mAh
Runtime
About 6 Hours
Power Consumption
0.6W
Charging Base
AC /DC Power Interface
1 x 4pin XLR Power Interface
Dimension (L*W*H)
273*184*41.5mm
Weight
About 900g
Environmental
Charging Temperature
32 to 113F / 0 to 45C
Operating Temperature
32 to 113F / 0 to 45C
Storing Temperature
-4 to 140F / -20 to 60C
Certifications
CE, FCC, RoHS, TELEC, NCC as per Manufacturer
Packaging Info
Box Dimensions (LxWxH)
25.6 x 20.5 x 12.3”
