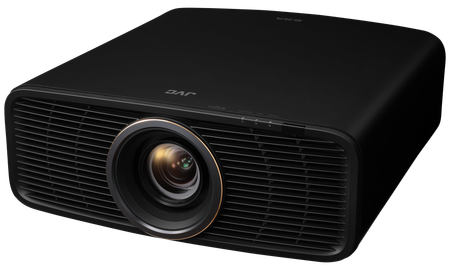

JVC DLA-RS1200 Reference D-ILA 4K 2,000 Lumen Projector

JVC DLA-RS1200 Reference D-ILA 4K 2,000 Lumen Projector

The JVC DLA-RS1200 is a reference-class native 4K D-ILA laser projector producing 2,000 lumens with a native contrast ratio of 40,000:1, intended for dedicated dark home theater rooms where image accuracy and deep black levels are the primary performance criteria. A laser light source eliminates lamp replacement cycles, and motorized lens shift of 70% vertical and 28% horizontal allows precise installation alignment without optical compromise.

The projector accepts sources via HDMI 2.1 and supports resolutions up to 4K, with HDR dynamic tone mapping on board. The throw ratio of 1.6 to 2.1 and 1.6x zoom allow flexible placement relative to screen sizes up to 160 inches diagonal. At 308 W power consumption and 41.2 lb, it is designed for permanent installation. A 12V trigger output is included for screen and lens cover automation.

Key Features

• Native 4K D-ILA laser projector; 2,000 lumens
• 40,000:1 native contrast ratio
• Motorized lens shift: 70% vertical, 28% horizontal
• HDMI 2.1 input; supports resolutions up to 4K with HDR dynamic tone mapping
• Throw ratio 1.6-2.1; 1.6x zoom; up to 160-inch image size
• 12V trigger output for screen and automation control
• Laser light source; 308W power draw; 41.2 lb

Specifications

• Power Consumption: 308 Watts
• Power Supply: Internal
• IR Receivers: internal
• 12V Trigger: Yes
• Connectors: HDMI
• Contrast Ratio: 40,000:1 Native
• Dimensions (W x H x D): 17-23/32 x 7-5/32 x 18-7/8
• Features: 4K, Laser. HDR dynamic,Dynamic tone mapping,
• IR Inputs: no
• Weight: 41.2
• Lens Shift: Motorized 70% vertical 28% Horizontal
• Lightsource: Laser
• Lumens: 2,000
• Maximum Image Size: 160
• Throw Ratio: 1.6 to 2.1
• Zoom Ratio: 1.6
• Aspect Ratio: 17:9
• Inputs: HDMI 2.1
• Supported Resolutions: up to 4K
