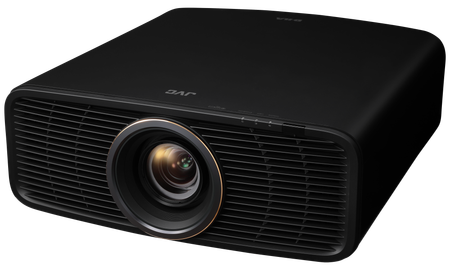

JVC DLA-RS2200 Reference D-ILA Laser 4K 2,300 Lumen Projector

JVC DLA-RS2200 Reference D-ILA Laser 4K 2,300 Lumen Projector

The JVC DLA-RS2200 is a reference-tier native 4K D-ILA laser projector delivering 2,300 lumens with an 80,000:1 native contrast ratio, positioned for the most performance-demanding dedicated home theaters where image depth and fidelity are non-negotiable. The laser light source provides long operational life without lamp replacements, and motorized lens shift of 70% vertical and 28% horizontal ensures precise geometric alignment during installation.

HDMI 2.1 connectivity supports 4K source material with HDR dynamic tone mapping. The 1.6 to 2.1 throw ratio and 1.6x zoom range allow placement flexibility for screens up to 170 inches diagonal. At 308 W and 41.2 lb, the RS2200 is built for permanent, professionally managed installation, and a 12V trigger output is provided for connected screen and lens automation.

Key Features

• Native 4K D-ILA laser projector; 2,300 lumens
• 80,000:1 native contrast ratio
• Motorized lens shift: 70% vertical, 28% horizontal
• HDMI 2.1 input; up to 4K with HDR dynamic tone mapping
• Throw ratio 1.6-2.1; 1.6x zoom; maximum image size 170 inches diagonal
• 12V trigger output for screen and automation control
• Laser light source; 308W power draw; 41.2 lb

Specifications

• Power Consumption: 308 watts
• Power Supply: Internal
• IR Receivers: internal
• 12V Trigger: Yes
• Connectors: HDMI
• Contrast Ratio: 80,000:1 Native
• Dimensions (W x H x D): 17-23/32 x 7-5/32 x 18-7/8
• Features: 4K, Laser. HDR dynamic, tone mapping,
• IR Inputs: no
• Weight: 41.2
• Lens Shift: Motorized 70% vertical 28% Horizontal
• Lightsource: Laser
• Lumens: 2,300
• Maximum Image Size: 170
• Throw Ratio: 1.6 to 2.1
• Zoom Ratio: 1.6
• Aspect Ratio: 17:9
• Inputs: HDMI 2.1
• Supported Resolutions: up to 4K
