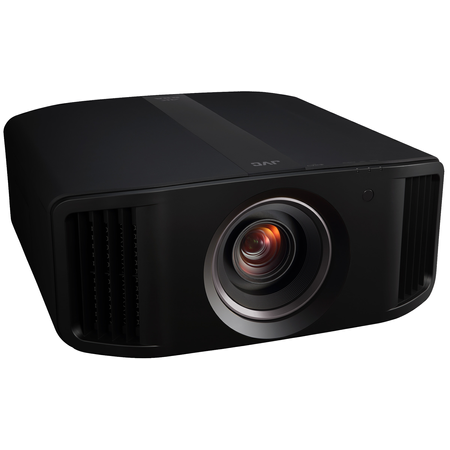

JVC DLA-RS3200 Reference D-ILA Laser 8K e-shift 2,700 Lumen Projector

JVC DLA-RS3200 Reference D-ILA Laser 8K e-shift 2,700 Lumen Projector

The JVC DLA-RS3200 is a Reference D-ILA laser projector designed for dedicated home theaters that require high brightness and accurate 8K-class imaging. At 2,700 lumens, it is well suited to larger rooms with partial light control where consistent, high-quality output is essential across a range of content.

The RS3200 handles 8K/60 and 4K/120 sources through 8K e-shift processing and achieves a native contrast ratio of 100,000:1. Its 1.43-to-2.92:1 throw ratio with 80% vertical and 37% horizontal lens shift provides installation flexibility, and a maximum image size of 200 inches suits purpose-built screening rooms. Integration is supported via RS232, LAN, 12V trigger, and 3D sync, with a universal 110-240V power supply.

Key Features

• 2,700-lumen D-ILA laser light source
• 8K/60 and 4K/120 via 8K e-shift processing
• 100,000:1 native contrast ratio with infinite dynamic contrast
• 1.43-to-2.92:1 throw ratio with 80% vertical / 37% horizontal lens shift
• Maximum image size up to 200 inches
• RS232, LAN, 12V trigger, and 3D sync ports
• Universal 110-240V power supply

Specifications

• Power Consumption: 110 v 4.5 amps
• Power Supply: 110-240
• IR Receivers: internal
• 12V Trigger: yes
• Connectors: HDMI, 3 pin power, Lan USB, RS232, 3d sync, 12v 3.5mm mono
• Contrast Ratio: 100,000:1 Native. Infinite Dynamic
• Dimensions (W x H x D): 26 1/4x16 15/32x25 7/16
• Features: Laser, HDR,8K,4K120 High Contrast
• IR Inputs: receiving port only
• Weight: 62.3
• Lens Shift: 80% Vert 37% Hor
• Lightsource: Laser
• Lumens: 2,700
• Maximum Image Size: 200 in dia.
• Throw Ratio: 1.43 to 2.92
• Zoom Ratio: 1.43 to 2.92
• Aspect Ratio: 17:9
• Inputs: 2 HDMI
• Supported Resolutions: All
