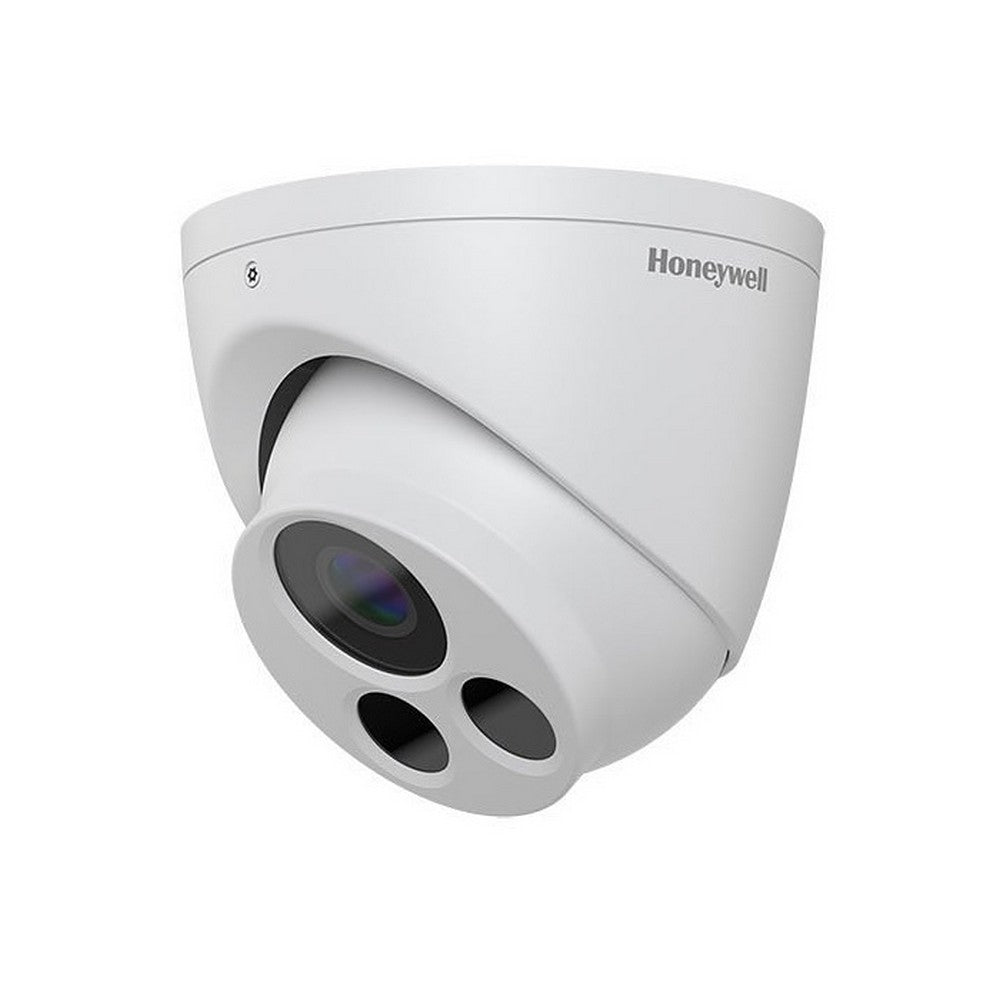

Honeywell 30 Series 5MP WDR IR IP Ball Camera, 2.8-12mm Lens, Lyric White

Introducing the 30 Series IP Cameras: The Next Level in Quality and Reliability
Honeywell's 30 Series IP cameras offer unparalleled picture clarity and reliability, with 2MP and 5MP cameras, including a 5MP fisheye camera. The line-up features bullet, fisheye, ball, and rugged dome cameras, each with flexible system integration, secure data transmission, and easy installation.

Advanced motion detection, which is designed to recognize and generate an alarm only when an object is identified as a person, sets these cameras apart from traditional motion detection that can produce a high false-alarm rate.

With an extensive range of lenses and zoom options, multiple mounting options, and built-in Power over Ethernet (PoE), the 30 Series cameras provide an easy and flexible installation. For cases where PoE power is not available, 12V DC inputs are also available.

Additionally, the cameras support Micro SD (Class 10) cards up to 256 GB for local video storage (card not included).

Whether you need complete area coverage with fisheye cameras or high-resolution true day and night (TDN) images for any scenario, the 30 Series IP cameras provide excellent picture clarity at minimal bandwidth usage. They are also designed to withstand harsh environments, offering maximum protection against dust and water. With sleek, modern designs and up to 5MP HD images, these cameras are ideal for a wide range of security applications.

Key Features

• The 30 Series IP cameras offer enhanced quality and reliability with options for 2 MP and 5 MP cameras, including a 5 MP fisheye camera.
• Honeywell provides a range of camera types, including bullet, fisheye, ball, and rugged dome cameras, all of which deliver exceptional picture clarity.
• These cameras are designed for flexible system integration, ensuring seamless connectivity and secure data transmission.
• Installation is made easy with these cameras, allowing for quick and hassle-free setup.
• The advanced motion people detection feature sets these cameras apart from traditional motion detection methods.
• Compared to pixel-based motion detection, advanced motion detection is specifically designed to recognize people, resulting in a lower false-alarm rate.
• This network camera is ideal for remote surveillance needs, providing reliable monitoring capabilities.
• With a video resolution of up to 2560 x 1920, these cameras deliver high-quality footage for detailed analysis.
• The CMOS sensor used in these cameras offers cost-effectiveness and lower power consumption while still producing superior HD videos.
• The 12 mm maximum focal length ensures sharp output, enabling efficient identification and location of objects.
• With a 4.3x optical zoom, these cameras allow for maximum surveillance efficiency by bringing the subject closer.
• Night vision capabilities extend up to 164.04 ft, ensuring clear visibility even in low-light conditions.
• HD recording format ensures stunning and vivid video results, maximizing efficiency in capturing important details.
• The zoom lens type provides a better and wider viewing angle without compromising image quality.
• The reliable Junction Box Mount type allows for trouble-free and easy usage of the cameras.
• Wired connectivity technology ensures a constant connection to the network camera, enabling maximum productivity.

Technical Specifications

Effective Camera Resolution
5MP
HD Recording
Yes
Lens Type
Varifocal
Maximum Focal Length (mm)
12
Minimum Focal Length
2.8 mm
Number of IR LEDs
2
Optical Zoom
4.3x
Video Signal Format
NTSC, PAL
Camera
Night Vision Distance
164.04 ft
Night Vision Distance (mm)
50000
Wide Dynamic Range
Yes
Display & Graphics
Color Supported
Color, Monochrome
Effective Camera Resolution (Pixel)
5000000
Maximum Video Resolution
2560 x 1920
Interfaces/Ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8-12 mm
Maximum Focal Length
12 mm
Physical Characteristics
Color
White
Diameter (mm)
120
Height
3.6”
Height (mm)
90.5
Weight (Approximate)
1.41 lb
Product Information
Diameter
4.7”
Mount Type
Junction Box Mount, Pole Mount
Projection Lens
Minimum Focal Length (mm)
2.8
Storage
Recording Formats
HD
Miscellaneous
Ingress Protection Rating
IP66
