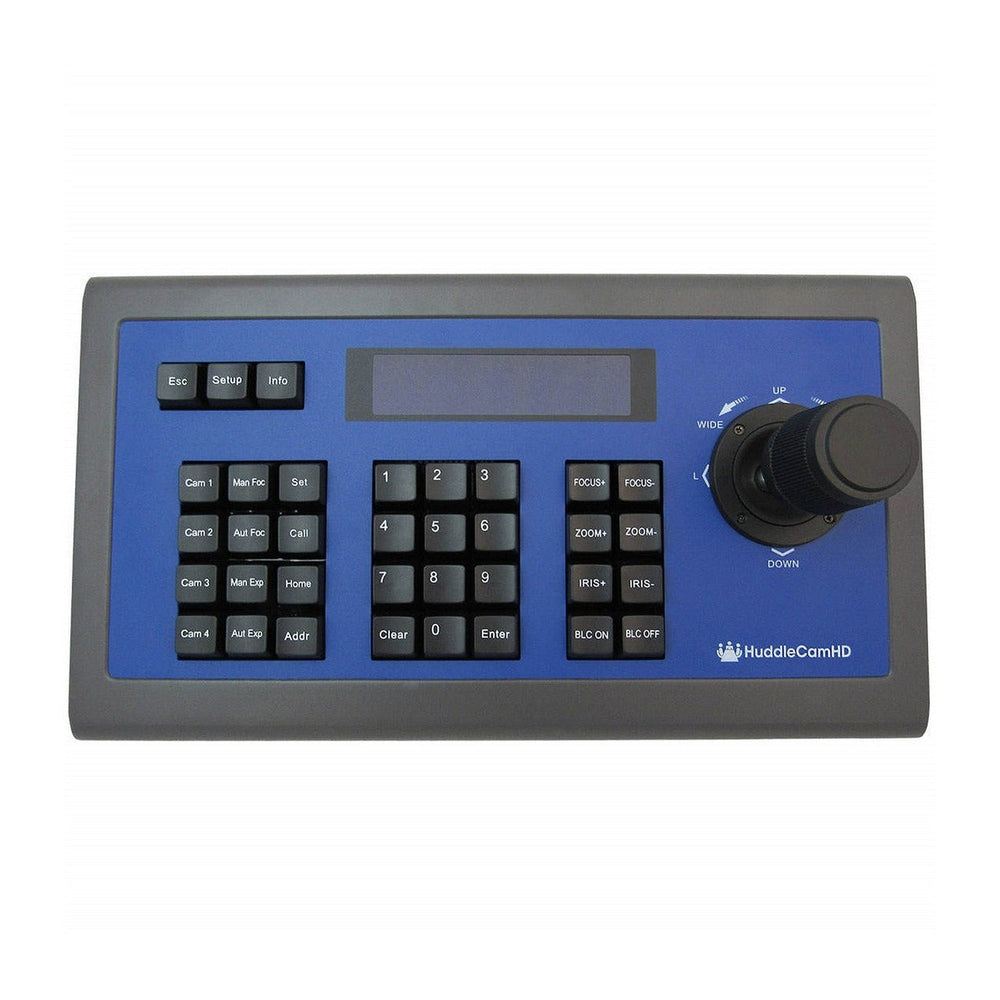

HuddleCamHD HC-JOY-G2 VISCA Pelco-D Pelco-P Protocol Camera Joystick
HuddleCamHD HC-JOY-G2 VISCA Pelco-D Pelco-P Protocol Camera Joystick
Free Shipping
HuddleCamHD HC-JOY-G2 VISCA Pelco-D Pelco-P Protocol Camera Joystick
Easily Pan, Tilt, and Zoom virtually any VISCA, PELCO-D, or PELCO-D protocol camera! The joystick also features Iris, focus, presets, and many other ways to customize your camera.
One reliable joystick to control up to 255 unique cameras via serial RS-232 cabling.
CAMERA SWITCHING HOT KEYS
One of the most requested features is here! Four keys for quick keyboard switching functionality.
Industry Standard Protocols
Support for any mix of PTZ cameras that use either VISCA, PELCO-D or PELCO-P protocols.
Durable Metal Housing
The HuddleCamHD second generation joystick is made tough for a wide variety of real world applications.
Works w/ every PTZOptics Camera!
This joystick will work with any PTZOptics camera using the provided DB9 to 8-pin mini din RS-232 cable.
Technical Specifications
Connections
RS-232, RS-485, RS-422
Baud Rate
1200-19200 bps
Interfaces
DB9 RS-232; 5SCT RS-485/RS-422
Maximum Cameras
Control up to 255 Cameras
Maximum Presets
Up to 255 Presets
Maximum Distance
3,937ā (1200m) using 24 gauge twisted pair
Power
6W (12VDC)
Working Temp
14 deg F - 122 deg F (-10 deg C +50 deg C)
Weight
3.4 lbs | 1.6 kg
Dimensions (in.)
12.6"(W) x 7.1"(D) x 4.3"(H)
Dimensions (mm.)
320mm(W) x 181mm(D) x 110mm(H)
