IC Realtime IPMX-E40F-W2-LED 4MP Full-Color LED AI Eyeball Network Camera

Overview

The IC Realtime IPMX-E40F-W2-LED is a 4 megapixel turret-style AI camera designed for demanding security applications. With a 1/1.8 inch STARVIS CMOS sensor, this full-color camera delivers vibrant and clear images day and night, supported by warm white LED illumination. Advanced AI features include intelligent motion detection and perimeter protection with high accuracy. Housed in a durable IP67-rated enclosure, this camera is suitable for indoor or outdoor installations and supports dual power input via 12V DC or PoE.

Key Features

• 1/1.8 inch 4 megapixel STARVIS CMOS sensor
• Built-in microphone and speaker for two-way talk
• 30 fps at 4MP resolution with Smart H.265+ video compression
• Warm white LED illumination up to 98 ft for 24/7 full-color imaging
• Intelligent Motion Detection (iMD) and Perimeter Protection with up to 95 percent accuracy
• 120 dB wide dynamic range for challenging lighting conditions
• Edge storage support via microSD card up to 256GB
• Rugged IP67 weatherproof housing for indoor or outdoor use
• Flexible power input: 12V DC or PoE (802.3af)

Technical Specifications

• Image Sensor: 1/1.8 inch STARVIS CMOS
• Effective Pixels: 2688 (H) x 1520 (V)
• Minimum Illumination: 0.0005 lux at F1.0
• Lens: 2.8 mm fixed lens, F1.0 aperture
• Angle of View: Horizontal 112 degrees, Vertical 60 degrees
• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Frame Rate: Up to 30 fps at 4MP (2560 x 1440)
• Illumination Type: Warm white LED, up to 98 ft
• Audio: Built-in microphone and speaker
• Storage: microSD card support up to 256GB, FTP, NAS
• Network: RJ-45 10/100Base-T, ONVIF, P2P, HTTPS, IPv4/IPv6
• Power: 12V DC or PoE (802.3af)
• Power Consumption: Max 6.4W with full load
• Ingress Protection: IP67
• Operating Temperature: -40F to 140F (-40C to 60C)

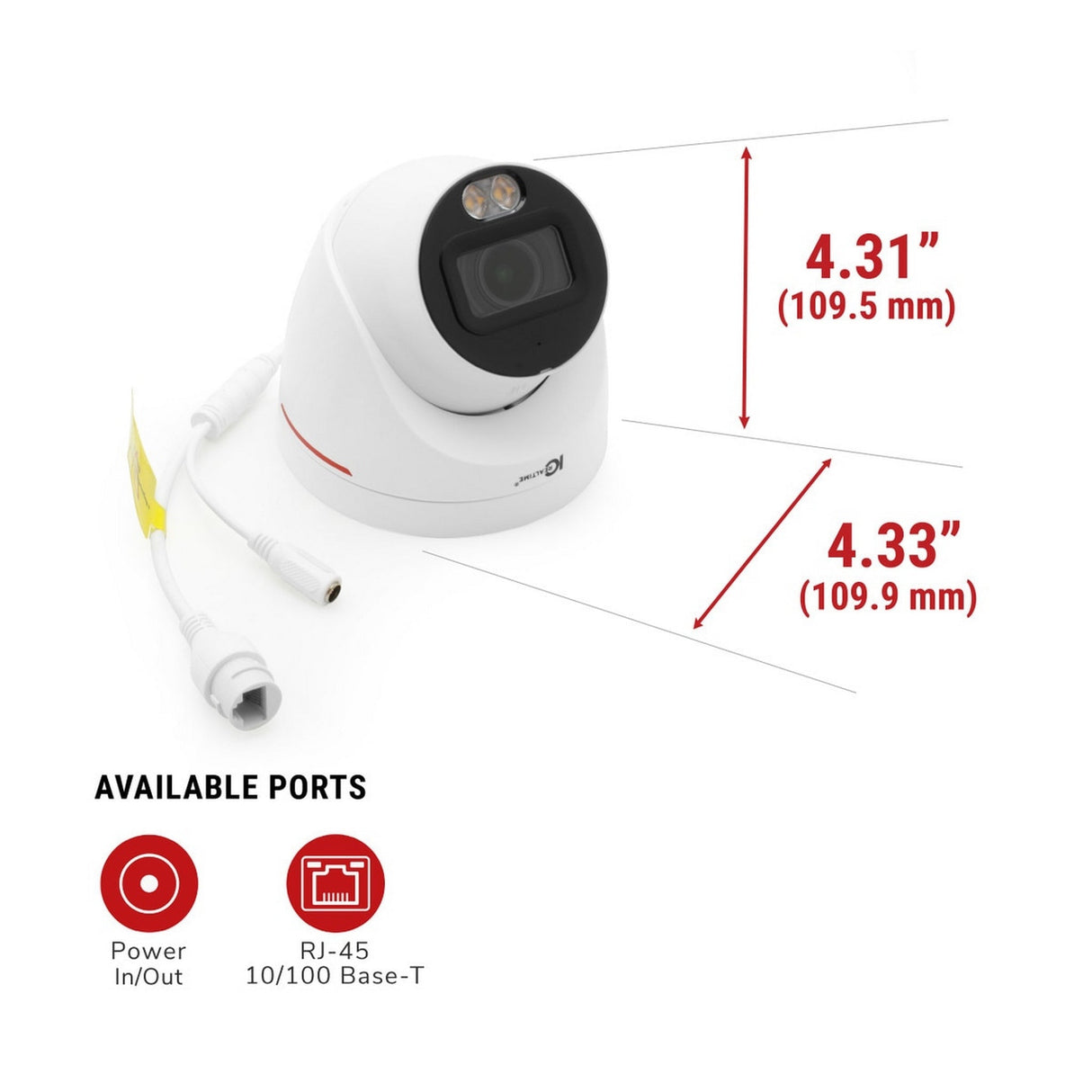

• Dimensions: 4.31 in x 4.33 in (109.5 mm x 109.9 mm)
• Weight: 0.93 lb (0.42 kg)
