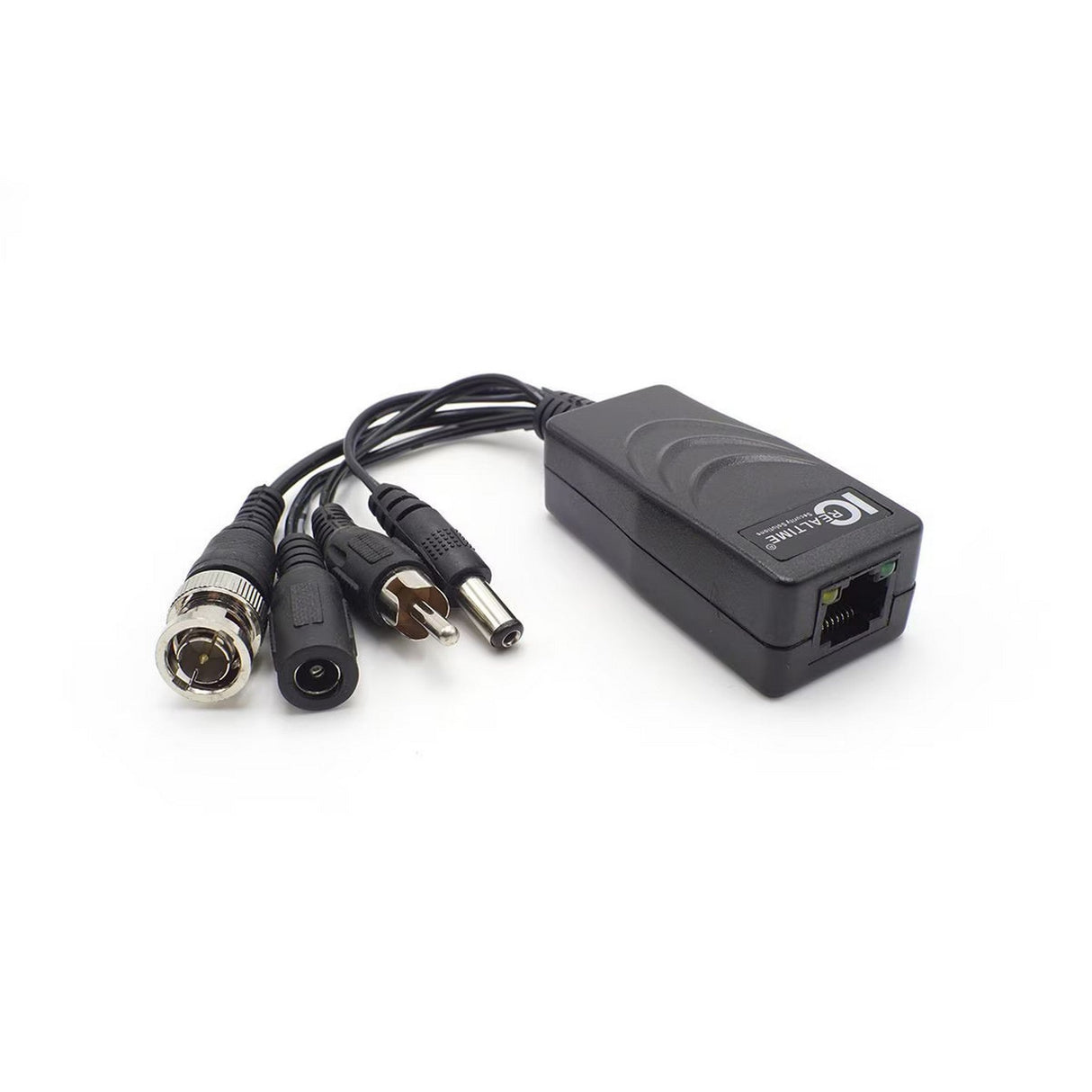

IC Realtime 1-Channel Analog Camera UTP CAT5/6 POE Balun, Pair - Power + Video + Audio
IC Realtime 1-Channel Analog Camera UTP CAT5/6 POE Balun, Pair

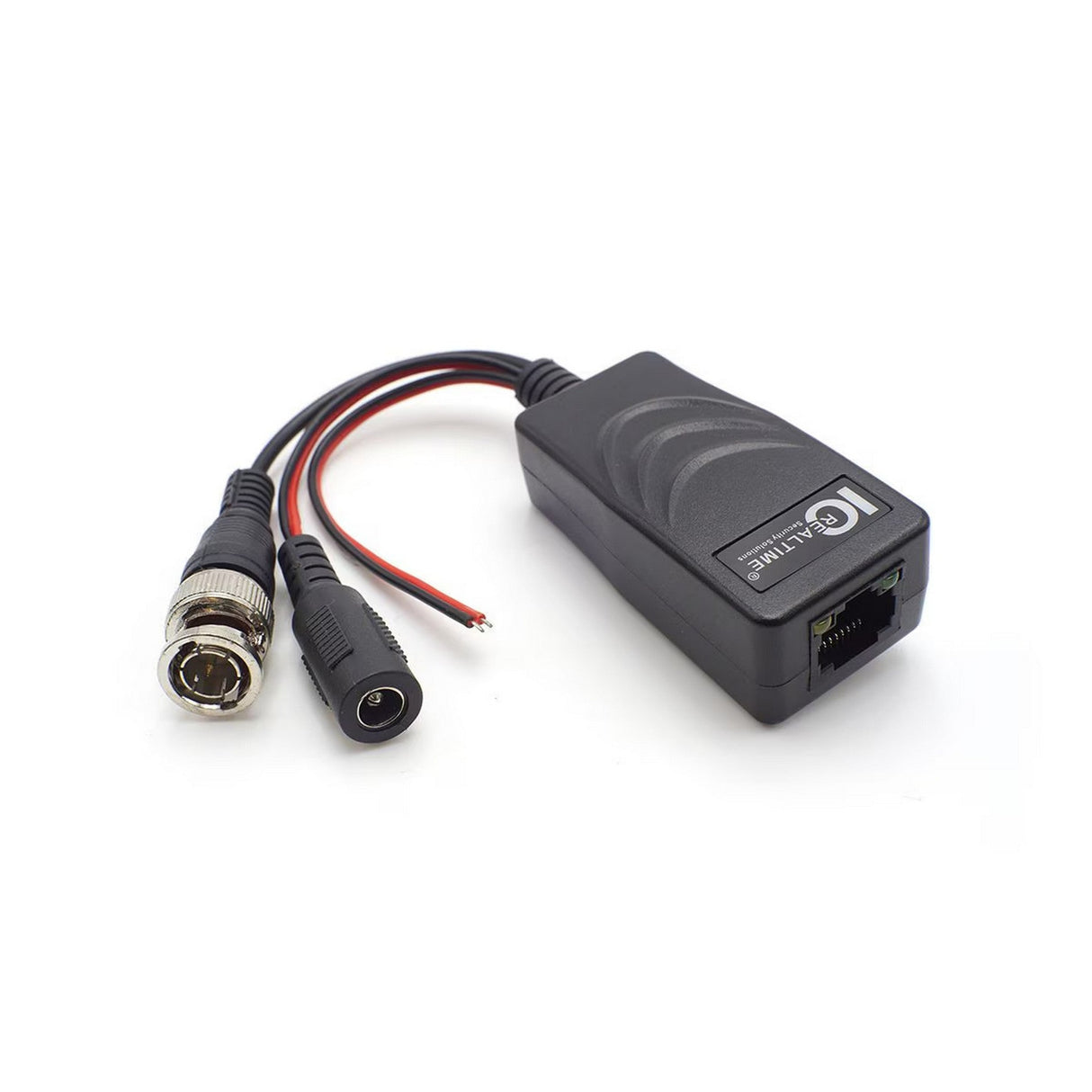

IC Realtime IVB-213VPA & IVB-213VPD: Comprehensive CCTV Balun Solutions
IC Realtime IVB-213VPA and IVB-213VPD are state-of-the-art CCTV balun systems designed to enhance your surveillance experience. These high-performance baluns offer exceptional video and audio transmission capabilities, making them ideal for a wide range of surveillance applications. With a compact design and robust features, the IC Realtime IVB-213VPA and IVB-213VPD ensure superior performance over long distances with minimal signal degradation. Whether you're upgrading an existing setup or installing a new system, these baluns provide reliable and efficient connectivity.
Both models, IC Realtime IVB-213VPA and IVB-213VPD, support a variety of resolutions including 720P, 1080P, 4MP, 5MP, and 4K. They utilize coaxial video connectors (BNC-Male) and are compatible with a wide range of formats like HD-AVS, TVI, AHD, CVBS, and more. The video transmission distance can extend up to 984 feet (300 meters) using UTP Cat5e/6 cables, offering flexibility for installations in challenging environments. With robust surge protection and high impedance ratings, these baluns provide reliable and consistent performance.
Key Features
- Compatible with HD-AVS, TVI, AHD, CVBS formats
- Resolution support: 720P, 1080P, 4MP, 5MP, 4K
- Audio transmission distance up to 984 feet (300 meters)
- Power transmission via UTP Cat5e/6 cables (12V/24V, DC/AC)
- Surge protection: 2KV (common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)
- Operating temperature range: -22Ā°F ~ +158Ā°F (-20Āŗ ~ 70Āŗ C)
Technical Specifications
Dimensions: 2.3" x 1.14" x 0.80" (60.4x 29x 20.4mm)
Weight: 0.143 lb (64.9g)
Video Transmission Properties:
Coaxial Video Connector: BNC-Male
Connection: RJ45
Operating Frequency: DC to 71MHz
Compatible Format: HD-AVS/TVI/AHD/CVBS
Resolution: 720P/1080P/4MP/5MP/4K
Audio Transmission distance: Up to 984 feet (300m) via UTP Cat5e/6
Network Wiring: One Unshielded Twisted Pair (for each video signal)
24-16 AWG (0.5-1.31mm)
Category Type: UTP cat 5e/6
Impedance: 100 Ā± 20 ohms
DC Loop Resistance: 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance: 19 pF/ft max (62 pF/m max)
Power Input: 12V/24V, DC/AC
Power Transmission: 12V/24V, DC/AC, via UTP cat5e/6, please refer to power distance chart on the next page
Housing: ABS engineering plastic (Black)
What's Included
- IC Realtime IVB-213VPA or IVB-213VPD Balun Pair
- Instruction Manual
