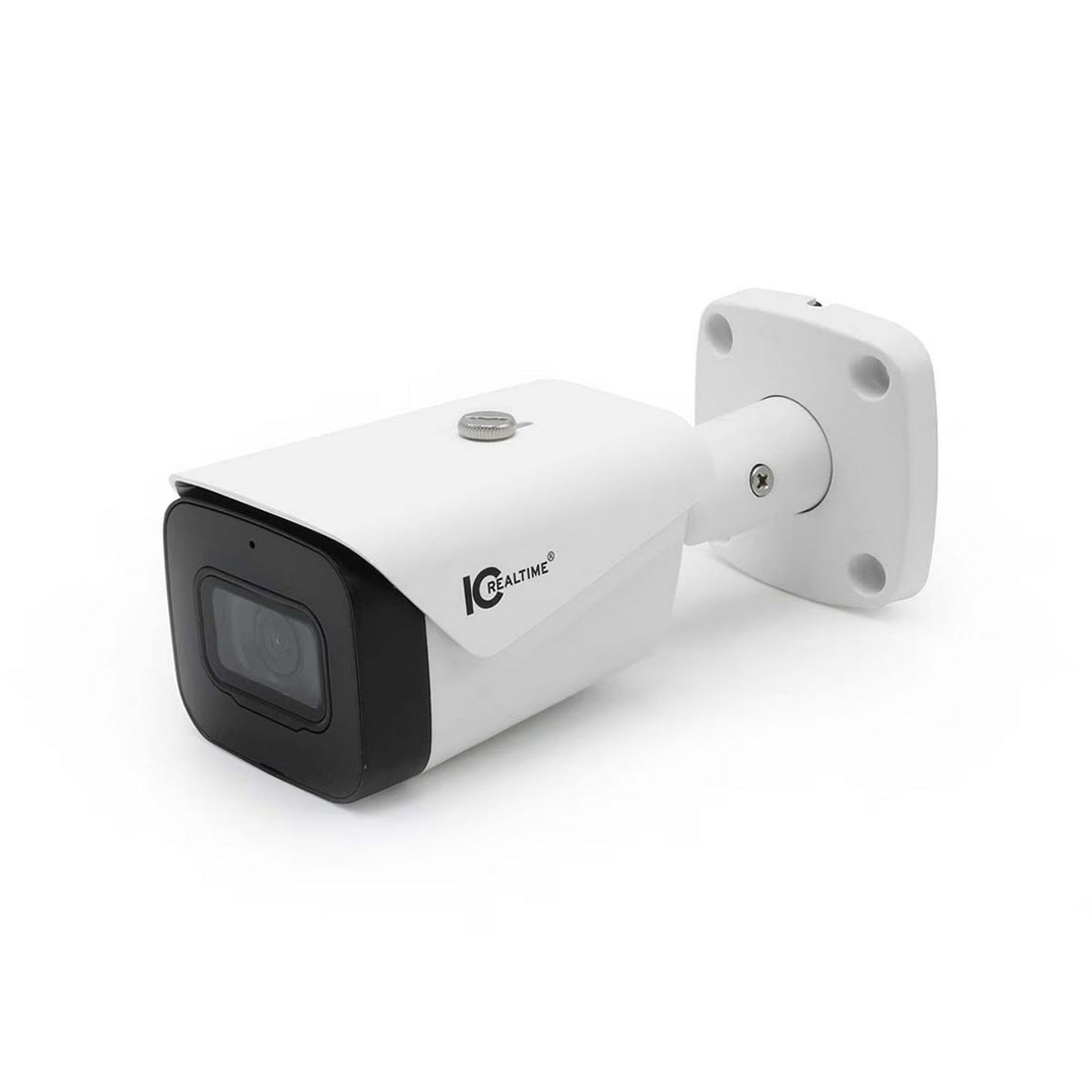

IC Realtime HDEG-B50F-IR-M1 5MP HD-AVS Indoor/Outdoor Mid-Size Bullet Camera w/Fixed Lens

IC Realtime HDEG-B50F-IR-M1 5MP 16:9 HD-AVS Indoor/Outdoor Mid-Size Bullet Camera with Fixed 2.8mm Lens (132°)

The IC Realtime HDEG-B50F-IR-M1 is a high-performance 5MP 16:9 HD-AVS Indoor/Outdoor Mid-Size Bullet Camera designed for versatile surveillance applications. Featuring a robust 1/2.7" Starlight CMOS sensor, it delivers exceptional clarity, even in challenging low-light conditions. Its Smart IR technology provides precise illumination with an effective range of up to 131.2 feet, ensuring reliable monitoring at night.

This camera is equipped with a fixed 2.8mm lens offering a wide 132° field of view, perfect for covering broad areas in both residential and commercial settings. Its durable IP67-rated weatherproof construction ensures optimal performance in extreme environments, from -40°F to +140°F, while resisting dust and water intrusion.

Supporting multiple video formats, including AVS, TVI, AHD, and CVBS, the HDEG-B50F-IR-M1 provides flexible integration with various security systems. Whether for indoor or outdoor use, its combination of advanced features and reliable build makes it a superior choice for your surveillance needs.

Key Features

• 1/2.7" Starlight CMOS Sensor for superior low-light performance
• 5MP resolution with a 16:9 aspect ratio and wide-angle 132° field of view
• Smart IR illumination with a range of up to 131.2 feet
• Fixed 2.8mm lens for consistent image quality
• IP67-rated weatherproof casing for indoor and outdoor use
• Supports multiple video formats: AVS, TVI, AHD, CVBS
• Built-in microphone for audio recording
• Wide dynamic range (WDR) of 120dB for balanced lighting

Technical Specifications

Camera:
Image Sensor: 1/2.7" Starlight CMOS
Effective Pixels: 2880 (H) × 1620 (V) 5MP
Scanning System: Progressive
Minimum Illumination: 0.001 Lux/F1.6, 30IRE; 0Lux IR on
S/N Ratio: More than 65dB
Illumination Distance: 131.2 ft
Illumination On/Off Control: Auto / Manual
Illumination LEDs: 2
IR Wavelength: 850 nm
Camera Illumination Type: IR

Lens:
Lens Type: Fixed lens / Fixed iris
Mount Type: M12
Focal Length: 2.8mm
Max. Aperture: F1.6
Angle of View: 132° × 111°
Close Focus Distance: 3.0 ft
DORI Distances: Detect: 208.7 ft; Observe: 83.3 ft; Recognize: 41.7 ft; Identify: 21 ft

Video:
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate: NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
Day/Night: Auto (ICR) / Manual
Backlight Compensation: BLC/HLC/WDR/HLC-Pro
White Balance: Auto / Manual
Gain Control: Auto / Manual
Noise Reduction: 2D / 3D
Smart IR: Auto / Manual
WDR: 120dB

Network:
Smart Phone Compatibility: Android, iOS

Interface:
Video Interface: 1-channel BNC high definition video output / AVS/ TVI/ AHD/ CVBS Support (DIP switch)
Audio I/O: Built-in Mic

Electrical:
Power Supply: 12V DC +/- 30%
Power Consumption: Max 5.9W (12V DC, IR on)

Environmental:
Operating Conditions: –40°F to +140°F; < 95% (non-condensation)
Ingress Protection: IP67

Construction:
Casing: Metal body, Plastic sunshade

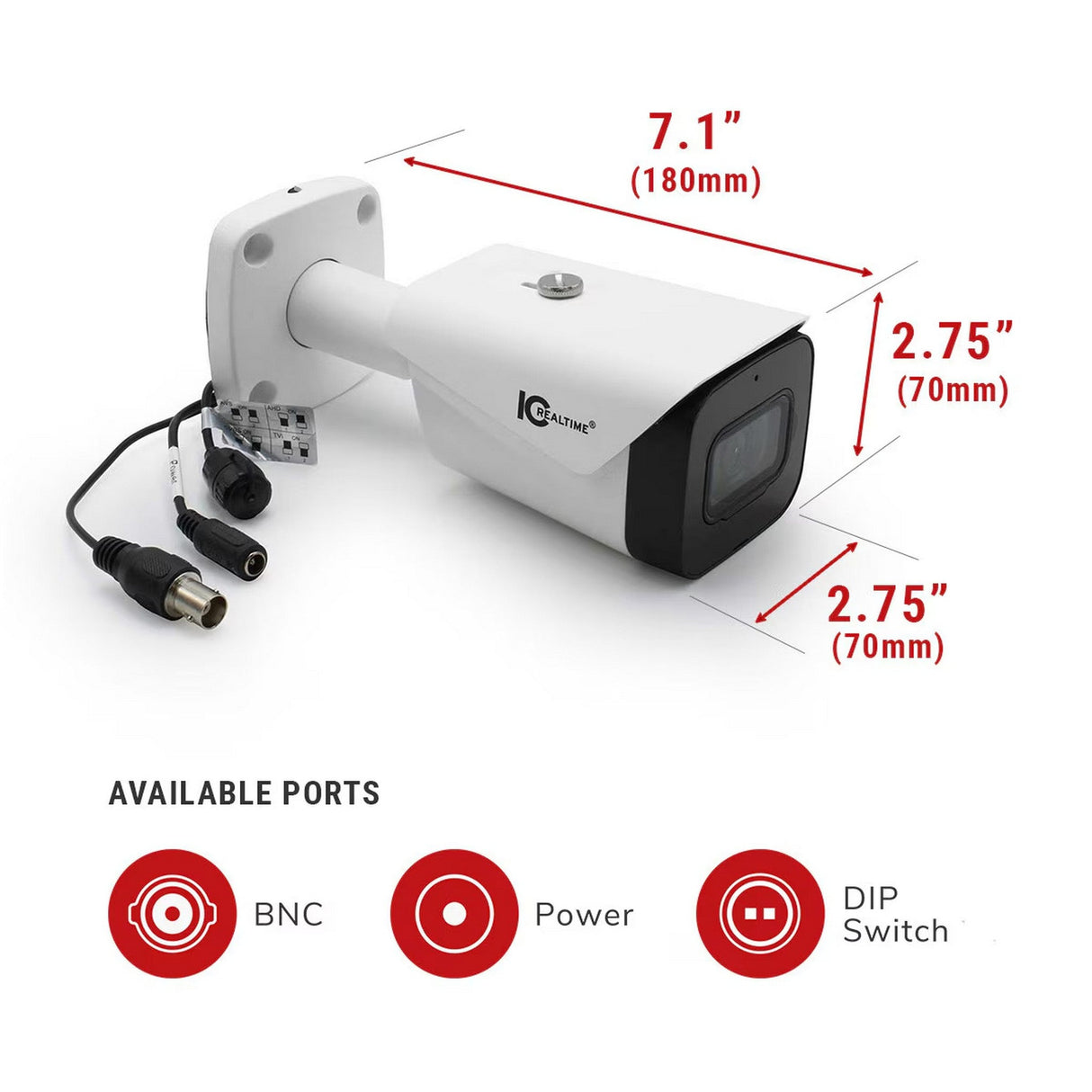

Dimensions: 7.08" x 2.76" x 2.76"
Gross Weight: 1.23 lbs
Mounting Pan/Tilt/Rotation: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

What’s Included

• IC Realtime HDEG-B50F-IR-M1 Camera
• Mounting Kit
• Quick Start Guide
