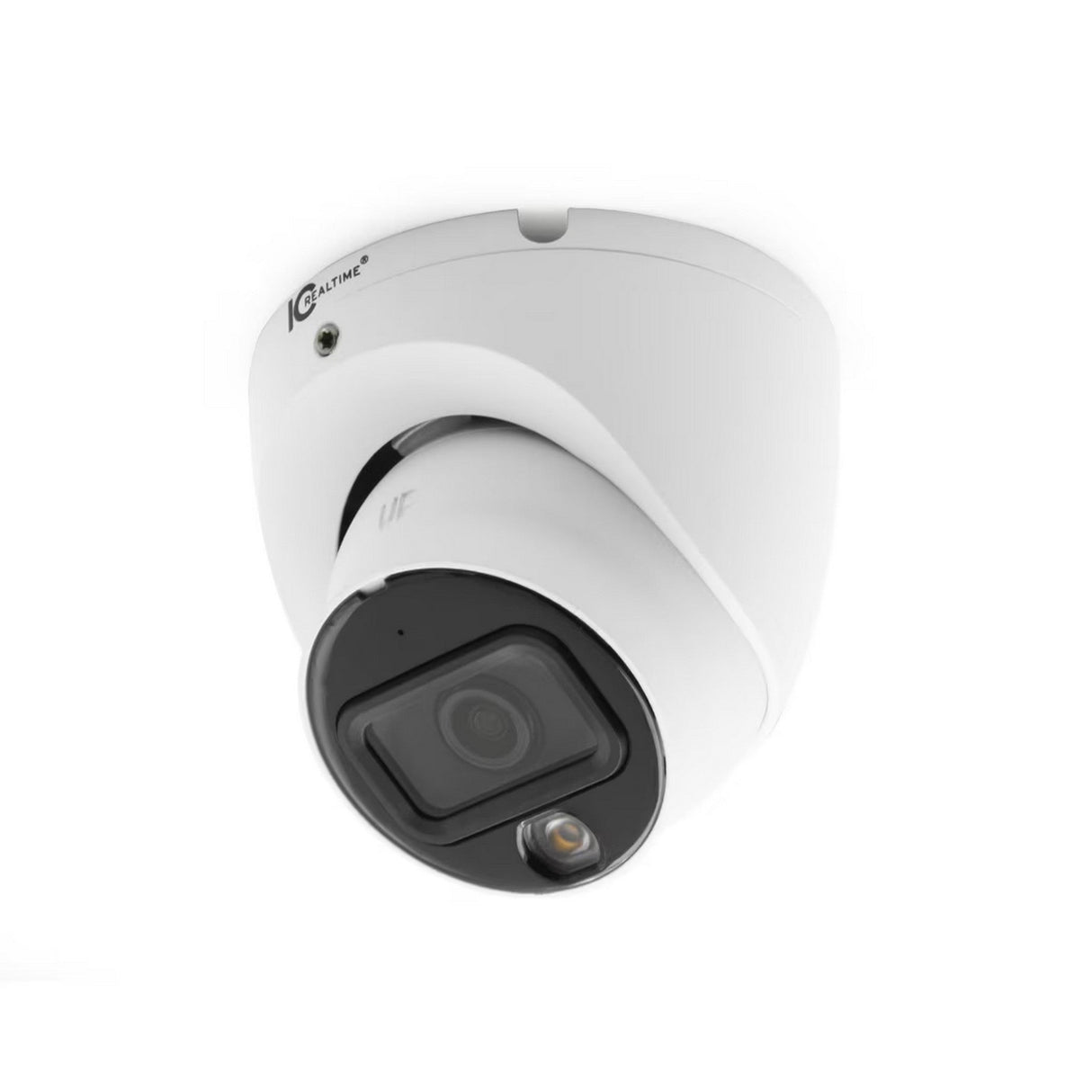

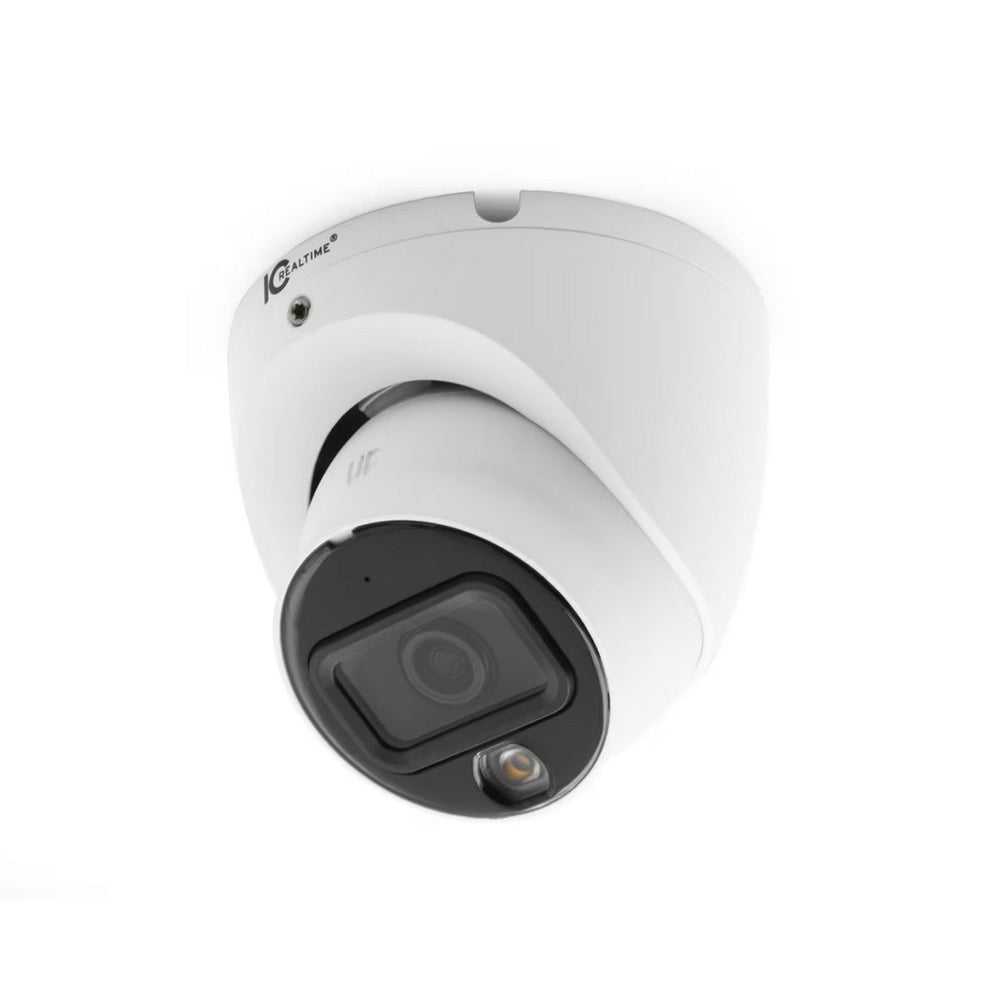

IC Realtime HDEG-E50F-DI-M1 5MP HD-AVS Indoor/Outdoor Eyeball Dome Camera

The IC Realtime HDEG-E50F-DI-M1 is a versatile 5-megapixel HD-AVS eyeball dome camera designed for both indoor and outdoor surveillance applications. Equipped with a 2.8mm fixed lens, it offers a wide horizontal field of view of 106°, ensuring comprehensive coverage of monitored areas. The camera's advanced image sensor delivers high-resolution footage with effective pixels of 2880 (H) × 1620 (V) in a 16:9 aspect ratio, capturing clear and detailed images crucial for accurate monitoring.

One of the standout features of this camera is its exceptional low-light performance. With a minimum illumination of 0.05 lux at F1.6 in color and 0.005 lux at F1.6 in black and white, it ensures visibility in challenging lighting conditions. Additionally, the integrated IR and white light illuminators provide illumination up to 65.62 feet (20 meters), enabling the camera to capture clear images even in complete darkness. The Smart Dual Illumination feature, when paired with compatible HDVRs and firmware, intelligently adjusts lighting based on the scene, enhancing image quality while minimizing light pollution.

Built to withstand harsh environmental conditions, the HDEG-E50F-DI-M1 boasts an IP67 ingress protection rating, safeguarding it against dust and water ingress. Its robust construction ensures reliable operation in temperatures ranging from –40°F to +140°F, making it suitable for diverse climates. The camera's compact dimensions of φ3.70" × 3.37" and lightweight design at 0.95 lbs facilitate easy installation in various settings, providing a discreet yet powerful surveillance solution.

Key Features

• 5 Megapixel CMOS Image Sensor
• 2.8mm Fixed Lens with 106° Horizontal Field of View
• Smart Dual Illumination with IR and White Light up to 65.62 ft (20 m)
• Supports Multiple Video Formats: AVS, TVI, AHD, CVBS
• Built-in Microphone for Audio Monitoring
• IP67 Rated for Dust and Water Protection
• Operates in Extreme Temperatures: –40°F to +140°F

Technical Specifications

Camera
Image Sensor: 5 Megapixel CMOS
Effective Pixels: 2880 (H) × 1620 (V) (5MP, 16:9)
Scanning System: Progressive
Minimum Illumination: 0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
Illumination Distance: White Light/IR Distance: 65.62 ft (20 m)
Illumination On/Off Control: WL Mode; IR Mode; Smart Dual Illumination Supported* (With appropriate HDVR and firmware)
Camera Illumination Type: IR and White Light

Lens
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8mm
Max. Aperture: F1.6
Angle of View: Horizontal: 106°; Vertical: 56°
Focus Control: Fixed
Close Focus Distance: 4.27 ft (1.3 m)

DORI Distance
Detect: 183 ft
Observe: 73 ft
Recognize: 36 ft
Identify: 18 ft

Video
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate:
AVS: NTSC: 5MP@25 fps; 4MP@25 fps; 1080p@25 fps
AHD: NTSC: 4MP@25 fps
TVI: NTSC: 4MP@25 fps
CVBS: NTSC: 960H
Day/Night: Auto(ICR)/Color/B/W
Backlight Compensation: BLC; HLC; DWDR
Gain Control: Auto / Manual
Noise Reduction: 2D NR
Smart IR: Auto(ICR)/Color/B/W
Privacy Masking: Off/On (8 areas, rectangle)
Iris Control: Fixed
WDR: DWDR

Interface
Video Interface: 1 BNC port
Video Output Formats: AVS/TVI/AHD/CVBS (Toggled by OSD)
Audio I/O: Built-in Mic

Electrical
Power Supply: DC 12V ±30%
Power Consumption: Max 3.1 W (12 VDC, Illuminators on)

Environmental
Operating Conditions: –40°F to +140°F (–40°C to +60°C); < 95% (non-condensation)
Storage Conditions: –40°F to +140°F (–40°C to +60°C); < 95% (non-condensation)
Ingress Protection: IP67

Construction
Dimensions: φ3.70" × 3.37" (φ94.0 mm × 85.7 mm)
Gross Weight: 0.95 lb (0.43 kg)
Mounting Pan/Tilt/Rotation: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

What's Included

• IC Realtime HDEG-E50F-DI-M1 Camera
• Mounting Hardware
