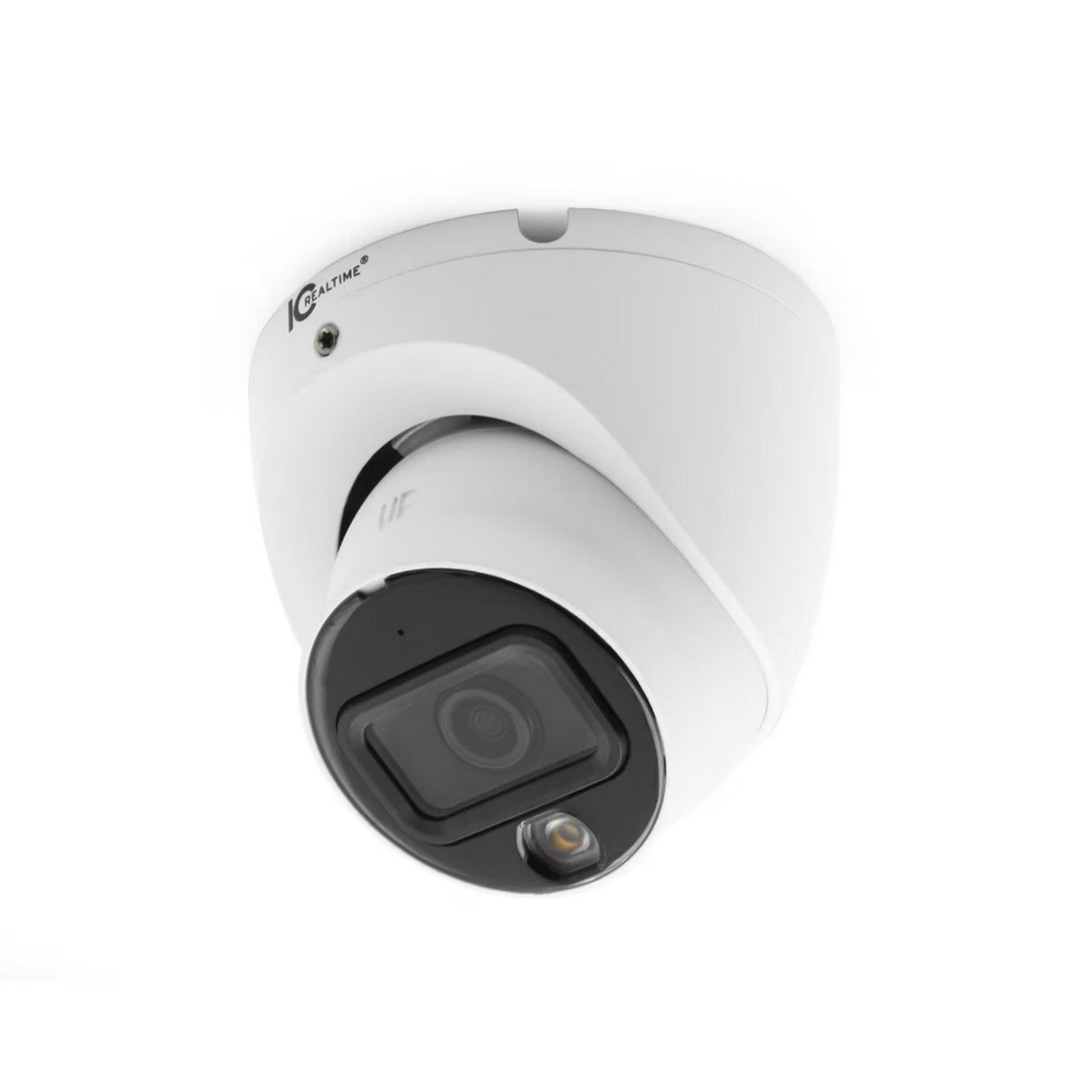

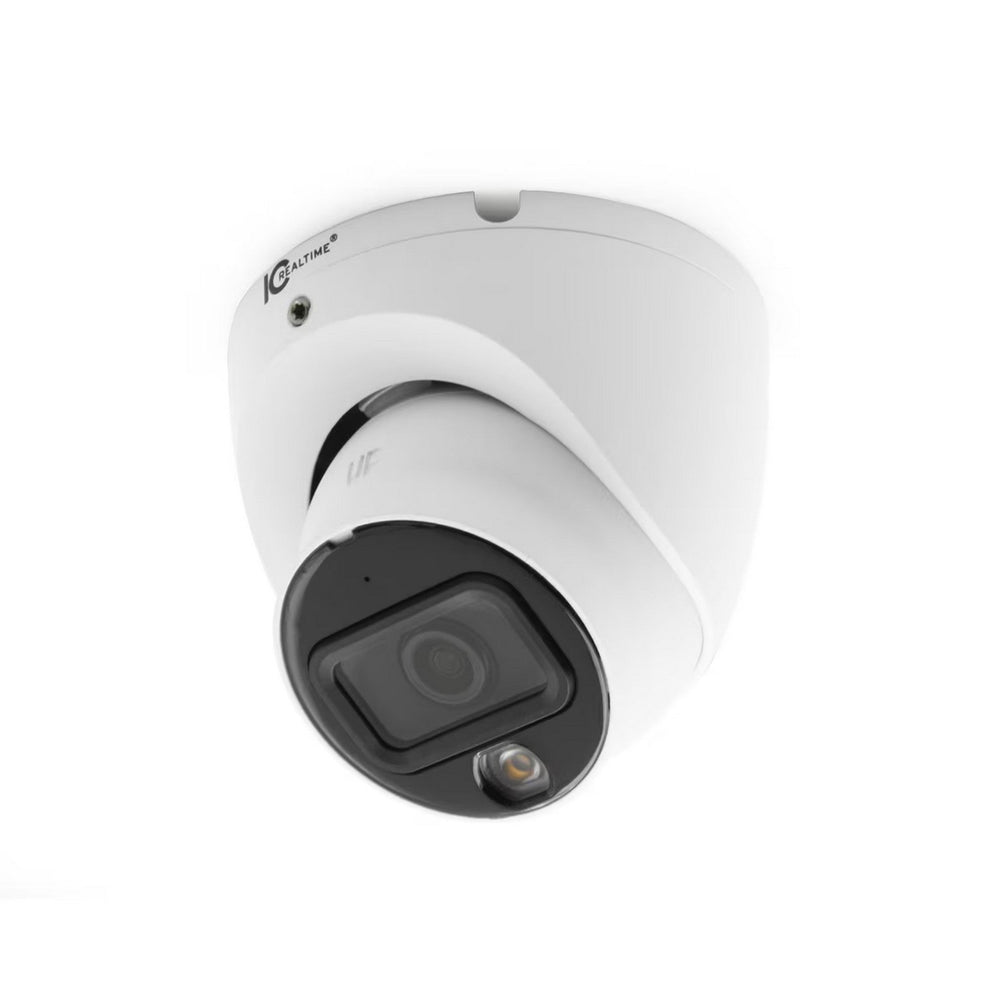

IC Realtime HDEG-E80F-DI-M1: 4K Ultra HD Security Camera

The IC Realtime HDEG-E80F-DI-M1 is a cutting-edge 4K security camera built to deliver crystal-clear surveillance footage for both residential and commercial applications. Equipped with a 4K CMOS image sensor, this camera offers 8MP ultra-high-definition video resolution, ensuring every detail is captured with precision. With its advanced dual illumination technology, the camera seamlessly transitions between infrared and white light, providing optimal visibility even in low-light or complete darkness.

Designed for versatility and durability, the IC Realtime HDEG-E80F-DI-M1 features a fixed-focal 2.8mm lens with a wide horizontal angle of view of 106°, making it suitable for covering expansive areas. Its robust construction, combining metal and plastic components, ensures reliable performance in extreme temperatures and challenging environmental conditions. The IP67 weatherproof rating protects against dust, rain, and other outdoor elements, making this camera a dependable choice for outdoor installations.

This camera also supports a range of advanced features, including 120 dB Wide Dynamic Range (WDR) for challenging lighting conditions, 3D Noise Reduction for clearer images, and Smart IR technology for enhanced nighttime performance. Its built-in microphone adds audio recording capabilities, and multiple video output formats ensure compatibility with a variety of security systems.

Key Features

• 4K Ultra HD resolution (3840 × 2160) for detailed video quality.
• Dual illumination with infrared and white light LEDs for adaptability in all lighting conditions.
• Wide 106° horizontal field of view with a fixed 2.8mm lens.
• Durable construction with IP67-rated weather resistance for reliable outdoor use.
• Advanced imaging technologies: 120 dB WDR, Smart IR, and 3D Noise Reduction.
• Supports multiple video output formats (AVS, TVI, AHD, CVBS).
• Built-in microphone for integrated audio recording.

Technical Specifications

Camera
Image Sensor: 4K CMOS
Effective Pixels: 3840 × 2160 (8MP)
Scanning System: Progressive
Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
Illumination Distance: White Light/IR Distance: 131.23 ft (40 m)
Illumination On/Off Control: WL Mode; IR Mode; Smart Dual Illumination Supported*
Illumination LEDs: 2x IR LED, 2x Warm Light LED
Camera Illumination Type: IR and White Light

Lens
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8mm
Max. Aperture: F2.0
Angle of View: Horizontal: 106°; Vertical: 56°
Close Focus Distance: 4.27 ft (1.3 m)
DORI: Detect: 288 ft; Observe: 115 ft; Recognize: 57 ft; Identify: 28 ft

Video
Resolution: 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate: AVS: NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps; PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
Backlight Compensation: BLC; HLC; WDR; HLC-Pro
Noise Reduction: 3D NR
WDR: 120 dB

Interface
Video Interface: 1 BNC port
Video Output Formats: AVS/TVI/AHD/CVBS (Toggled by OSD)
Audio I/O: Built-in Mic

Electrical
Power Supply: DC 12V ±30%
Power Consumption: Max 5.7 W (12 VDC, Illuminators on)

Environmental
Operating Conditions: –40 °F to +140 °F; < 95%
Storage Conditions: –40 °F to +140 °F; < 95%
Ingress Protection: IP67

Construction
Casing: Metal front cover + plastic rear cap + metal bracket
Dimensions: 3.70" × 3.37" (94.0 mm × 85.7 mm)
Gross Weight: 1.04 lbs (0.47 kg)
Mounting Pan/Tilt/Rotation: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

What’s Included

• IC Realtime HDEG-E80F-DI-M1 Camera
• Mounting Accessories
• Quick Start Guide
