IC Realtime HDMX-B50V-IR-DPM1 5-Megapixel HDAVS 16:9 Aspect Ratio Indoor/Outdoor Mid-Size Bullet Camera

IC Realtime HDMX-B50V-IR-DPM1 5-Megapixel HDAVS 16:9 Aspect Ratio Indoor/Outdoor Mid-Size Bullet Camera

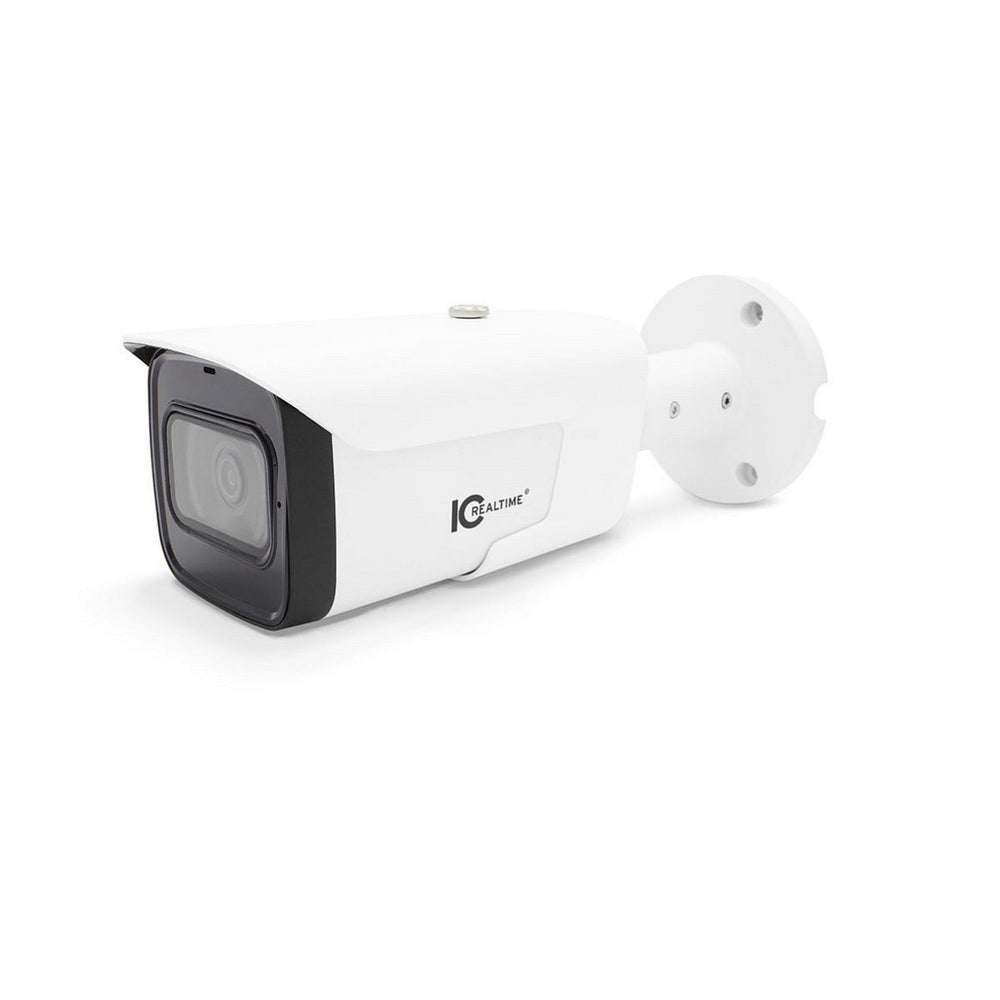

The HDMX-B50V-IR-DPM1 is the first bullet camera to join IC Realtime's new HDMX series of 5MP HDAVS coax cameras. The HDMX-B50V shares the camera series top-of-the-line features but encases them in a sturdy, IP67 weather-rated full metal bullet case & adjustable mounting arm/base system for easy installation and view positioning.

NATIVE 16:9 PLUS BACKWARD COMPATIBILITY
HDMX-B50V is capable of 5MP in a native 16:9 HD format when used with our newest MX1U4K HDAVS recorders (requires 5/21 AVR firmware). This advanced camera's engineering enables legacy video compatibility and 5MP 16:9 HD resolution selectable in an HD coax camera, making HDAVS clearly the most advanced coax camera line in the video security industry.

SUPER STARLIGHT VIDEO
HDMX-B50V-IR-DPM1 utilizes our newest Starlight video sensor chip, built with a 2880 x 1620-pixel field that delivers color down to 0.001 Lux. This video sensor can see color at 1/1000th of the light on a surface from a candle 39.37 inches away. In complete darkness, SmartIRs reach out over 260 ft. for unparalleled nighttime performance.

COMPATIBLE COAX FLEXIBILITY
HDMX-B50V is backward compatible with existing 2MP and 4MP HDAVS and is also switchable to other HD over coax formats. Using a convenient DIP switch set on the camera's BNC/power pigtail, HDMX-B50V can quickly be set to match AHD, CVI or TVI or even analog (CVBS) format recorders for quick & easy camera replacements & upgrades.

PROFESSIONAL & FEATURE-RICH
With IC Realtime's HD/AVS, the coax cable carries video, audio, and 2-way data that interacts with the HDAVS recorder to control camera features like zoom lenses or PTZs or even as alarm triggers. HDMX-B50V's power zoom 2.7 mm-13.5 mm motorized lens gives a zoom variable horizontal 31.4°-113° field of view for excellent D.O.R.I. performance. Dual voltage and wide power variance tolerance - at 24VAC it's ±25% tolerance and ±10% at 12VDC - means HDMX-B50V can use existing camera power systems.

The HDMX cameras are IC Realtime's first coax camera series to deliver spectacular & forensically detailed 5mp 16:9 HD video streams over coaxial cable. Combined with their video format switching, power zoom lenses, built-in audio mic, and stunning low light performance, IC Realtime's HDMX-B50V-IR-DPM1 is the ideal and future-proof bullet camera choice for both new & legacy coax cable video installations.

Key Features

• 1/2.7” CMOS | 16:9 Aspect Ratio | 25fps@5MP
• 2.7mm to 13.5mm | Motorized Varifocal | AoV 113 To 31
• Max. IR Length 262ft | Smart IR | 4 IR LEDs
• Starlight | Built-In Mic | AVS/ TVI/ AHD/ CVBS Support
• IP67 | 12VDC Or 24VAC | Max 12.5W
• 120dB True WDR | HLC-Pro | 3DNR

Technical Specifications

Camera
Image Sensor
1/2.7 Starlight CMOS
Effective Pixels
2880 x 1620 (5MP, 16:9 Aspect Ratio)
Scanning System
Progressive
Minimum Illumination
0.001 Lux/F1.6; 30IRE;
0 Lux IR on
S/N Ratio
More than 65dB
Illumination Distance
Up to 262ft (80m)
Illumination On/Off Control
Auto / Manual
Illumination LEDs
4
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Motorized vari-focal
Mount Type
φ14
Focal Length
2.7-13.5mm
Max. Aperture
F1.6
Angle of View
Horizontal: 31.4°-113°
Vertical: 17.6°-58°
Focus Control
Auto/Manual
Close Focus Distance
0.8 m (2.6 ft)
DORI - Detect
210ft- 689ft
DORI - Observe
84ft- 275ft
DORI - Recognize
42ft- 137ft
DORI - Identify
21ft- 68ft
Video
Resolution
5M (2880 x 1620); 4M (2560 x 1440);
1080p (1920 x 1080); 960H (960 x 576/960 x 480)
Frame Rate
(AVS)NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
(AHD)NTSC: 4M@30 fps
PAL: 4M@25 fps
(TVI)NTSC: 4M@30 fps
PAL: 4M@25 fps
Day/Night
Auto switch by ICR
Backlight Compensation
BLC/HLC/WDR/HLC-Pro
White Balance
Auto / Manual
Gain Control
AGC
Noise Reduction
3DNR
Smart IR
Auto / Manual
WDR
120dB
Interface
Video Interface
1-channel BNC high-definition video output / CVBS video output (DIP switch)
Audio I/O
Built-in Mic
Electrical
Power Supply
24V AC±25%/12V DC±10%
Power Consumption
Max 12.5W (12V DC IR on)
Environmental
Operating Conditions
-22F ~ +140F (-30C ~ +60C) / Less than 90% RH
Ingress Protection
IP67
Construction
Casing
Metal
Dimensions
9.61in x 3.56in x 3.56in (244.1mm x 90.4mm x 90.4mm)
Gross Weight
2.4 lb (1.07 kg)
Mounting Pan/Tilt/Rotation
Pan: 0°-360°
Tilt: 0°-90°
Rotation: 0°-360°
