IC Realtime Indoor/Outdoor Weatherproof Camera Mount Junction Box
IC Realtime Junction Boxes - Waterproof & Durable Solutions
IC Realtime offers a variety of high-quality waterproof junction boxes designed to provide durability and functionality for a variety of camera installations. Whether you are setting up medium-sized dome cameras or mini dome bullet cameras, these junction boxes ensure robust protection against environmental elements while maintaining ease of use.
Each junction box is crafted from durable materials such as aluminum, ensuring both strength and lightweight design. With a variety of sizes and color options, they are perfect for a wide range of installation needs, from indoor to outdoor applications. Additionally, these junction boxes offer excellent load-bearing capacity and operate efficiently even in extreme temperatures ranging from -40ºC to 60ºC (-40ºF to 140ºF).
Explore the features and technical specifications below to find the perfect junction box for your security setup.
Key Features
- Durable Aluminum Construction
- Waterproof and Weatherproof Design
- Variety of Sizes and Color Options
- Wide Temperature Range (-40ºC ~ 60ºC / -40ºF ~ 140ºF)
- Compatible with Various Camera Models
- Threaded M20 and G3/4” Options Available
Shared Features
- Material: Aluminum
- Dimension (W x H x D): 5.28" x 5.25" x 2.05" (134.0mm x 133.5mm x 52.0mm)
- Weight: 1.19lb (0.54kg)
- Load Bearing: 6.61lb (3.0kg)
- Color: White
- Operating Temperature: -40ºC ~ 60ºC (-40ºF ~ 140ºF)
- Humidity: 0~90% RH
- Inch Thread: G3/4”
- Protection: IP66
- Applicable Models: Medium-Sized Dome Cameras.

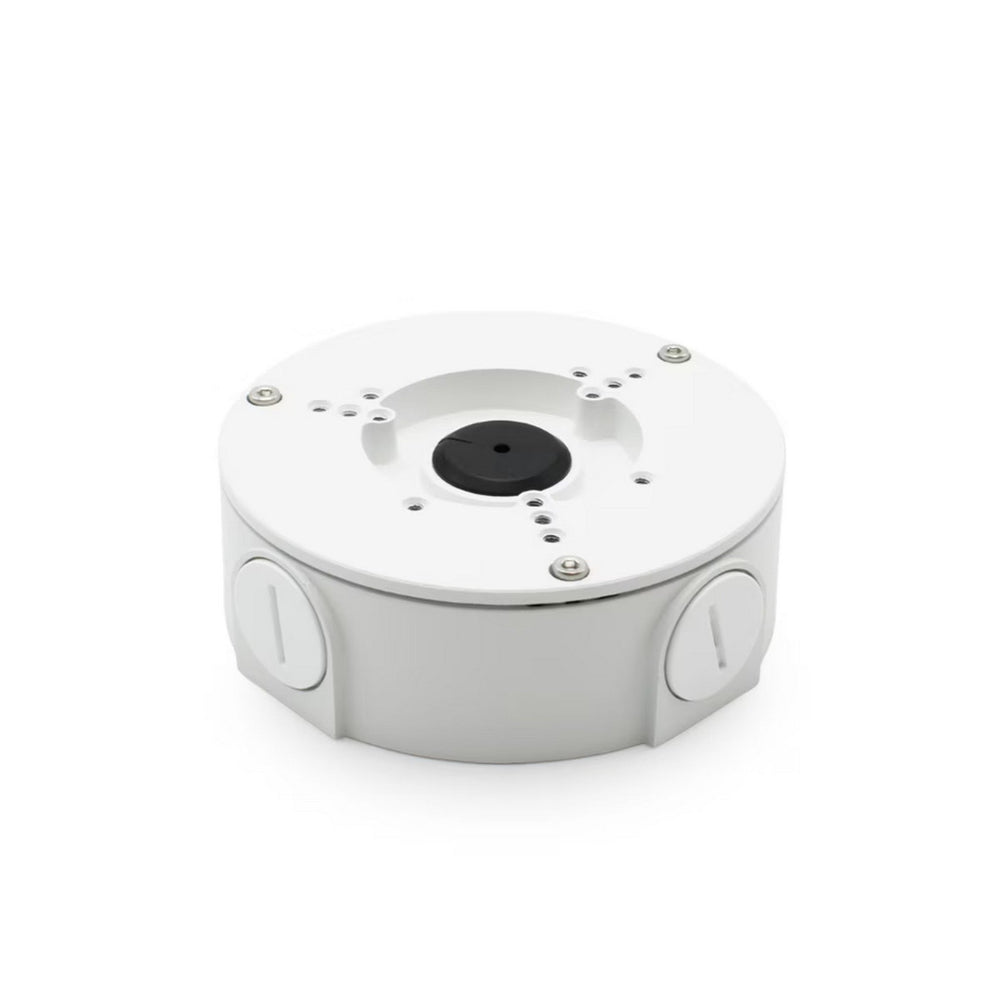

MNT-JUNCTION BOX 1 Waterproof Round Junction Box
- Material: Aluminum & SECC
- Dimension (W x H x D): 138 mm × 42 mm (5.4" × 1.6")
- Weight: 0.38 kg (0.83lb)
- Load Bearing: 3kg (6.6lb)
- Color: White
- Operating Temperature: -40ºC ~ 60ºC (-40ºF ~ 140ºF)
- Applicable Models: Compatible with AVS Mini Domes And Round Base Bullet cameras such as AVS-D2110 and AVS-D2210.

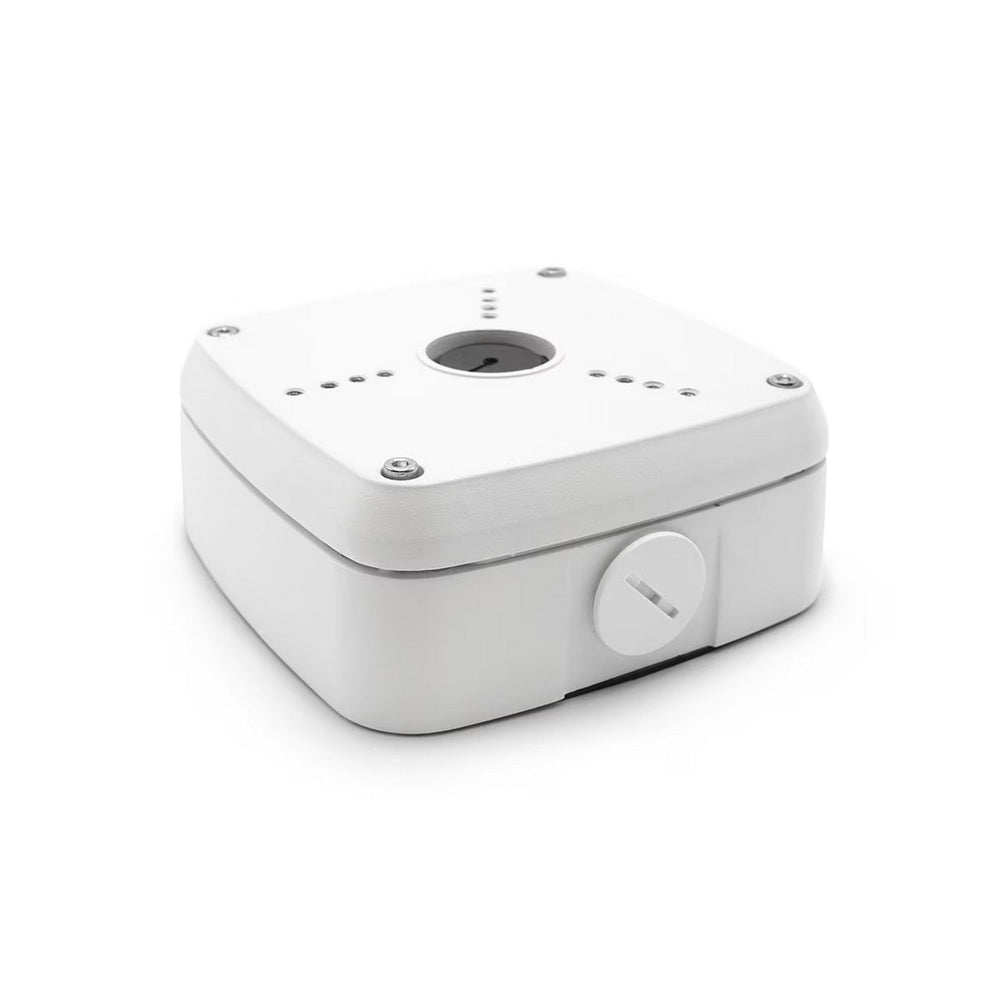

MNT-JUNCTION BOX 3 Waterproof Junction Box
- Dimension (W x H x D): 5.2" × 5.2" × 2.1" (134mm × 134mm × 55mm)
- Weight: 1.1lb (0.5Kg)
- Threading: M20(G1/2”)
- Load Bearing: 6.6lb (3Kg)
- Color: White
- Operating Temperature: -40ºC ~ 60ºC (-40ºF ~ 140ºF)
- Applicable Models: Compatible with IP Bullet Cameras And 4 Hole Pattern Mini Dome cameras.

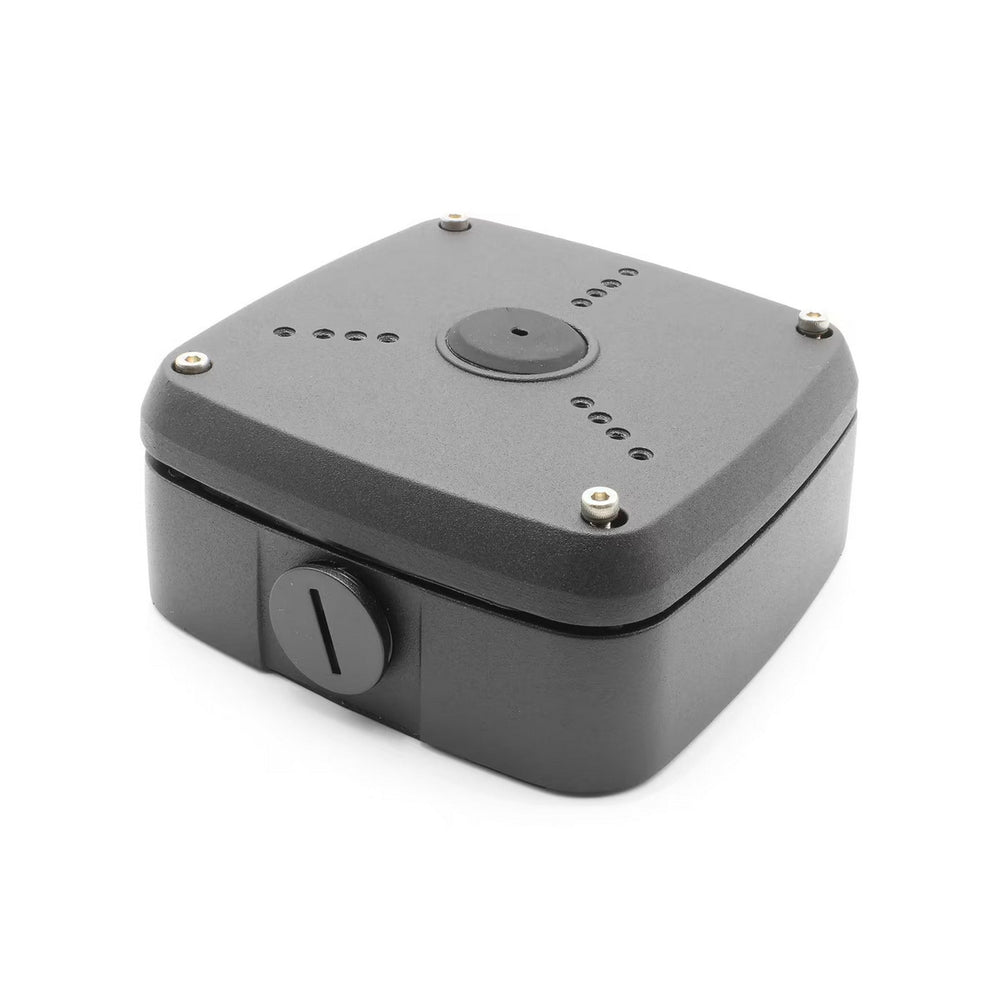

MNT-JUNCTIONBOX-3-B Outdoor Junction Box
- Dimension (W x H x D): 5.2" × 5.2" × 2.1" (134mm × 134mm × 55mm)
- Weight: 1.1lb (0.5Kg)
- Threading: M20(G1/2”)
- Load Bearing: 6.6lb (3Kg)
- Color: Black
- Operating Temperature: -40°F ~ 140°F (40ºC ~ 60ºC)
- Humidity: 0~90% RH
- Applicable Models: Compatible with IP Bullet Cameras And 4 Hole Pattern Mini Dome cameras.

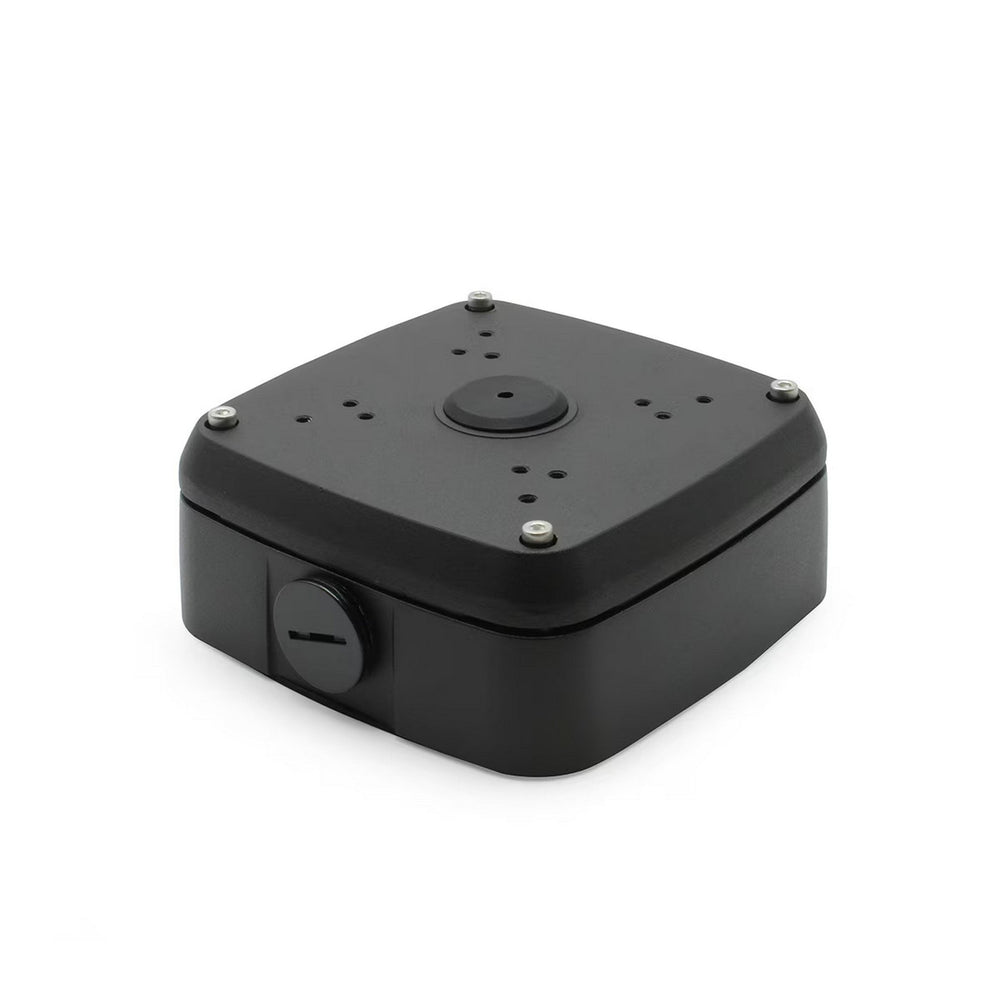

MNT-JUNCTIONBOX-4-B Outdoor Junction Box
- Dimension (W x H x D): 5.28” x 5.25” x 2.20” (134.0mm x 133.5mm x 56.0mm)
- Weight: 1.19lb (0.54Kg)
- Protection: IP66
- Load Bearing: 6.61lb (3Kg)
- Color: Black
- Operating Temperature: -40°F ~ 140°F (40ºC ~ 60ºC)
- Humidity: 0~90% RH
- Inch Thread: G3/4”
- Applicable Models: Compatible with IP Bullet Cameras And 4 Hole Pattern Mini Dome cameras.

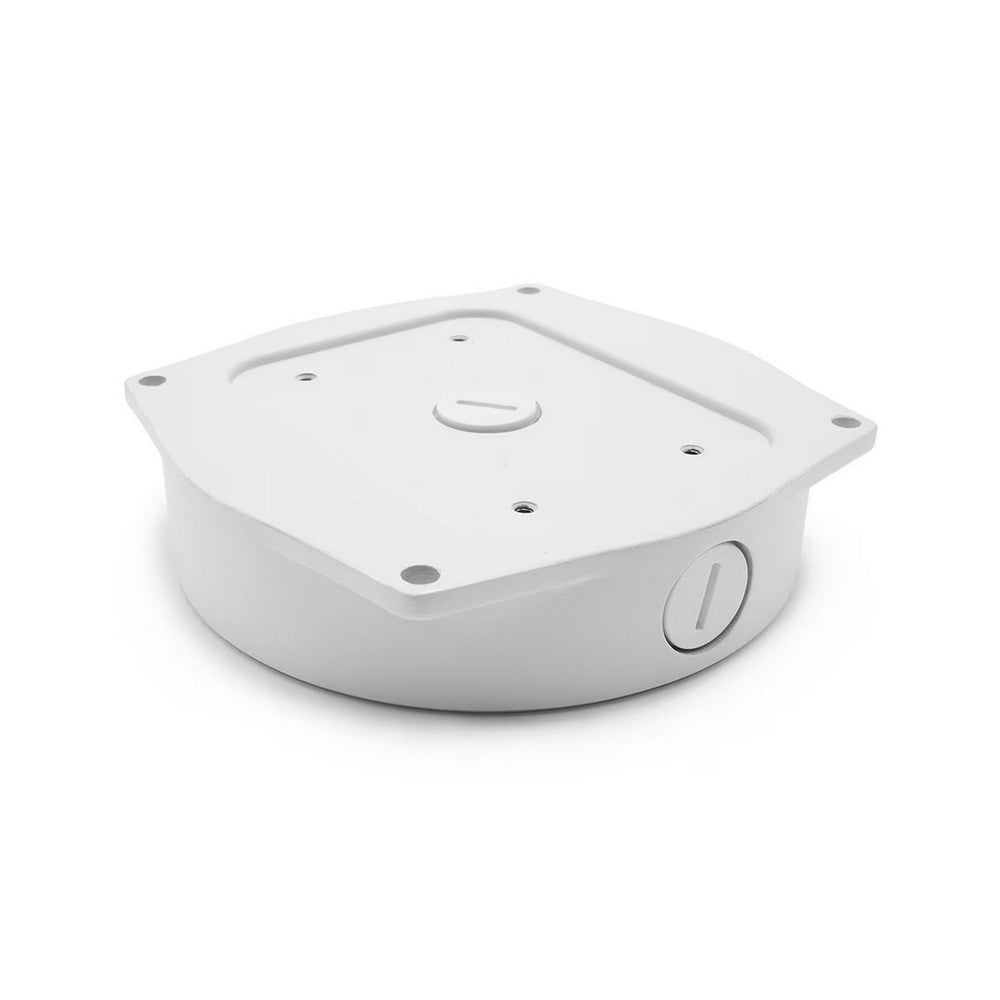

MNT-JUNCTION BOX 5 Waterproof Round Junction Box
- Material: Aluminum
- Dimension (W x H x D): 6.1" × 6.1" × 1.5" (155mm × 155mm × 39mm)
- Weight: 1.3lb (0.6Kg)
- Threading: M20(G1/2”)
- Load Bearing: 6.6lb (3Kg)
- Color: White
- Operating Temperature: -40ºC ~ 60ºC (-40ºF ~ 140ºF)
- Applicable Models: Compatible with ICIP-D720IR-T12 and DVIR dome cameras.
MNT-JUNCTION-BOX-6 Junction Box
- Dimension (W x H x D): 110.0mm x 34.0mm (4.33” x 1.34”)
- Weight: 0.19kg (0.42lb)
- Load Bearing: 1kg (2.2lb)
- Inch Thread: M20(G1/2”)
- Color: White
- Operating Temperature: 40ºC ~ 60ºC (-40°F ~ 140°F)
- Humidity: 0~90% RH
- Applicable Models: Medium-sized dome cameras such as ICIP-D2001 And D3010 series.

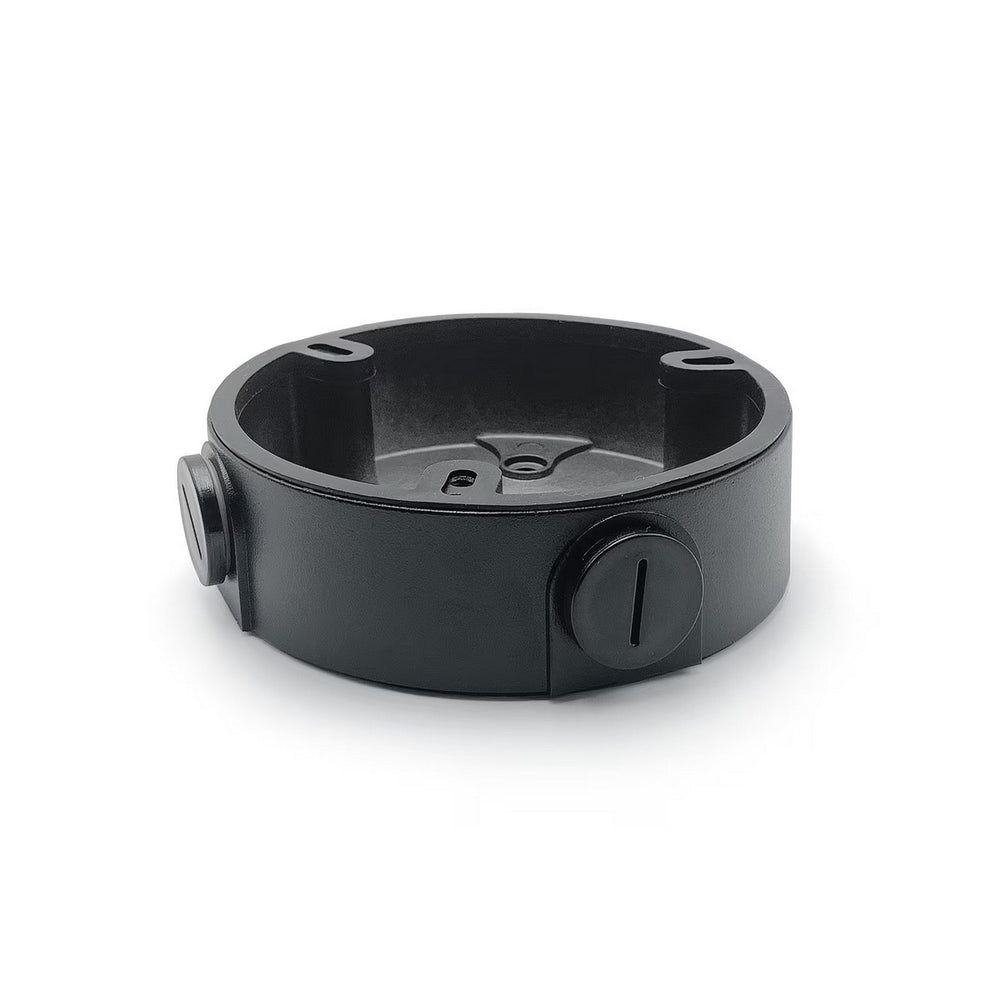

MNT-JUNCTION-BOX-6-B Junction Box
- Dimension (W x H x D): 110.0mm x 34.0mm (4.33” x 1.34”)
- Weight: 0.19kg (0.42lb)
- Load Bearing: 1kg (2.2lb)
- Inch Thread: M20(G1/2”)
- Color: Black
- Operating Temperature: 40ºC ~ 60ºC (-40°F ~ 140°F)
- Humidity: 0~90% RH
- Applicable Models: Medium-sized dome cameras.

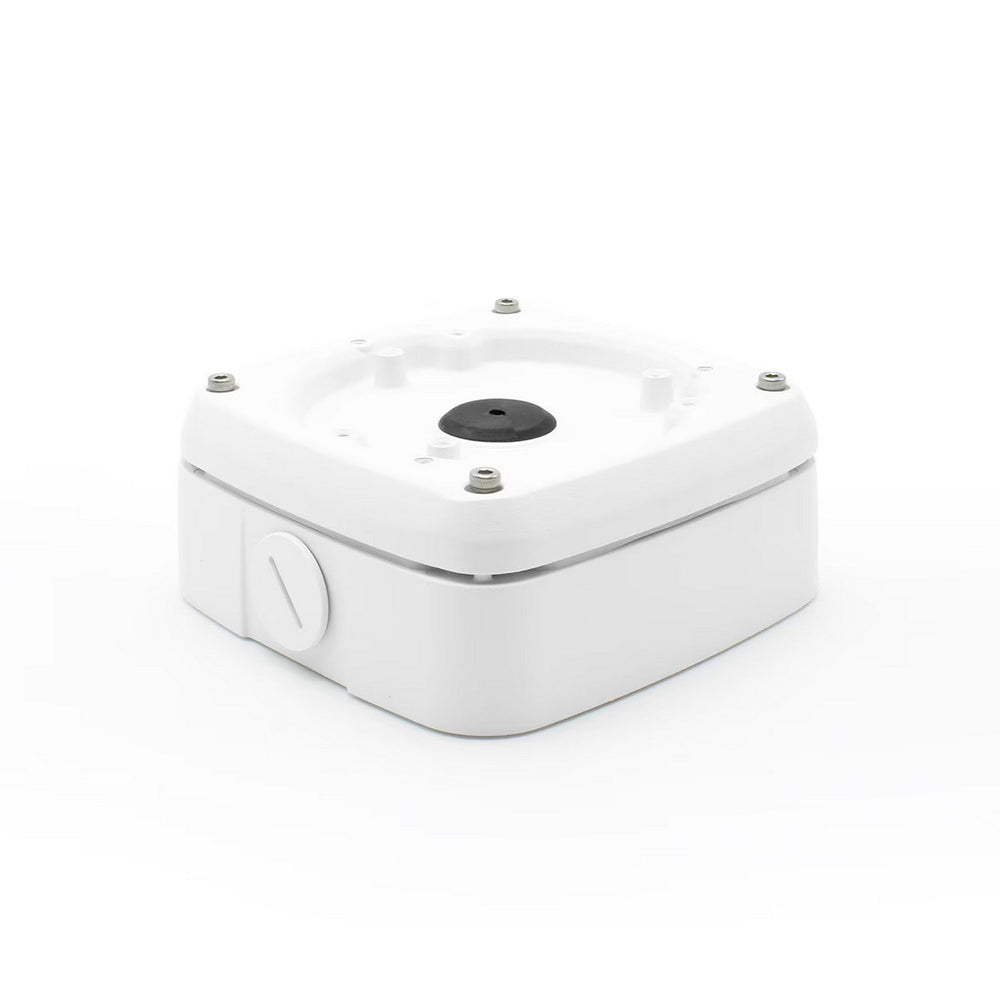

MNT-JUNCTIONBOX-6-SQ Waterproof Junction Box
- Protection: IP66
- Dimension (W x H x D): 5.28” x 5.25” x 2.05” (134.0mm x 133.5mm x 52.0mm)
- Weight: 1.19lb (0.54kg)
- Load Bearing: 6.61lb (3.0kg)
- Pipe Threading: G3/4”
- Color: White
- Operating Temperature: -40ºF ~ 140ºF (-40ºC ~ 60ºC)
- Humidity: 0~90% RH
- Applicable Models: Medium-Sized Dome Cameras.

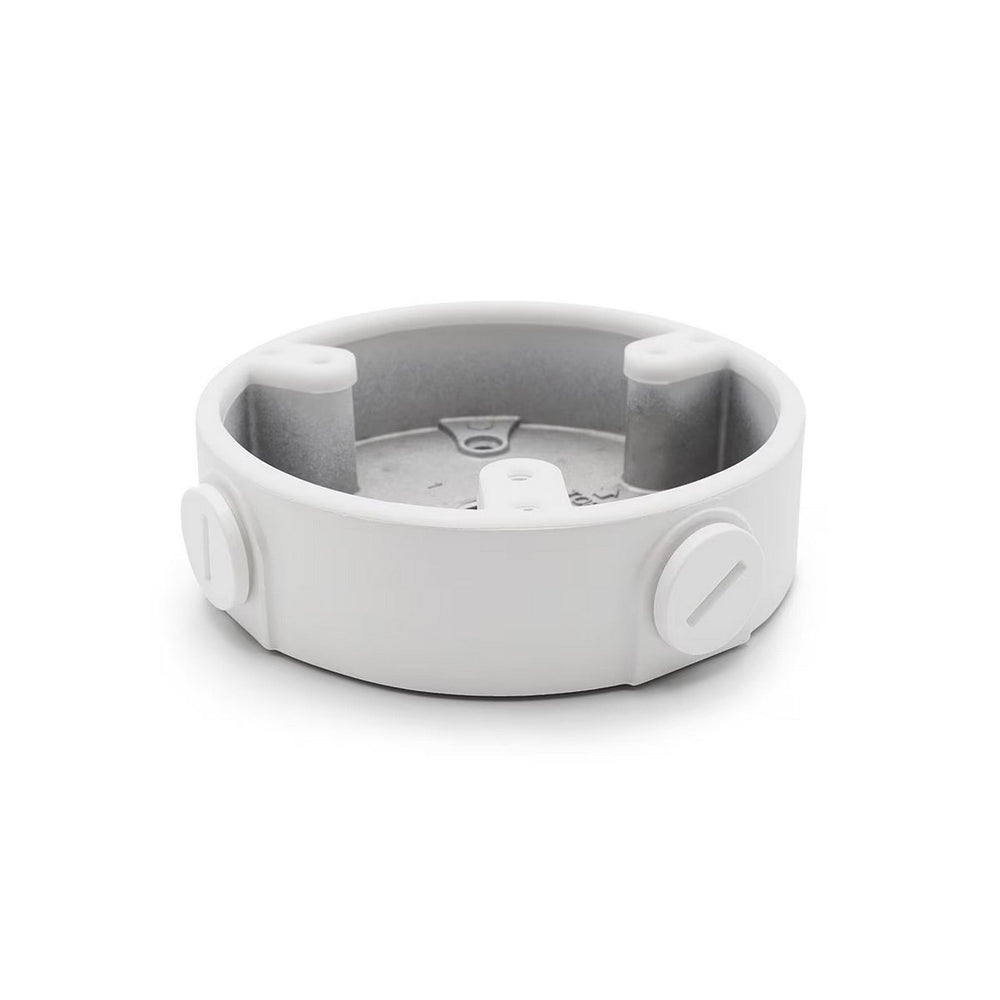

MNT-JUNCTION-BOX-7 Junction Box
- Dimension (W x H x D): 122.0mm x 34.2mm (4.80” x 1.35”)
- Weight: 0.24kg (0.53lb)
- Load Bearing: 1kg (2.2lb)
- Inch Thread: M20(G1/2”)
- Color: White
- Operating Temperature: 40ºC ~ 60ºC (-40°F ~ 140°F)
- Humidity: 0~90% RH
- Applicable Models: Medium-sized dome cameras.
