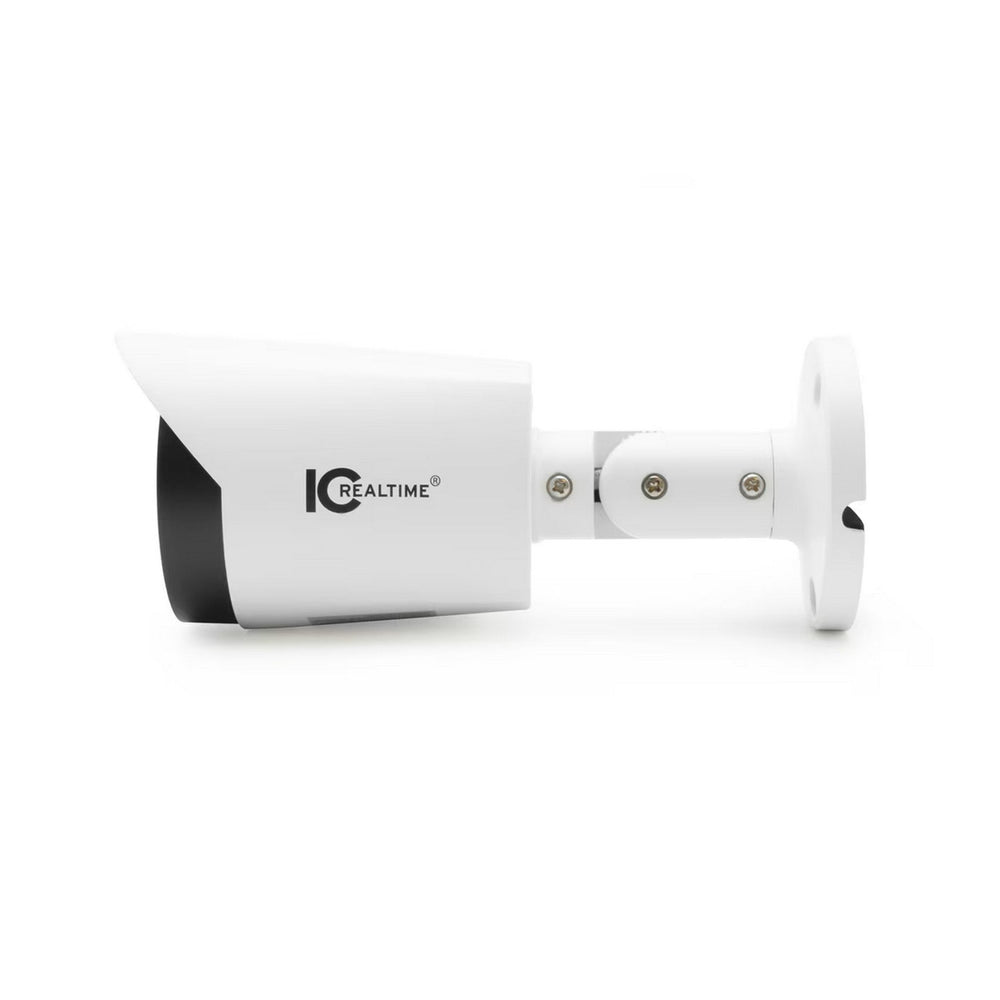

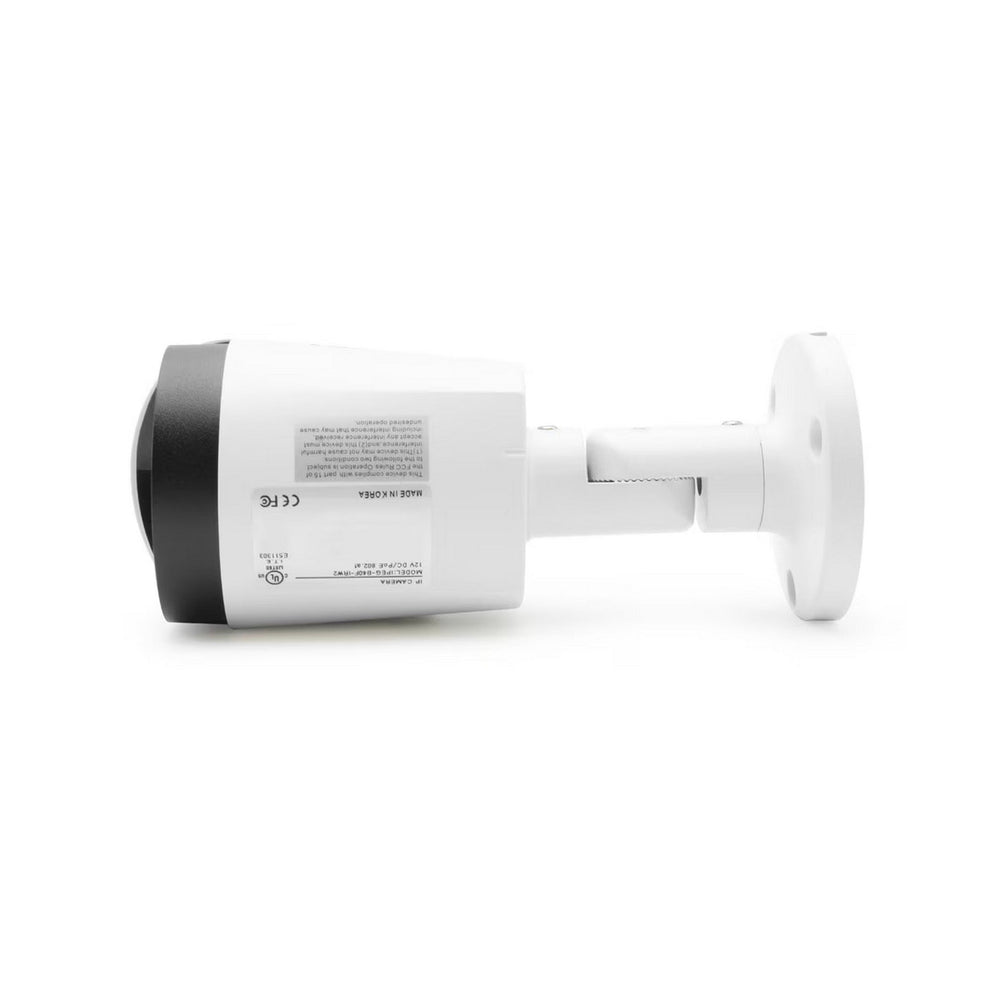

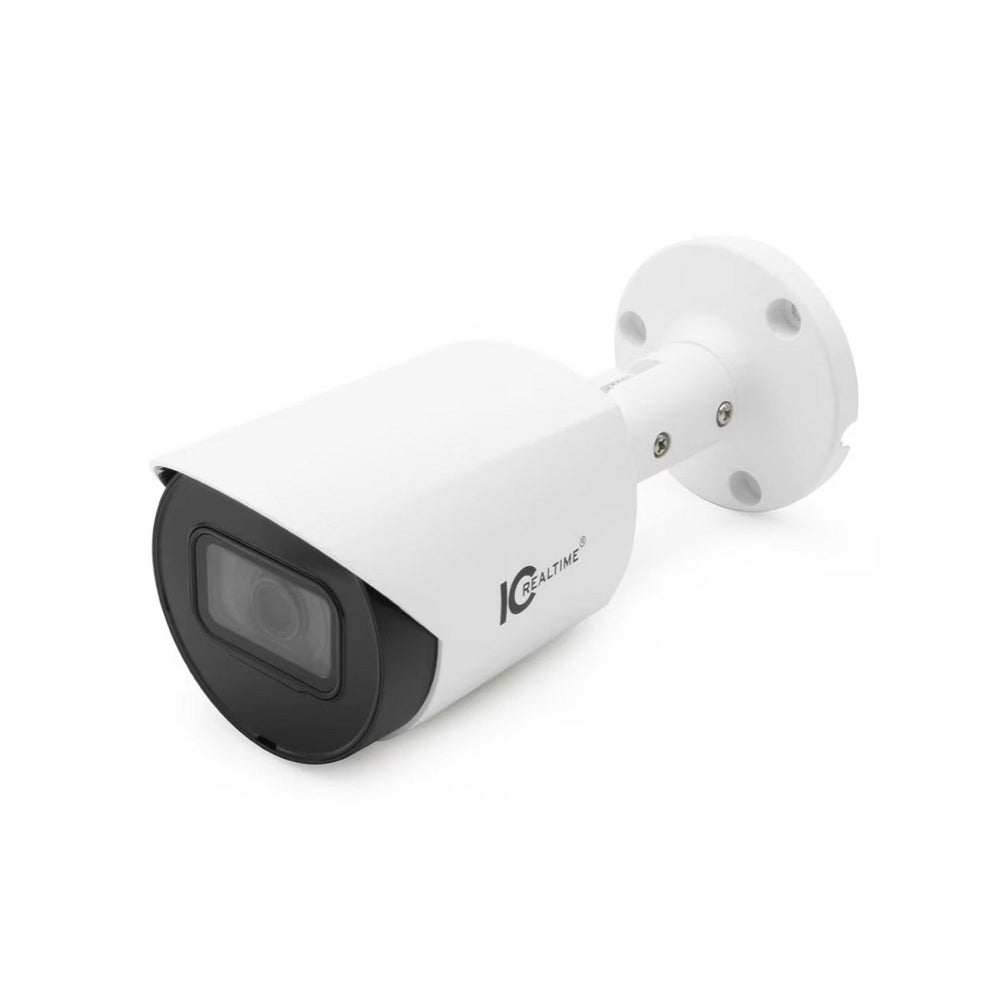

IC Realtime IPEG-B40F-IRW2 4MP IP Indoor/Outdoor Small-Sized Bullet Camera with Fixed Lens

IC Realtime IPEG-B40F-IRW2 4MP IP Indoor/Outdoor Small-sized Bullet Camera with Fixed 2.8mm Lens (90°), 98 FT Smart IR, POE Capable

The IC Realtime IPEG-B40F-IRW2 4MP IP Indoor/Outdoor Small-sized Bullet Camera is a versatile and reliable surveillance solution. Designed for both indoor and outdoor use, this camera offers robust performance with a compact form factor. The 2.8mm fixed lens provides a 90° field of view, ensuring broad coverage for security monitoring. Equipped with Smart IR technology, it delivers clear video even in low-light conditions up to 98 feet, making it ideal for various environments where high-quality video is essential.

This camera features a 1/3” 4 Megapixel progressive CMOS sensor with effective pixels of 2688 (H) × 1520 (V). With its advanced infrared illumination distance of up to 98 feet (30 meters), it ensures clear images during nighttime operations. Additionally, the IPEG-B40F-IRW2 supports multiple video compression formats, streaming capabilities, and is powered via PoE (802.3af), providing flexibility in deployment. Whether monitoring a home, office, or outdoor space, this camera offers reliable performance under different conditions.

Built with a durable metal casing, the camera is rated IP67 for dust and water resistance, ensuring protection in harsh environments. Smart features like motion detection, 3D DNR, and intelligent IR provide a superior surveillance experience, allowing users to confidently secure their spaces with precision and clarity.

Key Features

• 1/3” 4 Megapixel progressive CMOS sensor
• Effective Pixels: 2688 (H) × 1520 (V)

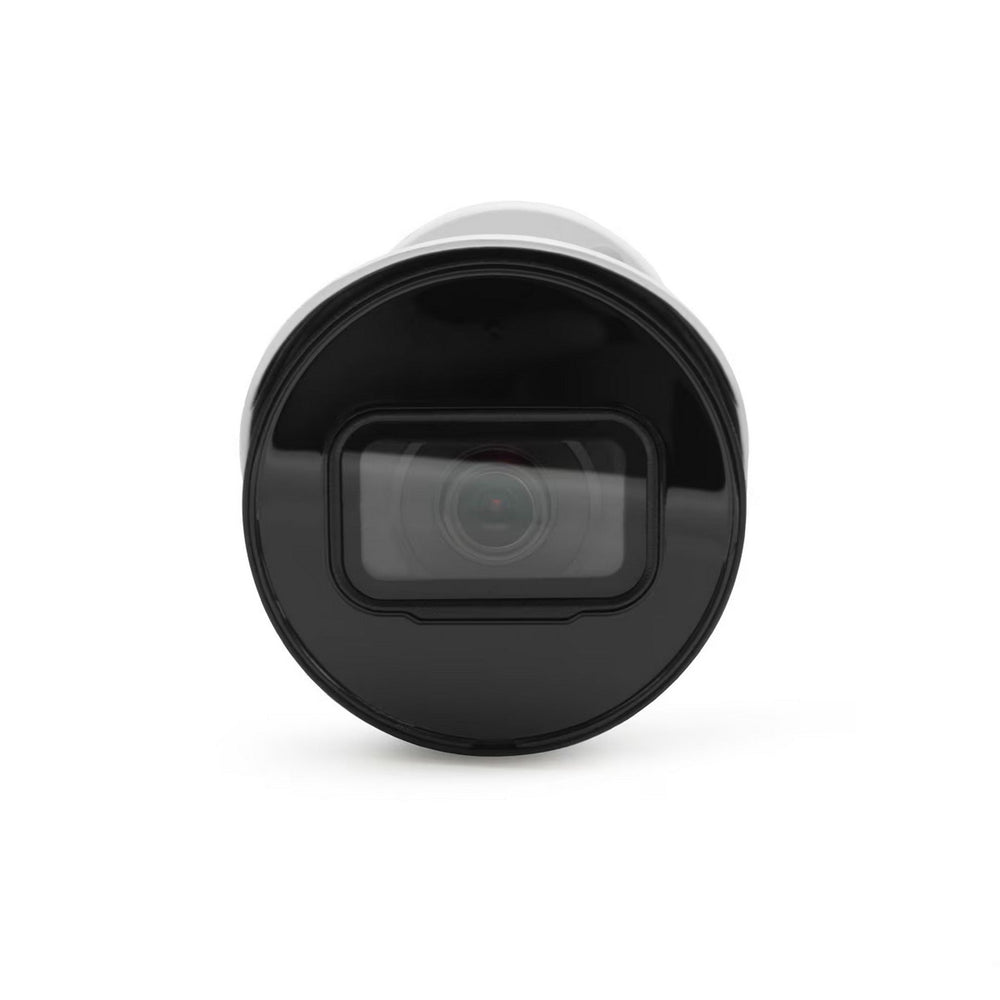

• Fixed 2.8mm lens (90° field of view)
• Infrared Illumination Distance: Up to 98 feet (30 meters)
• Smart IR for low-light clarity
• POE Capable

Network:
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Interoperability: ONVIF (Profile S/Profile T); CGI; P2P
Max. User Access: 6 (Total bandwidth: 36 M)
Edge Storage: FTP
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS
Smart Phone: IOS, Android

Interface:
Audio I/O: Built-in Mic
Alarm I/O: N/A
Factory Reset: N/A
Memory Slot: N/A

Electrical:
Power Supply: DC12V, PoE (802.3af)
Power Consumption:
Basic: 1.4 W (12 VDC); 2.2 W (PoE)
Max. (ICR + H.265+IR on): 3.4 W (12 VDC); 4.4 W(PoE)

Environmental:
Operating Conditions: -40°C to +60°C (-40°F to +140°F)
Operating Humidity: ≤ 95%
Storage Conditions: -40°C to +60°C (-40°F to +140°F)
Storage Humidity: ≤ 95%
Ingress Protection: IP67
Vandal Resistance: NA

Construction:
Casing: Metal

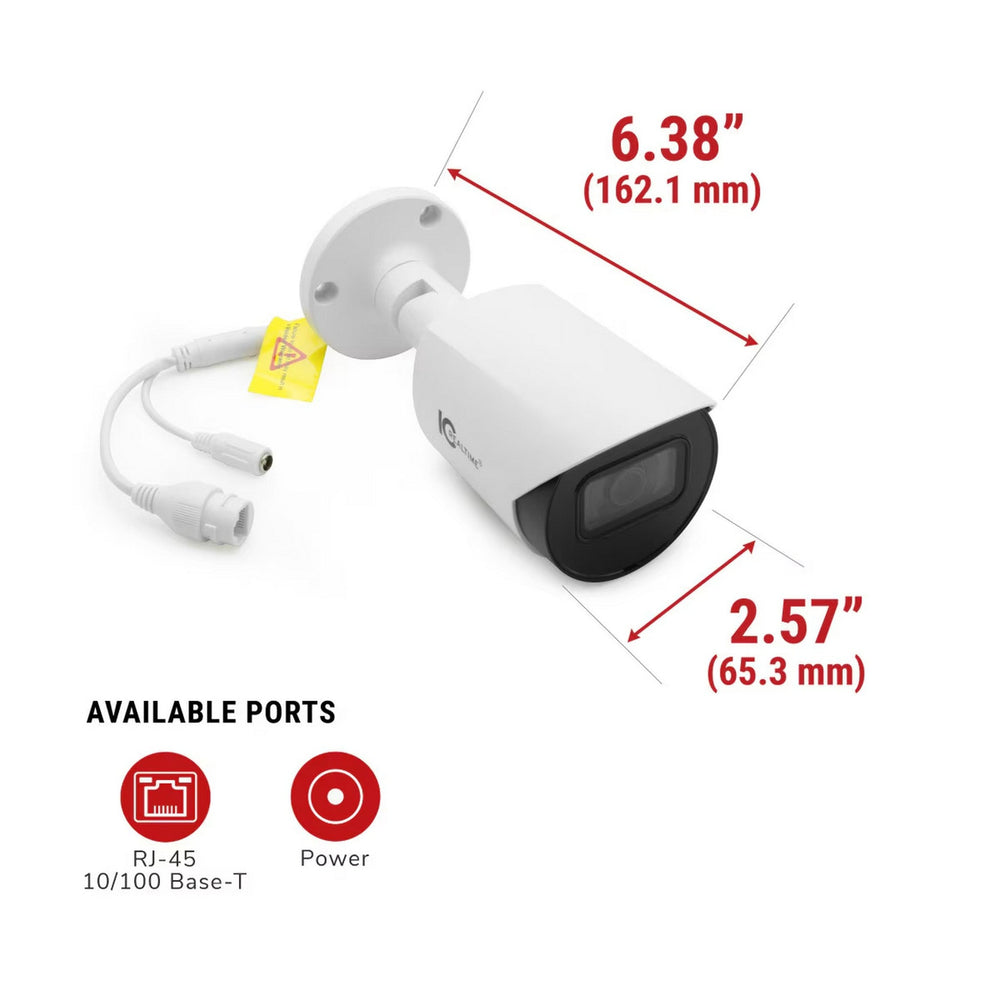

Dimensions: 6.40" × 2.76" × 2.7" (162.1 mm × 70 mm × 70 mm)
Gross Weight: 0.99 lb (0.45 kg)
Mounting Pan/Tilt/Rotation: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

What’s Included

• IC Realtime IPEG-B40F-IRW2 Camera
• Mounting Bracket
• Power Adapter
• Documentation
