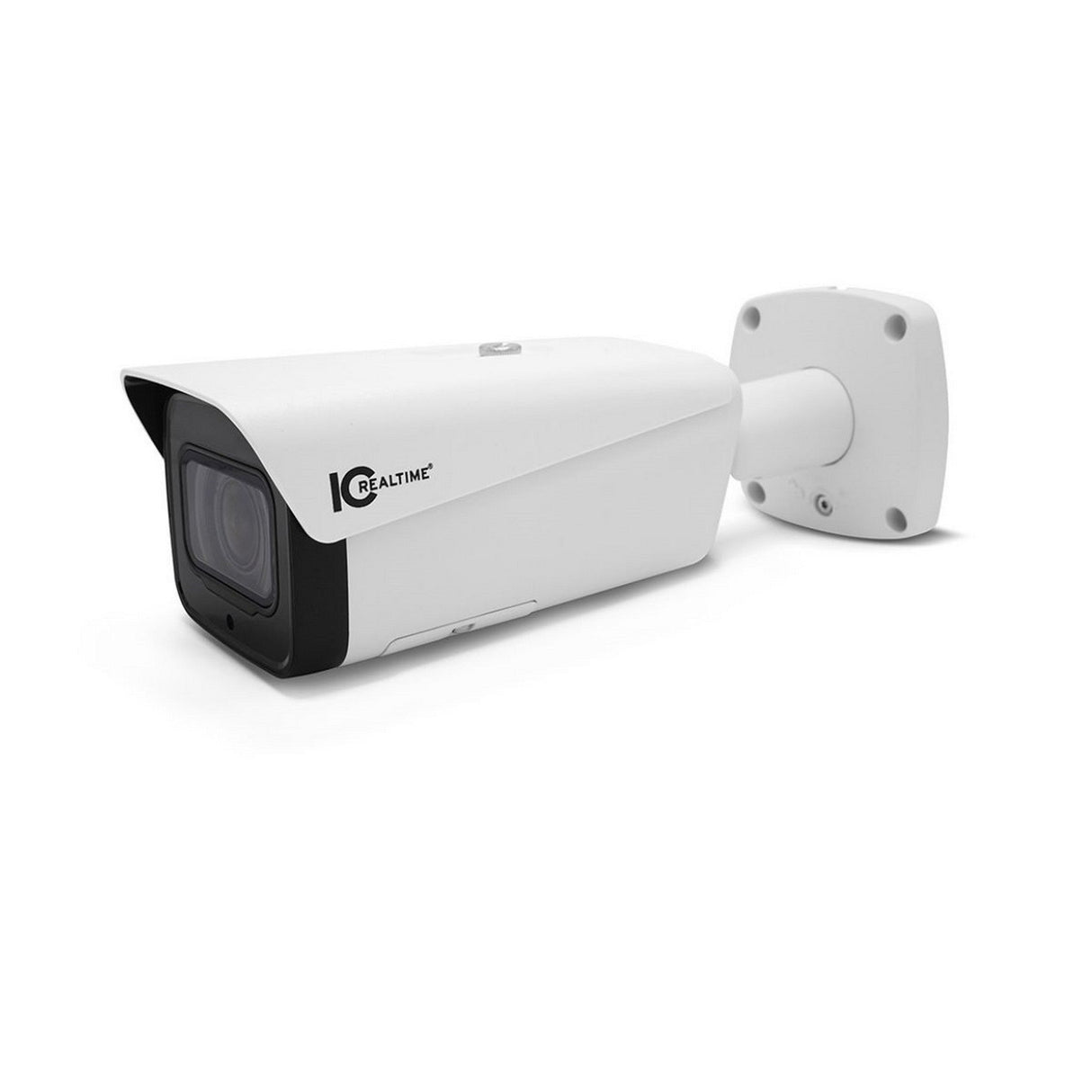

IC Realtime IPEL-B2012X-IRW2 2MP IP Indoor/Outdoor Full Size Bullet Camera, White

IC Realtime IPEL-B2012X-IRW2 2MP IP Indoor/Outdoor Full Size Bullet Camera, White

IC Realtime has always made the best “core” cameras in the industry. Solid performers like our B2012X 2mp full-size, IP power zoom bullet camera. Cameras whose function is so good, so well suited for their purpose that there seems to be no reason to change them. Our B2012X has been installed in thousands of systems and is among our bestselling cameras. Changing it seemed crazy. So, we just improved it instead!

IC Realtime's newest version of this dependable, reliable 2mp 1080p IR bullet camera comes equipped with Sony's famous STARVIS (“star-vision”) Starlight video chipset for unequaled image precision & low light performance. The STARVIS chipset is Sony's custom-designed, low light / high sensitivity video sensor. Physically different than conventional video sensors and Sony engineered specifically for security observation under challenging light situations.

The B2012X takes full advantage of the STARVIS chip's capabilities by delivering sharp, auto-focused images through its wide-range 5.3 mm-64.0 mm power zoom lens system. This lens provides a 4 Degrees tight focus field of view to 58 Degrees wide-angle horizontal and 2 Degrees to 34 Degrees vertical field of view (FOV). This wide FOV range means it can be mounted on a convenient wall, pole, or structure viewing a gate, driveway, or entry area and then zoom in when needed for a close-up view. B2012X includes an audio in / audio out port and 2 alarm ports, making it ideal for gate and entry control situations.

While the B2012X's optical qualities & physical attributes are state of the art, the camera's real story is its brains & “people skills.” This advanced security tool has IC Realtime's complete suite of FlexSmartAi features built-in. Utilizing both its native Artificial Intelligence and working in synergy with our FlexSmartAi recorders, the B2012X is among the best business intelligence, perimeter protection, and facial recognition cameras we have ever made.

Face Detection is the newest requirement for security camera systems, and IC Realtime's B2012X has among the best in the industry. When set for face recognition, the B2012X automatically optimizes video parameters to get the most detail possible to capture the most accurate shots and can identify 8 face expressions and 6 facial attributes.

For facial recognition and motion detection, any camera's DORI (Detect, Observe, Recognize, and Identify) ratings are crucial for accurate detection. B2012X can discern enough details to give Facial ID out to 23 feet and recognize faces at 49 feet for human detection, and at maximum zoom can detect people over half a mile away.

People Counting is among the most requested camera skills. B2012X's excellent video quality and advanced detection capabilities make it the most flexible and accurate counting camera system in the business. The B2012X can not only count people entering and leaving an area along with their stay time; it can measure up to 4 different areas independently and set up to use rule-based counting. The camera can even directly report daily, monthly or yearly totals. Given the B2012X's recognition, detection & counting skills, you might expect extraordinary tripwire and area detection & management capabilities, and you would not be disappointed. The B2012X's FlexSmartAi advanced perimeter monitoring uses a deep-learning algorithm that actually analyzes motion, not just detect pixel changes. It ignores squirrels running by and windblown trees but recognizes people and vehicles, sending alarms only when human or vehicle intrusion is confirmed.

The B2012X can also be set up to recognize security management situations like lost or abandoned objects, people loitering, and parking violations. It even has algorithms to detect fast-moving objects dependably and enables heat mapping for remote equipment monitoring & fire safety enhancement. Of course, being an IC Realtime camera, the B2012X is loaded with the features security professionals have come to expect. Smart IRs that automatically adjust their levels to avoid IR flares and super-wide 120db Wide Dynamic Range auto-exposure assure excellent night vision.

B2012X also features internal SD card storage up to 256gb for local on-device video storage, H.265/Ai video compression, ONVIF (Profile S/Profile G/Profile T and CGI, and P2P Interoperability capabilities, triple video stream output, low PoE power needs (less than 10.3W - 802.3af) or local 12VDC for non-PoE installations with wide 30% voltage tolerance.

B2012X has IP67 weather and IK10 vandal resistance and operates in -22 Degrees F to +140 Degrees F heat conditions, and is UL listed. Simply put, IPEL-B2012X-IRW2 is now IC Realtime's best, most versatile full size 1080p bullet camera. Put it to work on your next installation.

Key Features

• 1/2.8 CMOS Starvis | 2MP | 30fps@2MP
• 5.3 Mm-64.0 Mm | Motorized Varifocal | AoV 58 Degrees To 4 Degrees
• Max. IR Length 492ft | Smart IR | 4 IR LEDs
• 2ch Audio In 1ch Audio Out | 1ch Alarm In 1ch Alarm Out | 256GB MSD
• IP67 | IK10 | 12VDC Or PoE | IVS | Perimeter Protection
• IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Technical Specifications

Camera
Image Sensor
1/2.8 2 Megapixel progressive scan STARVIS CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/Rom
32MB/256MB
Scanning System
Progressive
Minimum Illumination
0.002 Lux@F1.5
S/N Ratio
> 56 dB
Illumination Distance
Distance up to 150 m (492 ft)
Illumination On/Off Control
Auto/Manual
Illumination LEDs
4
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Motorized vari-focal
Mount Type
Board-in
Focal Length
5.3-64mm
Max. Aperture
F1.5
Angle of View
H: 58 Degrees-4 Degrees, V: 34 Degrees-2 Degrees
Optical Zoom
12x
Focus Control
Motorized
Close Focus Distance
1.0 m-1.5 m (3.28 ft-4.92 ft)
DORI - Detect
240ft-2897ft
DORI - Observe
95ft -1158ft
DORI - Recognize
49ft-580ft
DORI - Identify
23ft-289ft
Intelligence
IVS
Object Abandoned/Missing, Heat Map
Advanced Intelligent Functions
Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering.
Face Detection Support- Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure
Supports 6 kinds of face attributes extraction: Age, Gender, Expression (Happy, Surprised, Normal, Anger, Sad, Disgusted, Confused, Frightened), Glasses, Mouth, Mask, Mustache & Beard.
People Counting Support- Supports Line crossing/Region/Queuing people counting; Supports up to 4 rules.
Video
Compression
H.265, H.264, H.264B, H.264H, MJPEG (only supported by sub stream)
Streaming Capability
3 Streams
Resolution
1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 342 x 240)
Frame Rate
Main Stream: 1080P (1 fps-25/30 fps)
Sub Stream: D1 (1 fps-25/30 fps)
Third Stream: 1080P (1 fps-6 fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 32 Kbps-8192 Kbps
H.265: 19 Kbps-7424 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Smart IR
Support
Flip
0 Degrees/90 Degrees/180 Degrees/270 Degrees
Mirror
Off / On
Privacy Masking
Up to 4 areas
WDR
120dB
Audio
Compression
G.711a, G.711Mu, AAC, G.726, G.723
Network
Ethernet
RJ-45 (100/1000Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; P PPoE; 802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T), CGI
Compatibility
ONVIF Profile S&G / API
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Edge Storage
NAS
Local PC for instant recording
Micro SD card 256GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
SmartICRSS, DSS
Smart Phone
IOS, Android
Interface
Audio I/O
1/1 channel in/Out
Memory Slot
Micro SD Card 256GB
Electrical
Power Supply
DC12V, PoE (802.3af) (Class 0), ePOE Support
Power Consumption
<10.3W
Environmental
Operating Conditions
-30 Degrees C ~ +60 Degrees C (-22 Degrees F ~ +140 Degrees F) / Less than 95% RH
Storage Conditions
-30 Degrees C ~ +60 Degrees C (-22 Degrees F ~ +140 Degrees F) / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Construction
Casing
Metal
Dimensions
273.2mmx95.0mmx95.0mm (10.76” x 3.74” x 3.74”)
Gross Weight
1.51Kg (3.33lb)
