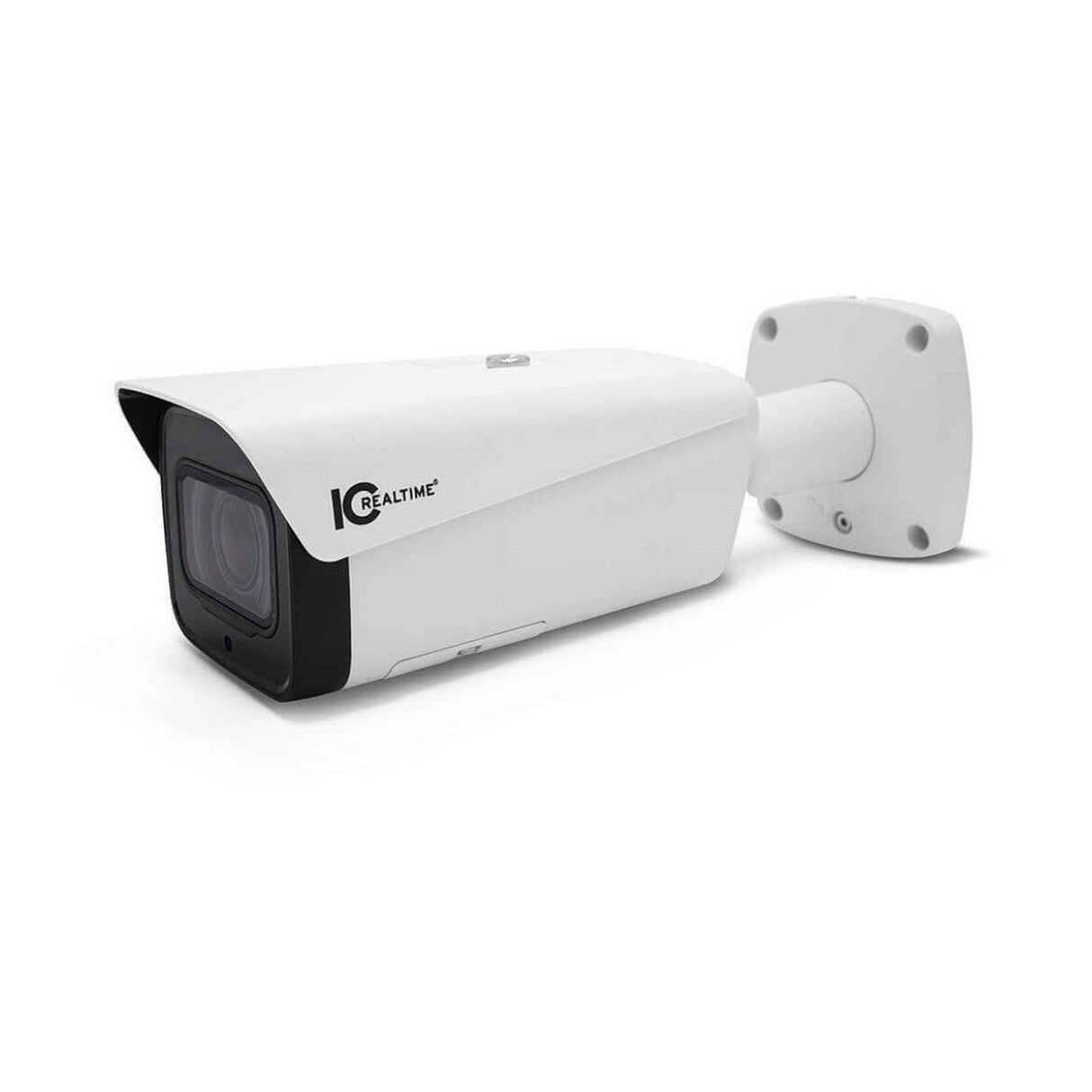

IC Realtime IPEL-B40V-IRW1-AI 4MP IP Indoor/Outdoor Full Size Bullet Camera, White

IC Realtime IPEL-B40V-IRW1-AI 4MP IP Indoor/Outdoor Full Size Bullet Camera, White

As part of the IC Realtime Elite family, this 4MP IP bullet security camera piles on some of the best features an ePoE camera offers. What significantly improves the high-resolution night vision security cameras' ability is deep learning artificial intelligence algorithms.

The new Pro A.I. series blends a people counting camera with face detection security and super night vision security as an all-in-one solution. Incorporate Starlight & Smart IR technology with up to 164-foot distances, and what you get is one of the best bullet cameras for night vision on the market.

The images this camera generates are sharp and defined regardless of contrast or light because Elite cameras signal to noise ratio is 140dB. It is a True Wide Dynamic Range (WDR) device. Metadata, meaning feature attribute information, can be extracted from a target object and used for future data retrieval. Furthermore, the device supports up to three streams.

This IP bullet camera supports ePoE & PoC transmission technologies, which greatly simplify wiring. It also achieves distances 10X greater than 328ft (IP standard). Plus, this night vision home security camera offers you design flexibility, reliability, and cost savings.

IC Realtime’s security perimeter protection significantly improves accuracy and virtually eliminates false positives making it the best home security perimeter protection. Benefits include accurate alerts and an overall reduction in system requirements and loads, resulting in higher system reliability, performance, and efficiency.

Key Features

• 1/1.8” CMOS | 4MP | 30fps@4MP
• 2.7mm to 12mm | Motorized Varifocal | AoV 114 Degrees-47 Degrees
• Max. IR Length 164ft | Starlight Support | 4 IR LEDs
• 1ch Audio In 1ch Audio Out | 2ch Alarm In 1ch Alarm Out | 256GB MSD
• IP67 | IK10 | 12VDC Or PoE | Max. 10.9W
• IVS | AGC | 140dB WDR | HLC | BLC | 3DNR

Technical Specifications

Camera
Image Sensor
1/1.8” 4 Megapixel progressive scan CMOS
Effective Pixels
2688(H) x 1520(V)
RAM/Rom
128MB / 1GB
Scanning System
Progressive
Minimum Illumination
0.003 Lux@F1.8
Illumination Distance
Distance up to 50m (164ft)
Illumination On/Off Control
Auto/Manual
Illumination LEDs
4
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Motorized vari-focal
Mount Type
Board-in
Focal Length
2.7 mm-12.0 mm
Max. Aperture
F1.8
Angle of View
H: 114 Degrees-47 Degrees, V: 62 Degrees-26 Degrees
Focus Control
Motorized
Close Focus Distance
1.2 m (3.94 ft)
DORI - Detect
190ft/ 430ft
DORI - Observe
75ft/ 171ft
DORI - Recognize
39ft/ 85ft
DORI - Identify
20ft/ 43ft
Intelligence
IVS
Object Abandoned/Missing, Heat Map
Advanced Intelligent Functions
Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering.
Face Detect: Supports 6 kinds of face attributes extraction: Age, Gender, Expression (Happy, Surprised, Normal, Anger, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Mustache & Beard.
Supports Line crossing/Region/Queuing people counting; Supports 4 accesses independent detection, 4 areas independent detection
Video
Compression
H.265, H.264, H.264B, H.264H, MJPEG (sub stream)
Streaming Capability
3 Streams
Resolution
4M (2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate
Main Stream: 4M (1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 1080P (1 fps-16 fps)
Bit Rate Control
CBR/ VBR
Bit Rate
H.264: 32 Kbps-8192 Kbps
H.265: 19 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (140dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Digital Zoom
16x
Flip
0 / 90 / 180 / 270
Mirror
Off / On
Privacy Masking
Up to 4 areas
Audio
Compression
G.711a, G.711Mu, AAC, G.726, G.723
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T), CGI, P2P, Milestone
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Edge Storage
NAS / Local PC for instant recording / Micro SD Card 128GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart ICRSS, DSS
Smart Phone
IOS, Android
Interface
Audio I/O
1/1 channel in/Out
Alarm I/O
2 channels in: 5mA 5VDC / 1 channel Out: 300mA 12VDC
Memory Slot
Micro SD Card 256GB
Electrical
Power Supply
DC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption
<10.9W
Environmental
Operating Conditions
-30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Storage Conditions
-30 Degrees C to +60 Degrees C (-22 Degrees F to +140 Degrees F)
Ingress Protection
IP67
Vandal Resistance
IK10
Construction
Casing
Metal+ Plastic
Dimensions
273.2mm x 95.0mm x 95.0mm (10.76in x 3.74in x 3.74in)
Gross Weight
1.51Kg (3.33lb)
Mounting Pan/Tilt/Rotation
Pan:0 ~ 360; / Tilt:0 ~ 90; / Rotation:0 ~ 360
