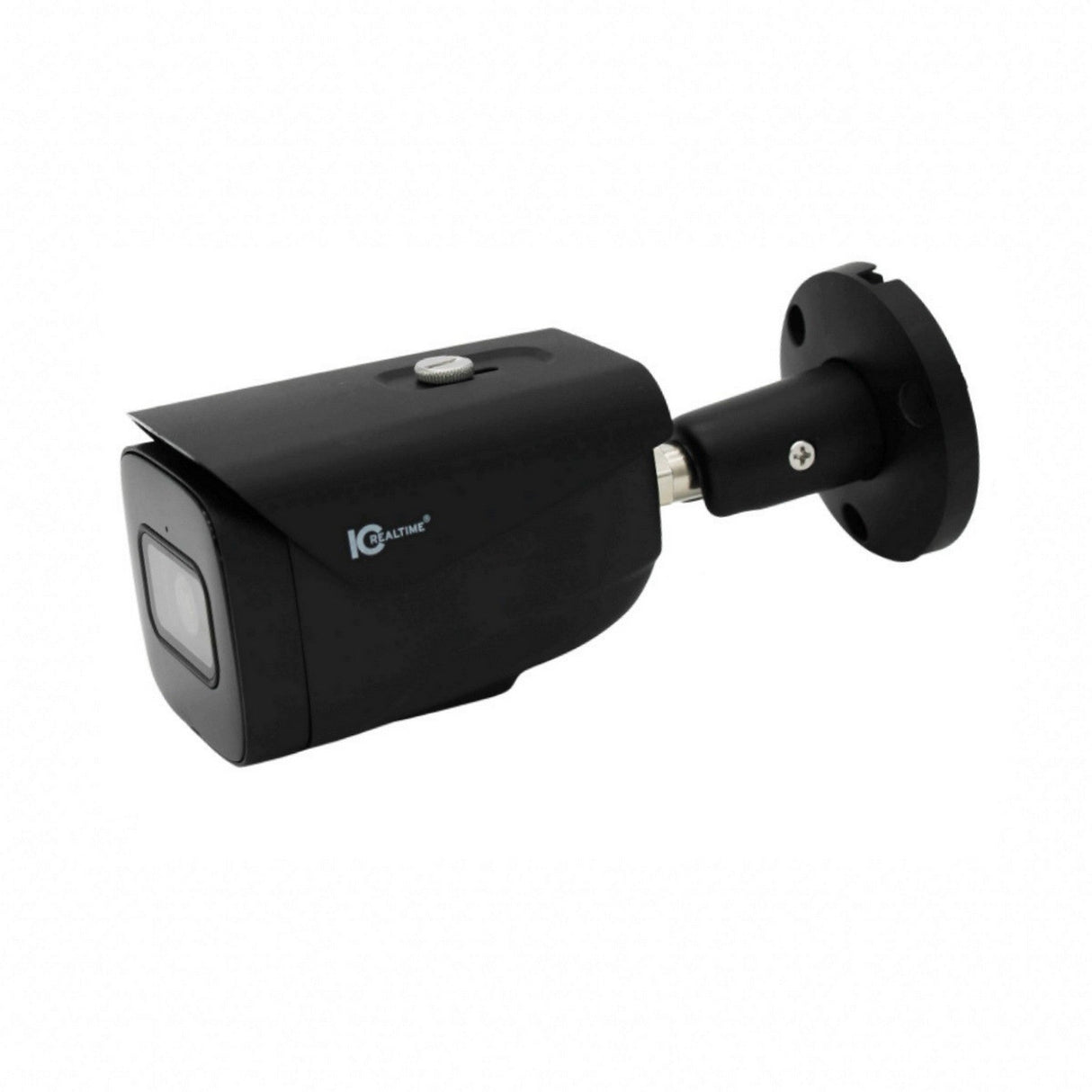

IC Realtime IPEL-B80F-IRB2 8MP IP Indoor/Outdoor Small Size Bullet Camera, Black

IC Realtime IPEL-B80F-IRB2 8MP IP Indoor/Outdoor Small Size Bullet Camera, Black

IC Realtime's new 8MP FlexSmartAi series IPEL-B80F-IRB2 is one of the newest members of the FlexSmartAi camera series This black metal case, 4K UHD bullet camera is the best easy install choice for your next camera installation where a dark finish bullet camera is the best fit.

THE 4K PROFESSIONAL CHOICE
The camera's 8MP / 4K video sensor & FlexSmartAi deep learning algorithms render sharp & detailed images for precision live views and recording. Beyond incredible viewing detail, the clarity of the camera's Ultra High-Definition video sensor enables both camera & NVR - based facial recognition & identification systems to work at maximum efficiency.

FUTURE-PROOF VIDEO SPECS
IPEL-B80F comes equipped with a 2.8mm medium wide-angle fixed lens with a 108 Degrees wide Field of View, captured in outstanding 8MP (3840 x 2160) by the camera’s Starlight video sensor with super low-light 0.007 Lux performance and 95+ ft. of SmartIRs for unparalleled clarity even in complete darkness. 120dB of Wide Dynamic Range (WDR) and the camera's built-in algorithms maintain light balance and edge definition while defeating reflected glare, rendering full details for accurate recognition even at night.

AI-BASED DETECTION
This IP camera's FlexSmartAi systems enable the camera's IMD systems to accurately recognize humans and vehicles, responding only when human or vehicle motion is detected, reducing false detections by up to 90%. The algorithms analyze their field of view and actually improve their detection skills over time. You always wanted a smart & dedicated video security employee that never got distracted and concentrated on watching over your secured environment - meet IPEL-B80F-IRB2 with FlexSmartAi.

INTELLIGENT VIDEO MANAGEMENT
Stream management is handled by the FlexSmartAi systems and uses advanced Smart H.265+ video compression. The “Plus” means the camera’s video compression scheme is AI-enhanced, using a scene-adaptive encoding that maintains video clarity at the same time it ensures high-speed video streaming. The system does frame-by-frame comparisons to make sure every pixel is perfect before streaming and lower bit rates up to 70% compared to standard H.265 video compression.

FLEXIBLE PRO-LEVEL FEATURES
This advanced bullet camera's physical features include IP67 weather protection, optional 12VDC local power anywhere 7w of PoE isn't available, alarm in & out ports, a built-in audio mic and a set of audio in & out jacks for external audio, and IPEL-B80F can support a 256Gb SD card for on-board video storage.

Key Features

• 1/2.8 CMOS | 8MP | 30fps@4K
• 2.8mm | Fixed | AoV 108
• Max. IR Length 98ft | Smart IR | 1 IR LED
• Perimeter Protection | Intelligent Motion Detect
• IP67 | 12VDC Or PoE | 256GB MSD
• IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Technical Specifications

Camera
Image Sensor
1/2.8” 8 Megapixel progressive CMOS
Effective Pixels
3840(H) x 2160(V)
RAM/Rom
512MB / 128MB
Scanning System
Progressive
Minimum Illumination
0.007 Lux @F1.4
S/N Ratio
> 56 dB
Illumination Distance
Distance up to 98.4 ft (30 m)
Illumination On/Off Control
Auto/Manual
Illumination LEDs
1
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Fixed
Mount Type
M12
Focal Length
2.8mm
Max. Aperture
F1.4
Angle of View
Horizontal 108 Degrees, Vertical 58 Degrees
Focus Control
Fixed
Close Focus Distance
4.6 ft (1.4 m)
DORI - Detect
280ft
DORI - Observe
112ft
DORI - Recognize
56ft
DORI - Identify
28ft
Intelligence
IVS
Support
Advanced Intelligent Functions
Perimeter Protection- Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
iMD (Intelligent Motion Detect) support
Video
Compression
H.265+ / H.265 / H.264+ / H.264
Streaming Capability
3 Streams
Resolution
4K/8M (3840 x 2160); 6M (3072 x 2048); 5M (3072 x 1728/2592 x 1944); 4M (2688 x 1520); 3M (2048 x 1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1(704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
Frame Rate
Main stream: 3840 x 2160 @ (1-20 fps by default)
3840 x 2160 @ (1-25/30 fps when AI function disabled)
Sub stream: 704 x 576 @ (1-25 fps)/
704 x 480 @ (1-30 fps)
Third Stream: 1920 x 1080 @ (1-25/30 fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Digital Zoom
16x
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees (Supports 90 Degrees /270 Degrees with 1080p resolution and lower.)
Mirror
Off / On
Privacy Masking
Up to 4 areas
Audio
Compression
G.711a; G.711Mu; G726
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI
Streaming Method
Unicast / Multicast
Max. User Access
20 (Total bandwidth: 72 M)
Edge Storage
NAS, FTP, SFTP, Micro SD Card (256 GB)
Local PC for instant recording
Web Viewer
IE, Chrome, Firefox, Safari
Interface
Audio I/O
1 channel in (RCA port)
1 channel out (RCA port)
Memory Slot
Micro SD Card 256GB
Electrical
Power Supply
12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 3W (12V DC); 3.5W (PoE)Max. power consumption (WDR + H.265 + IR LED intensity): 5.5W (12V DC); 6.3W (PoE)
Environmental
Operating Conditions
-40 Degrees F to +140 Degrees F (-40 Degrees C to +60 Degrees C)/Less than 95% RH
Storage Humidity
(-40 Degrees F to +140 Degrees F (-40 Degrees C to +60 Degrees)
Ingress Protection
IP67
Construction
Casing
Metal
Dimensions
7.6” x 2.8” x 2.6”
(192.7 mm x 70.5 mm x 66.4 mm)
(L x W x H)
Gross Weight
1.7 lb (780 g)
Mounting Pan/Tilt/Rotation
Pan:0 ~ 360; / Tilt:0 ~ 90; / Rotation:0 ~ 360
