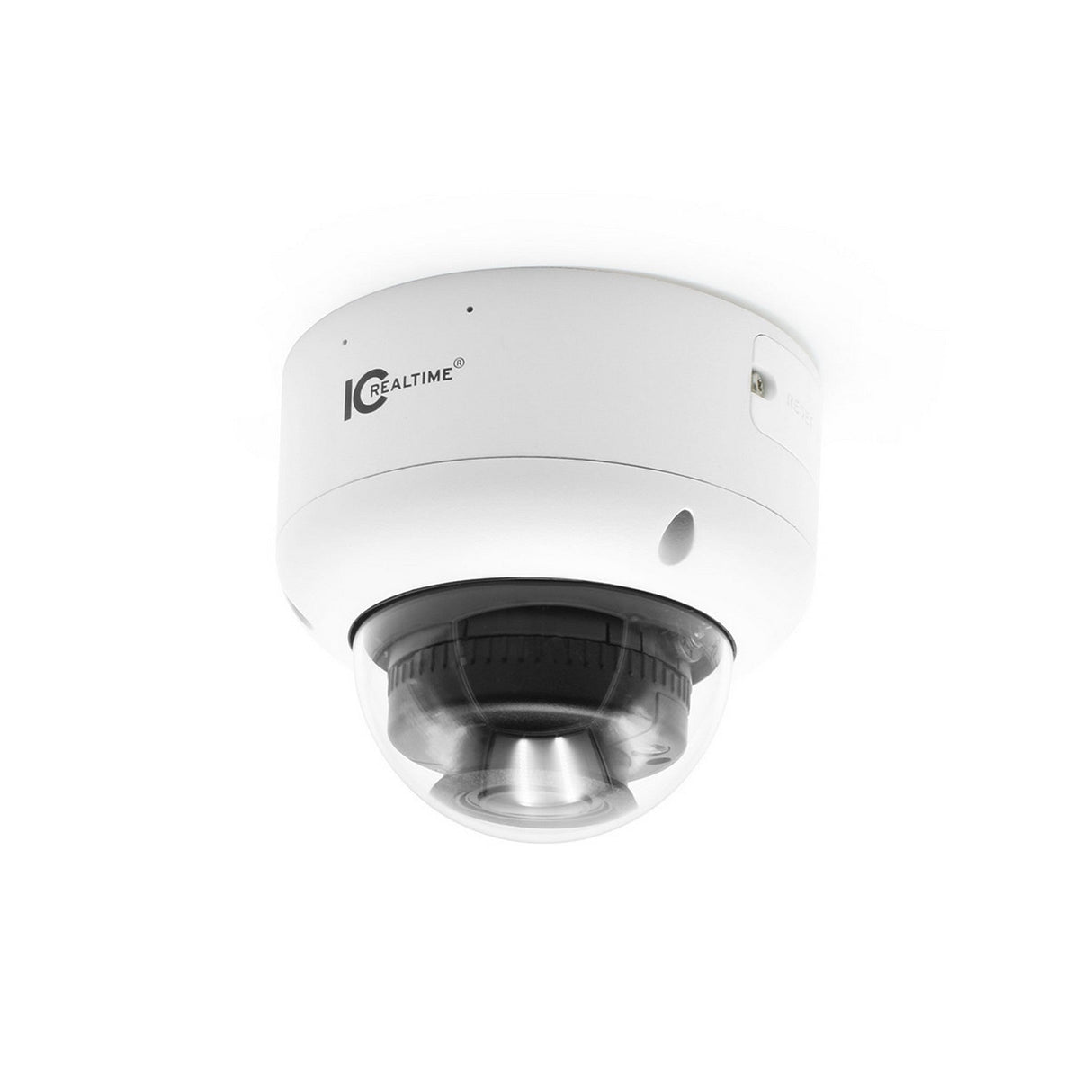

IC Realtime IPEL-D40V-W1-LED 4MP IP Indoor/Outdoor Dome Camera

IC Realtime IPEL-D40V-W1-LED 4MP IP Indoor/Outdoor Dome Camera

How does IC Realtime improve on the 24/7 Night Color perfection of its IPMX Max series dome camera? By adding advanced AI motion detection skill sets and a 2.7-12MM power zoom lens for perfect image framing from any mounting point. Introducing the IPEL-D40V-W1-LED, our newest AI-enhanced, 24/7 Color power zoom dome camera that moves 24/7-night Color into our Elite Series camera series.

24/7 Color Streams
We humans naturally see colors, so it’s easy to forget how much color makes the details clear to the human eye. With security cameras, seeing color details under any lighting conditions - even at night - is crucial, so our new IPEL-D40V-W1-LED uses its full spectrum LED illuminator to stream those color details even in near total darkness down to an unbelievably low 0.0005 lux - the ambient light outside on a moonless night - using its wide aperture lens and astonishingly sensitive 4MP Starlight video chipset.

Dial in the perfect F.O.V. from any position
The IPEL-D40V-W1-LED takes this great 24/7 color imaging combo to the next level by adding a 2/7-12MM power zoom telephoto lens in front of the sensor that enables a zoom-variable 48° to 115° Field of View. This opens up camera position possibilities that fixed lens cameras can’t handle, like building-mounted cameras being able to get tight shots of a distant gate, or ceiling beam-mounted warehouse cameras delivering tight shots of a loading area from the top of a high bay where they are nearly invisible and impossible to vandalize.

AI-Enhanced Imd & Ivs Detection
It’s fair to say one of the most useful uses of Artificial Intelligence in security is its unwavering attention to discerning every detail & motion in every video frame a security camera streams, an attention feat even the most motivated humans find difficult. With the IPEL-D40V-W1-LED, our AI-enhanced Intelligent Motion Detection (IMD) system is without peer for customizable and accurate detection skills that extend from reducing false alerts by 95% to telling the difference between human intrusions and a possum crossing the field of view. AI also adds a whole new level of smarts to our already epic Intelligent Video System that delivers things like detecting Missing/Abandoned objects and business intelligence skills like people counting. And - when the IPEL-D40V-W1-LED is attached to one of our AI-enabled NVRs - it adds metadata tags for intelligent searches and footage merging to create incident videos.

More Than Great Images
Of course, as an IC Realtime Elite Series camera, IPEL-D40V-W1-LED has all the other things a professional camera integrator needs built in, like both audio & alarm I/O leads on the pigtail with the RJ-45 jack, a built-in speaker & mic, IK10 vandal & IP67 weather resistant dome & metal case, wide 22°to +140F temperature operating range and the best 10 Year Limited Warranty in the business. And like all IC Realtime pro-level IP cameras, it can be powered with POE or 12VDC where POE isn’t practical. The camera also supports ePOE for compatibility with long distance cable rune.

For nearly 2 decades, video security professionals have known that when dependability and state-of-the-art performance is the job spec, IC Realtime is the go-to provider. With the introduction of the IPEL-D40V-W1-LED, when a 4MP varifocal, vandal-resistant IP dome is the job requirement, camera integrators now have one of the world’s smartest 24/7 color cameras available, in U.S. stock at both east & west coast warehouses and shipping same day.

Key Features

• 4MP 1/1.8” CMOS Image Sensor | Low Illuminance, High Image Definition
• H.265 & H.264 | Triple-Stream Encoding
• 2.7-12mm Varifocal Lens | Built-In Mic and Speakers | 1 Input/1 Output Alarm
• Full Color Warm Light LEDs | 131ft Of Illumination
• IVS | Intelligent Motion Detect | Perimeter Protection
• 256GB Micro SD Support | IP67 | PoE | EPOE Support

Technical Specifications

Camera
Image Sensor
1/1.8” CMOS
Effective Pixels
2688 (H) x1520 (V)
RAM/Rom
128MB/ 512MB
Scanning System
Progressive
Minimum Illumination
0.0005Lux@F1.0
Illumination Distance
Distance up to 131.2 ft (40m)
Illumination LEDs
4 (Warm White)
Camera Illumination Type
White Light
Lens
Lens Type
Motorized vari-focal
Mount Type
φ16
Focal Length
2.7 mm-12 mm
Max. Aperture
F1.0
Angle of View
Horizontal: 115°-48°
Vertical: 59°-27°
Close Focus Distance
5.7 ft (1.75 m)
DORI - Detect
198ft- 421ft
DORI - Observe
79ft- 168ft
DORI - Recognize
39ft- 84ft
DORI - Identify
19ft- 42ft
Intelligence
IVS
Tripwire; Intrusion, Fast moving, Abandoned object; Missing object
Advanced Intelligent Functions
Face Detection, Heat Map, People Counting
Perimeter Protection: Tripwire; Intrusion, fast moving (Human and vehicle recognition)
Intelligent Motion Detect (iMD): Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light.
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Streaming Capability
3 Streams
Resolution
4M (2688 x 1520); 4M (2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (354 x 288/354 x 240)
Frame Rate
Main Stream: 2688 x 1520(1-25/30 fps)
Sub Stream: D1 (1 fps-25/30 fps)
Third Stream: 1080p (1 fps-25/30 fps)
Bit Rate
H.264: 3 kbps-20480 kbps
H.265: 3 kbps-20480 kbps
Day/Night
Color/B/W
Backlight Compensation
BLC / HLC / WDR (140dB)
White Balance
Auto/ natural/ street lamp/ outdoor/ manual/ regional custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Flip
Supported
Privacy Masking
8 areas
Audio
Compression
PCM; G.711a; G.711Mu; G.726; G.723
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;QoS; UPnP; NTP; Multicast; ICMP; IGMP;NFS; PPPoE; 802.1x; SNMP
Max. User Access
20 Users (Total bandwidth: 80 M)
Interface
Audio I/O
Built-In MIc and Speakers, 1 Audio In/ Out (RCA ports)
Alarm I/O
1 channel in: 5mA 3V-5V DC
1 channel out: 300mA 12V DC
Memory Slot
Up to 256GB
Electrical
Power Supply
12V DC (±30%)/PoE (802.3af)/ePoE
Power Consumption
12V DC (±30%)/PoE (802.3af)/ePoE
Power Consumption
Basic: 2.4 W (12 VDC); 3.4 W (PoE)
Max. (H.265 + 3 streams + intelligence + LED): 7.6 W (12 VDC); 9.3 W (PoE)
Environmental
Ingress Protection
IP67
Vandal Resistance
IK10
Construction
Casing
Metal
Dimensions
4.1” x 5.0” (105 mm x 126 mm)
Gross Weight
2 lb (929 g)
