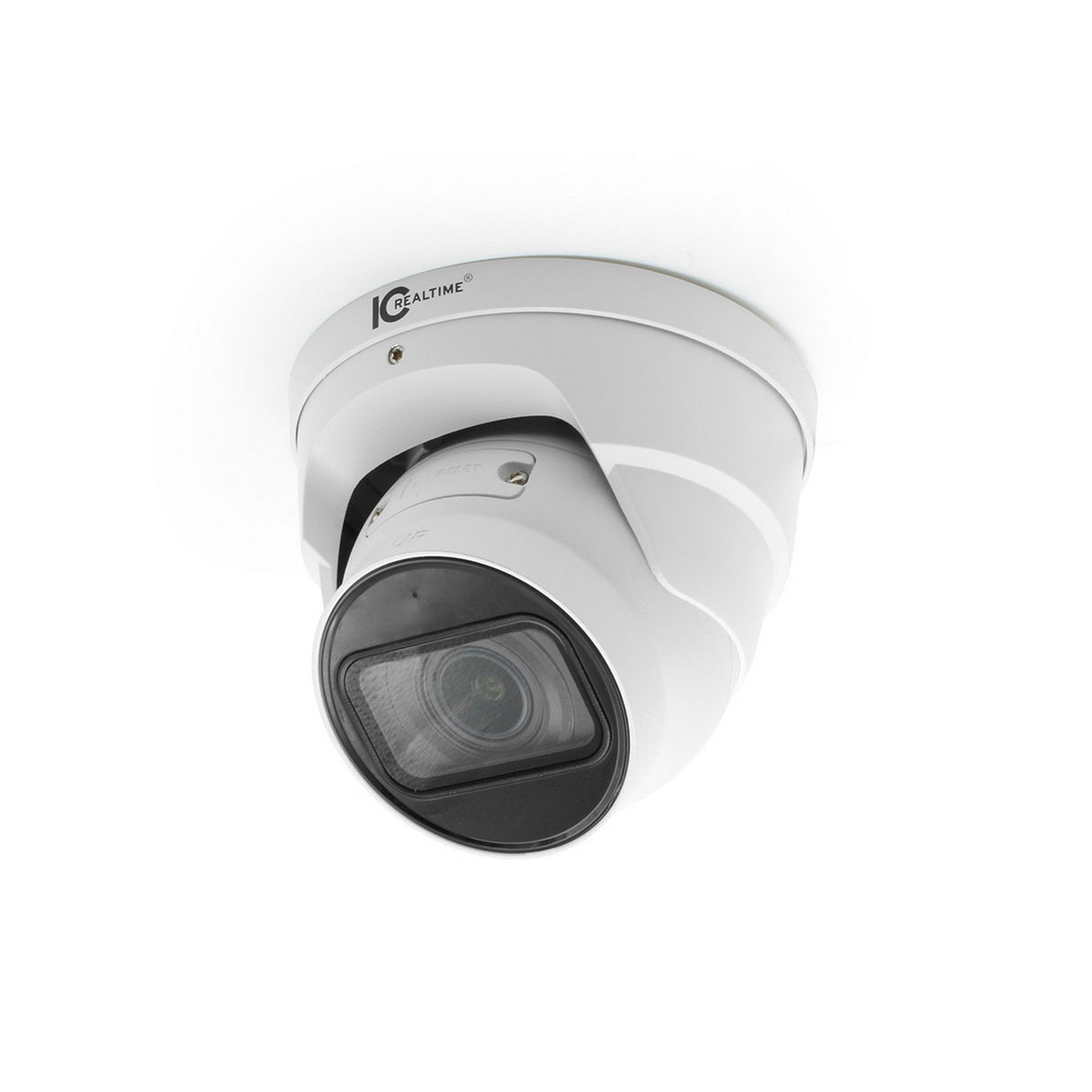

IC Realtime IPEL-E80V-IRW2 8MP IP Indoor/Outdoor Small Size Varifocal Eyeball Dome Camera, White

IC Realtime IPEL-E80V-IRW2 8MP IP Indoor/Outdoor Small Size Varifocal Eyeball Dome Camera, White

In advanced, AI-assisted video security - “where 4K Ultra High Definition moves from cool to crucial” - stands our newly redesigned & upgraded 8MP IPEL-E80V-IRW2. Its new case looks slightly different outside, but inside it has the same 4K UHD varifocal camera design as its IRW1 predecessor, and it’s still an easy-mount, easy-aim eyeball dome. The new “V2” of this impressive camera is now housed in a more compact 4.3” x 4.8” mid-size housing that fits both MNT-Junction Box 3 and the MNT-IPMINIDOME WALL for easy installs & “plug & play” upgrades & replacements.

POWER ZOOM & STARLIGHT COLOR
Like the original, the V2 is equipped with a power zoom 2.7mm - 13.5mm varifocal auto-focus lens with a zoom-variable 113°-31° horizontal FOV, with an additional 16X digital zoom available that can actually be useful given the pixel density of the camera’s huge 2.8” Starlight video sensor. And the Starlight sensor means this upgraded IPEL-E80V-IRW2 streams in 8MP full color down to 0.007 lux, then in ultra-sharp black & white out to 160+ feet in total darkness utilizing its built-in Smart IRs.

E-POE EQUIPPED FOR 8X THE RANGE
With all these 4K video, audio & control bits streaming back & forth at high data rates, signal degradation can be an issue in large systems or with distant cameras. But not with IPEL-B80V-IRW2 since it can also now employ our ePOE technology. This next step in IP/POE technology can support up to 10Mbps at 2624 ft. over standard Cat 5 or even over coax by using our IVB-EOC-102 or 202 balun sets that also supplies camera PoE power over coax. This ePoE capability improves reliability and simplifies installation wiring.

A SMART AS IT IS SHARP
Starlight 4K UHD resolution enables IPEL-B80V-IRW2 to discern the details that make AI-enhanced Intelligent Motion Detection even more sensitive & precise, with up to 95% accuracy and eliminating false alarms. The camera’s Perimeter Protection is also AI-enhanced, and you can set up custom tripwires and draw detection regions & set parameters right on the monitor screen to match your needs & environment with a 90% false alert reduction. And with its 8MP sensor and power zoom lens, the IPEL-B80V-IRW2 achieves D.O.R.I. recognition at up to 183 ft.

4K UHD WITH PRO SPECS
IPEL-B80V-IRW2 comes equipped with IC Realtime's industry-leading 120db WDR, 3D Digital Noise Reduction, and auto exposure/video management suite to keep the details sharp. With IP67 water ingress resistance, the camera is as comfortable outdoors as it is indoors, and its built-in audio mic encodes camera-area audio with its 4K video stream. The camera also has a 12VDC power capability in case 7.3w of PoE isn't available, an internal 256Gb SD card slot for video storage, and HTML5 for direct browser viewing. Of course, the new E80V is ONVIF (Profile S/G/T) P2P and CGI compatible, and FCC certified. IC Realtime cameras & recorders are protected by multiple layers of authorizations & password protections to ensure security on both the device & network levels.

Eyeball domes are now the ideal camera format, and with 4K UHD video quality, easy upgrades & installation, and IC Realtime’s legendary reliability, 4K security has never been more clearly defined than in our newly redesigned IPEL-E80V-IRW2.

Key Features

• 8MP IP Indoor/Outdoor Small Size Varifocal Eyeball Dome. 2.7 - 13.5 Mm Lens (113 - 31°). 164 Feet IR. POE Capable.
• 1/2.8 CMOS | 8MP | 30fps@8MP
• 2.7 Mm-13.5 Mm | Varifocal | AoV 113-31
• Max. IR Length 164ft | Smart IR | Starlight
• Intelligent Motion Detect | Perimeter Protection
• Built-In Mic | 256GB MSD | 120dB True WDR
• IP67 | 12VDC Or PoE | Max. 7.3W

Technical Specifications

Camera
Image Sensor
1/2.8” 8-Megapixel progressive CMOS
Effective Pixels
3840 (H) x 2160 (V)
RAM/Rom
128MB/ 512MB
Scanning System
Progressive
Minimum Illumination
0.007 Lux @F1.5
S/N Ratio
>56 dB
Illumination Distance
50 m (164.0 ft)
Illumination On/Off Control
Auto/Manual
Illumination LEDs
2
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Motorized vari-focal
Mount Type
φ14
Focal Length
2.7 mm-13.5 mm
Max. Aperture
F1.5
Angle of View
Horizontal: 113°-31°
Vertical: 58°-17°
Focus Control
Fixed
Close Focus Distance
0.8 m (2.6 ft)
DORI - Detect
279ft- 918ft
DORI - Observe
111ft- 367ft
DORI - Recognize
55ft- 183ft
DORI - Identify
27ft- 91ft
Intelligence
IVS
Support
Advanced Intelligent Functions
Intelligent Motion Detect
Perimeter Protection: Tripwire; intrusion (Recognition of human and vehicle)
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (Sub stream only)
Streaming Capability
3 Streams
Resolution
8M (3840 x 2160); 6M (3072 x 2048); 5M (3072 x 1728/2592 x 1944); 4M (2688 x 1520); 3M (2048 x 1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1(704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
Frame Rate
Main stream
3840 x 2160 @ (1-20 fps by default)
3840 x 2160 @ (1-25/30 fps when AI function disabled)
Sub stream
704 x 576 @ (1-25 fps)/704 x 480 @ (1-30 fps)
Third stream
1920 x 1080 @ (1-25/30 fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Digital Zoom
16x
Flip
0°/90°/180°/270° (Support 90°/270° with 1920 x 1080 resolution.)
Mirror
Off / On
Privacy Masking
Up to 4 areas
WDR
120dB
Audio
Compression
G.711a; G.711Mu; G726; AAC
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability
ONVIF (Profile S/Profile G); CGI; P2P
Compatibility
ONVIF (Profile S/Profile G/Profile T); CGI; P2P
Streaming Method
Unicast / Multicast
Max. User Access
20 (Total bandwidth: 72 M)
Edge Storage
FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart ICRSS, DSS
Smart Phone
iOS, Android
Interface
Audio I/O
Built-in MIC
Memory Slot
256GB Micro SD
Electrical
Power Supply
12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 2.6W (12V DC); 3.3W (PoE)
Max. power consumption (WDR + H.265 + IR LED intensity): 6W (12V DC); 7.3W (PoE)
Environmental
Operating Conditions
-40 Degrees C to +60 Degrees C (-40 Degrees F to +140 Degrees F)/ less than 95%
Storage Conditions
-40 Degrees C to +60 Degrees C (-40 Degrees F to +140 Degrees F)
Ingress Protection
IP67
Construction
Casing
Metal
Dimensions
108.3 mm x 122 mm (4.3” x 4.8”)
Gross Weight
1.8 lb (828 g)
Mounting Pan/Tilt/Rotation
Horizontal: 0 Degrees-360 Degrees; vertical: 0 Degrees-78 Degrees; rotation: 0 Degrees-360 Degrees
