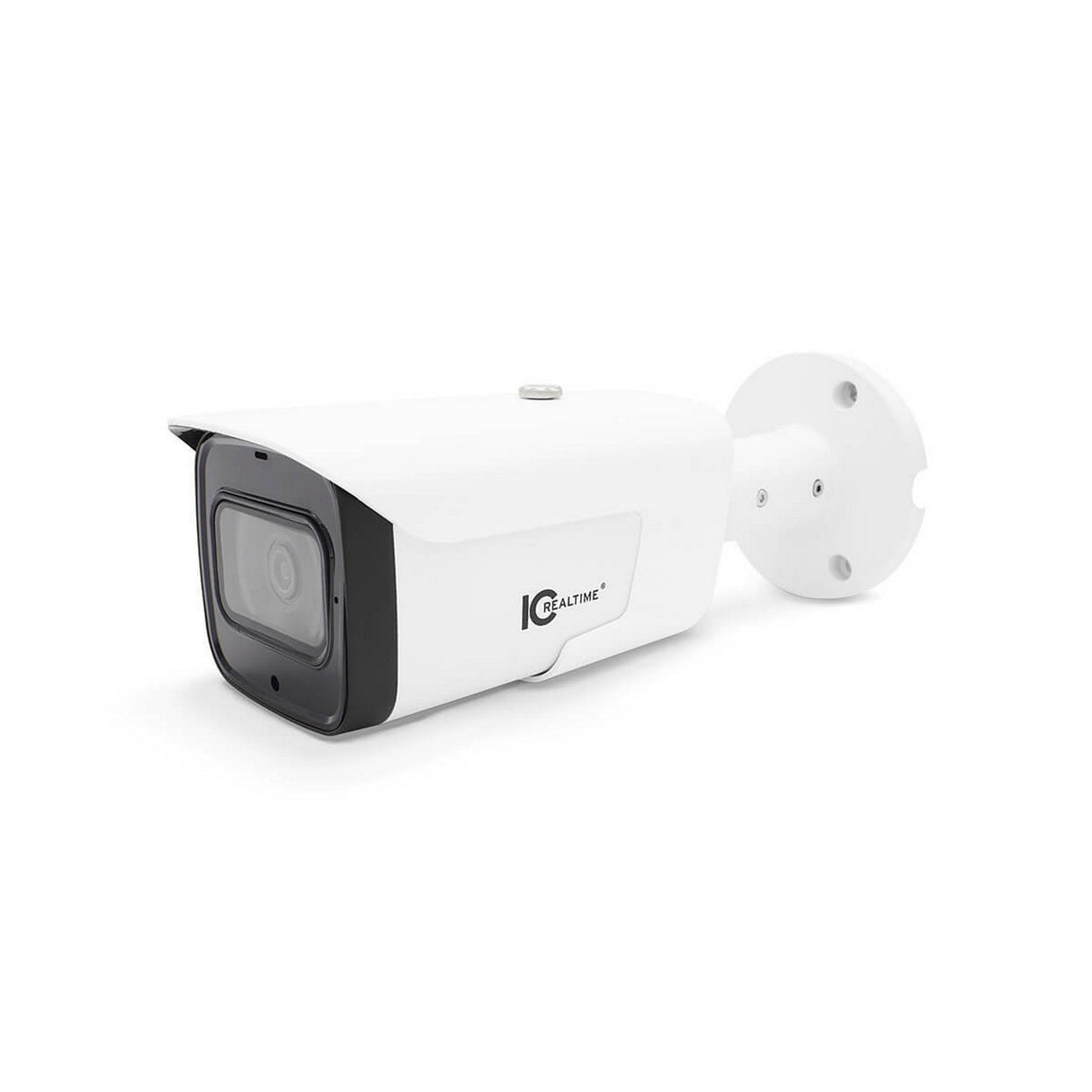

IC Realtime IPFX-B80V-IRW1 8MP IP Indoor/Outdoor Mid Size Bullet Camera, White

IC Realtime IPFX-B80V-IRW1 8MP IP Indoor/Outdoor Mid Size Bullet Camera, White

IC Realtime is proud to introduce IPEL-B12V-IRW2, the newest FlexSmartAi version of our 4K UHD ultra-high resolution, 12 mp bullet-style power zoom network camera. This amazing new bullet camera has the extreme 4000 x 3000-pixel video resolution, power zoom lens, and built-in FlexSmartAi capabilities that make it the most advanced IP bullet camera we have ever produced.

No larger than a standard full-size bullet camera, B12V has an integrated IP67 weatherproof mount box base to protect its interface & power connections. The B12V's 2.7mm-12mm power zoom lens is remotely controllable using on-screen controls (PC & Mac) or iOS / Android app controls.

4K UHD PUT TO WORK
Beyond just delivering an incredible 4K UHD video stream, IC Realtime's new B12V uses its massive 12-million-pixel density to work hand in hand with our FlexSmartAi system to endow the B12V the most extensive face & vehicle detection & perimeter protection capabilities we have ever offered.
Combined with its 12-megapixel 4k UHD resolution, 2.7mm to 12mm power zoom lens, and its built-in FlexSmartAi capabilities, the B12V is the best available security tool for single-camera area coverage.
This combination of ultra-high resolution and power zoom capabilities provides wide-range Fields of View FOV). Depending on the zoom setting, B12V provides FOV of 103 Degrees to 44 Degrees horizontal, 75 Degrees to 33 Degrees vertical, and 135 Degrees to 55 Degrees diagonal.

THE WORLD'S BEST 4K UHD BULLET CAMERA
It's hard to imagine a better security camera than IC Realtime's B12V for a lobby or other large public spaces. For people counting or facial recognition, in driveways, parking lots, or security gates, the B12V's tripwire and vehicle detection skills are hard to match. The B12V's 4k UHD resolution and zoom lens enable amazing DORI (Detect, Observe, Recognize & Identify) ranges with telephoto facial ID out to over 65 feet. On a gate or driveway entrance area, the B12V is an access control manager's dream come true. B12V's ultra-high resolution, low light 0.01 lux capabilities, and 195 ft. of SmartIR illumination work with its FlexSamertAi detection capabilities for a DORI vehicle recognition range of over 130 ft.

VIDEO BEAUTY + AI SECURITY BRAINS
Algorithm-based deep learning in the FlexSmartAi system endows the B12V with advanced tripwire & perimeter protection, increasing detection while reducing false alarms. It provides business intelligence features like people counting, loitering, parking violations, and multiple alarm/alert capabilities like missing or abandoned object and intrusion alerts. The B12V can even directly generate reports based on chosen date range parameters. For video forensics, the resolution and the B12V's built-in FlexSmartAi capabilities almost defy belief. Its high precision 12-megapixel (4000 x 3000 pixels) 4k UHD video resolution means every detail & characteristic of a target that can be discerned is recorded and available for meta-tagging and analysis. The B12V itself has the built-in capability to recognize & register both human and vehicle intrusions. For humans, that means every metadata point it can identify - like if the person was carrying a backpack or umbrella, wearing a mask, even their facial expressions if they were not. The B12V's extreme resolution simultaneously vastly enhances any recorder based facial recognition & enables more accurate “stranger alert” functions.

MAXIMUM INTEGRATOR FEATURES
Beyond the camera's ultra-high resolution & FlexSmartAi capabilities, the B12V's physical design benefits from IC Realtime's decades of real-world installation experience. The camera design includes an integrated junction box base that encloses, protects & simplifies all external power & interface connections. Inside there are audio in & out, 3 alarm in & 2 alarm out ports, an analog video port, and the camera's RJ-45 (10/100/1000 Base-T) network jack.

The B12V's comprehensive input power capabilities include POE+(802.3at - less than 20w) for one cable installation or 24VAC / 12VDC local power where PoE+ isn't available. For job spec & code compliance, the B12V is UL listed (UL/CUL # UL60950-1). There is a built-in SD card slot (256mb) for local video storage, and the B12V even has a 12VDC output port for local external power needs.

TRY IT AND SEE FOR YOURSELF
B12V is packed with other advanced capabilities such as; five network streams, a complete FlexSmartAi assisted auto exposure suite (SmartIR, Digital WDR, 3D video noise reduction), Ai assisted H.265+ lossless video stream compression, and broad video standard compatibility including ONVIF (Profile S/Profile G/Profile T), P2P and CGI. But words are not enough to describe video quality that is this good and features this advanced. With B12V's incredible 12-megapixel 4k UHD video quality, only seeing is believing.

If you are ready to personally experience B12V's ultra-high-resolution performance, intelligent installation-ready design, and the camera's FlexSmartAi capabilities, then gather your crew 7 call your Factory Product Specialist rep and schedule a no-obligation, live online demonstration at your convenience.

Key Features

• 1/1.7 CMOS | 12MP | 30fps@12MP
• 2.7 Mm-12 Mm | Motorized Varifocal | AoV 103 To 44
• Max. IR Length 196ft | Smart IR | 4 IR LEDs
• 1ch Audio In 1ch Audio Out | 3ch Alarm In 2ch Alarm Out | 256GB MSD
• IVS | Perimeter Protection | Face Detection+ Recognition
• IP67 | IK10 | 12VDC Or 24VAC | PoE+, EPOE Support

Technical Specifications

Camera
Image Sensor
1/1.7 12 Megapixel progressive scan CMOS
Effective Pixels
4000(H) x 3000(V)
RAM/Rom
2GB/ 4GB
Scanning System
Progressive
Electronic Shutter Speed
Supported
Minimum Illumination
0.01 Lux @F1.8
S/N Ratio
>56 dB
Illumination Distance
Distance up to 60m (196.9 ft)
Illumination On/Off Control
Auto/Manual
Illumination LEDs
4
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Motorized vari-focal
Mount Type
φ14
Focal Length
2.7 mm-12 mm
Max. Aperture
F1.8
Angle of View
Horizontal: 103 Degrees -44 Degrees, Vertical: 75 Degrees -33 Degrees
Focus Control
Motorized
Close Focus Distance
1.2 m (3.9 ft)
DORI - Detect
305ft- 672ft
DORI - Observe
121ft- 269ft
DORI - Recognize
59ft- 134ft
DORI - Identify
29ft- 65ft
Intelligence
IVS
Tripwire, Intrusion, Fast Moving, abandoned object, missing object, Audio Detection, Crowd Gathering, Parking and Loitering Detection
Advanced Intelligent Functions
Perimeter Protection (Tripwire, Intrusion, Fast Moving)
People Counting
Face Detection
Face Recognition
People+ Non-Vehicle Metadata support, Intelligent Search with AI Recorders
People Counting- Supports up to 4 tripwire rules configuration, people counting in 4 areas, and 4 queue management functions.
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Streaming Capability
5 Streams
Resolution
12M (4000 x 3000); 8M (3840 x 2160); 6M (3072 x 2048); 5M (3072 x 1728); 5M (2592 x 1944); 4M (2688 x 1520); 3M (2048 x 1536); 3M (2304 x 1296); 2M (1920 x 1080); 1.3M (1280 x 960); 720P (1280 x 720); D1 (704 x 576/704 x 480); CIF (352 x 288/352 x 240); VGA (640 x 480)
Frame Rate
Main stream: 4000 x 3000 @1-25/30 fps
Sub stream: 704 x 576@1-25fps, 704 x 480@1-30fps
Third stream: 1920 x 1080 @1-25/30 fps
Fourth stream: 1920 x 1080 @1-25/30 fps
Fifth stream: 704 x 576 @1-25 fps;
704 x 480 @1-30 fps
Bit Rate Control
CBR/ VBR
Bit Rate
H.264: 32 kbps-16384 kbps
H.265: 32 kbps-14080 kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / DWDR
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Electronic Image Stabilization (EIS)
Supported
Smart IR
Supported
Digital Zoom
16x
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees (Supports 90 Degrees /270 Degrees with 1080p resolution and lower.)
Mirror
Off / On
Privacy Masking
Up to 4 areas
WDR
DWDR
Audio
Compression
G.711A; G.711Mu; G.726; AAC; G.723
Network
Ethernet
RJ-45 (100/1000Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; RTMP
Compatibility
ONVIF Profile S&G / API
Streaming Method
Unicast / Multicast
Max. User Access
20 (Total bandwidth: 240 M.)
Edge Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart ICRSS. DSS
Smart Phone
iOS, Android
Interface
Audio I/O
1/1 channel in/Out
Alarm I/O
Output: 2 channels out: 1,000mA 30V DC/500mA 50V DC
Memory Slot
Micro SD Card 256GB
Electrical
Power Supply
12V DC/24V AC/POE+(802.3at); ePoE
Power Consumption
<19.32W
Environmental
Operating Conditions
-40 C ~ +60 C (-40 F ~ +140 F) / Less than 95% RH
Storage Conditions
-40 Degrees C to +60 Degrees C (-40 Degrees F to +140 Degrees F)
Ingress Protection
IP67
Vandal Resistance
IK10
Construction
Casing
Metal + plastic
Dimensions
340.1 mm x 138.3 mm x 134 mm
(13.39” x 5.44” x 5.28”) (L x W x H)
Gross Weight
11.21 kg (24.71 lb)
Mounting Pan/Tilt/Rotation
Pan: 0 Degrees -360 Degrees, Tilt: 0 Degrees -90 Degrees, Rotation: 0 Degrees -360 Degrees
