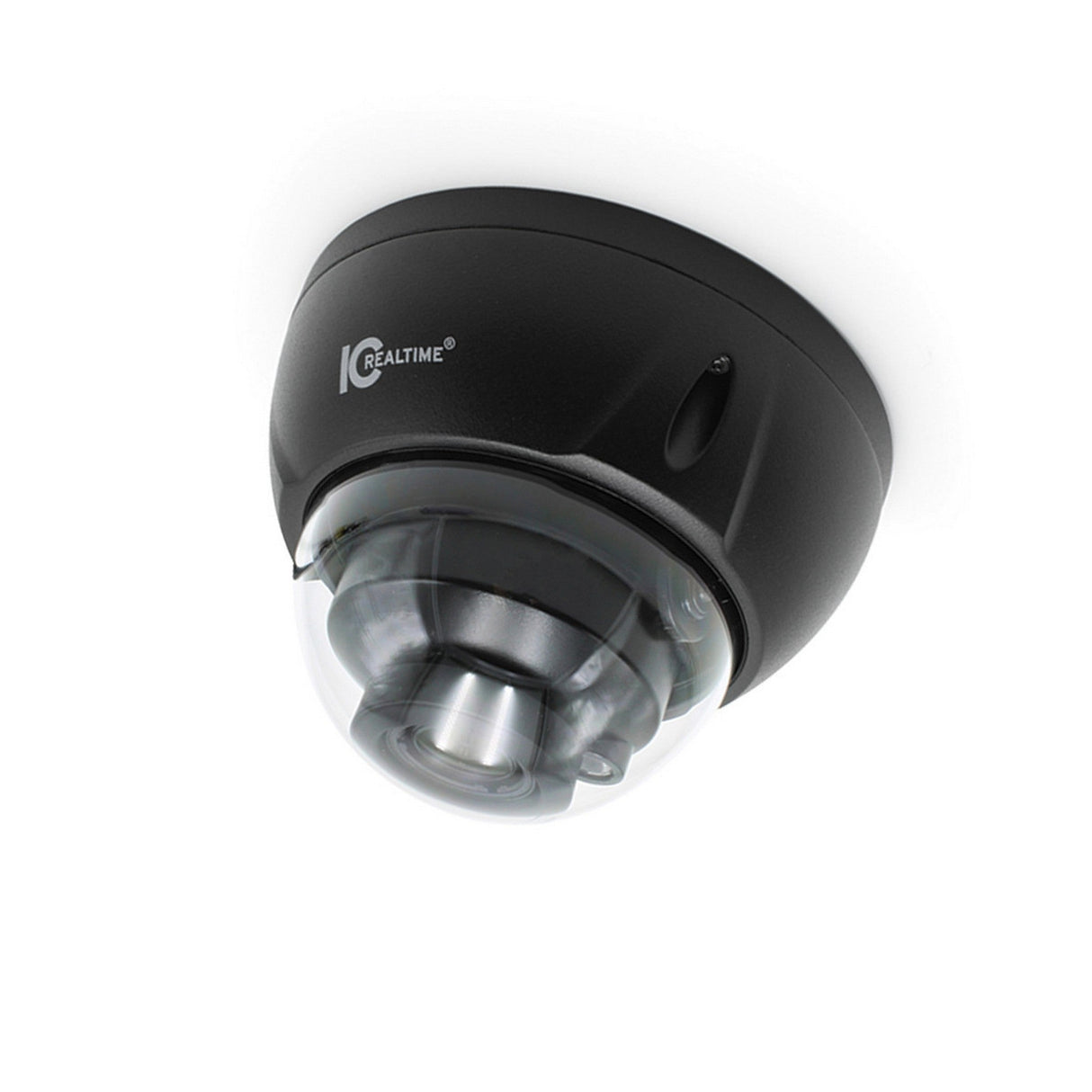

IC Realtime IPFX-D40V-IRB2 4MP IP Indoor/Outdoor Mid Size Vandal Dome Camera, Black

IC Realtime IPFX-D40V-IRB2 4MP IP Indoor/Outdoor Mid Size Vandal Dome Camera, Black

IPFX-D40V-IRB2 has a superpower - it can become invisible. When installed in a low light spot with a dark background, this black-cased FlexSmartAi 4MP dome camera fades into the background as a shadow and - with even moderate foreground light levels - all the way into virtual invisibility. Best of all, this video superhero is made in South Korea so it is TAA compliant.

YOU CAN'T SEE IT, BUT IT CLEARLY SEES YOU
It’s hard to overstate the low light capabilities of the D40V's Starlight video chipset, especially when combined with a power zoom lens. This latest generation is a massive 2.7” CMOS video sensor delivering 0.005 Lux@ low light performance followed by 130+ feet of SmartIR illuminators for dependable video footage even indoors or outside in complete darkness.

REMOTE FOV & ZOOM CONTROL
D40V is factory equipped with a variable 2.7-13.5mm motorized zoom lens, capable of remotely changing the D40V’s field of view from a tight 28 Degrees at full 13.5mm zoom all the way out to a wide 104 Degrees at 2.7mm. This enables operators to dial in the perfect shot while checking the camera on the app or a local monitor. When ideally installed, one D40V can provide a wide view of a lobby then zoom in on a doorway or reception desk when needed. Over a cash register, bills & hand motions can be tightly monitored.

SHARP-EYED & SMART TOO
Beyond low light skills, D40V’s native 4MP resolution (2688 x 1520 pixel) for excellent D.O.R.I. performance, it enhances edge definition for the camera’s FlexSmartAi system, providing the dense data points needed for both 90% fewer false alarms and AI-enhanced intelligent motion detection (IMD) and IVS tripwire performance. Part of the D40V’s Ai is dedicated to the camera’s scene-adaptive H.265 compression that uses a multi-frame reference scheme with intelligent noise reduction and video compression, for ultra-sharp details while still saving up to 70% of bandwidth compared with standard H.265.

PROFESSIONAL GRADE, OF COURSE
D40V is a serious ONVIF, CGI, and P2P compatible surveillance tool. For alarm and access control installations, there are both alarm ports (In @ 5mA 5VDC/Out @ 300mA 12VDC) and audio in & out RCA jacks. This metal case dome has IP67 and IK10 impact ratings for weather & vandal resistance. An internal 256 Gb SD card slot for local recording is protected inside the metal case & acrylic dome. D40V uses PoE power @ 9.8 watts or 12VDC local powered with ±25% input voltage tolerance. For outdoor applications, D40V carries a 2KV lightning rating. D40V carries multiple electromagnetic & electrical certifications, including FCC rating in addition to TAA compliance.

Key Features

• 1/3 CMOS | 4MP | 30fps@4MP
• 2.7mm to 13.5mm | Motorized Varifocal | AoV 104 To 28
• Max. IR Length 131ft | Smart IR | Starlight Support
• 256GB MSD | IP67 | IK10 | 12VDC Or PoE
• Intelligent Motion Detect | Perimeter Protection
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Technical Specifications

Camera
Image Sensor
1/2.7”4Megapixel progressive CMOS
Effective Pixels
2688(H) x 1520(V) 4 Megapixels
RAM/Rom
128MB / 512MB
Scanning System
Progressive
Minimum Illumination
0.005 Lux@F1.5 (Color, 30IRE)
0.0005 Lux@F1.5 (B/W, 30IRE)
0 Lux (Illuminator on)
Illumination Distance
Distance up to 40m (131ft)
Illumination On/Off Control
Auto/ Manual
Illumination LEDs
2
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Motorized
Mount Type
Board-in
Focal Length
2.7-13.5mm
Max. Aperture
F1.5
Angle of View
Horizontal: 104 Degrees -27 Degrees
Vertical: 55 Degrees -15 Degrees
Diagonal: 124 Degrees -31 Degrees
Focus Control
Motorized
Close Focus Distance
0.8 m (2.6 ft)
DORI - Detect
210ft) / 728ft
DORI - Observe
84ft / 291ft
DORI - Recognize
42ft / 145ft
DORI - Identify
21ft / 72ft
Intelligence
IVS
Tripwire, Intrusion
Advanced Intelligent Functions
Intelligent: Human and Vehicle recognition. Filters misinformation such as leaves and light.
Perimeter Protection: T (ripwire, Intrusion) Human and Vehicle recognition.
Smart Search: Works together with Smart NVRs to perform refined intelligent search, and event extraction
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Streaming Capability
3 Streams
Resolution
4M (2688 x 1520); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
Frame Rate
Main stream (2688 x 1520@1-25/30 fps)
Sub Stream (704 x 576@1-25 fps/704 x 480@1-30 fps)
Third Stream (1280 x 720@1-25/30 fps)
Bit Rate Control
CBR/ VBR
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Digital Zoom
16x
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees (Support 90 Degrees /270 Degrees with 1920 x 1080 resolution.)
Mirror
Off / On
Privacy Masking
Off / On (4 Area Rectangle)
WDR
120dB
Audio
Compression
G.711a; G.711Mu; G726; AAC
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability
ONVIF (Profile S/Profile G); CGI; P2P; Milestone
Streaming Method
Unicast / Multicast
Max. User Access
20 (Total bandwidth: 64 M)
Edge Storage
NAS / Local PC for instant recording / Micro SD Card 256GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart ICRSS, DSS
Smart Phone
IOS; Android
Interface
Video Interface
N/A
Audio I/O
1-channel Input (RCA port)
Memory Slot
Micro SD Card 256GB
Electrical
Power Supply
12V DC/PoE (802.3af)
Power Consumption
<8.5W
Environmental
Operating Conditions
-30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Construction
Casing
Metal
Dimensions
122 mm x 88.9 mm (4.8” x 3.5”)
Gross Weight
663 g (1.5 lb)
Mounting Pan/Tilt/Rotation
Horizontal: 0 Degrees -355 Degrees;
vertical: 0 Degrees -75 Degrees;
rotation: 0 Degrees -355 Degrees
