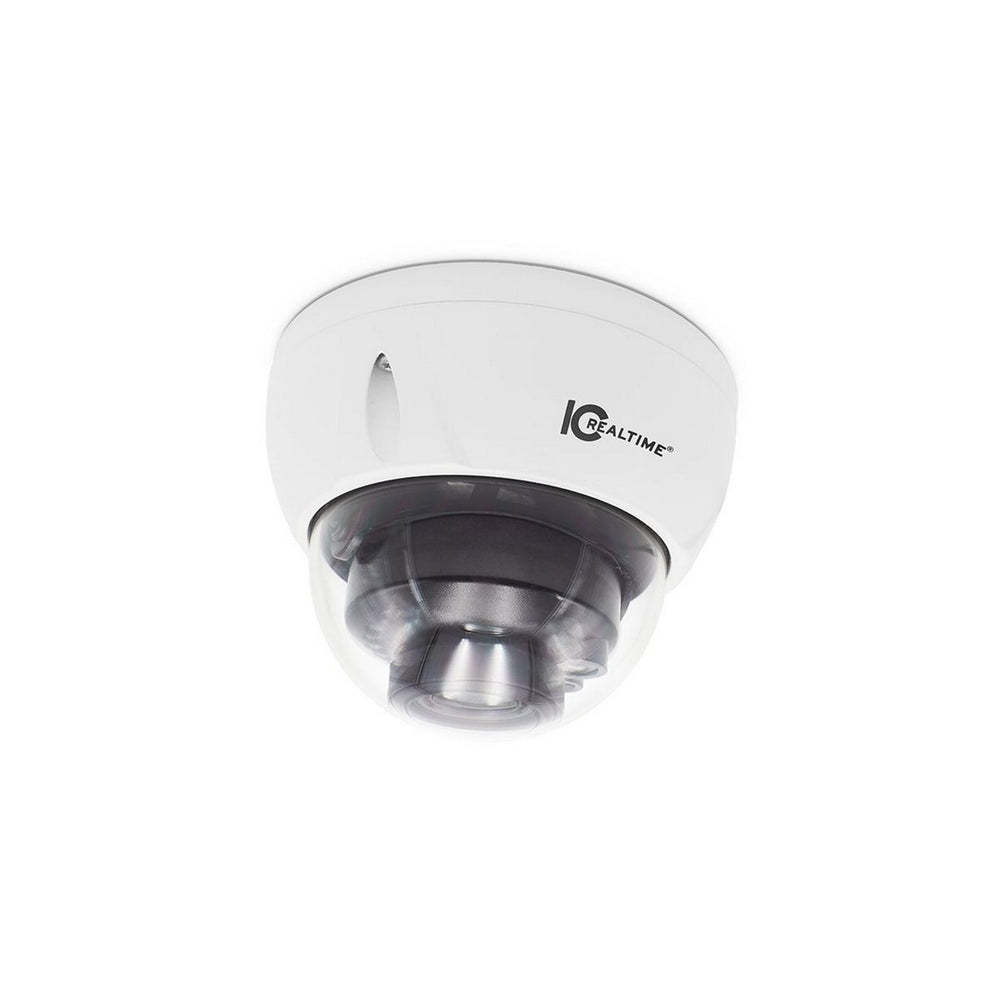

IC Realtime IPFX-D40V-IRW2 4 Megapixel IP Indoor/Outdoor Mid Size Vandal Dome Camera

The IC Realtime IPFX-D40V-IRW2 is a robust and versatile 4MP dome camera tailored for both indoor and outdoor use. Equipped with the latest 1/2.7’’ CMOS sensor technology, this camera guarantees high-quality imagery in any lighting condition. It is housed in a vandal-resistant dome that is engineered to withstand tough environments, making it an ideal choice for commercial and residential installations. The camera further enhances its utility with Starlight-supported IR illumination, reaching up to 131 feet, ensuring clear images even in low-light conditions.

One of the standout features of this dome camera is its motorized 2.7mm-13.5mm lens, capable of covering a horizontal field of view from 28 to 104 degrees. The zoom is fully controllable through the camera's interface, allowing users to capture the perfect shot every time. This camera supports various intelligent video surveillance systems (IVS), and offers flexible power options with both 12VDC and PoE capabilities, conserving energy while ensuring reliable performance.

The IC Realtime IPFX-D40V-IRW2 also includes advanced storage capabilities with support for up to 256GB of internal storage. Built to meet the rigorous standards of the Trade Agreements Act (TAA) and originating from South Korea, this camera guarantees premium quality and compliance for governmental and institutional use.

Key Features

• 1/2.7’’ CMOS sensor for high-quality 4MP imaging
• Maximum IR length of 131ft with Smart IR technology
• Starlight support for superior low-light performance
• 2.7mm-13.5mm motorized varifocal lens with automatic zoom control
• Wide angle of view ranging from 28 to 104 degrees
• Up to 256GB of internal storage
• Vandal-resistant casing with IP67 and IK10 ratings
• 12VDC or PoE power options
• TAA compliant and manufactured in South Korea

Specifications

• Image Sensor: 1/2.7” 4 Megapixel progressive CMOS
• Effective Pixels: 2688(H) x 1520(V) 4 Megapixels
• RAM/ROM: 128MB / 512MB
• Scanning System: Progressive
• Minimum Illumination: 0.005 Lux@F1.5
• IR Distance: Up to 40m (131ft)
• IR On/Off Control: Auto/Manual
• IR LEDs: 2
• Lens Type: Motorized
• Mount Type: Board-in
• Focal Length: 2.7-13.5mm
• Max. Aperture: F1.5
• Angle of View: Horizontal: 104-27, Vertical: 55-15, Diagonal: 124-31
• Focus Control: Motorized
• Close Focus Distance: 0.8 m (2.6 ft)
• DORI Detect: 64m (210ft) / 222m (728ft)
• DORI Observe: 25.6m (84ft) / 88.8m (291ft)
• DORI Recognize: 12.8m (42ft) / 44.4m (145ft)
• DORI Identify: 6.4m (21ft) / 22m (72ft)
• Casing: Metal
• Dimensions: 122 mm x 88.9 mm (4.8" x 3.5")
• Gross Weight: 663 g (1.5 lb)
• Mounting Pan/Tilt/Rotation: Horizontal: 0-355, vertical: 0-75, rotation: 0-355

Package Contents

• IC Realtime IPFX-D40V-IRW2 4MP Dome Camera
• Installation Screws
• Mounting Template
• User Manual
• 12VDC Power Adapter (Optional)
