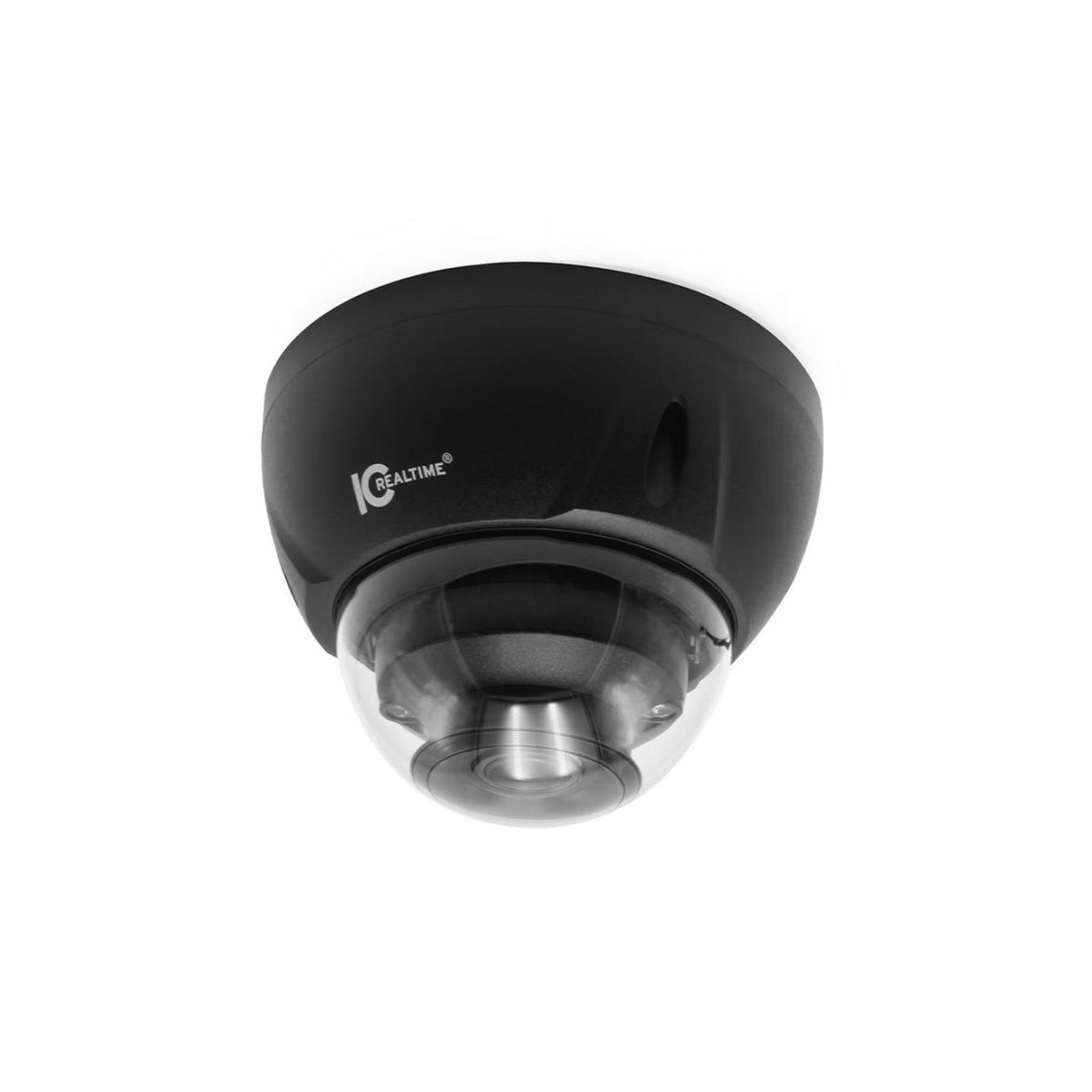

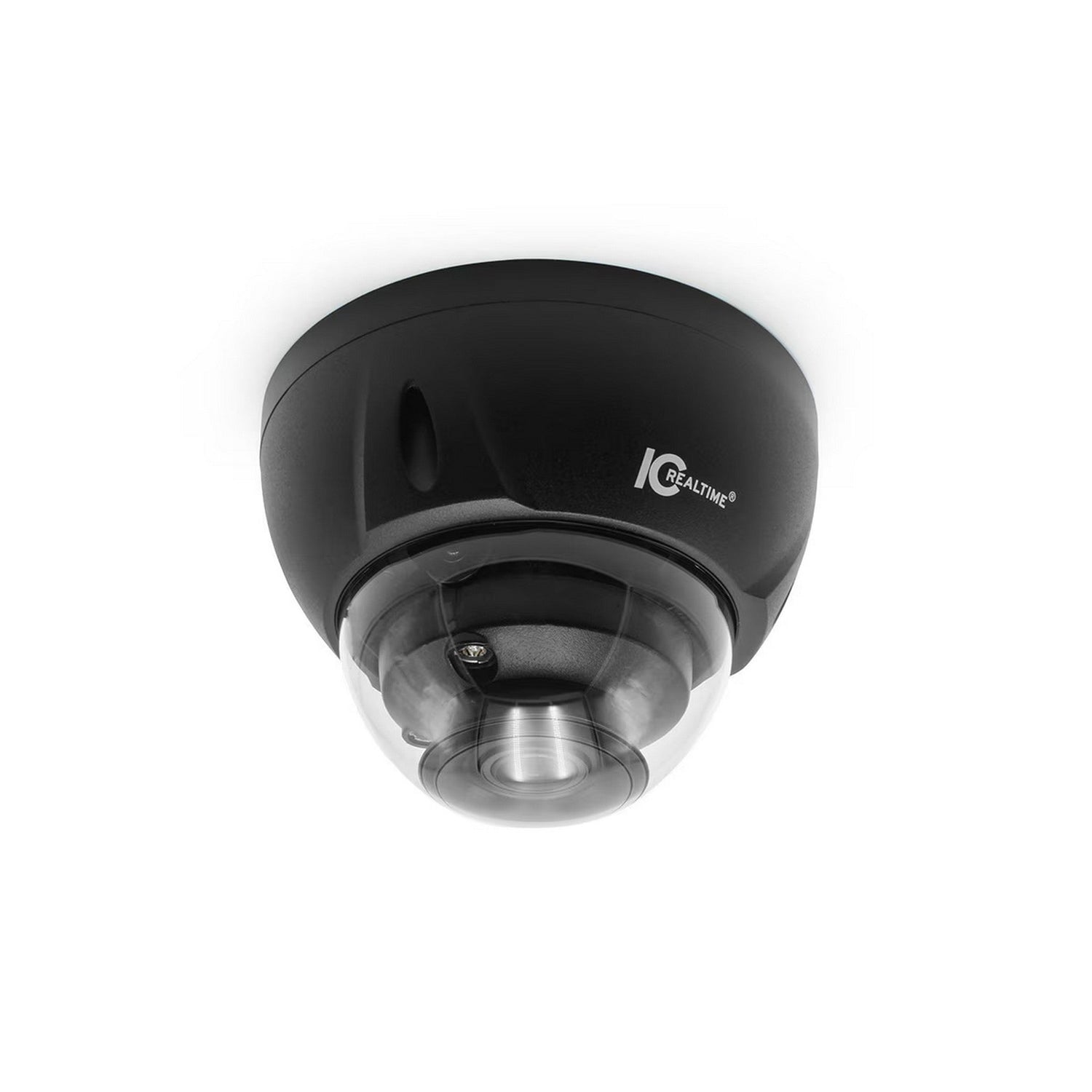

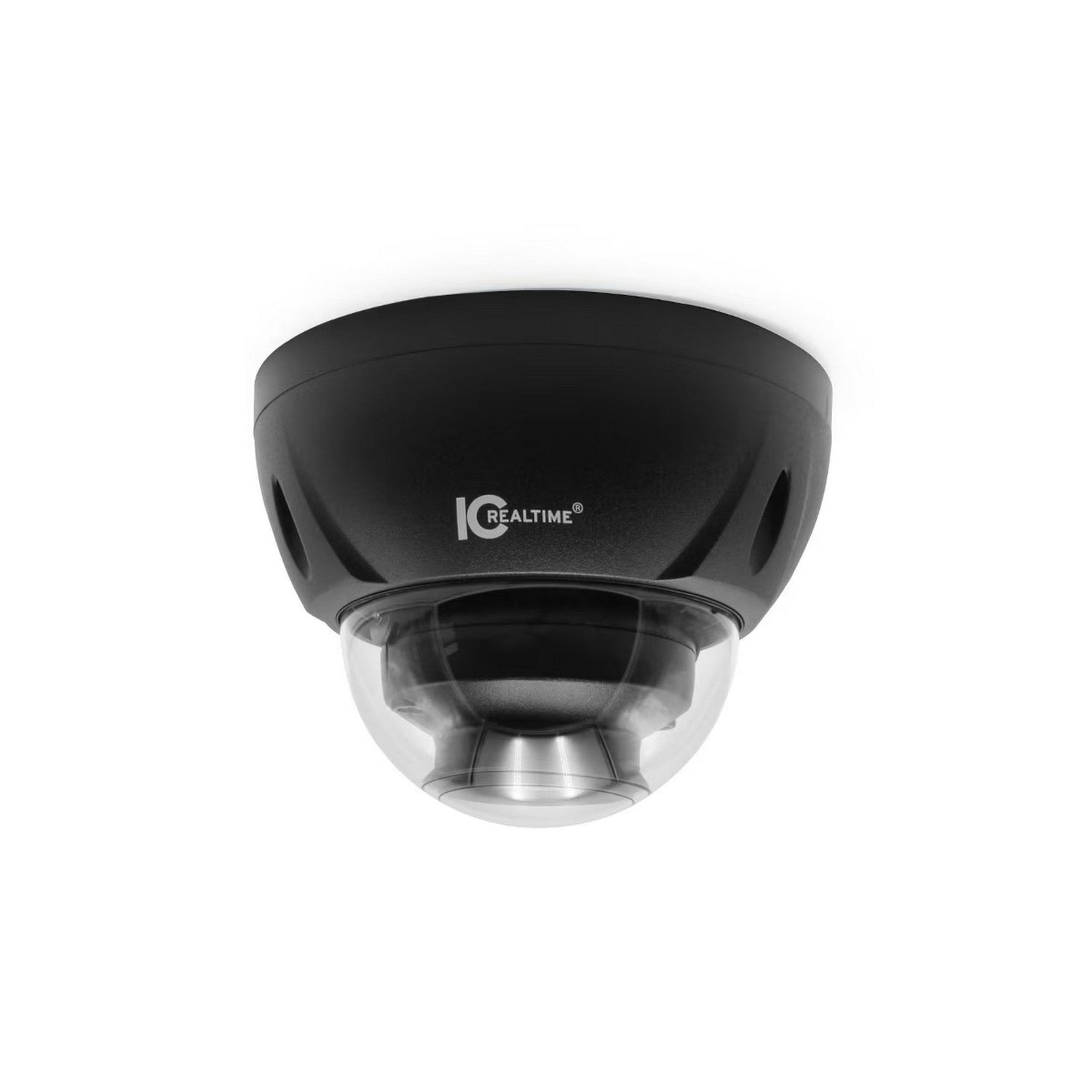

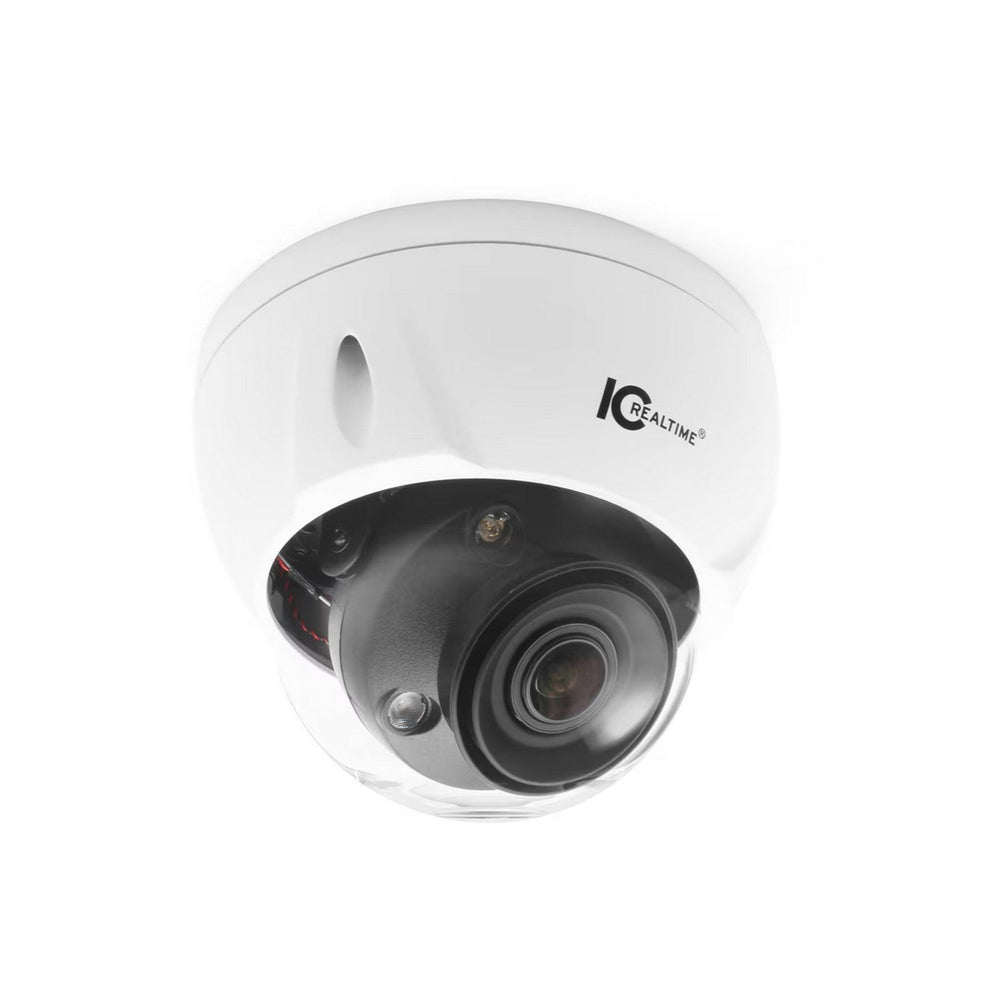

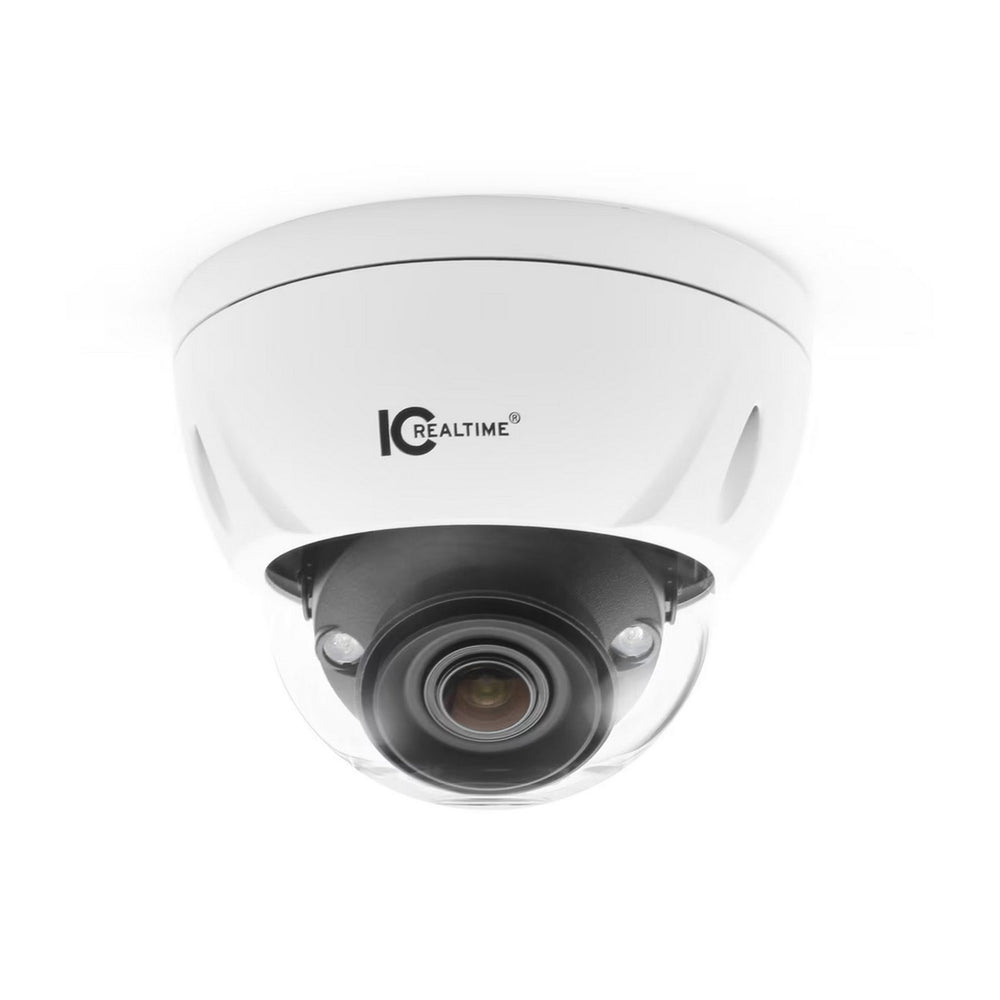

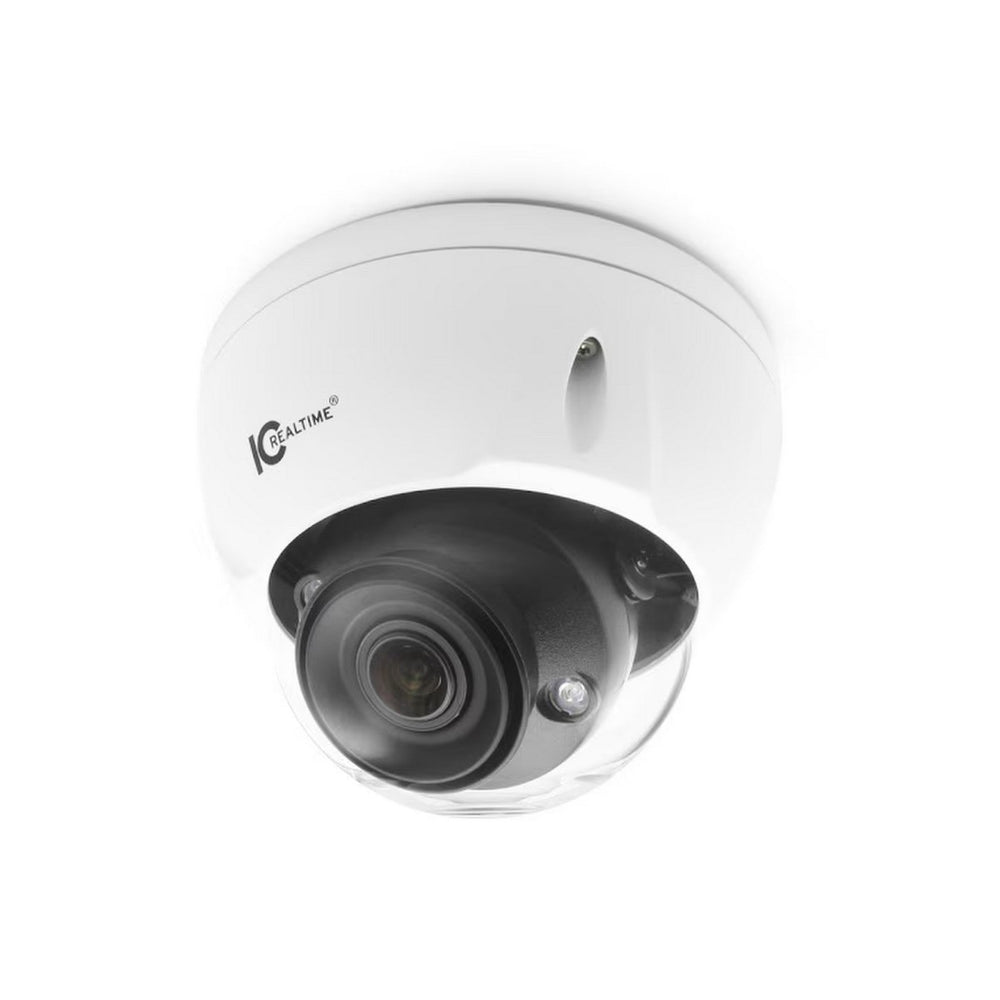

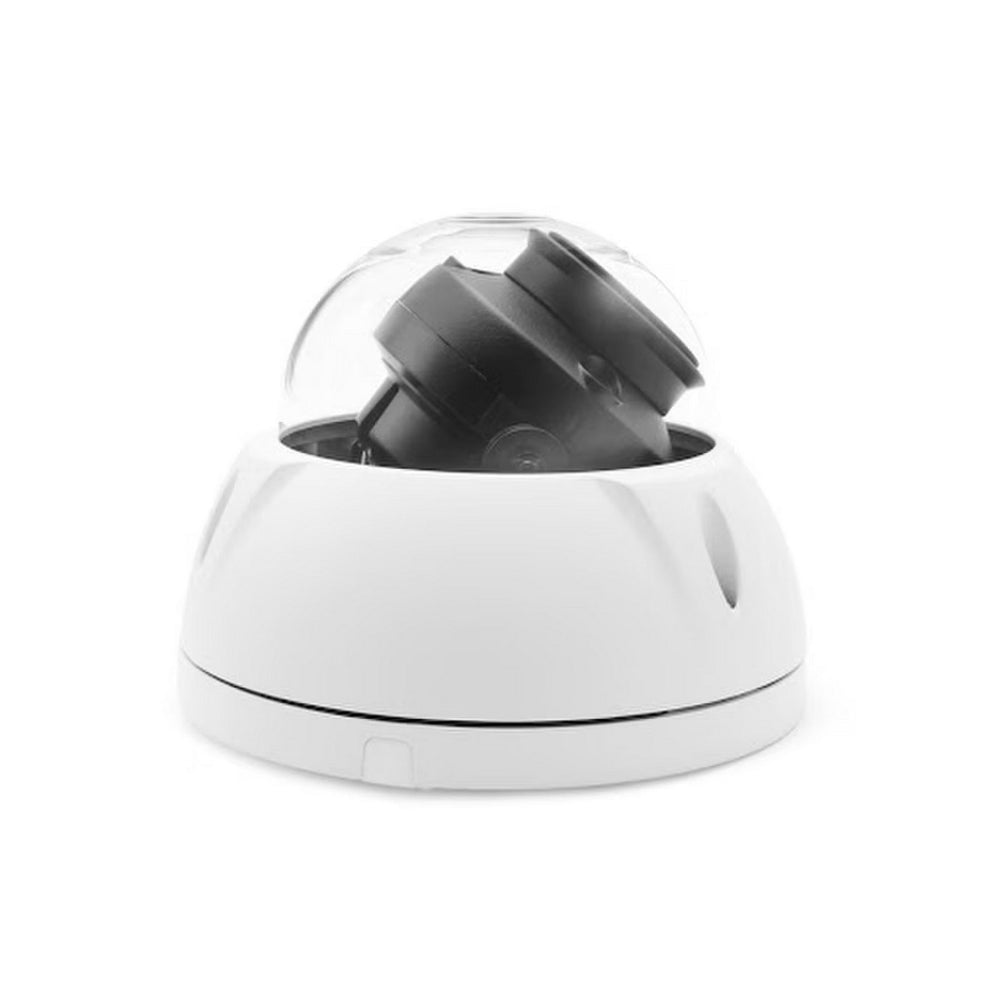

IC Realtime IPFX-D80V-IRW3 8MP IP Indoor/Outdoor Vandal Dome Camera w/Varifocal Lens

The IC Realtime IPFX-D80V-IRW3 is an advanced vandal-proof IP camera designed to deliver unparalleled performance for both indoor and outdoor surveillance. This 8MP/4K POE camera is enhanced with FlexSmartAi capabilities, incorporating an 8MP Starlight video sensor and a motorized vari-focal lens. These features ensure excellent scene flexibility, allowing for optimal network camera installations.

Constructed to withstand harsh environmental conditions, the IPFX-D80V-IRW3 features an IP67 weather-rated metal case and mount, boasting an IK10-rated dome for maximum vandal resistance. This makes it ideal for use in outdoor or challenging environments. The camera can operate using PoE or external power and includes an internal mSD slot that supports up to 512GB for reliable in-camera recording.

The motorized vari-focal lens ranges from 2.7mm to 12mm, providing flexible field-of-view adjustments between 47° to 113°. The D80V supports advanced video compression codecs such as H.265, H.264, and MJPEG. AI functionalities like heat mapping, sound detection, and advanced perimeter awareness enhance its security capabilities, making this camera a versatile choice for diverse monitoring applications.

Key Features

• 8MP Resolution (3840 × 2160)
• Motorized Vari-focal Lens: 2.7mm–12mm
• IR Illumination Distance: 131 feet (40m)
• Intelligent Functions: Tripwire, Intrusion, Smart Sound Detection
• Advanced Intelligent Motion Detection
• Perimeter Protection & E-PTZ
• Compression: H.265, H.264, MJPEG
• Network Support: IPv4, IPv6, PoE, ePoE

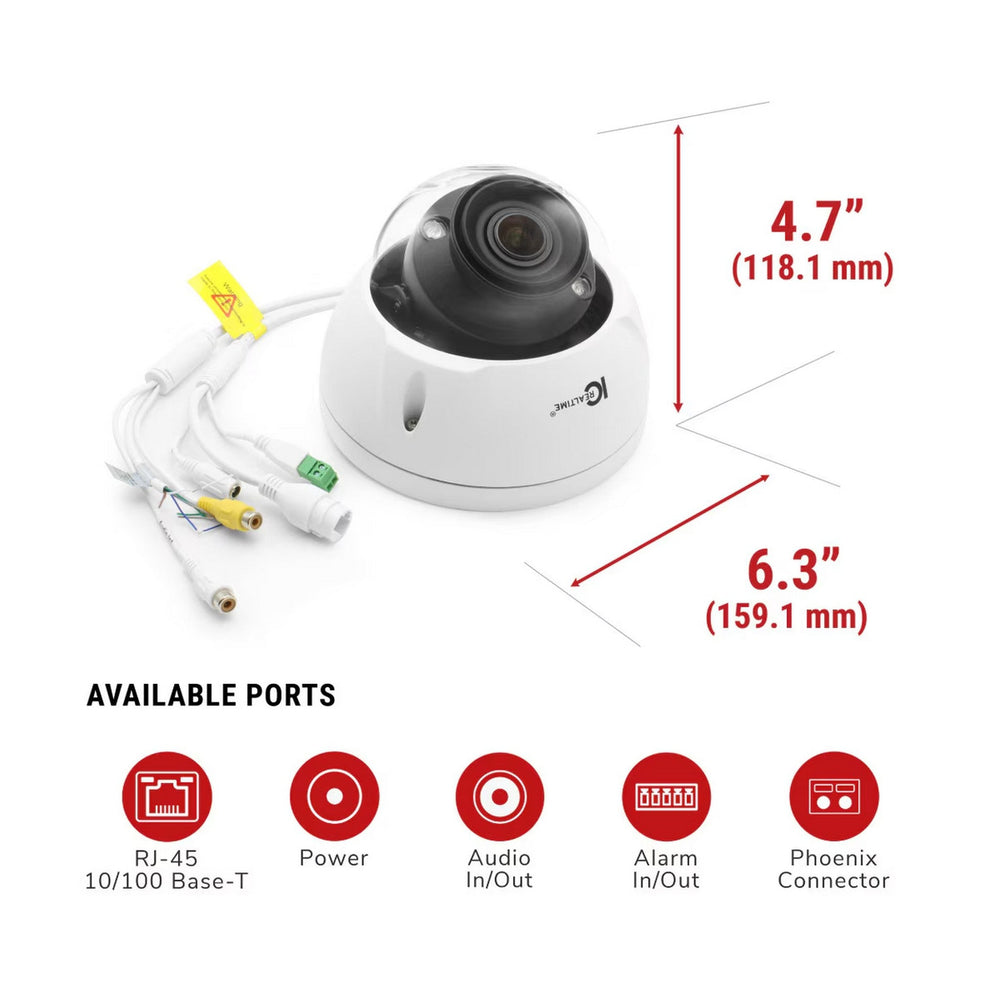

• Dimensions: 6.26" × Φ4.65" (159.1 mm × 118.1 mm)

Specifications

• Image Sensor: 1/1.8" CMOS
• Effective Pixels: 3840 (H) × 2160 (V) 8MP
• RAM/Rom: 4GB/ 2GB
• Scanning System: Progressive
• Minimum Illumination: 0.0008 lux@F1.8 (Color, 30 IRE), 0.0004 lux@F1.8 (B/W, 30 IRE), 0 lux (Illuminator on)
• Illumination Distance: 131.23 ft (40m)
• Illumination LEDs: 4
• Camera Illumination Type: IR
• Lens Type: Motorized vari-focal
• Mount Type: φ14
• Focal Length: 2.7 mm–12 mm
• Max. Aperture: F1.5
• Angle of View: H: 113°–47°, V: 60°–26°
• Close Focus Distance: 2.6 ft (0.8 m)
• DORI - Detect: 273-622 ft
• DORI - Observe: 109-248 ft
• DORI - Recognize: 54-124 ft
• DORI - Identify: 27-62 ft
• IVS: Tripwire, Intrusion, Heat Map, Smart Sound Detection, Smart abandoned object; smart missing object
• Advanced Intelligent Functions: Perimeter Protection: Tripwire, Intrusion
• Intelligent Motion Detect: Advanced secondary filtering for human and motor vehicle, reducing false alarms
• E-PTZ: Supports Electronic zoom and tracking
• Face Detection: Various snapshot and optimization features, face enhancement, extraction of 6 attributes and 8 expressions
• People Counting: Tripwire, people counting in area, queue management
• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
• Streaming Capability: 4 Streams
• Resolution: 8M (3840 × 2160), 6M (3072 × 2048), 5M (3072 × 1728), 5M (2592 × 1944), 4M (2688 × 1520), 3.6M (2560 × 1440), 3M (2048 × 1536), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
• Frame Rate: H.264: 32 kbps–16384 kbps, H.265: 12 kbps–13568 kbps
• Bit Rate Control: CBR/VBR
• Day/Night: Auto(ICR)/Color/B/W
• Backlight Compensation: BLC, HLC, WDR (120dB)
• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
• Gain Control: Auto
• Noise Reduction: 3DNR
• Flip: 0°/90°/180°/270° (Supports 90°/270° with 4M (2688 × 1520) resolution and lower)
• Mirror: Supported
• WDR: 120 dB
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
• Max. User Access: 20 (Total bandwidth: 80 M)
• Edge Storage: FTP, SFTP, Micro SD card (support max. 512 GB), NAS
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: SmartICRSS, DSS
• Smart Phone: iOS, Android
• Audio I/O: 1 Input/ 1 Output (RCA)
• Alarm I/O: 2 channels in: wet contact, 5mA 3V–5V DC, 1 channel out: wet contact, 300mA 12V DC
• Memory Slot: Micro SD card (support max. 512 GB)
• Power Supply: 12 VDC/24 VAC/PoE (802.3af)/ePoE
• Power Consumption: Basic: 4.1 W (12 VDC), 4.9 W (24 VAC), 5.9 W (PoE); Max. (H.265+ WDR+ Intelligence on+IR on): 10.0 W (12 VDC), 11.7 W (24 VAC), 12.2 W (PoE)
• Operating Conditions: –22 °F to +140 °F (–30 °C to +60 °C)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Casing: Metal + plastic
• Dimensions: 6.26" × Φ4.65" (159.1 mm × 118.1 mm)
• Gross Weight: 2.69 lb (1.22 kg)
• Mounting Pan/Tilt/Rotation: Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355°

Package Contents

• IC Realtime IPFX-D80V-IRW3 Camera
• Mounting Hardware
• User Manual
• Power Supply Adapter

Available Colors: White, Black
