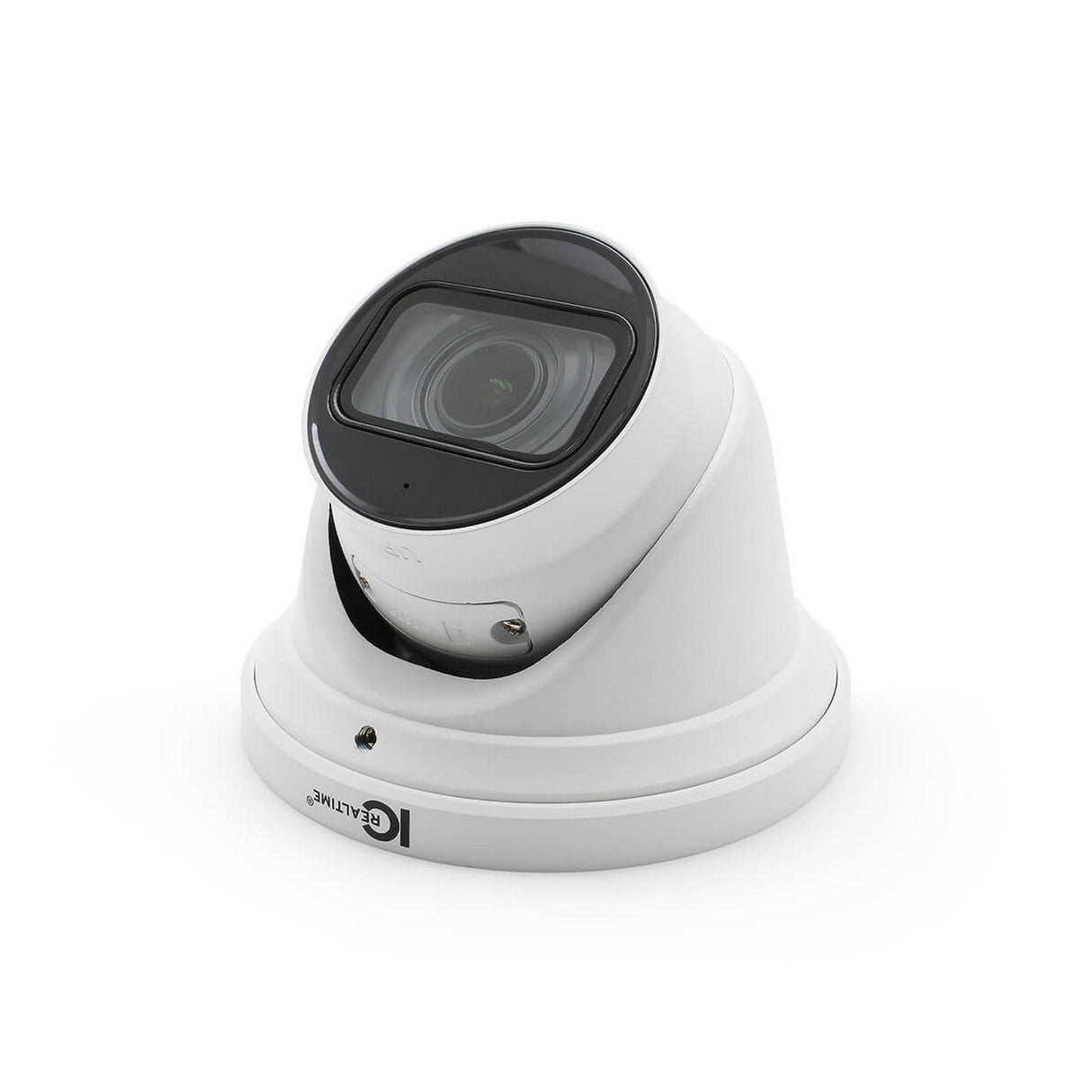

IC Realtime IPFX-E20V-IRW1 2MP IP Indoor/Outdoor Small Size Starlight Eyeball Dome Camera

IC Realtime IPFX-E20V-IRW1 2MP IP Indoor/Outdoor Small Size Starlight Eyeball Dome Camera

IPFX-E20V-IRW1 is IC Realtime's new 2mp power zoom 1080p FlexSmartAi turret dome camera. Adding FlexSmartAi functions to its classic, full metal turret dome case, IC Realtime's new E20V represents the ideal new balance between cost and advanced features in a state-of-the-art, IP67 weatherproof PoE IP camera. Simply put, IC Realtime's new E20V is our best “go-to” choice for a cost-effective “go-to” IR turret dome camera. At 2mp, the E20V is perfect as a replacement/upgrade for existing systems and a cost-effective choice for new systems.

Although the E20V represents a “perfected” physical turret dome design, IC Realtime has still figured out how to engineer-in improvements and add premium features previously available only in more advanced cameras.

Next, the E20V is now a FlexSmartAi camera, meaning IC Realtime has added advanced human recognition for 90% more dependable intrusion & tripwire functions. It also gives E20V the ability to work with Ai based NVR-based functions as they become available for a future-proof installation.

IC Realtime's new FlexSmartAi recorders will automatically recognize & use E20V's tripwire & intrusion capabilities to max out recorder-based FlexSmartAi recognition features. And the E20V's built-in microphone is used not just for surveillance; it is now part of the camera's FlexSmartAi detection system, so E20V's FlexSmartAi system enables sound detection to be used as an alert trigger.

Video security professionals already expect only the most accurate video from an IC Realtime camera, and E20V delivers. It'streams our legendary super-sharp video quality as focused through a power zoom 2.7mm - 13.5mm auto-focus lens, enabling a zoom dependent 108 Degrees to 28 Degrees horizontal FOV, super low light 0.002 Lux@F1.5 sensitivity, and 130+ feet of Smart IRs to see in total darkness.

E20V also comes equipped with IC Realtime's suite of advanced auto exposure systems, including 120db WDR, 3D Digital Noise Reduction to ensure video quality, and Smart H.265+ video stream compression for superior stream & storage management. E20V is - of course - ONVIF Profile S & G compliant with both P2P and CGI compatibility.

Turret domes have been IC Realtime's most popular camera style over the years for a good reason - they represent the best of both worlds: the easy-install round base and simple aiming of a bullet camera combined with the damage resistance of a dome camera.

IC Realtime's new E20V continues that tradition. It has joined the IC Realtime Video Ecosystem as one of our latest UL listed, FlexSmartAi IP camera choices. If you are looking for a cost-effective IP turret dome that delivers job landing video quality, vandal & weather resistant reliability, long warranty, and easy installation, then look no further. IC Realtime's IPFX-E20V-IRW1 is the best option on the market today.

IC Realtime exists to help our dealers & installers succeed & grow. We understand the security camera business and offer competitive price points on the market's best video security gear. IC Realtime products are only sold B2B, so we only win when you win. We have designed every product in the IC Realtime Video Ecosystem to help you land your next security camera job.

Key Features

• 1/2.8 CMOS | 2MP | 30fps@2MP
• 2.7-13.5mm | Varifocal| AoV 108-28
• Max. IR Length 131ft | Smart IR | Starlight
• Perimeter Protection | Intelligent Motion Detect
• Built-In Mic | 256GB MSD | IP67 | 12VDC Or PoE
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Technical Specifications

Camera
Image Sensor
1/2.8” 2 Megapixel progressive CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/Rom
128MB/ 256MB
Scanning System
Progressive
Minimum Illumination
0.002 Lux@F1.6
Illumination Distance
40 m (131.2 ft)
Illumination On/Off Control
Auto/Manual
Illumination LEDs
2
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Motorized vari-focal
Mount Type
φ14
Focal Length
2.7 mm-13.5 mm
Max. Aperture
F1.5
Angle of View
Horizontal: 108 Degrees -28 Degrees
Vertical: 57 Degrees -16
Close Focus Distance
0.8 m (2.6 ft)
DORI - Detect
144ft- 502ft
DORI - Observe
57ft- 200ft
DORI - Recognize
28ft- 82ft
DORI - Identify
14ft- 50ft
Intelligence
IVS
Support
Advanced Intelligent Functions
Intelligent Motion Detect (iMD),
Perimeter Protection: Tripwire; intrusion (Recognition of human and vehicle)
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (Sub stream only)
Streaming Capability
3 Streams
Resolution
1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 /352 x 240)
Frame Rate
Main stream (1920 x 1080@1-25/30 fps) sub stream (704 x 576@1-25 fps/704 x 480@1-30 fps) third stream (1280 x 720@1-25/30 fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Digital Zoom
16x
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees
Mirror
Off / On
Privacy Masking
Up to 4 areas
Audio
Compression
G.711a; G.711Mu; G726; AAC
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability
ONVIF (Profile S/Profile G); CGI; P2P
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Edge Storage
FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart ICRSS, DSS
Smart Phone
iOS, Android
Interface
Audio I/O
Built-in Microphone
Memory Slot
256GB Micro SD
Electrical
Power Supply
DC12V PoE (802.3af) (Class 0)
Power Consumption
<7.8W
Environmental
Operating Conditions
-30 Degrees C to +60 Degrees C (-22 Degrees F to +140 Degrees F)/Less than 95% RH
Ingress Protection
IP67
Construction
Casing
Metal
Dimensions
108.3 mm x 122 mm
(4.3” x 4.8”)
Gross Weight
828 g (1.8 lb)
Mounting Pan/Tilt/Rotation
Horizontal: 0 Degrees -360 Degrees; vertical: 0 Degrees -78 Degrees; rotation: 0 Degrees -360 Degrees
