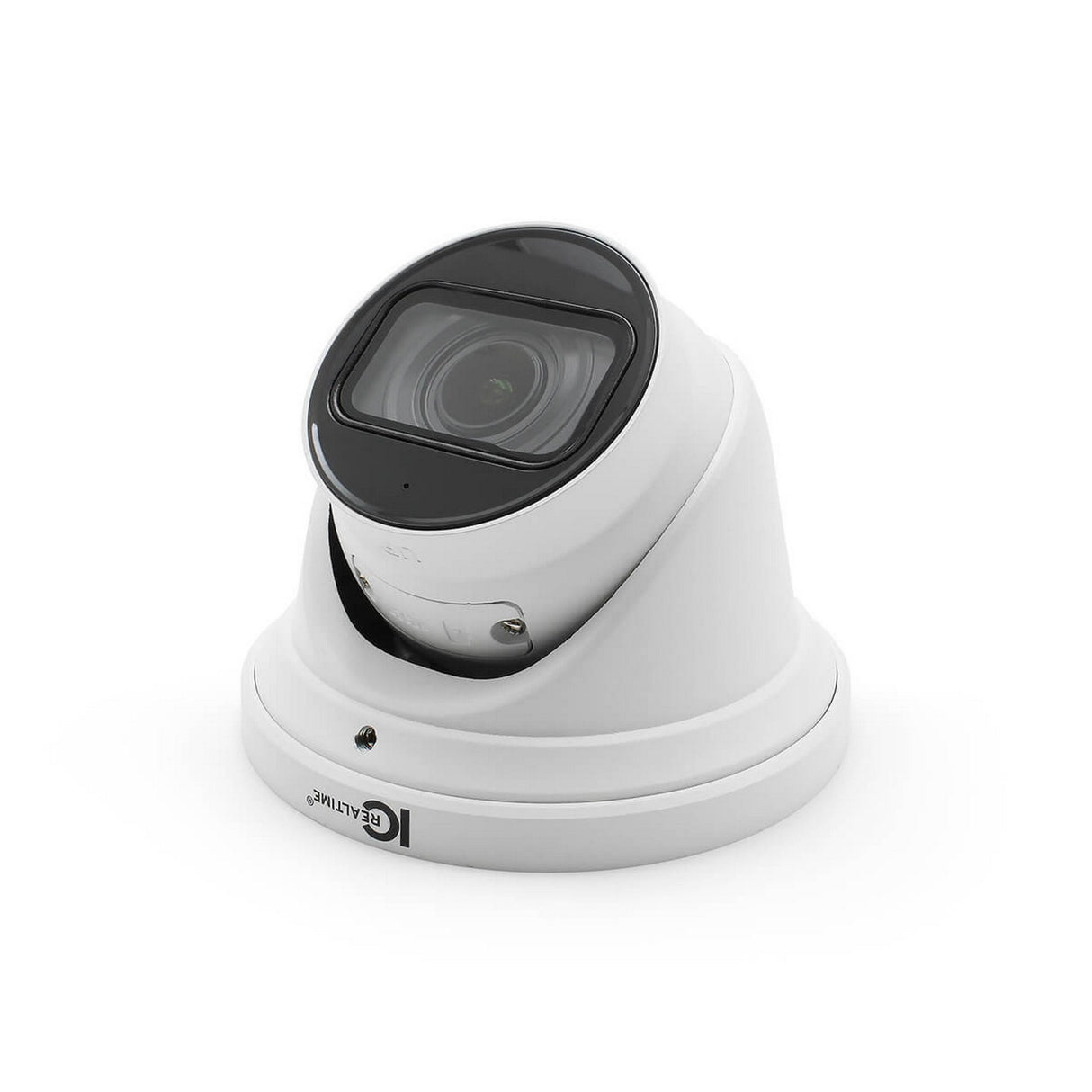

IC Realtime IPFX-E40V-IRW1 4MP IP Indoor/Outdoor Small Size Starlight Eyeball Dome Camera

IC Realtime IPFX-E40V-IRW1 4MP IP Indoor/Outdoor Small Size Starlight Eyeball Dome Camera

IC Realtime's new IPFX-E40V-IRW1 is an excellent example of the saying, “Good things come in small packages.” But for the E40V, IC Realtime would have to change “good” to “smart. “This vandal-resistant IR dome camera is part of our new FlexSmartAi camera family that adds built-in brains into an already excellent, full metal cased 4mp motorized zoom, IP turret dome camera design.

Turret domes are the perfect blend of bullet camera installation ease and vandal dome toughness, and IC Realtime has sold thousands of them dating back to the old analog days. The new E40V carries on that proud legacy as a state-of the-art, IP67 weatherproof metal case PoE IP camera.

Of course, as an IC Realtime camera, E40V has our trademark super-sharp video quality, a 2.7mm - 13.5mm power zoom auto-focus lens that gives 104 Degrees -27 Degrees horizontal FOV, and darkness-defeating 0.005 Lux@F1.5 low light sensitivity supplemented in total darkness by 130+ feet of Smart IRs.

As expected in an IC Realtime camera, E40V comes equipped with our complete suite of auto exposure and video management systems, including 120db WDR, 3D Digital Noise Reduction, Smart H.265+ video stream compression, and ONVIF Profile S & G compliance, plus CGI and P2P compatibility.

As a FlexSmartAi camera, E40V takes those standard IC Realtime advantages to a whole new & smarter level, with a built-in microphone, Ai enhanced motion detection, perimeter control, and business intelligence features already built-in. IC Realtime's dependable new E40V is now ready to be the “go-to” IP camera for dealers & installers bidding new installations or upgrading older IP systems.

The E40V's intelligence also makes it the perfect “eyes” for our new FlexSmartAi recorders. They will automatically recognize & use E40V's high pixel density and tripwire & intrusion capabilities to max out recorder-based FlexSmartAi face & vehicle recognition features.

IC Realtime's IPFX-E40V-IRW1 may be our newest UL listed, FlexSmartAi IP turret dome. Still, it proudly continues IC Realtime's broad compatibility tradition, cutting edge performance, vandal & weather resistant reliability, market-beating video quality, and easy installation.

IPFX-E40V-IRW1 - like every product in the IC Realtime Video Ecosystem - is ready to help you win your next security camera system bid.

Key Features

• 1/3” CMOS | 4MP | 30fps@4MP
• 2.7 Mm-13.5 Mm | Varifocal| AoV 104-27
• Max. IR Length 131ft | Smart IR | Starlight
• Perimeter Protection | Intelligent Motion Detect
• Built-In Mic | 256GB MSD | 120dB True WDR
• IP67 | 12VDC Or PoE | Max. 8.3W

Technical Specifications

Camera
Image Sensor
1/3” 4 Megapixel progressive CMOS
Effective Pixels
2688 (H) x1520 (V)
RAM/Rom
128MB/ 512MB
Scanning System
Progressive
Minimum Illumination
0.005 Lux@F1.5
Illumination Distance
40 m (131.2 ft)
Illumination On/Off Control
Auto/Manual
Illumination LEDs
2
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Motorized vari-focal
Mount Type
φ14
Focal Length
2.7 mm-13.5 mm
Max. Aperture
F1.5
Angle of View
Horizontal: 104 Degrees -27 Degrees
Vertical: 55 Degrees -15 Degrees
Close Focus Distance
0.8 m (2.6 ft)
DORI - Detect
210ft-728ft
DORI - Observe
84ft- 291ft
DORI - Recognize
42ft- 145ft
DORI - Identify
21ft- 72ft
Intelligence
IVS
Support
Advanced Intelligent Functions
Intelligent Motion Detect
Perimeter Protection
Tripwire; intrusion (Recognition of human and vehicle)
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (Sub stream only)
Streaming Capability
3 Streams
Resolution
4M (2688 x 1520); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)0 x 480) / CIF (352 x 288 /352 x 240)
Frame Rate
Main stream:2688 x 1520@1-25/30 fps
Sub stream: 704 x 576 @1-25 fps/ 704 x 480 @ 1-30 fps
Third Stream: 1280 x 720@1-25/30 fps
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Digital Zoom
16x
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees (Support 90 Degrees /270 Degrees with 1920 x 1080 resolution.)
Mirror
Off / On
Privacy Masking
Up to 4 areas
Audio
Compression
G.711a; G.711Mu; G726; AAC
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Compatibility
ONVIF (Profile S/Profile G); CGI
Streaming Method
Unicast / Multicast
Max. User Access
20 (Total bandwidth: 64 M)
Edge Storage
FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart ICRSS, DSS
Smart Phone
iOS, Android
Interface
Audio I/O
Built-in MIC
Memory Slot
256GB Micro SD
Electrical
Power Supply
DC12V PoE (802.3af) (Class 0)
Power Consumption
<8.3W
Environmental
Operating Conditions
-30 Degrees C to +60 Degrees C (-22 Degrees F to +140 Degrees F)/Less than 95% RH
Ingress Protection
IP67
Construction
Casing
Metal
Dimensions
108.3 mm x 122 mm (4.3” x 4.8”)
Gross Weight
828 g (1.8 lb)
Mounting Pan/Tilt/Rotation
Horizontal: 0 Degrees -360 Degrees; vertical: 0 Degrees -78 Degrees; rotation: 0 Degrees -360 Degrees
