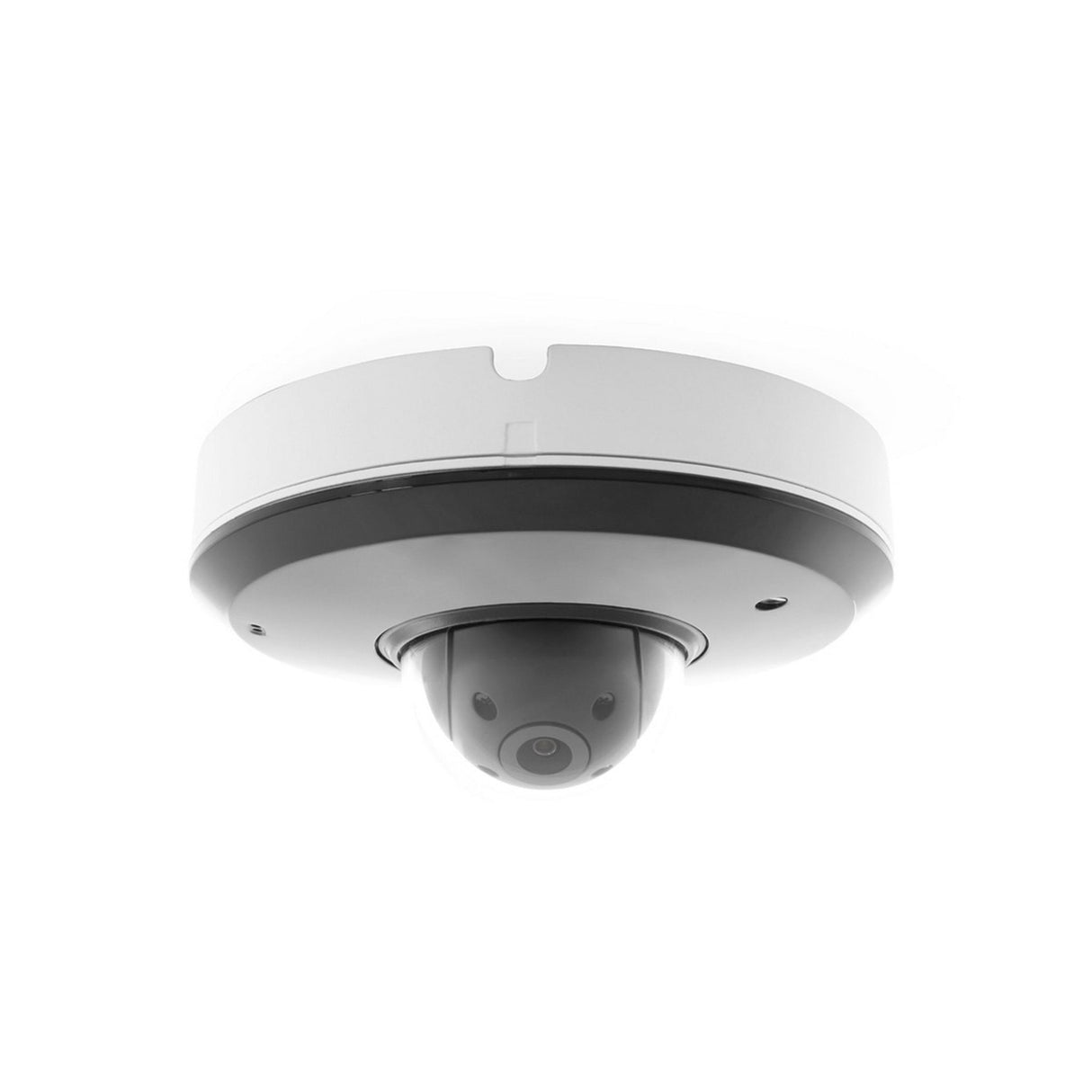

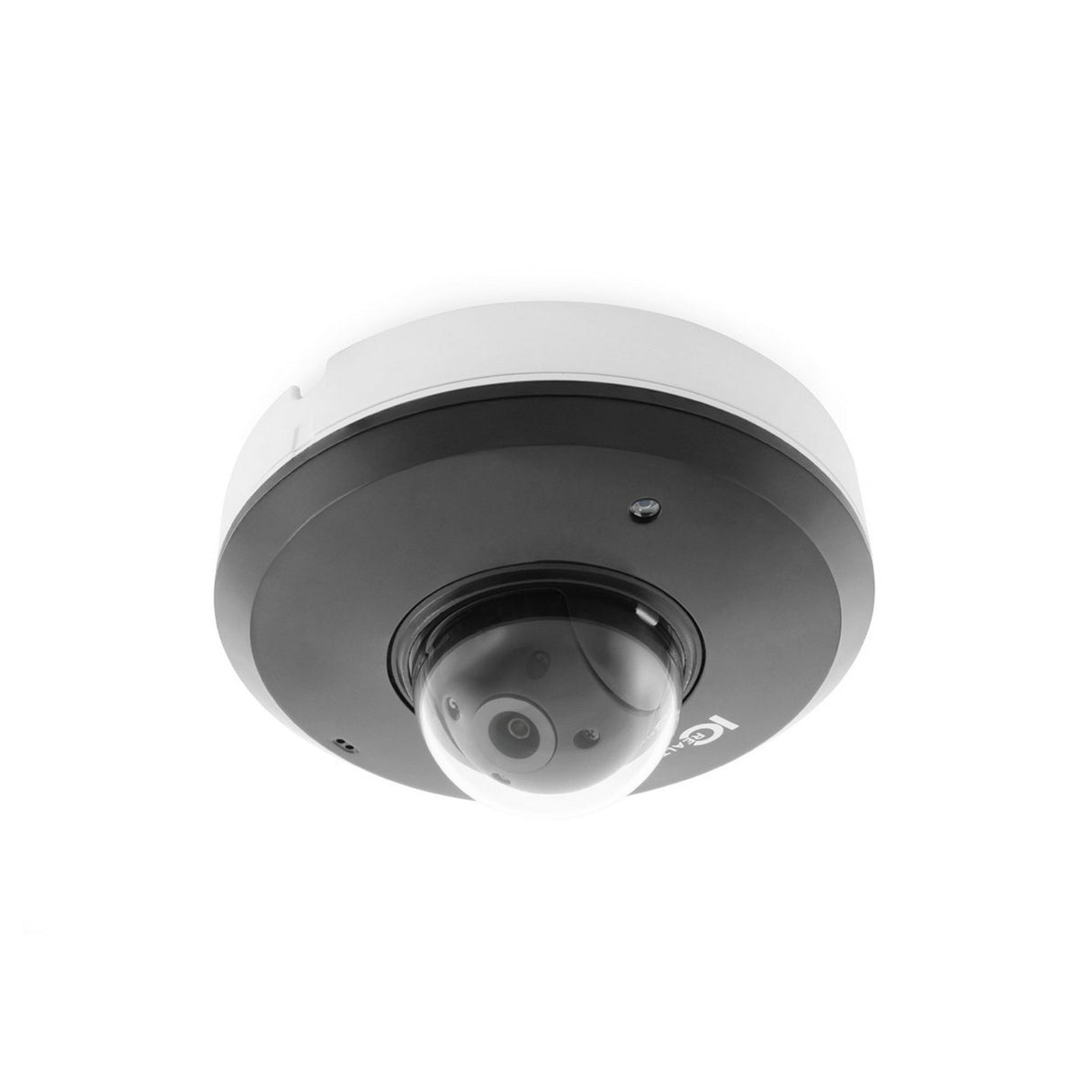

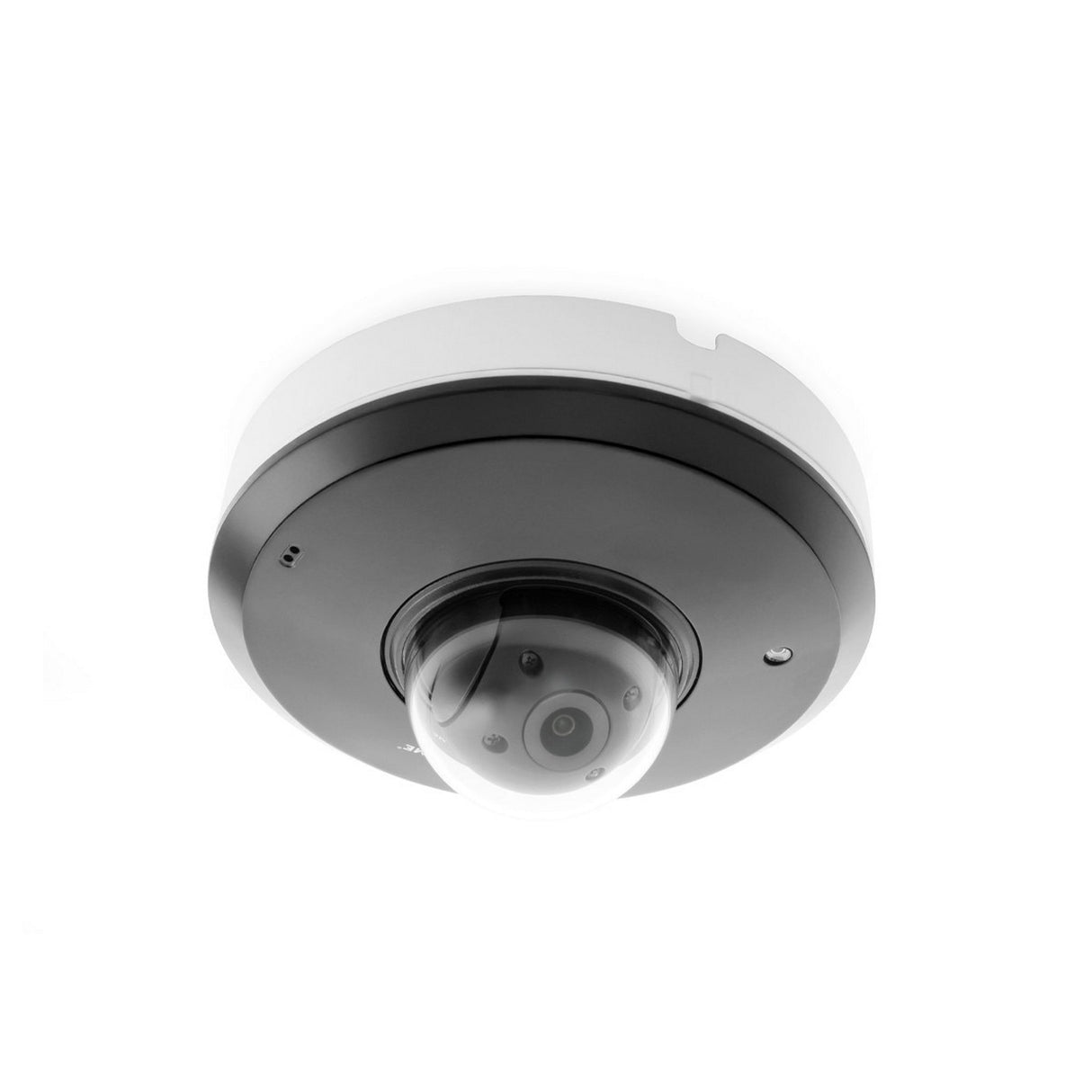

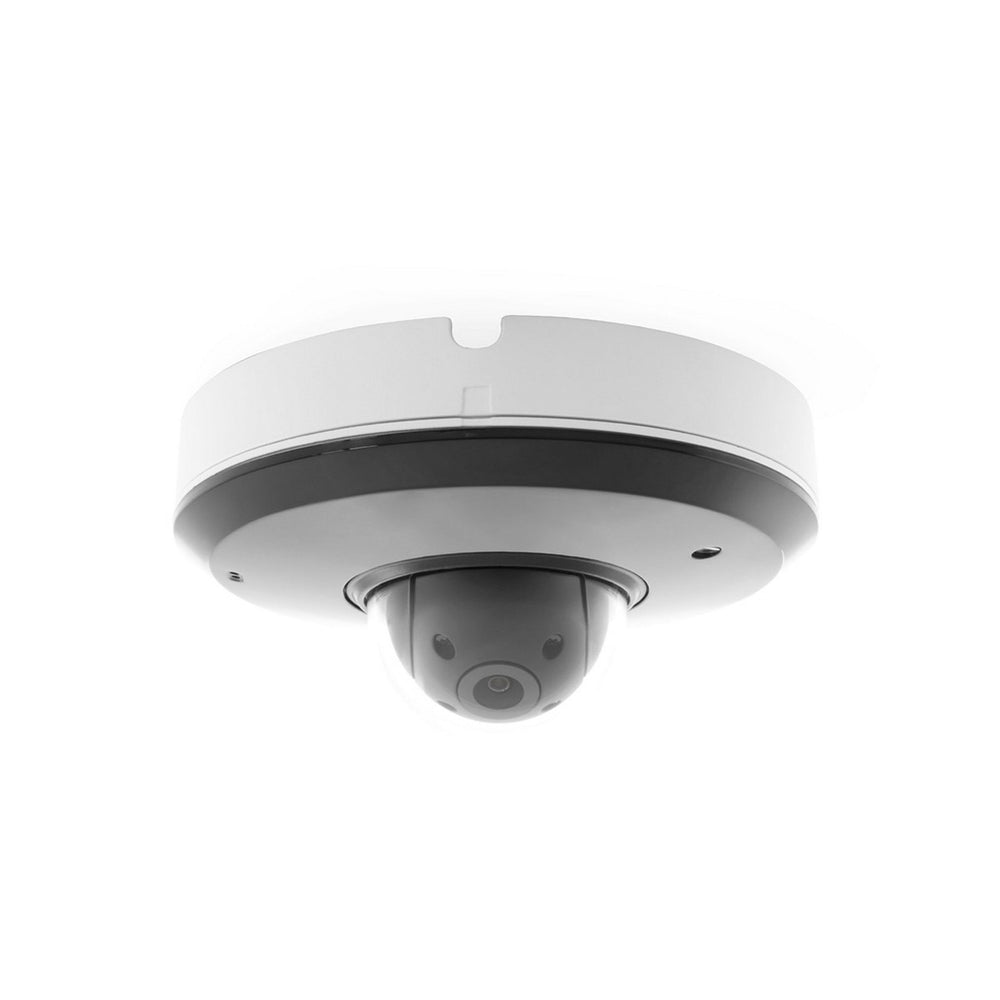

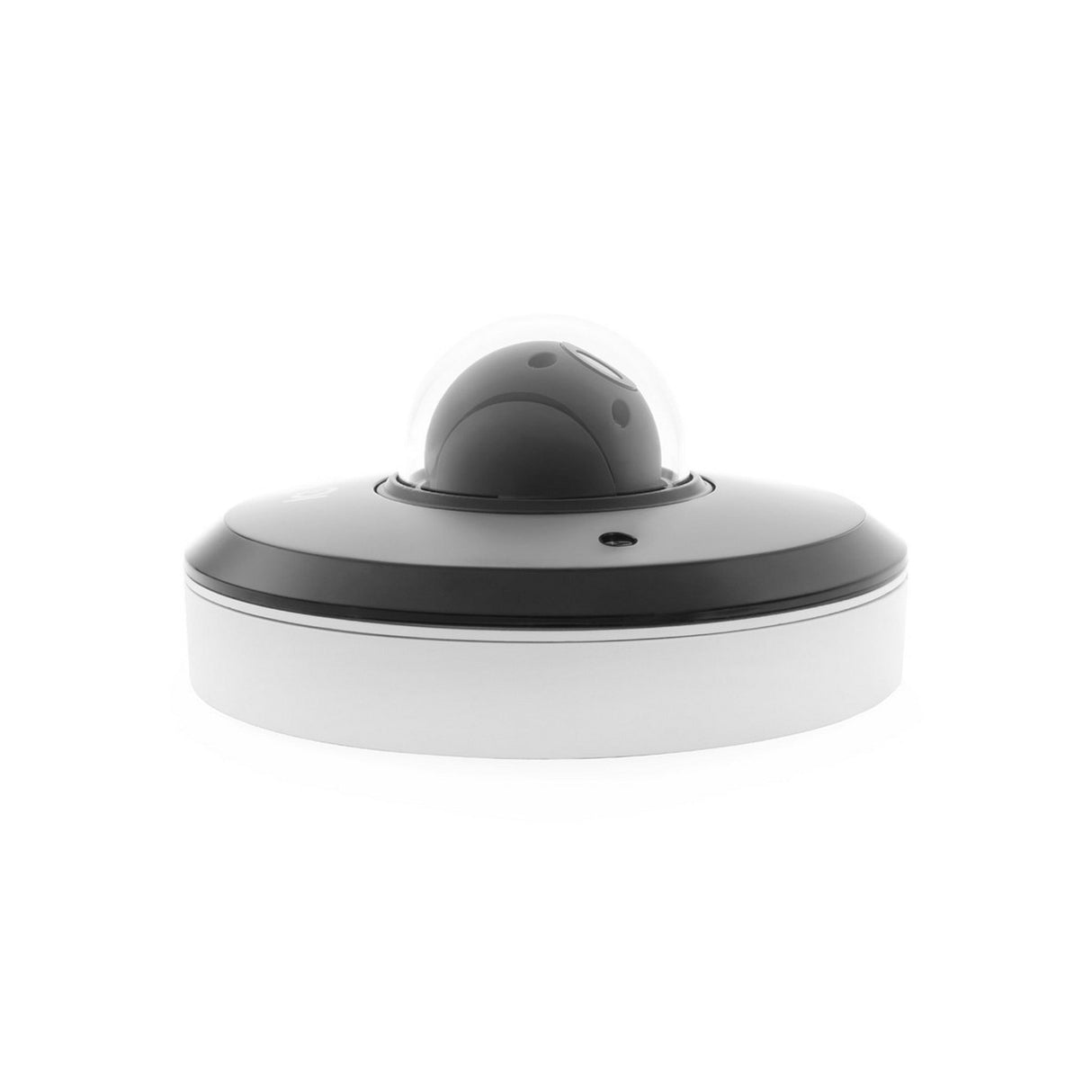

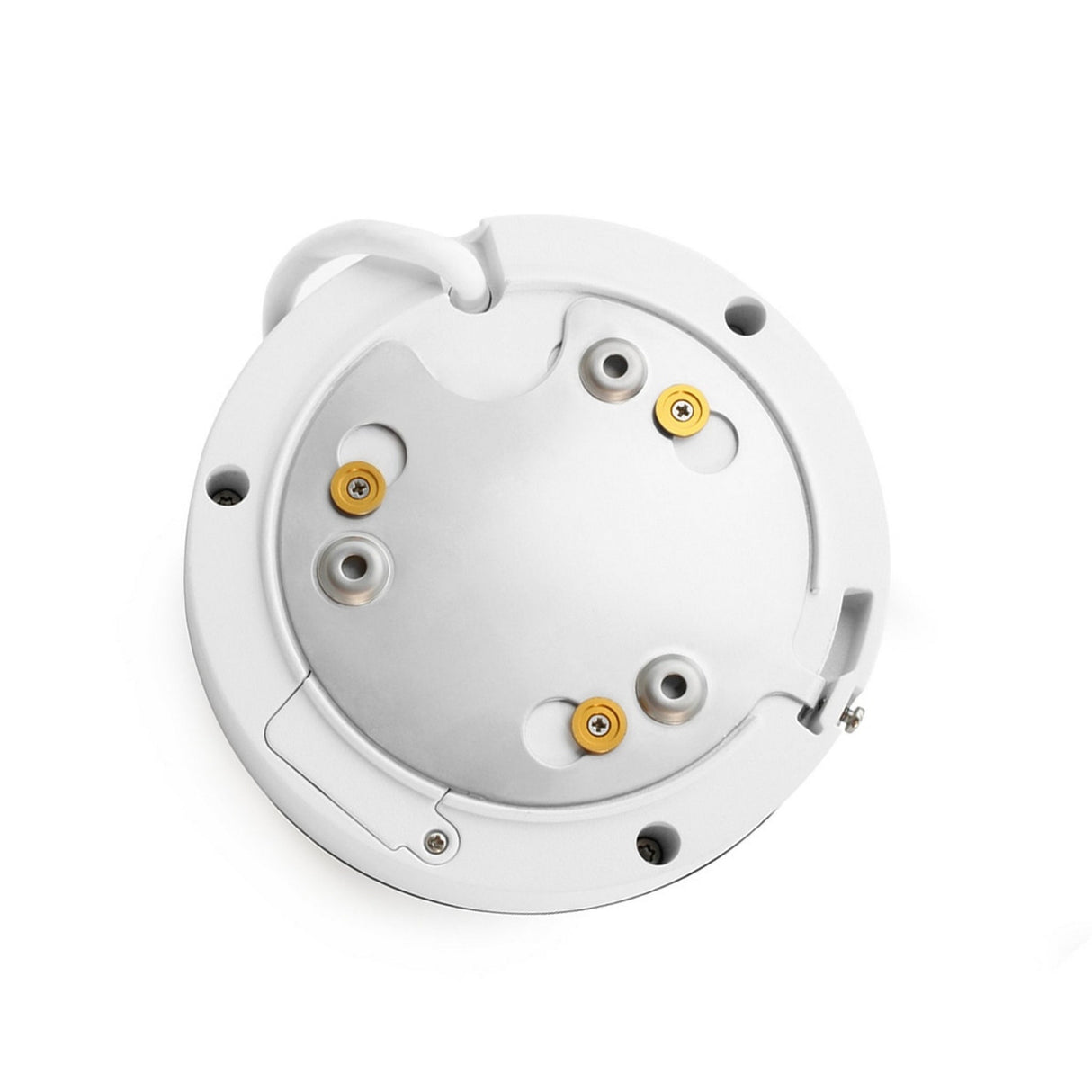

IC Realtime IPFX-P4004-IRW1 4MP Compact Starlight IR Mini-PTZ Network Camera with 4x Optical Zoom

IC Realtime IPFX-P4004-IRW1 4MP Compact Starlight IR Mini-PTZ Network Camera with 4x Optical Zoom

Product Overview

The IPFX-P4004-IRW1 is a compact 4MP mini-PTZ network camera designed for professional security surveillance applications requiring precise pan, tilt, and zoom control. It features a 4x optical zoom lens, Starlight low-light performance, and integrated infrared night vision with a maximum IR distance of 65 ft.

This camera supports advanced AI analytics, intelligent motion detection, and triple-stream video encoding. With a built-in microphone, PoE support, and IP66-rated housing, it is well suited for indoor and outdoor installations in commercial and enterprise environments.

Key Features

• Resolution: 4MP compact mini-PTZ network camera.
• Optical zoom: 4x optical zoom with pan, tilt, and zoom functionality.
• Low-light performance: Starlight technology for enhanced low-light imaging.
• Night vision: Infrared illumination with up to 65 ft IR distance.
• Video compression: H.265 and H.264 triple-stream encoding.
• Analytics: Intelligent Motion Detect 2.0 and perimeter protection.
• Audio: Built-in microphone.
• Power: PoE supported.
• Protection: IP66 and IK08 rated housing.

Technical Specifications

Camera

• Image sensor: 1/2.8 inch CMOS
• Effective pixels: 2560 x 1440
• Scan system: Progressive
• Electronic shutter speed: Auto and manual
• Minimum illumination: Starlight supported
• IR distance: Max 65 ft
• IR on and off control: Auto and manual

Lens

• Lens type: Motorized varifocal
• Focal length: 2.8 mm to 12 mm
• Optical zoom: 4x
• Maximum aperture: F1.6
• Field of view: Wide to telephoto coverage

PTZ

• Pan range: 0 to 355 degrees
• Tilt range: 0 to 90 degrees
• Preset positions: Supported
• Speed: Variable pan and tilt speed

Video

• Video compression: H.265, H.264
• Frame rate: Up to 30 fps at 4MP
• Streaming: Triple-stream encoding
• Wide dynamic range: WDR supported
• Image enhancement: Digital noise reduction

Audio

• Audio input: Built-in microphone
• Audio compression: Supported

Analytics

• AI analytics: Advanced AI analytics supported
• Motion detection: Intelligent Motion Detect 2.0
• Perimeter protection: Supported

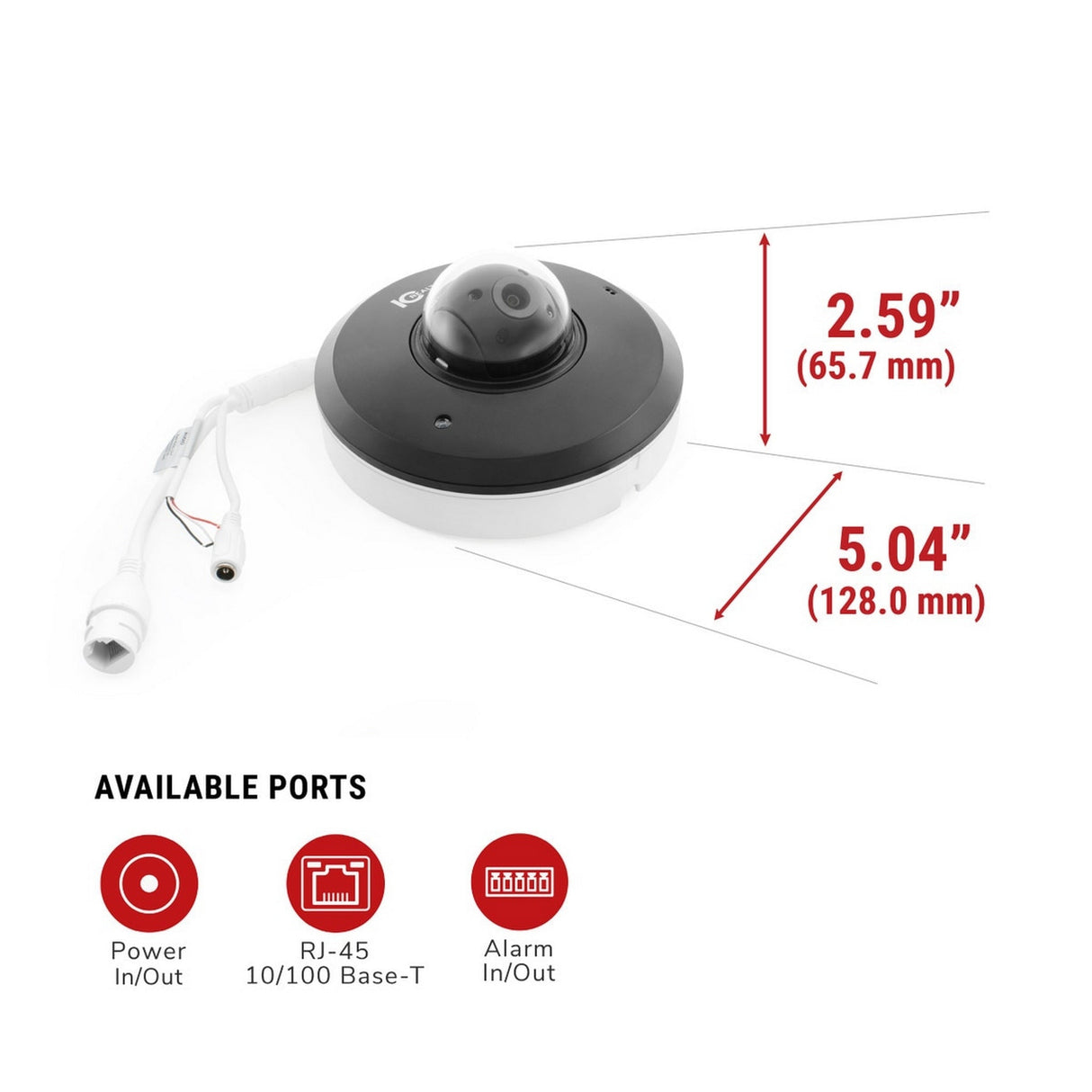

Network

• Ethernet: RJ45 10/100 Mbps
• Protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP
• ONVIF: Supported

Storage

• Local storage: microSD card slot supported

Power

• Power supply: 12 V DC
• PoE: Supported
• Power consumption: Not specified

Environmental

• Ingress protection: IP66
• Impact protection: IK08
• Operating temperature: Supported for outdoor use

Certifications

• Compliance: FCC, CE

What’s Included

• Camera: IPFX-P4004-IRW1 Mini-PTZ Network Camera

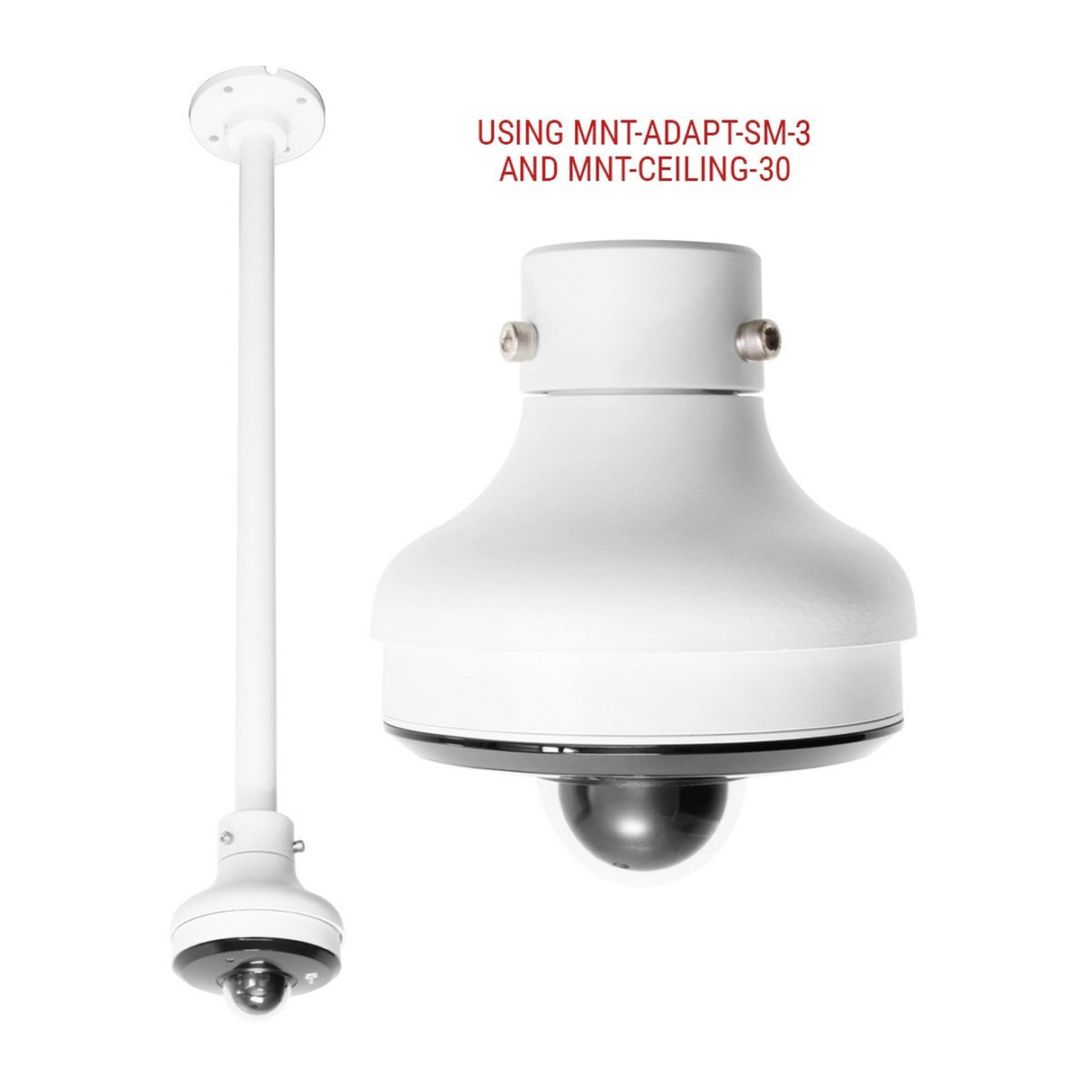

• Mounting hardware: Included
• Documentation: Quick start guide
