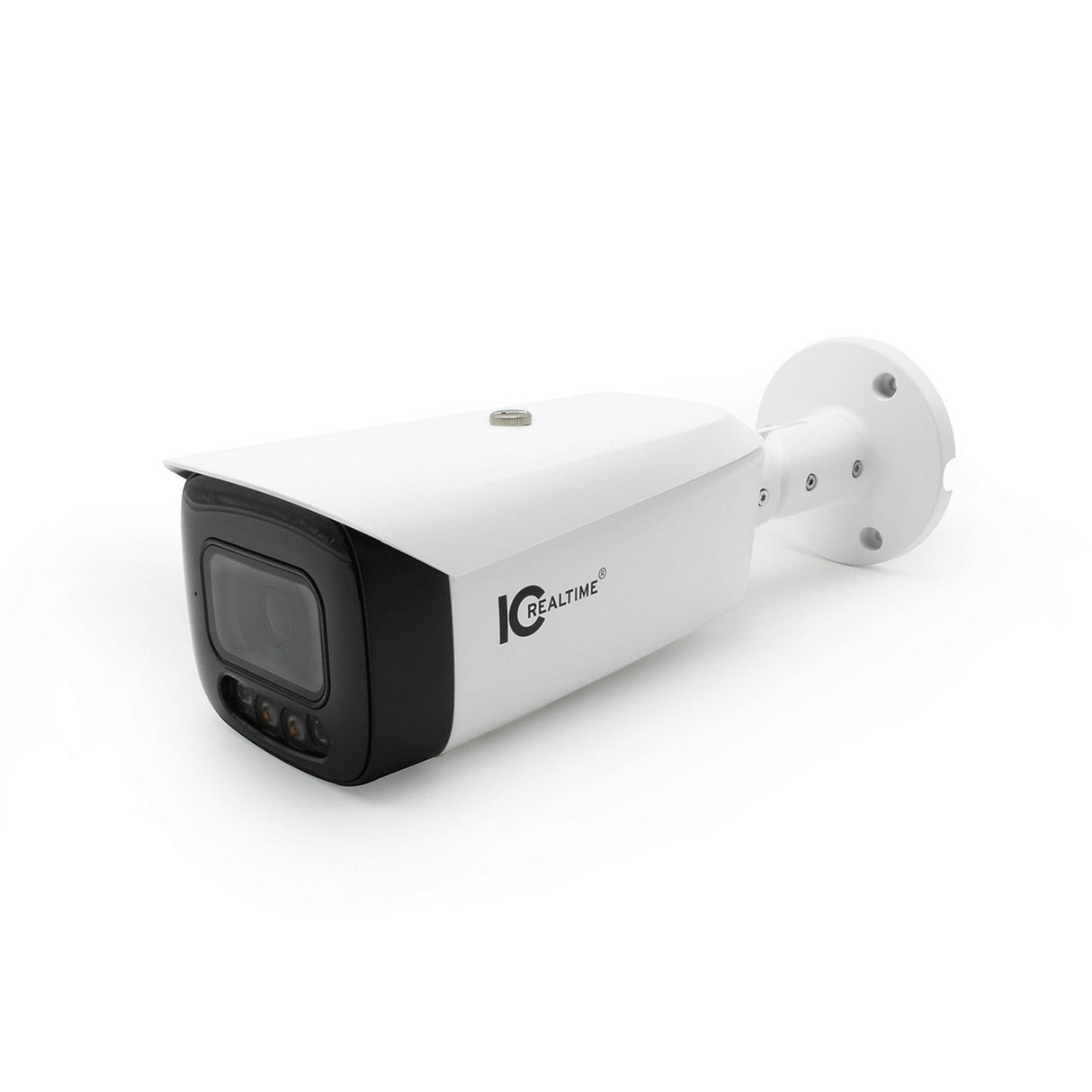

IC Realtime IPMX-B40F-ADW1 4MP IP Indoor/Outdoor Eyeball Bullet Camera, White

IC Realtime IPMX-B40F-ADW1 4MP IP Indoor/Outdoor Eyeball Bullet Camera, White

IC Realtime’s new IPMX-B40F-ADW1 is not only the newest member of our 24/7 Starlight Color camera series, it has Active Deterrence capabilities that can challenge intruders - even in your own voice - when you can’t be there to do it yourself. The camera also has audio surveillance capabilities and even 2-way communication skills with a built-in mic & speaker. They even have audio in/out jacks to integrate with gate & door systems and alarm in/out ports to integrate with alarm systems.

AN AWESOME CAMERA…
IPMX-B40F-ADW1 is part of our 24/7 Starlight Color series. These new cameras use our latest Starlight video chipsets and a wide aperture lens to stream state-of-the-art color video down to 0.003 Lux - darker than a moonless night, and 140+ft of full-spectrum LEDs for color images even in total darkness.

… THAT DOES MORE THAN JUST WATCH
Active Deterrence activation can be set to instantly notify you by push or app notification or email when someone sets it off and can be set to challenge intruders by illuminating its police-style red & blue flashing lights, and/or a siren to warn them away. You can even do that in your own voice by recording a customizable verbal warning or speaking directly to them with 2-way talk through the phone app.

SMART ENOUGH FOR ACCURATE DETECTIONS
Equipped with IC Realtime’s Artificial Intelligence human & vehicle detection with Intelligent Motion Detect and Perimeter Protection, the new IPMX-B40F-ADW1 already knows what to look for to detect intruders. And when detection occurs, the camera marks the NVR’s channel's recording timeline at the event time so you can roll back that channel & review the footage.

Taking security cameras to the next level has been IC Realtime’s development tradition for over 2 decades. Our cameras have always been state-of-the-art, unblinking witnesses that observe & deter mischief around your home & business. Now the IPMX-B40F-ADW1 Active Deterrence IP bullet can do more than just observe - it can actively step in to deter intrusion.

Key Features

• 4MP, 1/2.7” CMOS | Low Illuminance, High Definition
• H.265 & H.264 | Triple-Stream Encoding | 4MP @25/30 Fps
• Active Deterrence Lights & Siren | Built-In Mic
• 2.8mm Fixed Lens | Starlight Support
• Intelligent Motion Detect | Perimeter Protection
• Warm White LEDs | Full Color Night Illumination, Max Distance 130ft

Technical Specifications

Camera
Image Sensor
1/2.7”4 Megapixel progressive CMOS
Effective Pixels
2688 (H) x 1520 (V)
RAM/Rom
128MB/ 512MB
Scanning System
Progressive
Minimum Illumination
0.003 Lux @ F1.0
Illumination Distance
Up to 131.2 ft (40 m)
Camera Illumination Type
White Light
Lens
Lens Type
Fixed-focal
Focal Length
2.8mm
Max. Aperture
F1.0
Angle of View
Horizontal:103 Degrees; vertical: 53 Degrees;
Close Focus Distance
3.9 ft (1.2 m)
DORI - Detect
221ft
DORI - Observe
88ft
DORI - Recognize
44ft
DORI - Identify
22ft
Intelligence
IVS
Tripwire; intrusion
Advanced Intelligent Functions
Perimeter Protection- Tripwire; intrusion (Supports classification and accurate vehicle and human detection)
Intelligent Motion Detect- Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light.
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Streaming Capability
3 Streams
Resolution
4M (2688 x 1520); 4M (2560 x 1440); 3M (2304 x
1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p
(1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x
480); CIF (354 x 288/354 x 240)
Frame Rate
Main stream: 2688 x 1520@1-25/30 fps
Sub stream: 704 x 576@1-25 fps/704 x 480@1-30 fps
Third stream: 1280 x 720@1-25/30 fps
Bit Rate Control
CBR /VBR
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Color/B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
OFF/ON (4 areas)
Region of Interest
Yes (4 areas)
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees (Supports 90 Degrees /270 Degrees with 1920 x 1080 resolution and lower)
WDR
120dB
Audio
Compression
G.711a; G.711Mu; G726
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;
RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA;
PPPoE; SNMP
Max. User Access
20 Users (Total bandwidth: 64 M)
Edge Storage
FTP; SFTP; Micro SD card (max. 256 GB); NAS
Web Viewer
Chrome, IE, Edge, Safari, Firefox
Management Software
Smart ICRSS
Smart Phone
iOS, Android
Interface
Audio I/O
Built-in Microphone; Audio In/ Out (RCA ports)
Alarm I/O
1 channel in: 5mA 3V-5V DC
1 channel out: 300mA 12V DC
Memory Slot
Micro SD card max. 256 GB
Electrical
Power Supply
12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 2.8W (12V DC); 3.4W (PoE)
Max. power consumption (H.265 + warm LED + IVS + siren + red and blue lights flashing): 8.1W (12VDC); 9.7W (PoE)
Environmental
Operating Conditions
-40 Degrees F to +140 Degrees F (-40 Degrees C to +60 Degrees C)/less than 95% RH
Storage Conditions
-40 Degrees F to +140 Degrees F (-40 Degrees C to +60 Degrees C)
Ingress Protection
IP67
Construction
Casing
Metal
Dimensions
11.4” x 3.7” x 3.3”
(288.4 mm x 94.4 mm x 84.7 mm)
Gross Weight
2.7 lb (1.23 kg)
Mounting Pan/Tilt/Rotation
Pan: 0 Degrees -360 Degrees
Tilt: 0 Degrees -90 Degrees
Rotation: 0 Degrees -360 Degrees
