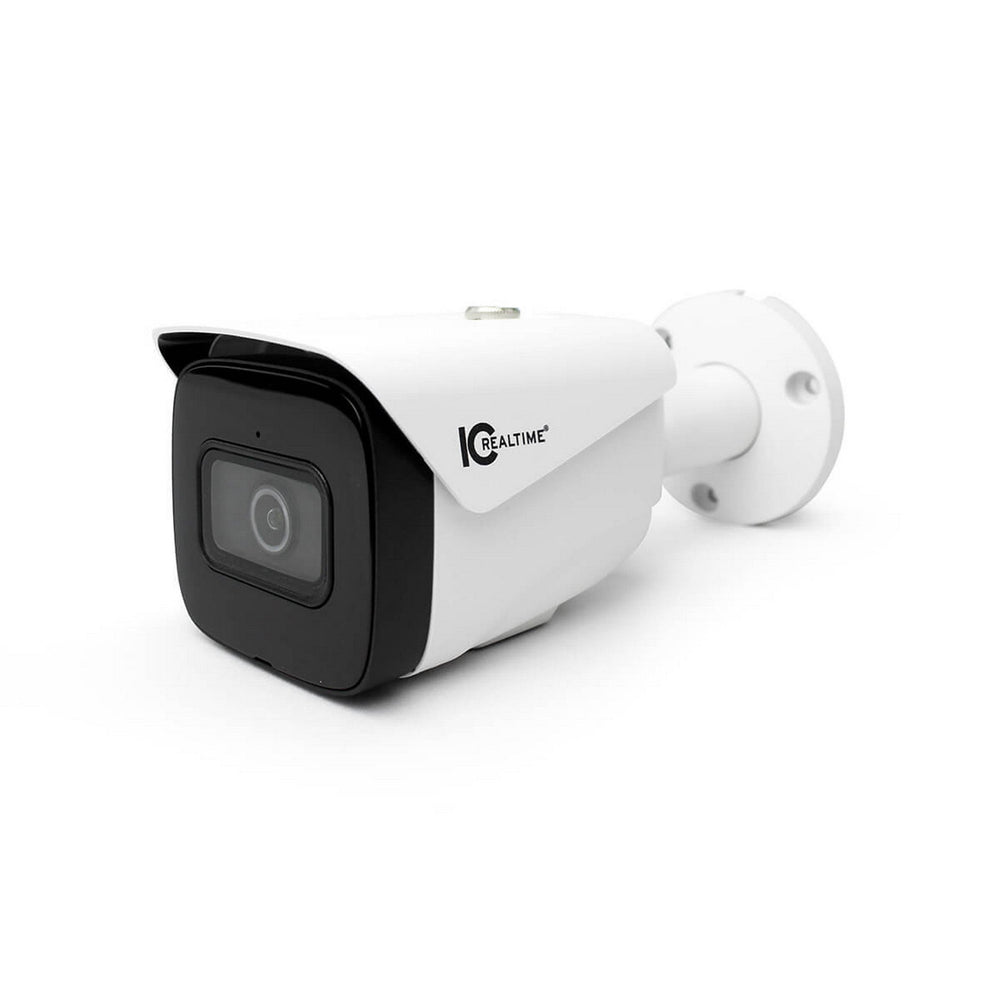

IC Realtime IPMX-B40F-IRW2 4MP IP Indoor/Outdoor Small Size Bullet Camera, White

IC Realtime IPMX-B40F-IRW2 4MP IP Indoor/Outdoor Small Size Bullet Camera, White

IC Realtime smart security cameras are a go-to for many reasons. They satisfy the needs of commercial and luxury home security camera markets alike while maintaining beneficial price points.

This mini bullet camera delivers everything it promises, and then some! Part of what makes our 4MP IR bullet network camera different is HTML5 compliance, which means no plugins are required, and so the days of limited internet browsers are over.

Enjoy accessing this starlight camera through Safari, Google, and most modern browsers. Commercial-grade security cameras come equipped with a few essential features, such as High-Efficiency Video Coding. (HEVC) H.265 dramatically reduces the space required for history and the bandwidth to stream your video, which is a win for your hard drives and your already hard-working network.

When streaming live footage from your HD bullet camera, your mobile device will also use fewer resources. Power over Ethernet is also a big win, but the added value of a 12v input makes our PoE security cameras even more flexible.

True WDR is the prime choice when it comes to clear and consistent images. As objects pass through a field of view varying in light intensity, images this 4MP security camera generates are always clear and visibly free of blemishes.

Another underrated commercial feature is Smart IR. Smart IR varies the intensity of the Infrared in a security camera, so as objects come closer, there are no ghosting images when it matters most - up close and personal. If you’re looking for forensic level quality, you’ve come to the right place.

Key Features

• 1/3 CMOS | 4MP | 30fps@4MP
• 2.8mm | Fixed | AoV 103
• Max. IR Length 164ft | Starlight | 1 LED
• Audio I/O | Built-In Mic | Alarm I/O
• IP67 | 12VDC Or PoE | Max. 5.4W

Technical Specifications

Camera
Image Sensor
1/3 4 Megapixel progressive scan CMOS
Effective Pixels
2688(H) x 1520(V)
RAM/Rom
128MB / 512MB
Scanning System
Progressive
Minimum Illumination
0.005 Lux@F1.6
S/N Ratio
> 56 dB
Illumination Distance
Distance up to 50 m (164.0 ft)
Illumination On/Off Control
Auto/Manual
Illumination LEDs
1
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8mm
Max. Aperture
F1.6
Angle of View
Horizontal:103 Degrees; vertical: 55 Degrees;
Focus Control
Fixed
Close Focus Distance
0.6 m (2.0 ft)
DORI - Detect
183ft
DORI - Observe
73ft
DORI - Recognize
36ft
DORI - Identify
18ft
Intelligence
IVS
Tripwire, Intrusion
Advanced Intelligent Functions
Intelligent Motion Detect Supported,
Perimeter Protection
(Recognition of human and vehicle) Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videos
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Resolution
4M (2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate
Main Stream: 4M (1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 720P(1 - 25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Flip
0 / 90 / 180 / 270
Mirror
Off / On
Privacy Masking
Up to 4 areas
Audio
Compression
G.711a; G.711Mu; G726; AAC
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
Pv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;802.1x; SNMP
Interoperability
ONVIF / PSIA / CGI/ Milestone
Compatibility
ONVIF (Profile S/Profile G); CGI; P2P
Streaming Method
Unicast / Multicast
Max. User Access
20 Users (Total bandwidth: 64 M)
Edge Storage
NAS / Local PC for instant recording
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
SmartICRSS, DSS
Smart Phone
IOS, Android
Interface
Audio I/O
Built-In Microphone,
Audio in/ Out
Alarm I/O
1 channel in: 5mA 3V-5V DC
1 channel out: 300mA 12V DC
Memory Slot
256GB
Electrical
Power Supply
DC12V, PoE (802.3af)
Power Consumption
< 5.4W
Environmental
Operating Conditions
-40 Degrees C to +60 Degrees C (-40 Degrees F to +140 Degrees F)/less than 95%
Ingress Protection
IP67
Construction
Casing
Metal
Dimensions
192.7 mm x 70.5 mm x 66.4 mm
(7.5” x 2.77” x 2.6”)
Gross Weight
780 g (1.7lb)
Mounting Pan/Tilt/Rotation
Pan: 0 ~ 360; / Tilt: 0 ~ 90; / Rotation: 0 ~ 360
