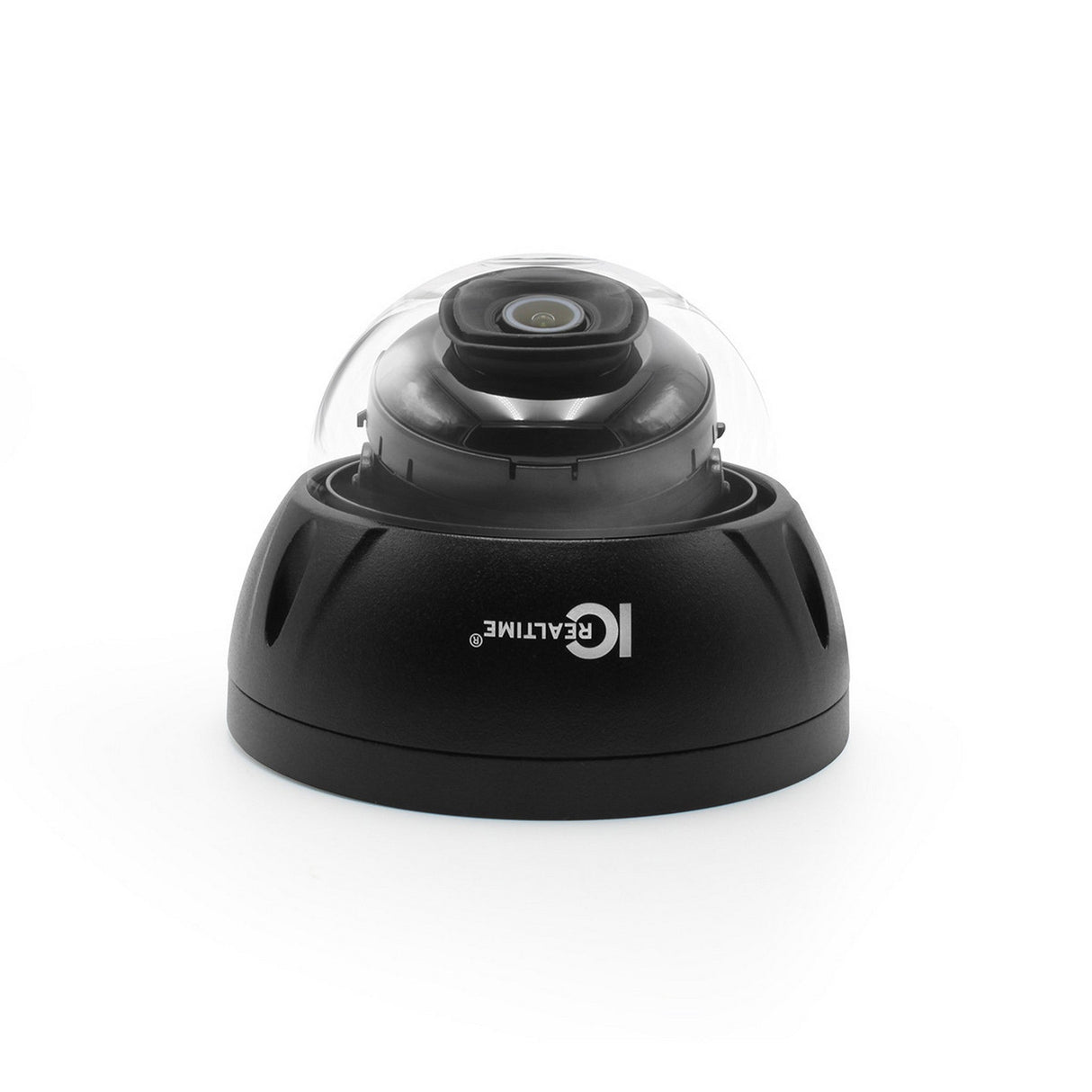

IC Realtime IPMX-D20F-IRB2 2MP IP Indoor/Outdoor Small Size Vandal Dome Camera, Black

IC Realtime IPMX-D20F-IRB2 2MP IP Indoor/Outdoor Small Size Vandal Dome Camera, Black

IC Realtime's South Korean-made, TAA compliant IPMX-D20F-IRB2 black dome security camera is a great example of the Max Series philosophy - the perfect balance between compact “mini dome” camera size, high-end features, and an excellent price point. This small black dome has both IC Realtime's legendary auto exposure suite for video quality and our advanced Intelligent Video System and IMD detection capabilities in a factory black IK10 impact-resistant / IP67 weatherproof dome case that is less than 4.5” in diameter and less than 3.25” tall.

AMAZING STARLIGHT NANO DOME
Experience has shown us that a 2.8mm medium wide-angle lens with a 106 Degrees wide x 57 Degrees high Field of View is most useful for a fixed-lens camera, and the 2.8mm we install in the IPMX-D20F works perfectly. Behind that lens, this 1080p camera comes equipped with IC Realtime's extraordinary 2 Megapixel STARVIS (StarVision) Starlight 1920(H) x 1080(V) chipset that delivers full-color video down to an unbelievable 0.002Lux, then at 0 Lux with SmartIR night vision out past 160 feet. Combined with 120db of Wide Dynamic Range, this compact dome delivers clear and complete coverage even in total darkness.

AUDIO and ALARM INPUTS TOO
Where audio performance is imperative, such as in entryways or on gates, the IPMX-D20F 'brings it” with two RCA jacks on the network pigtail for audio in/out capabilities to accommodate on-site two-way audio. Audio is encoded on the IPMX-D20F's video stream, so no extra wiring is required to complete audio and video observation and intercom systems interaction. The IPMX-D20F's external interface capabilities also include alarm I/O capabilities with 1 channel in @ 5mA 5VDC and 1 channel Out @ 12VDC/300ma.

INTELLIGENT DETECTION
The IPMX-D20F can set up its own built-in IMD and IVS Smart Functions like tripwire, intrusion, with Perimeter Protection while eliminating 95% of false alerts. The IPMX-D20F's own internal human and vehicle tripwire and intrusion/recognition capabilities work combo with any of IC Realtime's FlexSmartAi NVRs, delivering excellent D.O.R.I. numbers and an astounding level of intelligent functions and performance for its size and price point.

ADVANCED and READY FOR TOUGH ENVIRONMENTS
Underneath all these advanced FlexSmartAi features the IPMX-D20F is still a tough, reliable IC Realtime commercial quality video security tool. High-rate video and audio streams are efficiently handled by the camera's High-Efficiency Video Encoding (H.265) and HTML5 compliance for easy, secure login using any browser and reduced network loads and video storage requirements. For local video storage, the IPMX-D20F has an internal 256Gb SD card slot and runs on less than 7 watts of easy install POE power or on 12VDC. The IPMX-D20F's damage-resistant dome design can operate in a wide -40 Degrees F to +140 Degrees F temperature range (did someone say walk-in freezer?)

Key Features

• 1/2.8 CMOS Starvis | 2MP | 30fps@1080P
• 2.8mm | Fixed | 106 Degrees AoV
• Max. IR Length 164ft | Smart IR | Starlight Support
• 256B MSD | IVS | IMD | Perimeter Protection
• IP67 | 12VDC Or PoE | Max. 6.9W
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Technical Specifications

Camera
Image Sensor
1/2.8 2 Megapixel progressive scan STARVIS CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/Rom
128MB / 256MB
Scanning System
Progressive
Minimum Illumination
0.002 Lux@F1.6
Illumination Distance
Distance up to 50 m (164.0 ft);
Starlight Support
Illumination On/Off Control
Auto/Manual
Illumination LEDs
3
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Fixed
Mount Type
M12
Focal Length
2.8 mm
Max. Aperture
F1.6
Angle of View
Horizontal:106 Degrees; Vertical: 57 Degrees
Focus Control
Fixed
Close Focus Distance
2.0ft
DORI - Detect
126ft
DORI - Observe
50ft
DORI - Recognize
25ft
DORI - Identify
12ft
Intelligence
IVS
Tripwire, Intrusion
Advanced Intelligent Functions
Intelligent Motion Detect Support (iMD), Perimeter Protection
(Recognition of human and vehicle) Works together with Smart NVRs to perform refined intelligent search, and event extraction
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG
Streaming Capability
3 Streams
Resolution
1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate
Main Stream: (1920 x 1080@1-25/30 fps)
Sub Stream (704 x 576@1-25 fps/704 x 480@1-30 fps)
Third Stream (1280 x 720@1-25/30 fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto/ natural /street lamp /outdoor/ manual/ regional custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Digital Zoom
16x
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees (Support 90 Degrees /270 Degrees with 1920 x 1080 resolution.)
Mirror
Off / On
Privacy Masking
Up to 4 areas
Audio
Compression
G.711a; G.711Mu; G726; AAC
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability
ONVIF / PSIA / CGI/ Milestone
Compatibility
ONVIF / PSIA / CGI
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Edge Storage
NAS, FTP, SFTP,
Local PC for instant recording
Micro SD card 256GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart ICRSS, DSS
Interface
Audio I/O
1/1 channel in/Out (RCA)
Alarm I/O
1 channel in: 5mA 5VDC / 1 channel Out: 300mA 12VDC
Electrical
Power Supply
DC12V, PoE (802.3af) (Class 0)
Power Consumption
< 6.9W
Environmental
Operating Conditions
-40 Degrees C to +60 Degrees C (-40 Degrees F to +140 Degrees F)/less than ≤95%
Ingress Protection
IP67
Vandal Resistance
IK10
Construction
Casing
Metal
Dimensions
81 mm x 109.9 mm (3.2” x 4.3”)
Gross Weight
0.53 kg (1.2lb)
Mounting Pan/Tilt/Rotation
Pan:0 Degrees ~355 Degrees; Tilt:0 Degrees ~65 Degrees; Rotation:0 Degrees ~355 Degrees
