IC Realtime IPMX-E20F-IRB2 2MP IP Indoor/Outdoor Small Size Starlig...

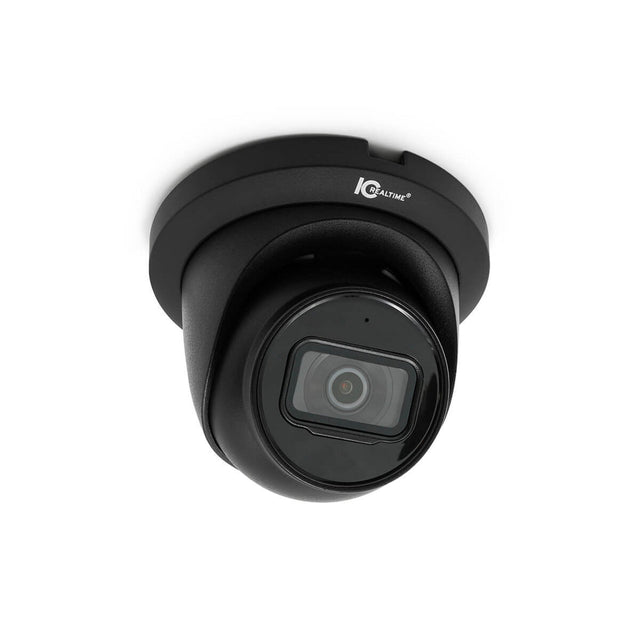

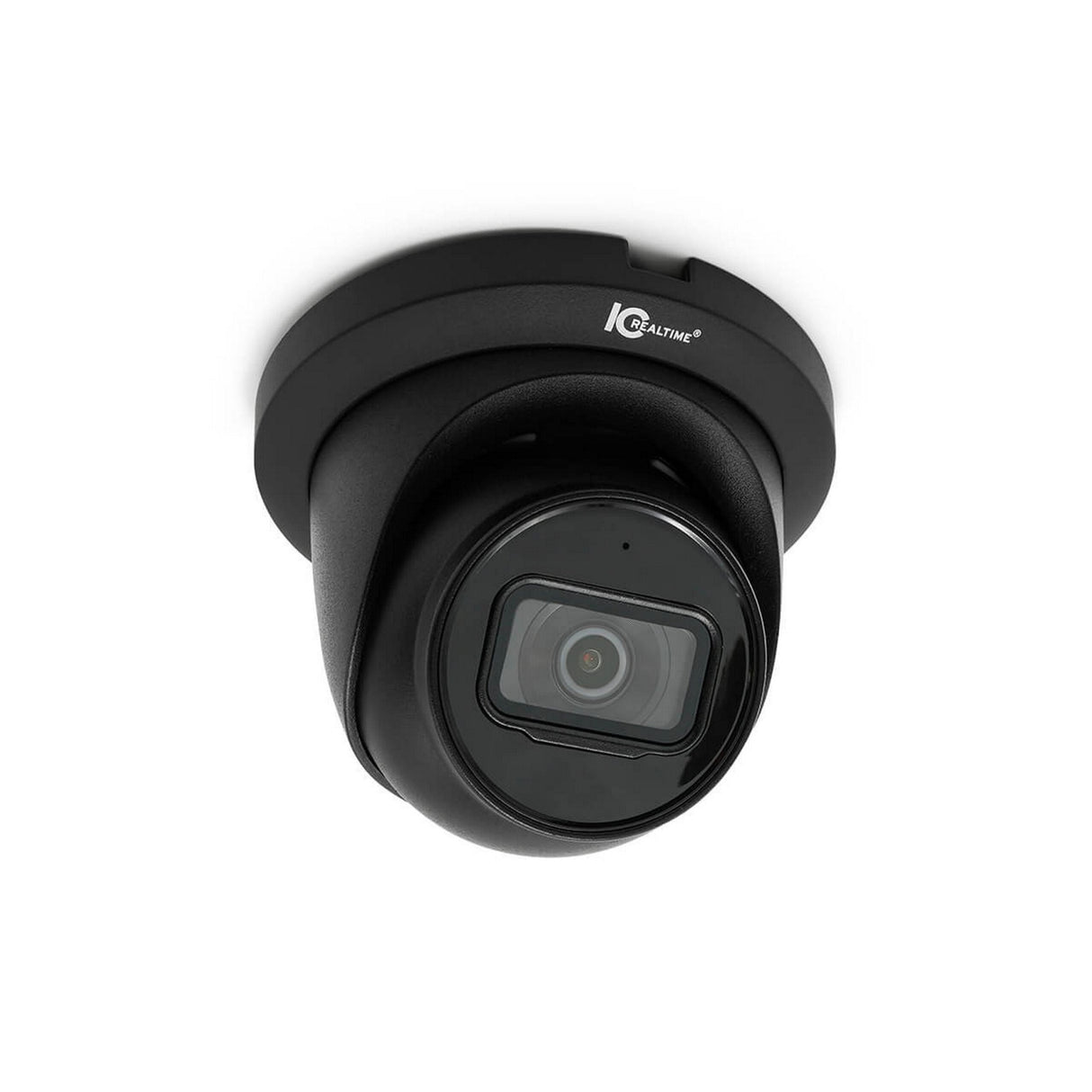

IC Realtime IPMX-E20F-IRB2 2MP IP Indoor/Outdoor Small Size Starlight Eyeball Dome Camera, Black
Are you looking for an alternative color to the traditional white commercial security cameras? Do you prefer a black model to incorporate into the design of your home security cameras? The max series brought to you by IC Realtime offers eyeball dome cameras in both black and white as well as both 4MP and 2MP starlight camera technology.
Our outdoor security cameras carry ingress ratings consistent with IP67 ratings. IP67 is the highest ratings today in weather resistance and waterproofing when installed according to manufacturer specifications. This surveillance camera can be used in either a commercial or residential setting, and the best security cameras typically offer several distinctive features. With a generously wide-angle 2.8mm fixed lens and a built-in microphone, this small security camera can see up to 164 feet in zero light conditions.
This POE security camera comes with starlight technology; it stays in color much longer than traditional video security cameras do with low illumination. True WDR and Smart IR greatly improve the image quality both day and night. Night vision security cameras rely on infrared light to illuminate a subject, but unless it is smart, it cannot compensate for distance.
This eyeball camera can vary the intensity of the IR’s, preventing a phenomenon called ghosting. True WDR ensures that images appear bright and full of life during the daytime, no matter how intense the lighting conditions may be. The added value of clarity goes a long way when something happens, and you need clarity.
True high definition takes these conditions into account. Perimeter protection helps eliminate false alarms when your primary concern is motor vehicles or people. The intelligence built-in and the affordable price points on this line truly benchmark this turret style camera as one of the best high-definition security cameras available today.
Key Features
- 1/2.8 CMOS | 2MP | 30fps@2MP
- 2.8mm | Fixed | AoV 106 | IP67
- Max. IR Length 164ft | Smart IR | Starlight
- Built-In Mic | 256GB MSD | 120dB True WDR
- Intelligent Motion Detect | Perimeter Protection
- Made In South Korea and Conforms to The Trade Agreements Act (TAA)
Technical Specifications
Camera
Image Sensor
1/2.8” 2 Megapixel progressive CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/Rom
128MB/ 256MB
Scanning System
Progressive
Minimum Illumination
0.002 Lux@F1.6
Illumination Distance
50 m (164.0 ft)
Illumination On/Off Control
Auto/Manual
Illumination LEDs
2
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8mm
Max. Aperture
F1.6
Angle of View
H: 106 degrees V: 57 degrees
Focus Control
Fixed
DORI - Detect
126ft
DORI - Observe
50ft
DORI - Recognize
25ft
DORI - Identify
12ft
Intelligence
IVS
Perimeter Protection: Tripwire; intrusion (Recognition of human and vehicle)
Advanced Intelligent Functions
Intelligent Motion Detect
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (Sub stream only)
Streaming Capability
3 Streams
Resolution
1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 /352 x 240)
Frame Rate
Main stream (1920 x 1080@1-25/30 fps) sub stream (704 x 576@1-25 fps/704 x 480@1-30 fps) third stream (1280 x 720@1-25/30 fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Digital Zoom
16x
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees
Mirror
Off / On
Privacy Masking
Up to 4 areas
Audio
Compression
G.711a; G.711Mu; G726; AAC
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability
ONVIF (Profile S/Profile G); CGI; P2P
Compatibility
ONVIF / PSIA / CGI
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Edge Storage
FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart ICRSS, DSS
Smart Phone
iOS, Android
Interface
Audio I/O
Built-in MIC
Memory Slot
256GB Micro SD
Electrical
Power Supply
DC12V PoE (802.3af) (Class 0)
Power Consumption
< 7.7W
Environmental
Operating Conditions
-40 Degrees C to +60 Degrees C (-40 Degrees F to +140 Degrees F)/ less than 95%
Ingress Protection
IP67
Construction
Casing
Metal
Dimensions
99.1 mm x 121.9 mm (3.9” x 4.8”)
Gross Weight
660 g (1.45 lb)
Mounting Pan/Tilt/Rotation
Horizontal: 0 Degrees -360 Degrees; vertical: 0 Degrees -78 Degrees; rotation: 0 Degrees -360 Degrees
