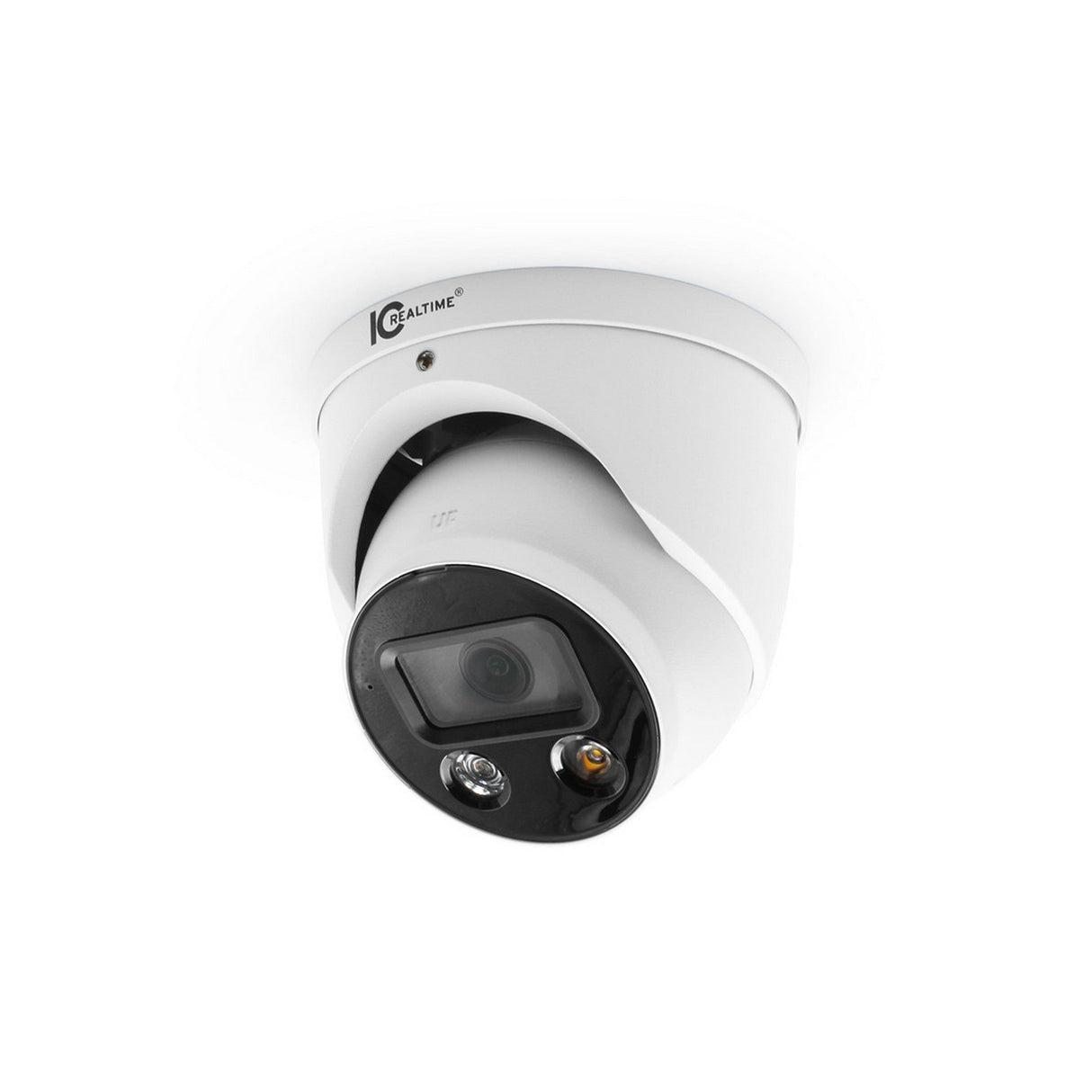

IC Realtime IPMX-E40F-ADW1 4MP IP Indoor/Outdoor Turret Eyeball Camera, White

IC Realtime IPMX-E40F-ADW1 4MP IP Indoor/Outdoor Turret Eyeball Camera, White

Eyeball dome cameras are IC Realtime’s most popular camera style for a good reason - they combine the easy installation of a bullet camera with the weather & toughness of a dome camera. Now IC Realtime’s new IPMX-E40F-ADW1 IP POE eyeball dome adds 24/7 color capability with a full-spectrum LED illuminator and intruder-challenging intelligent Active Deterrence (AD) capabilities. It instantly alerts you about an unwelcome visitor by push or app notification or email and marks your NVR’s video timeline at the event for easy review.

OUR MOST FEATURE-PACKED IP EYEBALL CAMERA - EVER
The new IPMX-E40F-ADW1 is part of IC Realtime’s 24/7 Starlight Color series. This eyeball dome is at its core a super-capable security camera with our newest Starlight video chipset mounted behind a wide aperture lens with a 103 Degrees Field of View & 120dB Wide Dynamic Range for color video down to 0.003 Lux - as dark as a moonless night, supplemented in full darkness by 98ft of full spectrum LED illumination for full color streaming in no-light environments.

ADVANCED EARS TO MATCH THE EYES
The camera also includes audio detection that can trigger a silent intrusion alert and enable 2-way communication using the IPMX-E40F-ADW1’s built-in mic & speaker. This set of audio skills and the fact that the camera also has alarm & external audio in/out ports will make this feature-packed unit the new “Go-To” camera for any gate/door, A/V, or alarm system integrator.

ACTIVE DETERRENCE ADDS INTRUDER CHALLENGE SKILLS
Active Deterrence is a set of visual & audio confrontation skills built into IPMX-E40F-ADW1 that makes an intruder reflexively look at the camera for ID purposes when detected, while it lets an intruder that enters into the camera’s detection area know they are detected & being recorded.

CUSTOMIZABLE RESPONSE LEVELS
You can set for silent notification only mode, a visual deterrent mode using the camera’s police-like flashing Red & Blue LEDs, or go audio too by adding an audio warning that includes a siren or even a custom audio response in your voice - or that of your Rotweiller.

DO MORE THAN JUST WATCH - SET A TRAP
What you would do if you were there? IPMX-E40F-ADW1 challenges intruders & with bright light, audio and red & blue flashing LEDs when they violate your space. This camera’s intelligent human & vehicle detection instantly notifies you when someone sets it off. Just as importantly, there is also a one-tap alert disable button on your IC Realtime Android phone app available when the camera is set to Active Deterrence.

IPMX-E40F-ADW1 with Active Deterrence joins the IC Realtime camera family as its newest Eyeball Domes and one of its most skilled. Our cameras have always been state-of-the-art, unblinking witnesses that observe & deter mischief around your home & business. But with Active Deterrence, IPMX-E40F-ADW1 can now do more than just observe - it can step in to actively deter intrusion.

Key Features

• 4MP, 1/2.7” CMOS | Low Illuminance, High Definition
• H.265 & H.264 | Triple-Stream Encoding | 4MP @25/30 Fps
• Active Deterrence Lights and Siren
• 2.8mm Fixed Lens | Starlight Support
• Intelligent Motion Detect | Perimeter Protection
• Warm White LED | Full Color Night Illumination | Max Distance 98ft

Technical Specifications

Camera
Image Sensor
1/2.7”4 Megapixel progressive CMOS
Effective Pixels
2688 (H) x 1520 (V)
RAM/Rom
128MB/ 512MB
Scanning System
Progressive
Minimum Illumination
0.003 Lux @ F1.0
Illumination Distance
Up to 98 ft (30 m)
Illumination LEDs
1 (Warm Light LED)
Camera Illumination Type
White Light
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm
Max. Aperture
F1.0
Angle of View
Horizontal 103 Degrees x Vertical 53 Degrees
Close Focus Distance
3.9 ft (1.2 m)
DORI - Detect
221 ft
DORI - Observe
88 ft
DORI - Recognize
44 ft
DORI - Identify
22 ft
Intelligence
IVS
Tripwire; Intrusion
Advanced Intelligent Functions
Perimeter Protection- Tripwire; intrusion (Supports classification and accurate vehicle and human detection)
Intelligent Motion Detect- Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light.
Video
Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Streaming Capability
3 streams
Resolution
4M (2688 x 1520); 4M (2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (354 x 288/354 x 240)
Frame Rate
Main stream: 2688 x 1520@1-25/30 fps
Sub stream: 704 x 576@1-25 fps/704 x 480@1-30 fps
Third stream: 1280 x 720@1-25/30 fps
Bit Rate Control
CBR /VBR
Bit Rate
H.264: 3 kbps-8192 kbps
H.265: 3 kbps-8192 kbps
Day/Night
Color/B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto/natural/street lamp/ outdoor/manual/ regional custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
OFF/ON (4 areas)
Region of Interest
Yes (4 areas)
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees (Supports 90 Degrees /270 Degrees with 1920 x 1080 resolution and lower)
Mirror
Supported
Privacy Masking
4 areas
WDR
120 dB
Audio
Compression
G.711a; G.711Mu; G726
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Compatibility
ONVIF (Profile S/Profile G/Profile T); CGI
Streaming Method
CBR/VBR
Max. User Access
20 (Total bandwidth: 64 M)
Edge Storage
FTP; SFTP; Micro SD card (max. 256 GB); NAS
Web Viewer
Chrome, IE, Edge, Safari, Firefox
Management Software
Smart ICRSS
Smart Phone
iOS, Android
Interface
Audio I/O
Built-in MIC, 1/1 Audio In/ Out ports (RCA)
Alarm I/O
1 channel in: 5mA 3V-5V DC
1 channel out: 300mA 12V DC
Factory Reset
Supported
Memory Slot
Micro SD card max. 256 GB
Electrical
Power Supply
12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 2.8W (12V DC); 3.5W (PoE)
Max. power consumption (WDR + H.265 + red and blue lights flashing + warm LED+ siren): 10.8W (12V DC); 12W (PoE)
Environmental
Operating Conditions
-40 Degrees F to +140 Degrees F (-40 Degrees C to +60 Degrees C)/less than 95%
Storage Conditions
-40 Degrees F to +140 Degrees F (-40 Degrees C to +60 Degrees C)
Ingress Protection
IP67
Construction
Dimensions
4.8” x 4.4”
(122.0 mm x 110.9 mm)
Gross Weight
2.0 lb (915 g)
