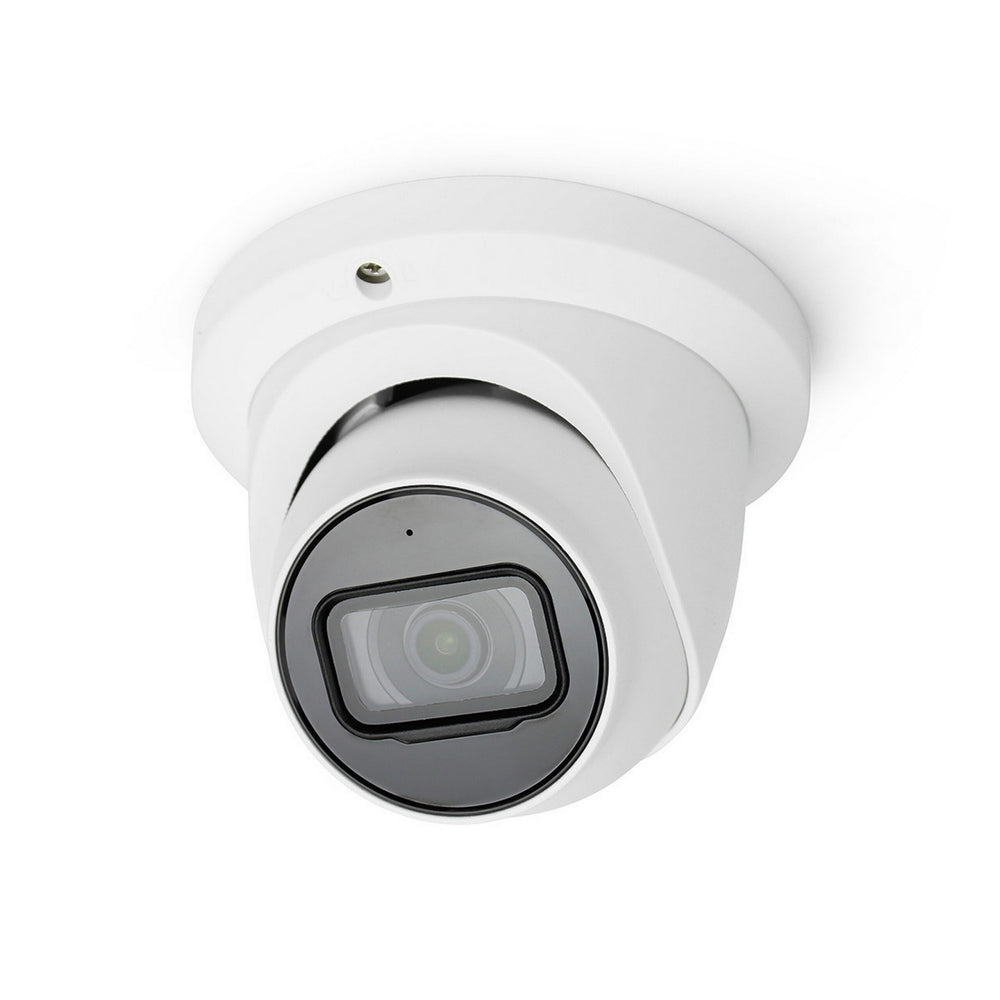

IC Realtime IPMX-E40F-IRW2 4MP IP Indoor/Outdoor Small Size Eyeball Dome Camera, White

IC Realtime IPMX-E40F-IRW2 4MP IP Indoor/Outdoor Small Size Eyeball Dome Camera, White

IC Realtime's IPMX-E40F-IRW2 turret dome is our latest generation of this popular camera design, and this new model is made In South Korea making it TAA compliant. The E40F is also one of the newest members of our growing FlexSmartAi turret dome camera family.

OUR BEST-SELLING CAMERA DESIGN
When turret domes were introduced back in the 1990s, their sales took off. Turret domes became the favorIt's of both professional installers and integrators because they were the perfect “crossover” camera for video professionals looking for a quick & easy way to add camera capabilities to residential & small retail / commercial installations. Why? Because the turret dome format combines the best features of a dome camera's IK10 vandal-resistant low-profile design and IP67 weather resistance mashed up with the easy installation & aiming features of a bullet camera. The E40F proudly continues our turret dome tradition in a 4MP IP Indoor/Outdoor “mini” camera of less than 5” diameter and less than 4” high. But don't let its size fool you - this tiny but tough camera has the FlexSmartAi features & video quality that matches or exceeds the capabilities of many larger cameras.

SMALL FOOTPRINT, BUT MIGHTY SPECS
Inside its completely sealed & easily aimed “cam ball” the E40F contains a highly sensitive 4MP 2688(H) x 1520(V) Starlight video chipset, a super-sharp 2.8mm Lens (103 Degrees FOV), and SmartIRs that reach 164 ft, for reliable night vision, and an audio microphone. As part of our FlexSmartAi camera family, E40F also uses its pixel density to enable maximum detail resolution for on-camera, recorder-based, and Intel-server based artificial intelligence detection and analysis capabilities. These capabilities extend beyond video detection because E40F's sensitive built-in microphone is not just for audio recording; it can be used as an audio trigger for intrusion alerts.

LEGENDARY VIDEO QUALITY & CAPABILITIES
Dealers that have done side by side comparisons of IC Realtime's 2MP cameras with other manufacturers' 4-megapixel cameras have told us IC Realtime's 2MP video quality consistently blows away other manufacturer's “higher resolution” 4MP video. Now imagine the quality of our E40F with its 4-megapixel Starlight sensor - the same legendary IC Realtime auto exposure and capabilities but twice the pixel density!

This extreme clarity always delivers frame-by-frame video excellence thanks to E40F's FlexSmartAi video management suite. It combines 120db of WDR with Smart IR & Starlight technology for perfect light balance from full daylight down to 0.005 Lux in color, and even in complete darkness with 165 feet of built-in Smart IR illuminators.

OUR MOST ADVANCED TAA TURRET DOME
E40F's network interface uses scene-adaptive H.265 compression for maximum streaming speeds & storage capacity and has an internal 256 GB SD card slot for local recording. E40F is ONVIF (Profile S/Profile G), CGI, and P2P compatible and can be powered by 12VDC where 7.7 watts of PoE power is not available. Turret domes are the ideal easy-install “go to” camera for many video professionals. If you need TAA compliant cameras that deliver cutting edge 4MP video & audio features and FlexSmartAi high performance, IPMX-E40F-IRW2 is one of IC Realtime's best options.

Key Features

• 1/3 CMOS | 4MP | 30fps@4MP
• 2.8mm | Fixed | AoV 103
• Max. IR Length 164ft | Starlight | 2 IR LEDs
• Intelligent Motion Detect | Perimeter Protection | Built-In Mic
• IP67 | 12VDC Or PoE | Max. 7.7W
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Technical Specifications

Camera
Image Sensor
1/3 4 Megapixel progressive scan CMOS
Effective Pixels
2688(H) x 1520(V) 4 Megapixels
RAM/Rom
128MB / 512MB
Scanning System
Progressive
Minimum Illumination
0.005 Lux@F1.6
S/N Ratio
More than 50dB
Illumination Distance
50 m (164.0 ft)
Illumination On/Off Control
Auto/ Manual
Illumination LEDs
2
IR Wavelength
850 nm
Camera Illumination Type
IR
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8mm
Max. Aperture
F1.8
Angle of View
Horizontal:103 Degrees; Vertical: 55 Degrees
Focus Control
Fixed
Close Focus Distance
0.9 m (3.0 ft)
DORI - Detect
183 ft
DORI - Observe
73 ft
DORI - Recognize
36 ft
DORI - Identify
18 ft
Intelligence
IVS
Support
Advanced Intelligent Functions
Tripwire; intrusion (Recognition of human and vehicle) Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videos
Video
Compression
H.265+ / H.265 / H.264+ / H.264
Streaming Capability
3 Streams
Resolution
4M (2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate
Main Stream: 2688 x 1520 (1 - 25/30fps)
Sub Stream: D1(1 - 25/30fps)
Third Stream: 720P (1 - 25/30fps)
Bit Rate Control
CBR/ VBR
Bit Rate
H.264: 3 Kbps-8192 Kbps
H.265: 3 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Intelligent Motion Detect Support
Region of Interest
Off / On (4 Zones)
Smart IR
Supported
Flip
0 Degrees/90 Degrees/180 Degrees/270 Degrees (Supports 90 Degrees/270 Degrees with 1920 x 1080 resolution.)
Mirror
Off / On
Privacy Masking
Off / On (4 Area Rectangle)
Audio
Compression
G.711a; G.711Mu; G726; AAC
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability
ONVIF (Profile S/Profile G); CGI; P2P, Milestone
Compatibility
20 (Total bandwidth: 64 M)
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
Edge Storage
NAS, SFTP, Micro SD Card (support max. 256 GB) Local PC for instant recording
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
SmartICRSS, DSS
Smart Phone
IOS, Android
Interface
Audio I/O
Built-in MIC
Memory Slot
256GB Micro SD
Electrical
Power Supply
DC12V PoE (802.3af) (Class 0)
Power Consumption
< 7.7W
Environmental
Operating Conditions
-30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection
IP67
Construction
Casing
Metal/ Plastic
Dimensions
99.1 mm x 121.9 mm (3.9” x 4.8”)
Gross Weight
660 g (1.45 lb)
Mounting Pan/Tilt/Rotation
Horizontal: 0 Degrees-360 Degrees; vertical: 0 Degrees-78 Degrees; rotation: 0 Degrees-360 Degrees
