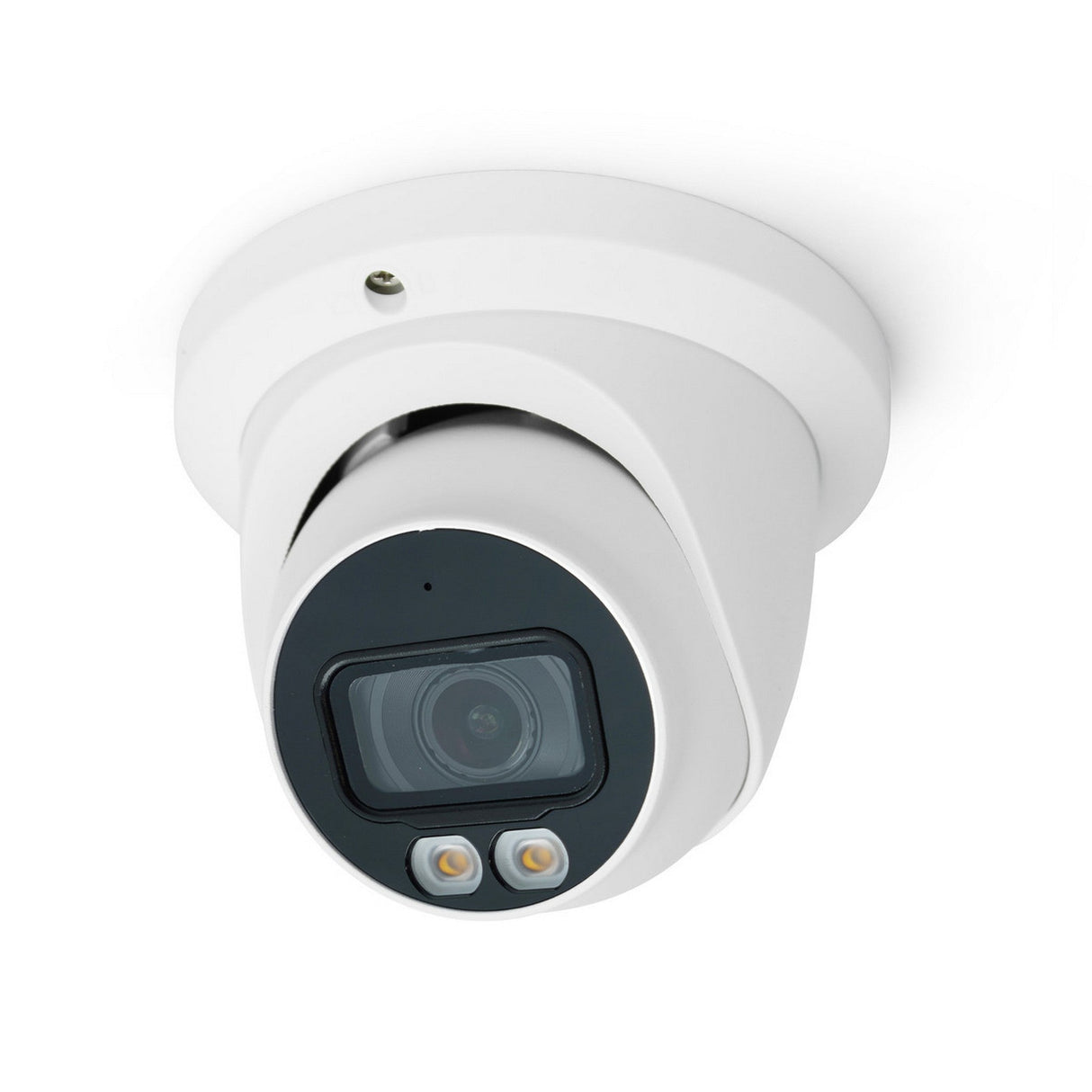

IC Realtime IPMX-E40F-W1-LED 4MP IP Indoor/Outdoor Small Size Eyeball Dome Camera

IC Realtime IPMX-E40F-W1-LED 4MP IP Indoor/Outdoor Small Size Eyeball Dome Camera

IPMX-E40F-W1-LED
IC Realtime's latest 4MP IR color video technology is now available in a vandal-resistant and versatile eyeball dome or “turret dome” design. Our new IPMX-E40F-W1-LED is a 4MP eyeball network camera built with our new wide aperture 2.8mm lens with a 103 Degrees wide FOV, combined with our most advanced Starlight video sensor, a wide-spectrum LED light to dependably deliver 4MP (2688 x 1520) full-color night vision. You heard right - full color 24/7 - no more monochromatic night images!

ONE CAMERA FOR ALL POSITIONS
Turret or eyeball IP cameras combine the easy installation and aiming of a bullet camera with the vandal resistance of a dome camera. The IPMX-E40F-W1-LED's camera “guts” are protected in a sealed, cast metal IP67 rated “eyeball” that rotates up to 360 Degrees with 0 Degrees -78 Degrees tilt on its 4.8” round cast metal base. This flexibility and toughness make it a quick-install favorite for any mounting point.

ALL COLOR - ALL THE TIME
While network eyeball cameras are nothing new, the IPMX-E40F-W1-LED is IC Realtime's most advanced version yet. This camera features a new Starlight chipset that is always in color mode - dependably streaming in color down to 0.003 lux of ambient light (3x darker than a moonless night) supplemented in complete darkness by 90+ feet of “warm light” full-spectrum LEDs. These LEDs flood the camera's FOV with what looks to us like a gentle glow, but to the camera's large-aperture lens and 4MP Starlight chip that “glow” reads at near daylight brightness, so IPMX-E40F-W1-LED streams the scene with full color and clarity.

Ai & BUILT-IN MIC
Getting the “whole picture” from any camera position means both see clearly and hear what's going on. The IPMX-E40F-W1-LED has a built-in mic for local audio pickup, so both your real-time observations and NVR recordings are complete and time-stamped digital records of everything that happened. That audio and 4MP color video stream is then available to be analyzed frame-by-frame by both the camera's internal FlexSmartAI detection and recognition systems and shared with connected FlexSmartAI NVR. As one of our newest 4MP Dome network cameras, the IPMX-E40F-W1-LED uses the latest edition of FlexSmartAI, the industry's most accurate, discrete chip, deep algorithmic learning AI systems for motion detection and perimeter protection, eliminating up to 90% of false alerts.

MAX COLOR + MAX FEATURES
IPMX-E40F-W1-LED is another excellent example of the Max Series philosophy of combining IC Realtime's legendary video performance with cutting-edge video technology to deliver a professional-grade, dependable, and easily installed video security tool. IPMX-E40F has all the pro features and capabilities you would expect from IC Realtime, including 120dB Wide Dynamic Range for edge and detail definition. The camera also uses 3D Digital Noise Reduction for cleaner video frames, customizable BLC, WB, rotation and mirror-image controls, and Smart H.265+/ Smart H.264+ stream compression codecs. IPMX-E40F-W1-LED is Profile G/S/T ONVIF, P2P, and CGI compliant and has an internal 256gB mSD slot. The camera is POE powered @ less than 9 watts or can use local 12VDC power and is UL and FCC certified.

IC Realtime's Max Series cameras have always been our dealer/integrator's favorite choice for industrial, commercial, and residential camera installations. These new “All color / All the time” models are the series' next step in camera evolution. With its eyeball design, 24/7 Starlight color, built-in mic, FlexSmartAI features, and IC Realtime's 10 Year Limited Warranty, the IPMX-E40F-W1-LED Max Series camera is an ideal eyeball dome choice for your next IP security system installation.

Key Features

• 1/2.7” CMOS | 4MP | 30fps@4MP
• 2.8mm | Fixed | AoV 103
• Max. Illumination Length 98ft | Colored Starlight (ISniper+)
• Intelligent Motion Detect | Perimeter Protection | Built-In Mic
• IP67 | 12VDC Or PoE | Max. 8.5W
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Technical Specifications

Camera
Image Sensor
1/2.7”4 Megapixel progressive CMOS
Effective Pixels
2688(H) x 1520(V) 4 Megapixels
RAM/Rom
128MB/ 512MB
Scanning System
Progressive
Minimum Illumination
0.003 Lux@F1.0
Illumination Distance
Distance up to 40 m (131.2 ft)
Illumination On/Off Control
Auto/ Manual
Illumination LEDs
2
IR Wavelength
850 nm
Camera Illumination Type
White Light
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8mm
Max. Aperture
F1.0
Angle of View
Horizontal 103 Degrees x vertical 53
Focus Control
Fixed
Close Focus Distance
3.9 ft (1.2 m)
DORI - Detect
183ft
DORI - Observe
73ft
DORI - Recognize
36ft
DORI - Identify
18ft
Intelligence
IVS
Tripwire, Intrusion
Advanced Intelligent Functions
Intelligent Motion Detect (iMD)
Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people)
Video
Compression
H.265, H.264, H.264B, H.264H, MJPEG (sub stream)
Streaming Capability
3 Streams
Resolution
4M (2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate
Main Stream: 4M (1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 10800P (1 - 25/30fps)
Bit Rate Control
CBR/ VBR
Bit Rate
H.264: 32 Kbps-8192 Kbps
H.265: 19 Kbps-8192 Kbps
Day/Night
Auto (ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zones Rectangular)
Region of Interest
Off / On (4 Zones)
Flip
0 Degrees /90 Degrees /180 Degrees /270 Degrees (Support 90 Degrees /270 Degrees with 1920 x 1080 resolution and lower.)
Mirror
Off / On
Privacy Masking
Off / On (4 Area Rectangle)
Audio
Compression
G.711a; G.711Mu; G726
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Compatibility
ONVIF (Profile S/Profile G/Profile T), CGI, P2P
Streaming Method
Unicast / Multicast
Max. User Access
20
Edge Storage
Edge Storage, NAS; FTP; SFTP
Micro SD card 256GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
SmartICRSS, DSS
Smart Phone
IOS, Android
Interface
Audio I/O
Built-in Microphone
Memory Slot
256MB Micro SD
Electrical
Power Supply
DC12V PoE (802.3af) (Class 0)
Power Consumption
< 8.5W
Environmental
Operating Conditions
-30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Storage Conditions
-40 Degrees F to +140 Degrees F (-40 Degrees C to +60 Degrees C)
Ingress Protection
IP67
Construction
Casing
Metal
Dimensions
3.9” x 4.8” (99.1 mm x 121.9 mm)
Gross Weight
1.45 lb (660 g)
