IC Realtime IVB-EOC-102 Ethernet-over-COAX Passive Converters, Pair

IC Realtime IVB-EOC-102 Network Video Encoder/Decoder

The IC Realtime IVB-EOC-102 Network Video Encoder/Decoder is an essential component for seamless video transmission and reception in a wide range of surveillance and monitoring applications. Designed with advanced technology, this device ensures reliable performance even in challenging environmental conditions. With robust features such as lightning protection, temperature resilience, and low power consumption, it offers peace of mind for users seeking high-quality video solutions.

Featuring a compact and durable design, the IC Realtime IVB-EOC-102 is built to withstand extreme temperatures and harsh environments. Its versatility makes it ideal for both short and long-distance video transmission, while providing robust protection against electrical surges with its superior lightning protection features.

Whether used in residential, commercial, or industrial settings, the IC Realtime IVB-EOC-102 delivers exceptional performance with efficient power usage and reliable connectivity.

Key Features:

• Connections: 1* 10/100 Mbps Base-TX, 1* BNC
• Power Consumption: <1W
• Transmission Bandwidth:

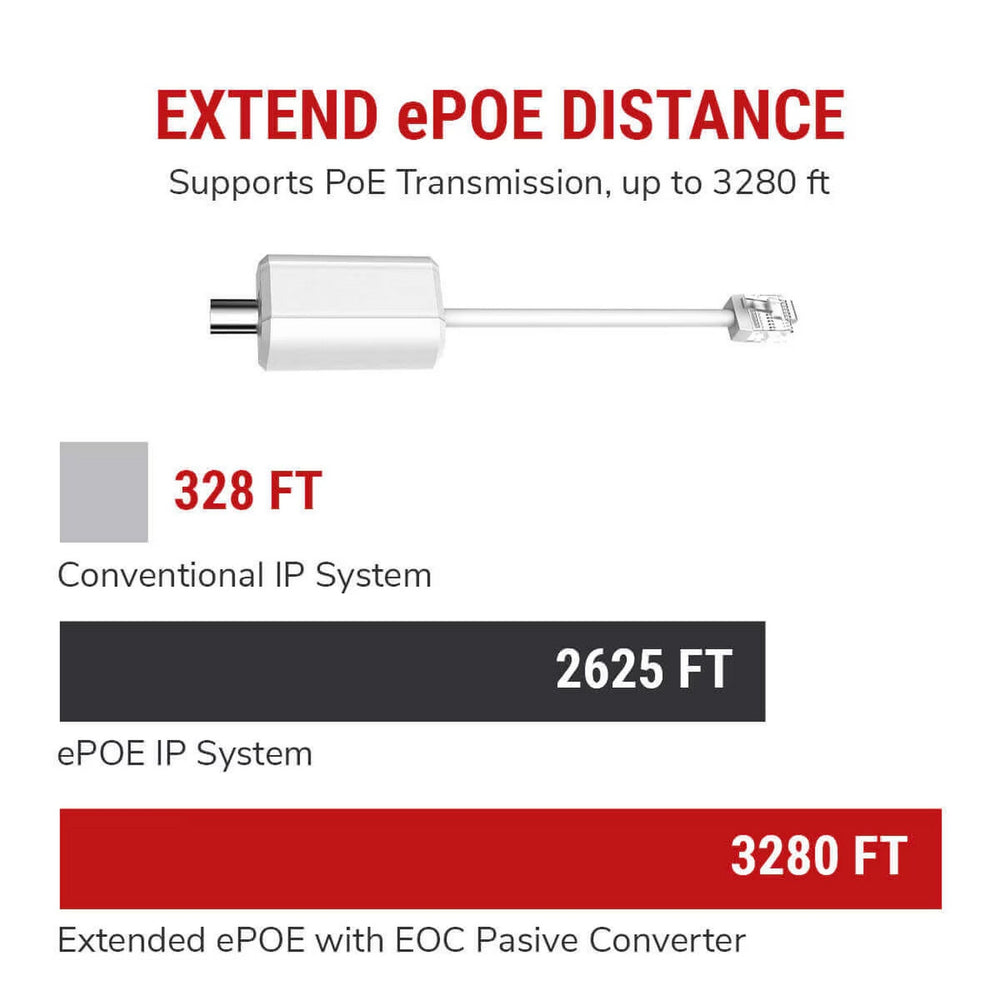

  • RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
• PoE Protocol Based on the power input from the ePoE switch
• Network Standard: IEEE802.3, IEEE802.3u
• Lightning Protection:
  • Common Mode: 6KV
  • Differential Mode: 2KV
• Operating Temperature: -40°C to 60°C
• Operating Humidity: 0% to 95%

Technical Specifications:

Weight: 28.3g (0.06 lbs)

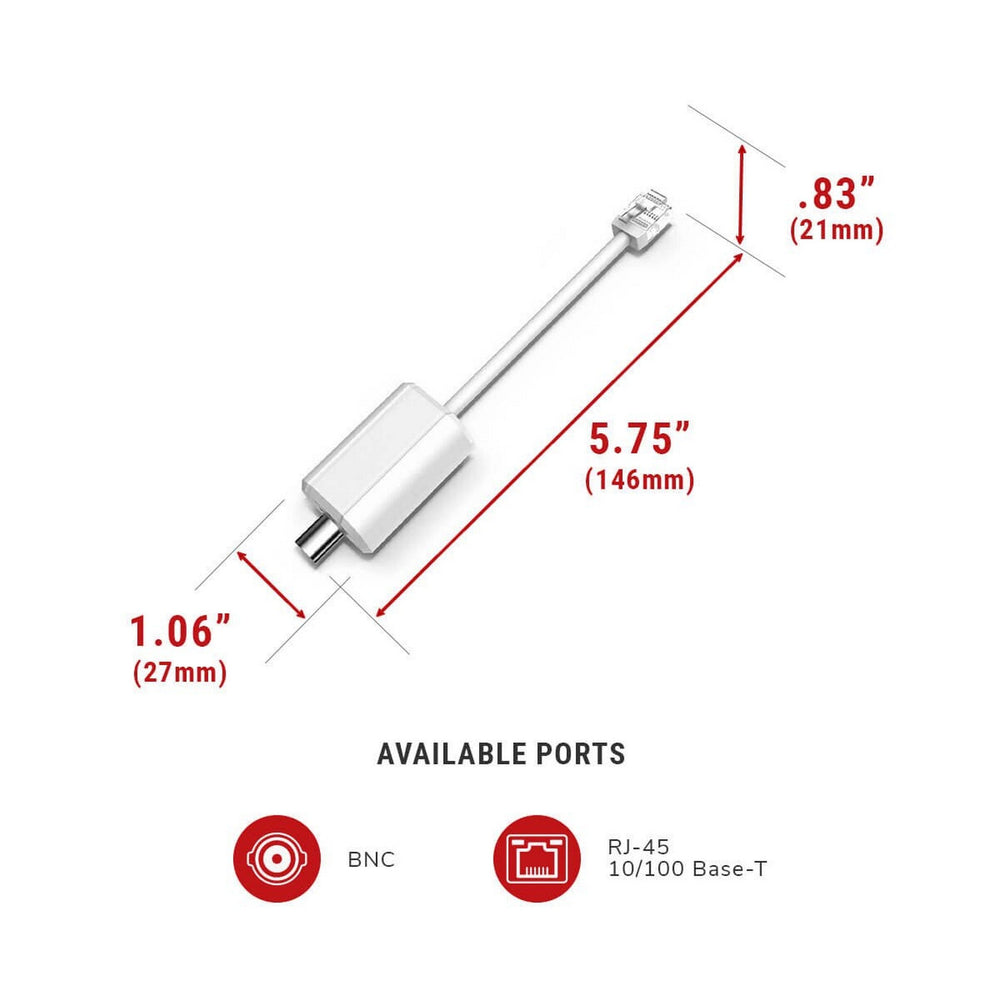

Dimension (W×D×H): 56mm×27mm×21mm

What's Included:

• IC Realtime IVB-EOC-102 Network Video Encoder/Decoder
