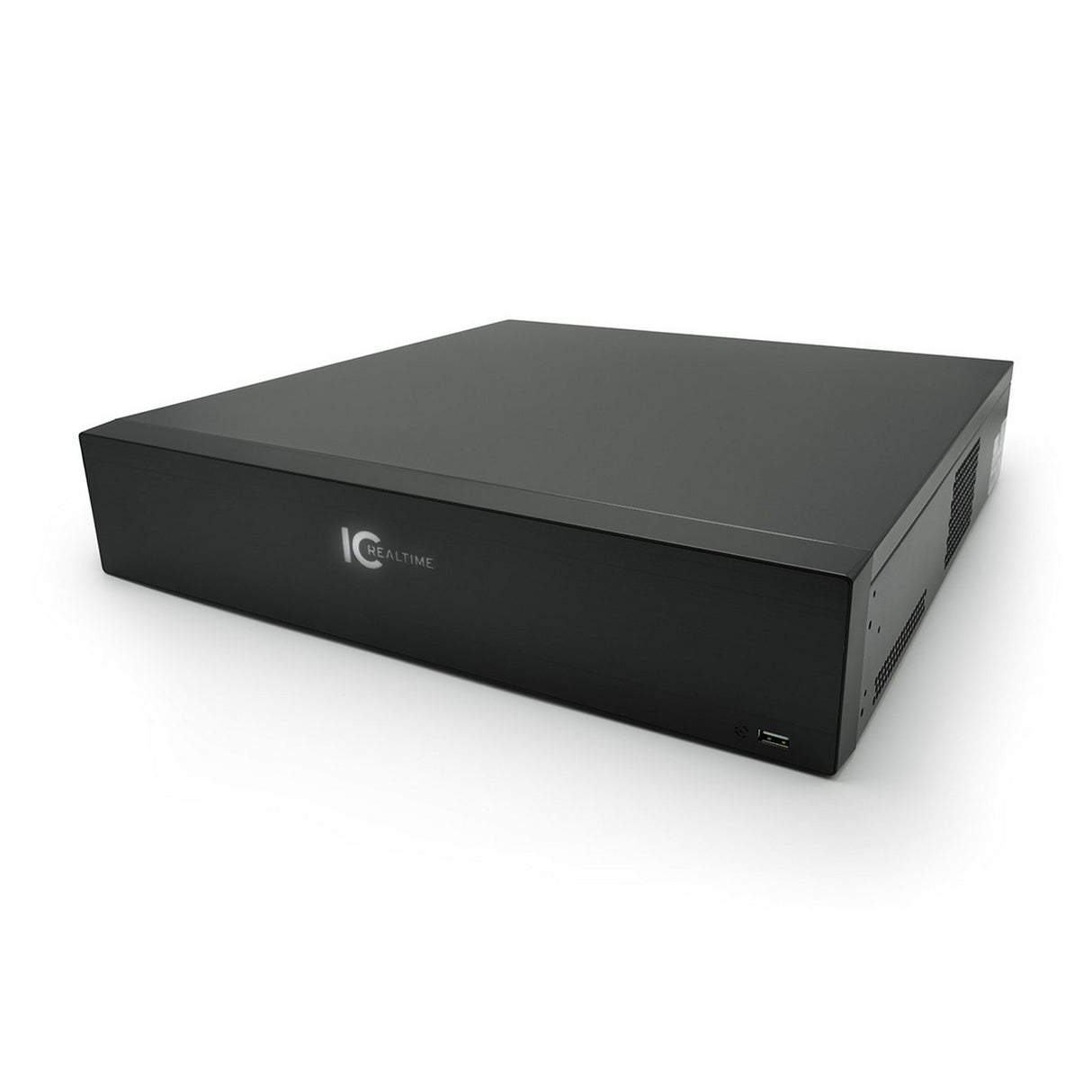

IC Realtime NVR-6016K 16 Channel 2U 4K Network Video Recorder with 4TB Hard Drive

The IC Realtime NVR-6016K is a 16 Channel 2U 4K Network Video Recorder that stands as the central element of any advanced video surveillance system. This model is powered by a quad-core embedded processor and runs on an embedded Linux platform, ensuring robust and stable performance. It comes equipped with a 4TB hard drive, offering substantial space for all your recording needs.

Designed to meet the storage and processing requirements of both residential and commercial settings, this NVR supports up to 80TB combined storage through its 8 SATA III ports. It can handle up to 12-megapixel cameras and provides an extraordinary total throughput of 320Mbps, supporting the most demanding video data requirements. The open architecture design allows this recorder to be compatible with a wide range of third-party devices, ensuring seamless integration into your existing security infrastructure.

Further enhancing its functionality, the IC Realtime NVR-6016K boasts multiple network interface cards (NICs), which help segregate IP camera traffic from other network activities—safeguarding your critical data from potential malicious attacks. Additional features include an adaptive Smart Fan design to maintain a cool and quiet operation, dual HDMI and VGA outputs for flexible display options, and advanced AI and IVS support, making it a competent solution for any security setup.

Key Features

• 16 Channels, supporting up to 12MP

• 320Mbps Bandwidth

• 8 HDDs with up to 10TB per HDD, RAID 5 Support

• ICR OS 4.0, dual Gigabit RJ-45

• 4 USB Ports, 16 alarm inputs, and 6 outputs

• ONVIF 2.4 CGI conformant

• 2U size, suitable for desktop or rack mount

Specifications

• Main Processor: Quad-core embedded processor

• Operating System: Embedded LINUX

• Display Interface: 2 HDMI (Different Source), 2 VGA

• Display Resolution: HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720; VGA: 1920x1080, 1280x1024, 1280x720; HDMI2/VGA2: 1920 x 1080

• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

• Display Split: 1st Screen: 16CH: 1/4/8/9/16; 2nd Screen: 1/4/8/9/16

• HDMI Decoding: 4-ch@4K(30fps), 16-ch@1080P(30fps)

• IVS: Supports IVS by camera

• Advanced Intelligent Functions: AI by camera, Perimeter Protection, Intelligent Motion Detect (iMD), Face Detection, Face Recognition, People Counting, Heat Map

• Supported Camera Types: IP

• IP Camera Input: 16 Channel

• Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

• Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering

• Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)

• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

• Backup Mode: USB Device/Network/eSATA Device

• Bit Rate: 16Kbps ~ 20Mbps Per Channel

• Two-way Talk: 1 Channel Input, 1 Channel Output, RCA

• Record Compression: Smart H.265+/ H.265/SmartH.264+/H.264/MJPEG

• Record Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.

• Record Bit Rate: 16Kbps ~ 20Mbps Per Channel

• Record Mode: Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop

• Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, post-record: 10 ~ 300 sec

• Internal HDD: 8 SATA III Ports, up to 10 TB capacity for each HDD

• eSATA: 1 eSATA Port (Please contact technical engineer to confirm the compatible device)

• Ethernet: 2 RJ-45 Ports (10/100/1000Mbps)

• Protocol: HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search

• Compatibility: ONVIF 2.4 Conformant. Works with ONVIF compliant IP cameras.

• Max. User Access: 128 Users

• Web Viewer: IE, Chrome, Firefox, Safari

• Management Software: Smart ICRSS, DSS

• Smart Phone: iPhone, iPad, Android

• RS232: 1 Port for PC Communication and Keyboard

• RS485: 1 Port for PTZ Control

• USB: 4 USB Ports (2 USB 2.0, 2 USB 3.0)

• Power Supply: AC100V ~ 240V, 50 ~ 60 Hz

• Power Consumption: Less than 16.7W (Without HDD)

• Operating Conditions: -10C ~ +55C (+14F ~ +131F), 86 ~ 106kpa

• Storage Conditions: -20C ~ +70C (-4F ~ +158F), 0 ~ 90% RH

• Installation: Rack-mounted

• Dimensions: 2U, 440mm x 451.5mm x 94.9mm (17.3” x 17.7” x 3.7”)

Package Contents

• IC Realtime NVR-6016K 16 Channel 2U 4K Network Video Recorder with 4TB Hard Drive
