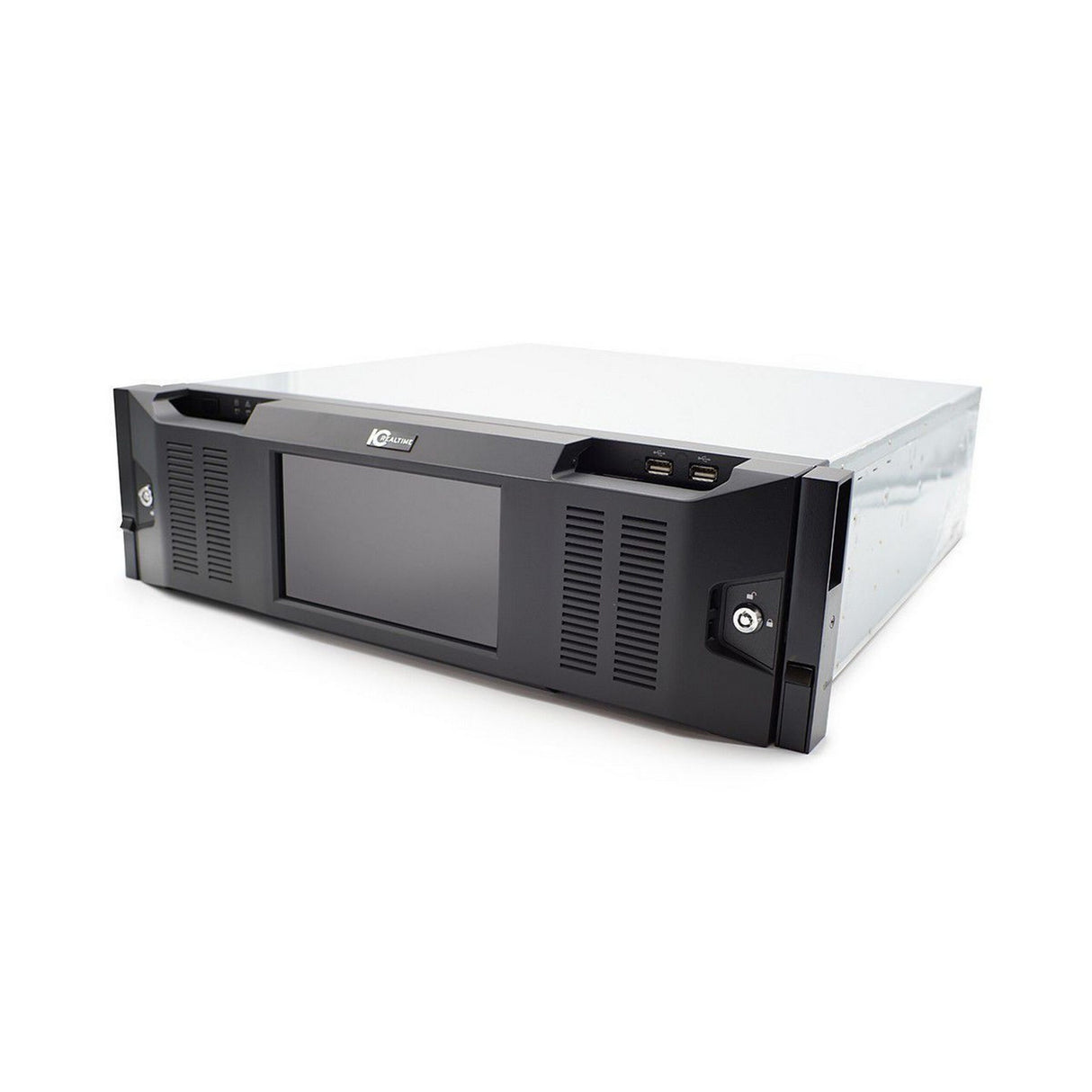

IC Realtime NVR-EL128-4U12MP1 128 Channel Ultra 4K H.265 Network Video Recorder with 10TB Hard Drive

IC Realtime NVR-EL128-4U12MP1 128 Channel Ultra 4K H.265 Network Video Recorder with 10TB Hard Drive

There is only one unquestioned top gun in IC Realtime's world-class FlexSmartAi NVR lineup. With massive 384Mbps video throughput, up to 20Mbs per channel camera capacity, dual redundant power supplies, dual 4K HDMI outputs, and the capacity to hold 16 SATA-III hard drives with a total built-in storage capacity of 128TB, our new - and TAA compliant - EL128-4U12MP1 is a 128-channel video security monster.

Incomparable specs are everywhere you look with the South-Korean made EL128. Specifically designed for 3U rack mounting for convenient PoE camera switch access, EL128 handles 12MP cameras with ease, and its flexible resource allocation allows every channel's throughput to be optimized to match camera capabilities for efficient utilization of the EL128’s massive 384Mbs maximum total throughput. The unit incorporates an Intel processor and 8Gb of RAM, four 1000Mbps network interface jacks to handle maximum video traffic, is H.265 & ONVIF 2.4 / CGI compliant, has 2 USB 2.0 and 2 USB 3.0 jacks. EL128's hard drives are front-mounted in slide-in carrels behind the front panel with its built-in operations monitor screen, and it can be set up with RAID 0/1/5/10 and even has an eSATA port if it's 16 hard drives are not enough.

Of course,the EL128 can access any camera-based FlexSmartAi video detection & analytics, including tripwire, intrusion, scene change, and abandoned or missing object detection. The system even supports audio baseline detection. If the audio in a room goes from a normal range to loud & violent, the system can take a snapshot, send an email, or engage an annunciator or alarm device if set to do so.

Your security & privacy are paramount to IC Realtime, so to ensure device & network security, all IC Realtime cameras & recorders are protected from cyber threats by multiple layers of authorizations & password protections. All network traffic is encrypted in both directions to a point where our gear now meets the newest network UL CAP certification standards.

No text description can do justice to this massive South Korean-made video security powerhouse. Simply put, IC Realtime's EL128-4U12MP1 is the world's largest and most capable TAA compliant network video recorder.

To see the incredible EL128-4U12MP1, call your local IC Realtime distributor, or call your IC Realtime factory rep toll-free at (866) 997-9009.

A product specialist will do a no-obligation, live online demo & answer all your questions about the EL128 or about any product in the IC Realtime Video Ecosystem, including our new integration-compatible Dash series video doorbells & yard light intercom cameras. Also, ask about IC Realtime's industry-leading warranties, our concierge-level Dealer Program, and our U.S. based Tech Support for dealers, installers, integrators, and even end-users with your authorization.

Key Features

• 128 Ch | Up To 12MP | 384Mbps Bandwidth
• 16 HDDs | Up To 10TB/HDD | Raid 0/1/5/10
• ICR OS 4.0 | 4 Gigabit RJ-45 | AI + IVS Support
• 4 USB | Alarm 16/8 | 2 HDMI + VGA + Built-In Screen
• ONVIF 2.4 | 4U | Rack Mountable
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Technical Specifications

System
Main Processor
Industrial Multi-core Processor
Operating System
ICR OS 4.0 (Embedded LINUX)
Display
Display Interface
2 HDMI (Different Source), 1 VGA, 1 Built in screen
Display Resolution
HDMI1/HDMI2
3840 x 2160@30 fps, 3840 x 2160 @25 fps, 1920 x 1080, 1280 x 1024, 1280 x 720
VGA
1920 x 1080, 1280 x 1024, 1280 x 720
Front Panel Screen
1920 x 1080, 1280 x 1024, 1024 x 768
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Fisheye Dewarp
Support
Display Split
1st Screen: 1/4/8/9/16/25/36/64
2nd Screen: 1/4/8/9/16
Display Out Max Decode
4ch@4K, 16-ch@1080p (30 fps)
Intelligence
IVS
(Supported by camera)
Tripwire and Intrusion, Missing and Abandoned object
Advanced Intelligent Functions
(All AI functions are supported by camera)
Perimeter Protection
Tripwire & intrusion; Recognition of human and vehicle (24 Channels)
Intelligent Motion Detect
Human/ Vehicle Recognition (32 channels)
Face Detection/ Recognition, Heat Map and People Counting (24 channels)
Video Metadata (12 Channels)
ANPR
License Plate Recognition (8 channels)
(AI By Recorder)
Fisheye Dewarp
Video
Supported Camera Types
IP
IP Camera Input
128 Channel
Trigger Events
Perimeter protection, face detection, face recognition, iMD, video metadata
(Human, motor-vehicle, non-motor vehicle), ANPR, people counting, stereo analysis, crowd distribution, heatmap, video quality diagnosis
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
Playback
128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/of
Backup Mode
Hard drive, USB device, eSATA device
Bit Rate
16Kbps ~ 20Mbps Per Channel
Audio
Compression
MP2/G726/G729/G722/G723/G711A/G711U/PCM
Two-way Talk
Supported
Recording
Record Compression
Smart H.265+/ H.265/ Smart H.264+/ H.264/ MPEG4/ MJPEG
Record Resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.
Record Rate
128 * 1.3 MP Cameras at 2Mbp
64 * 2 MP Cameras at 4Mbps
64 * 3 MP Cameras at 4Mbps
42 * 6 MP Cameras at 6Mbp
42 * 12 MP Cameras at 6Mbps
Record Mode
Manual, Schedule (General, MD (Motion Detection), Alarm, MD & Alarm, Intelligent, POS)
Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, post-record: 10 ~ 300 sec
Storage
Internal HDD
16 SATA Ports, up to 10 TB capacity for each HDD
HDD Mode
Single, Group; RAID 0/1/5/6/10
eSATA
1 eSATA Port (Please contact technical engineer to confirm the compatible device)
Network
Ethernet
4 RJ-45 Ports (10/100/1000Mbps)
Supports Multi-Addressing, Fault Tolerance and Load Balance
Protocol
HTTP, HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Supports IC Realtime and ONVIF devices) P2P, iSCSI
Compatibility
ONVIF 2.4 Conformant. Works with ONVIF compliant IP cameras.
Max. User Access
128 Users
Web Viewer
IE, Chrome, Firefox, Edge, Safari
Management Software
Smart ICRSS, DSS
Smart Phone
iPhone, iPad, Android
Interface
RS232
1 Port, for PC Communication and Keyboard
RS485
1 Port, for PTZ Control
USB
4 USB Ports (2 front USB 2.0, 2 rear USB 3.0)
Electrical
Power Supply
Redundant, AC100V-240V, 50-60 Hz
Power Consumption
<51W (Without HDD)
Environmental
Operating Conditions
+14 Degrees F ~ +131 Degrees F (-10 Degrees C ~ +55 Degrees C), 86 ~ 106kpa
Storage Conditions
-4 Degrees F ~ +158 Degrees F (20 Degrees C ~ +70 Degrees C)
Construction
Installation
Rack-mountable
Dimensions
3U, 19.1” x 20.9” x 5 .2” (485mm x 529.9mm x 133.2mm)
