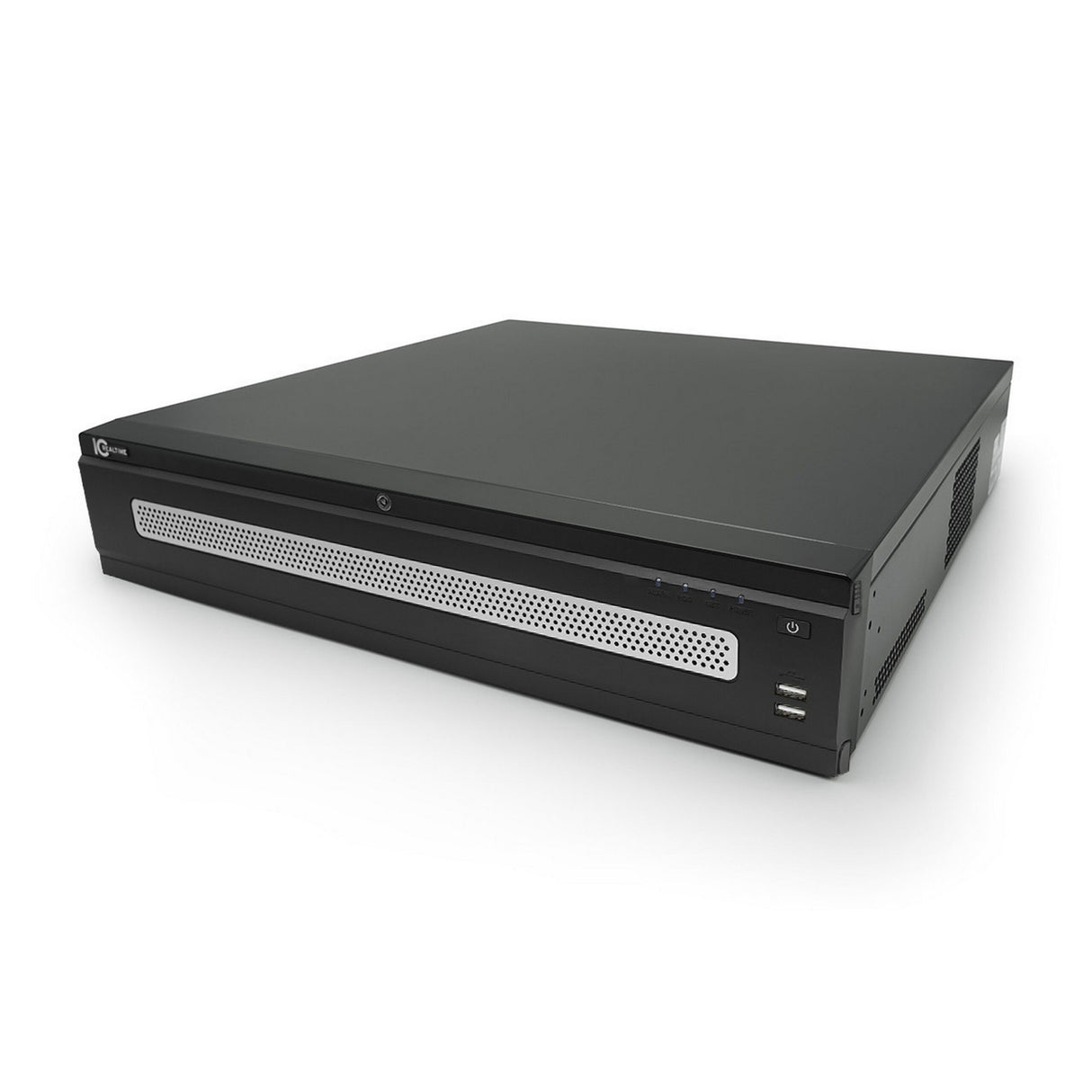

IC Realtime NVR-EL64-2U12MP1 64 Channel 2U 4K Network Video Recorder, 10TB HDD
When your system design requires robust video storage with the capability of managing up to 64 channels, the IC Realtime NVR-EL64-2U12MP1 is the ideal solution. This high-performance network video recorder, manufactured in South Korea, features a 2U chassis that supports up to 8 SATA III hard drives, providing massive storage capacity. It is perfect for extensive surveillance needs such as those for greenhouses, large warehouses, and multi-location camera feeds from fast-food and retail outlets.
The NVR-EL64 is the second-largest NVR offered by IC Realtime, positioned just below the 128-channel NVR-EL128-4U12MP1. This model comes with enhanced video management features, including the latest ICR O/S 4.0, upgraded graphical user interface, and advanced cybersecurity dashboard. Its unique hot-swappable hard drive garage with front access makes RAID configurations and hard drive replacements effortless. Additionally, it features advanced AI capabilities such as Intelligent Motion Detection (IMD), perimeter protection, face detection, and more, making it a formidable choice for comprehensive video surveillance systems.
All these features and more make the NVR-EL64-2U12MP1 an unparalleled choice for large-scale video surveillance applications. It offers superior processing power, extensive connectivity options, and exceptional reliability, matched with a 10-year limited warranty, making it a long-term investment for secure and efficient surveillance.
Key Features
- Supports up to 64 channels with up to 12MP resolution
- 384Mbps bandwidth
- 10TB HDD capacity
- RAID 0/1/5/6/10 support
- ICR OS 4.0
- AI + IVS support
- 2 Gigabit RJ-45 ports
- 4 USB ports
- Alarm input/output: 16/8
- 2 HDMI and 1 VGA ports
- ONVIF 2.4 compliant
- 2U rack mountable
- Made in South Korea, conforms to the Trade Agreements Act (TAA)
Specifications
- Main Processor: Intel Multi-core Processor
- Operating System: ICR OS 4.0 (Embedded LINUX)
- Display Interface: 2 HDMI (Different Source), 1 VGA
- Display Resolution: HDMI1/HDMI2: 3840 x 2160@25/30 fps, 1920 x 1080, 1280 x 1024, 1280 x 720; VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
- OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
- Fisheye Dewarp: Supported
- Display Split: 1st Screen: 1/4/8/9/16/25/36/64; 2nd Screen: 1/4/8/9/16
- Max Decode: 4 channels @ 4K, channels @1080p (30 fps)
- IVS: Tripwire and Intrusion, Missing and Abandoned object
- Perimeter Protection: Tripwire & intrusion; Recognition of human and vehicle (24 Channels)
- Intelligent Motion Detect: Human/Vehicle Recognition (32 channels)
- Face Detection/Recognition, Heat Map and People Counting (24 channels)
- Video Metadata (12 Channels)
- ANPR: License Plate Recognition (8 channels)
- 3D Analysis (BETA): (32 channels)
- Supported Camera Types: IP
- IP Camera Input: 64 Channel
- Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
- Playback: Supports 1/4/9/16 split view
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode: USB Device/Network/eSATA Device
- Streaming Capability: 2
- Audio Compression: MP2/G726/G729/G722/G723/G711A/G711U/PCM
- Two-way Talk: Supported
- Record Compression: Smart H.265+/H.265/Smart H.264+/H.264/MPEG4/MJPEG
- Record Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.
- Record Rate: 384Mbps
- Record Mode: Manual, Schedule (General, MD (Motion Detection), Alarm, MD & Alarm, Intelligent)
- Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, post-record: 10 ~ 300 sec
- Internal HDD: 8 SATA III Ports, up to 10 TB capacity for each HDD
- HDD Mode: Group; Raid 0/1/5/6/10
- eSATA: 1 eSATA Port
- Ethernet: 2 RJ-45 Ports (10/100/1000Mbps)
- Protocol: HTTP, HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Supports IC Realtime and ONVIF devices), P2P
- Compatibility: ONVIF (profile T/S/G), CGI, SDK. Works with ONVIF compliant IP cameras.
- Max. User Access: 128 Users
- Web Viewer: IE, Chrome, Firefox, Edge, Safari
- Management Software: Smart ICRSS, DSS
- Smart Phone: iPhone, iPad, Android
- RS232: 1 Port, for PC Communication and Keyboard
- RS485: 1 Port, for PTZ Control
- USB: 4 USB Ports (2 USB 2.0, 2 USB 3.0)
- Power Supply: AC100V ~ 240V, 50 ~ 60 Hz
- Power Consumption: less than 20W (Without HDD)
- Operating Conditions: +14 Degrees F ~ +131 Degrees F (-10 Degrees C ~ +55 Degrees C), 86 ~ 106kpa
- Storage Conditions: -4 Degrees F ~ +158 Degrees F (20 Degrees C ~ +70 Degrees C)
- Installation: Rack-mounted
- Dimensions: 2U, 17.3ā x 17.8ā x 3.7ā (40mm x 451.08mm x 94.85mm)
Package Contents
- IC Realtime NVR-EL64-2U12MP1
- 10TB HDD
