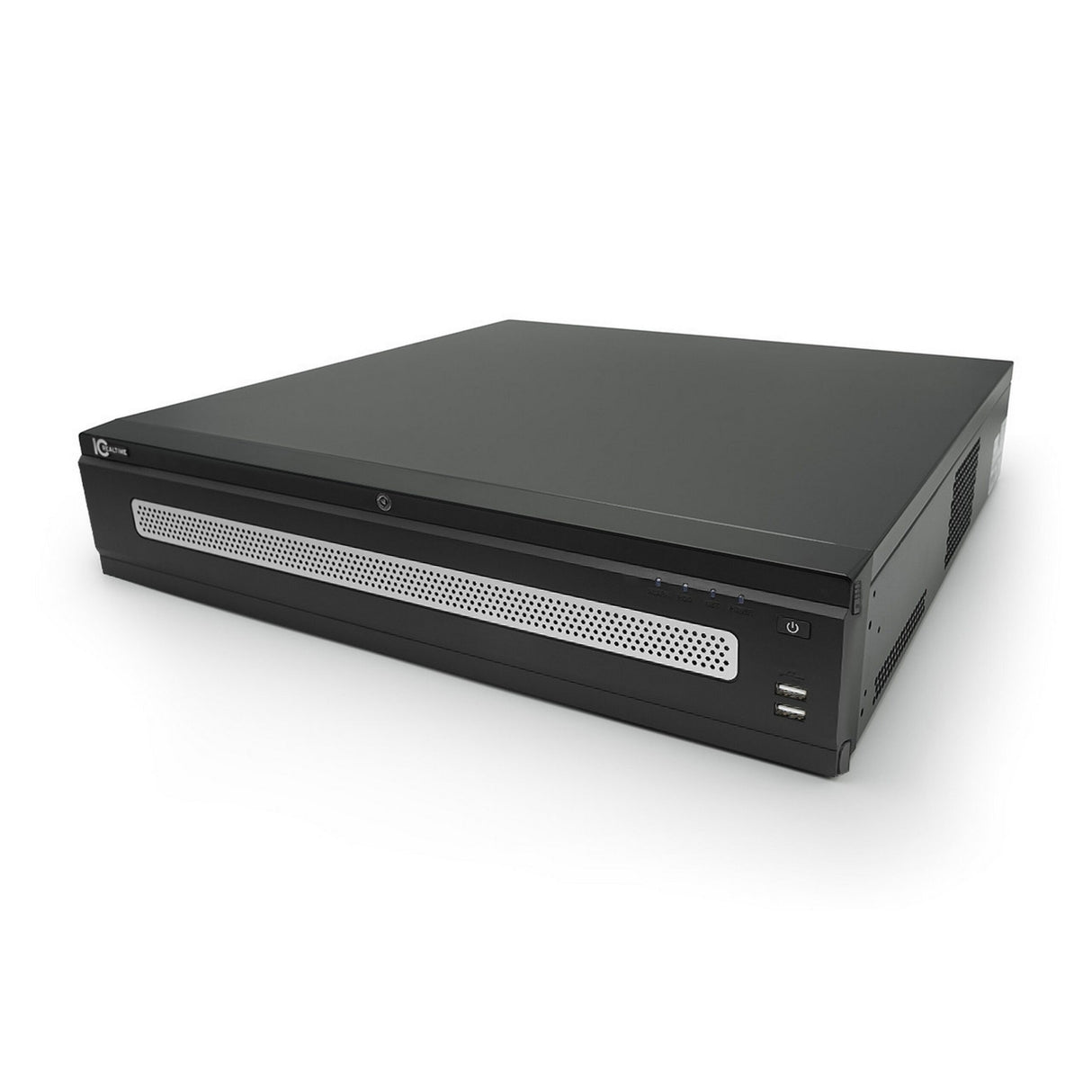

IC Realtime NVR-EL64-2U12MP1 64 Channel 2U 4K Network Video Recorder, 30TB HDD

When your system design calls for access to up to 64 channels of video storage, accompanied by the required video processing overhead and massive hard drive capacity, IC Realtime’s new South Korean-made NVR-EL64-2U12MP1 stands out as the perfect solution. This impressive device, built within a 2U chassis, supports up to 8 SATA III hard drives and offers a throughput of 384Mbs, making it the ideal choice for greenhouses, large warehouses, or as a central video vault for local or remote camera feeds from fast food and retail locations.

The NVR-EL64 is one of the largest NVRs available on the market today, second only to the NVR-EL128-4U12MP1. This model supports a maximum of 80TB onboard storage when equipped with eight 10TB hard drives. Featuring the new ICR OS 4.0, the NVR-EL64 also introduces a redesigned Graphical User Interface and an updated cybersecurity dashboard, optimized for setups with a large number of camera locations. Capable of handling as many as 12 4K cameras up to 12MP each, this NVR even has built-in de-warping capabilities for 360-degree cameras.

The NVR-EL64 boasts a unique feature among its peers: a hot-swappable, front-access hard drive array, allowing you to easily swap out drives without de-racking or opening the case. This feature is particularly beneficial for RAID array setups, as the device supports multiple hard drive modes, including single, RAID 0/1/5/6/10, and Global HDD hot spare. The device also includes digital records preservation features such as “Hot Standby” capability for ensuring a secure failover system.

For those needing a network video recorder with massive channel capacity and connectivity in a 2U rack space, the NVR-EL64 is the ideal choice. Featuring dual IP and HDMI ports along with RCA audio in/out for two-way communication, the device includes a complete suite of FlexSmartAI intelligent features. Its wide-ranging OnVif 2.4 compatibility ensures that even non-IC Realtime cameras will work seamlessly with this model. Thanks to its HTML5 compatibility, there’s no need for browser plug-ins, making it easy to view camera feeds on common browsers.

Key Features

• 64 Channels | Up To 12MP | 384Mbps Bandwidth

• 30TB /HDD | RAID 0/1/5/6/10 Support

• ICR OS 4.0 | 2 Gigabit RJ-45 | AI + IVS Support

• 4 USB | Alarm 16/8 | 2 HDMI + 1 VGA

• OnVIF 2.4 | 2U | Rack Mountable

• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Specifications

• Main Processor: Intel Multi-core Processor

• Operating System: ICR OS 4.0 (Embedded LINUX)

• Display Interface: 2 HDMI (Different Source), 1 VGA

• Display Resolution: HDMI1/HDMI2: 3840 x 2160@25/30 fps, 1920 x 1080, 1280 x 1024, 1280 x 720; VGA: 1920 x 1080, 1280 x 1024, 1280 x 720

• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

• Fisheye Dewarp: Supported

• Display Split: 1st Screen: 1/4/8/9/16/25/36/64, 2nd Screen: 1/4/8/9/16

• Max Decode: 4 channels @ 4K, channels @1080p (30 fps)

• IVS: Supported by camera, Tripwire and Intrusion, Missing and Abandoned object

• Advanced Intelligent Functions: All AI functions supported by camera

• Perimeter Protection: Tripwire & intrusion, Recognition of human and vehicle (24 Channels)

• Intelligent Motion Detect: Human/ Vehicle Recognition (32 channels)

• Face Detection/ Recognition, Heat Map, People Counting: 24 channels

• Video Metadata: 12 Channels

• ANPR: 8 Channels

• 3D Analysis (BETA): 32 Channels

• Fisheye Dewarp

• Supported Camera Types: IP

• IP Camera Input: 64 Channel

• Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

• Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering

• Playback: Supports 1/4/9/16 split view

• Search Mode: Time /Date, Alarm, MD, Exact Search (accurate to second)

• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

• Backup Mode: USB Device/Network/eSATA Device

• Streaming Capability: 2

• Audio Compression: MP2/ G726/ G729/ G722/ G723/ G711A/ G711U/ PCM

• Two-way Talk: Supported

• Record Compression: Smart H.265+/ H.265/ Smart H.264+/ H.264/ MPEG4/ MJPEG

• Record Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P

• Record Rate: 384Mbps

• Record Mode: Manual, Schedule (General, MD, Alarm, MD & Alarm, Intelligent)

• Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, post-record: 10 ~ 300 sec

• Internal HDD: 8 SATA III Ports, up to 10 TB capacity for each HDD

• HDD Mode: Group, RAID 0/1/5/6/10

• eSATA: 1 Port

• Ethernet: 2 RJ-45 Ports (10/100/1000Mbps)

• Protocol: HTTP, HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Supports IC Realtime and ONVIF devices) P2P

• Compatibility: ONVIF (profile T/S/G), CGI, SDK. Works with ONVIF compliant IP cameras.

• Max. User Access: 128 Users

• Web Viewer: IE, Chrome, Firefox, Edge, Safari

• Management Software: Smart ICRSS, DSS

• Smart Phone: iPhone, iPad, Android

• RS232: 1 Port, for PC Communication and Keyboard

• RS485: 1 Port, for PTZ Control

• USB: 4 USB Ports (2 USB 2.0, 2 USB 3.0)

• Power Supply: AC100V ~ 240V, 50 ~ 60 Hz

• Power Consumption: <20W (Without HDD)

• Operating Conditions: +14 Degrees F ~ +131 Degrees F (-10 Degrees C ~ +55 Degrees C), 86 ~ 106kpa

• Storage Conditions: -4 Degrees F ~ +158 Degrees F (20 Degrees C ~ +70 Degrees C)

• Installation: Rack-mounted

• Dimensions: 2U, 17.3” x 17.8” x 3.7” (40mm x 451.08mm x 94.85mm)

Package Contents

• IC Realtime NVR-EL64-2U12MP1 64 Channel 2U 4K Network Video Recorder, 30TB HDD
