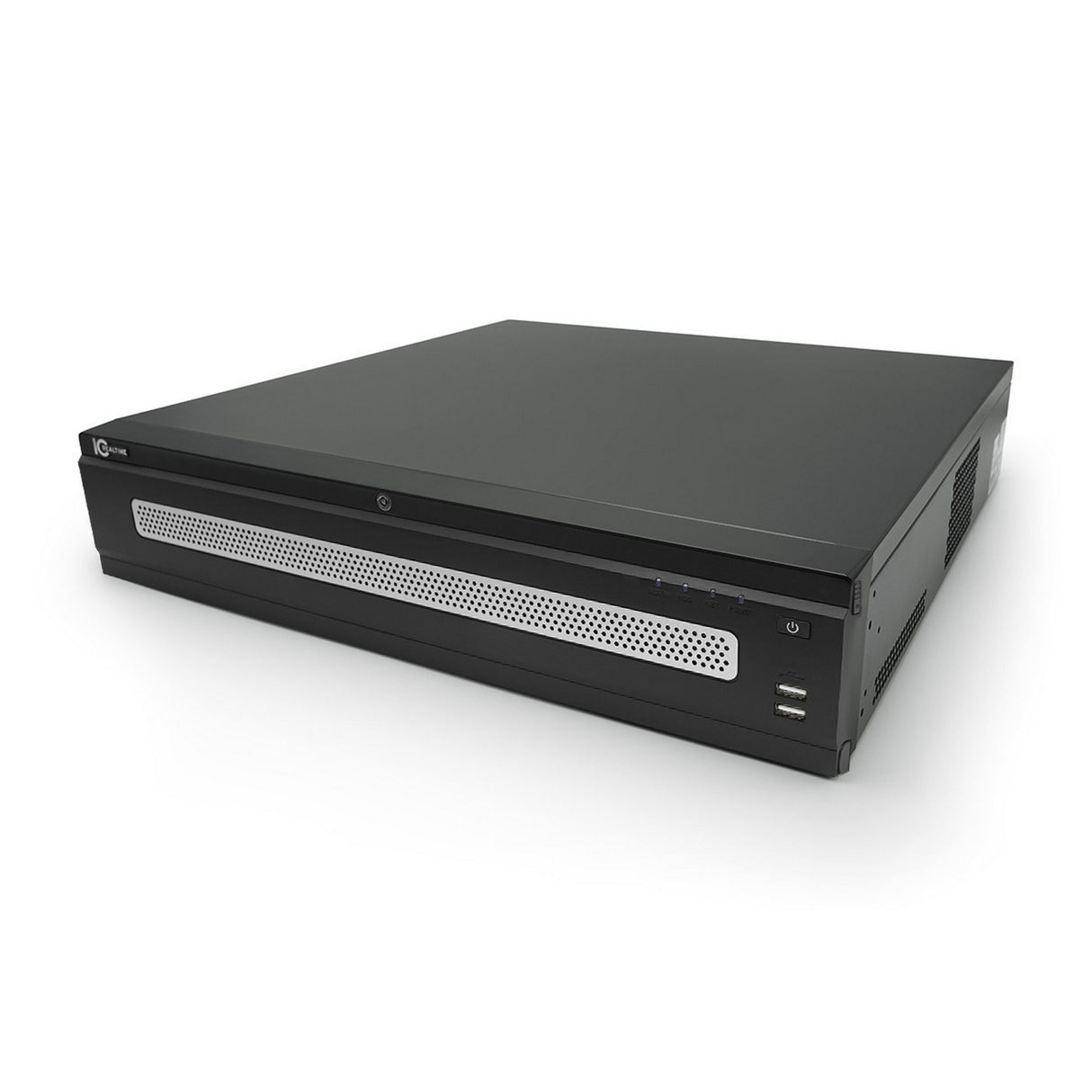

IC Realtime NVR-EL64-2U12MP1 64 Channel 2U 4K Network Video Recorder, 60TB HDD

When your system design requires access to up to 64 channels of video storage with high video processing overhead and massive hard drive capacity, the IC Realtime NVR-EL64-2U12MP1 stands out as the perfect solution. Made in South Korea, this robust 2U network video recorder is engineered to handle intensive surveillance needs. Ideal for large-scale applications such as greenhouses, warehouses, and retail locations, this NVR offers 384Mbs of throughput and is equipped with a powerful multicore embedded processor. It seamlessly supports up to 12MP resolution and provides unparalleled storage capacity with up to 60TB HDD capability.

As one of the largest NVRs available from IC Realtime, the NVR-EL64 replaces the classic NVR-6064K model and is enhanced with the ICR O/S 4.0, complete with a redesigned graphical user interface and an upgraded cybersecurity dashboard. Whether you are utilizing a large number of camera locations or requiring custom throughput allocations, this NVR has you covered. It supports up to 12 – 4K cameras and offers built-in de-warping capabilities for 360-degree cameras. The NVR-EL64 also features a unique hot-swappable, front-access hard drive array, making it easy to switch out hard drives without requiring rack deinstallation.

Complete with dual network ports, dual HDMI local monitor ports, and a VGA port for direct interface, the NVR-EL64 is designed for maximum connectivity and efficiency. Like all EL-Series NVRs, the unit is ONVIF 2.4 compatible and HTML5 compliant, allowing it to be viewed easily from browsers like Firefox and Chrome without requiring plug-ins. From AI-enhanced detection systems to compatibility with third-party devices, the NVR-EL64 is a versatile and robust choice for professional-grade video management and long-term reliability.

Key Features

• 64 Channels | Up To 12MP | 384Mbps Bandwidth
• 60TB HDD | RAID 0/1/5/6/10 Support
• ICR O/S 4.0 | 2 Gigabit RJ-45 | AI + IVS Support
• 4 USB Ports | Alarm 16/8 | 2 HDMI + 1 VGA
• ONVIF 2.4 | 2U | Rack Mountable
• Made in South Korea | TAA Compliant

Specifications

• Main Processor: Intel Multi-core Processor
• Operating System: ICR O/S 4.0 (Embedded LINUX)
• Display Interface: 2 HDMI (Different Source), 1 VGA
• Display Resolution: HDMI1/HDMI2: 3840 x 2160@25/30 fps, 1920 x 1080, 1280 x 1024, 1280 x 720; VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• Fisheye Dewarp: Supported
• Display Split: 1st Screen: 1/4/8/9/16/25/36/64; 2nd Screen: 1/4/8/9/16
• Max Decode: 4 channels @ 4K, channels @1080p (30 fps)
• IVS (Supported by camera): Tripwire, Intrusion, Missing and Abandoned object recognition
• Advanced Intelligent Functions: Perimeter Protection, Intelligent Motion Detect, Face Detection/ Recognition, Heat Map, People Counting, Video Metadata, ANPR: License Plate Recognition, 3D Analysis
• IP Camera Input: 64 Channel
• Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
• Playback: Supports 1/4/9/16 split view
• Search Mode: Time /Date, Alarm, MD and Exact Search
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Digital Zoom
• Backup Mode: USB Device/Network/eSATA Device
• Streaming Capability: 2
• Compression: MP2, G726, G729, G722, G723, G711A, G711U, PCM
• Two-way Talk: Supported
• Record Compression: Smart H.265+, H.265, Smart H.264+, H.264, MPEG4, MJPEG
• Record Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
• Record Rate: 384Mbps
• Record Mode: Manual, Schedule (General, MD, Alarm, MD & Alarm, Intelligent)
• Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
• Internal HDD: 8 SATA III Ports, up to 10 TB capacity for each HDD
• HDD Mode: Group; Raid 0/1/5/6/10
• eSATA: 1 eSATA Port
• Ethernet: 2 RJ-45 Ports (10/100/1000Mbps)
• Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P
• Compatibility: ONVIF (profile T/S/G), CGI, SDK. Works with ONVIF compliant IP cameras.
• Max. User Access: 128 Users
• Web Viewer: IE, Chrome, Firefox, Edge, Safari
• Management Software: Smart ICRSS, DSS
• Smart Phone: iPhone, iPad, Android
• RS232: 1 Port, for PC Communication and Keyboard
• RS485: 1 Port, for PTZ Control
• USB: 4 USB Ports (2 USB 2.0, 2 USB 3.0)
• Power Supply: AC100V ~ 240V, 50 ~ 60 Hz
• Power Consumption: <20W (Without HDD)
• Operating Conditions: +14 Degrees F ~ +131 Degrees F (-10 Degrees C ~ +55 Degrees C), 86 ~ 106kpa
• Storage Conditions: -4 Degrees F ~ +158 Degrees F (20 Degrees C ~ +70 Degrees C)
• Installation: Rack-mounted
• Dimensions: 2U, 17.3” x 17.8” x 3.7” (40mm x 451.08mm x 94.85mm)

Package Contents

• IC Realtime NVR-EL64-2U12MP1
• Rack ears
